Anthony Thomas

[Anthony Thomas @Anthony_T05]

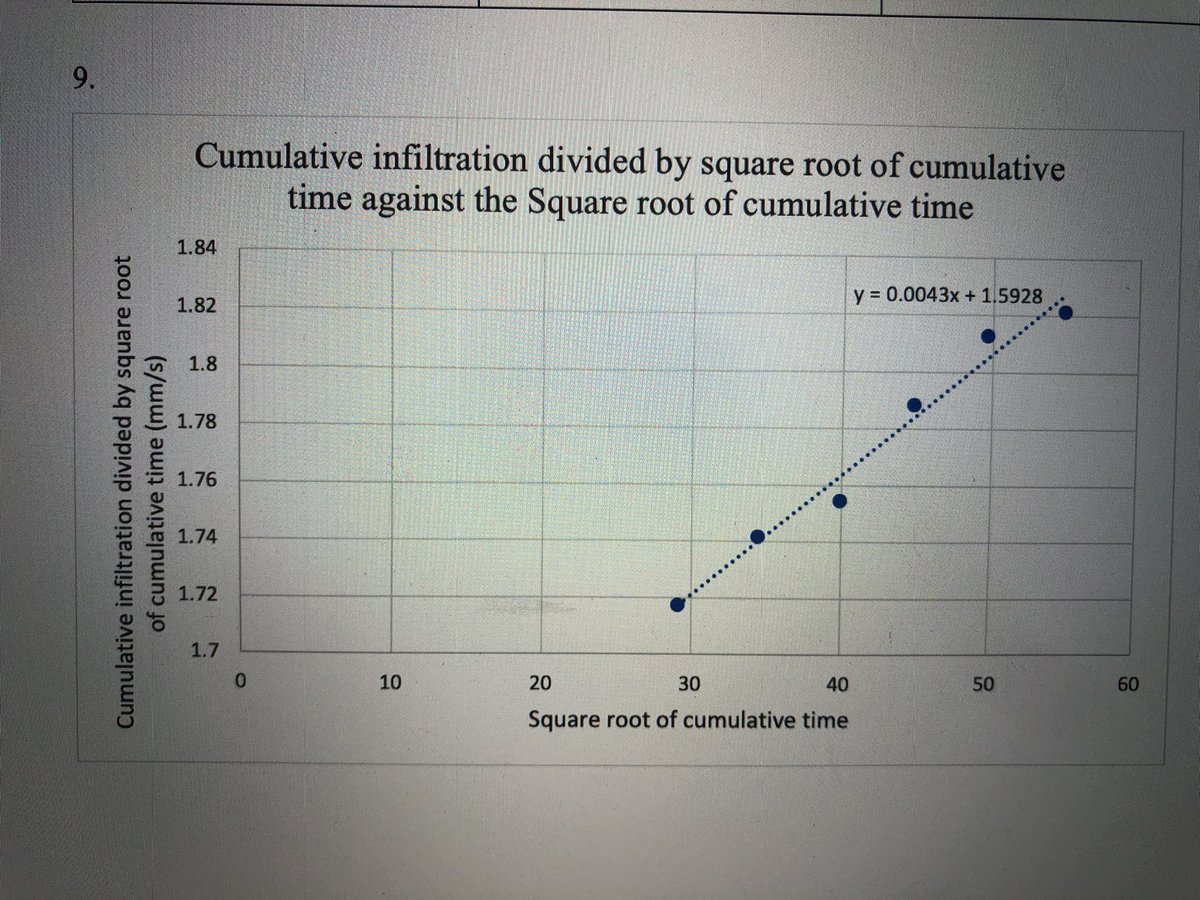

These other pictures are the rest of exercise 3 of the #hydrologyathome2021

[Anthony Thomas @Anthony_T05]

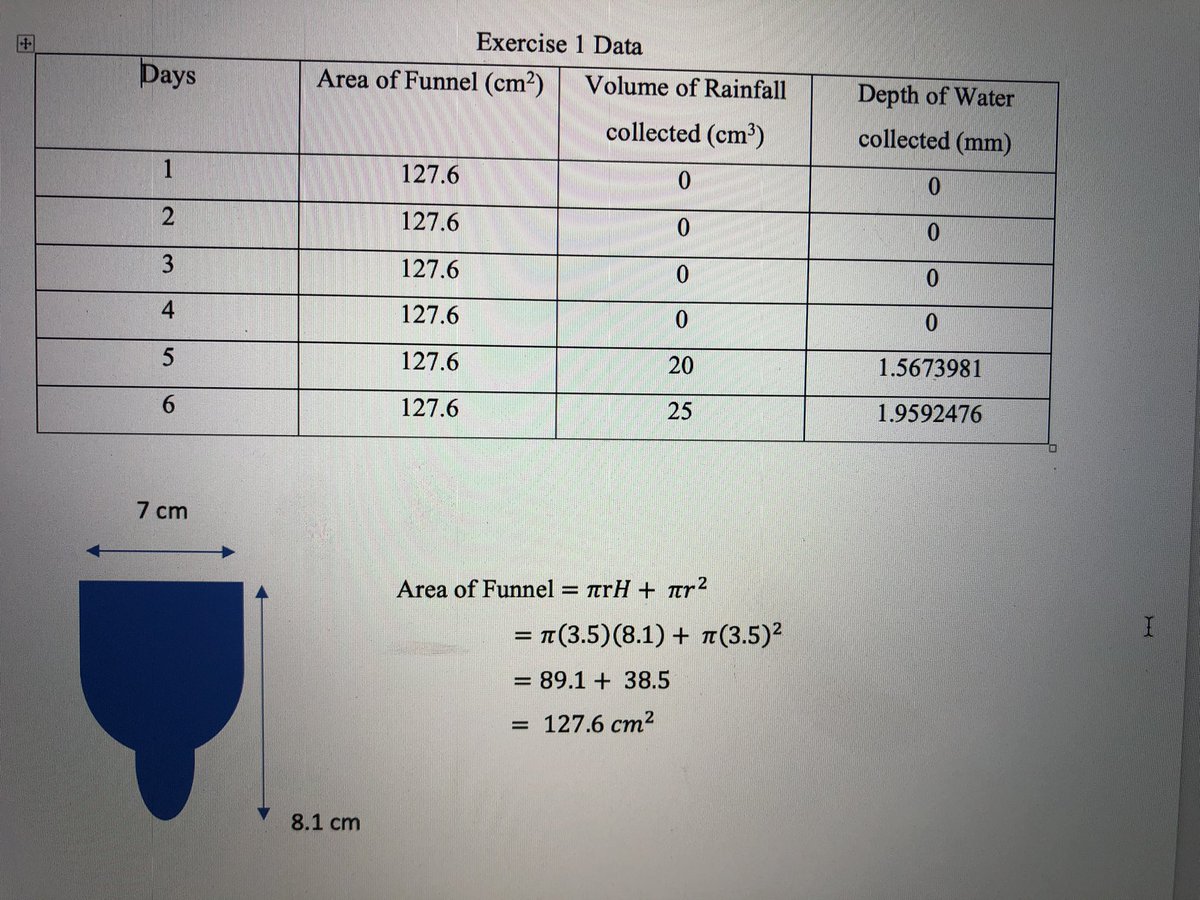

Hydrologers, the end to #hydrologyathome2021 has arrived, but that’s okay the following pictures are all the data collected over the three exercises which would give a better understanding of everything.

[Anthony Thomas @Anthony_T05]

Unfortunately today when I went to test my home made infiltrometer rain began to fall therefore it had not made sense to test infiltration as the soil would have been saturated therefore getting poor results #hydrologyathome2021

[Anthony Thomas @Anthony_T05]

The soil compaction to me also indicate that the soil is also containing clay and after having done an at home soil test the soil is classified as clay

[Anthony Thomas @Anthony_T05]

Today began the organising of exercise 3 of #hydrologyathome2021. While doing so I came to the realisation I have very compacted soil in my backyard due to constant human and dog activities therefore making it too difficult to try n place the infiltrometer in the soil.

[Anthony Thomas @Anthony_T05]

The pvc cutting is my design of an infiltrometer. It’s diameter is 8.9cm with a height of 9cm. The ring of tape is marking the 2cm depth for when it is placed in the soil. The volume of water being used is 200ml based on the diameter size but still make adjustments as I continue

[Anthony Thomas @Anthony_T05]

The dark overcast clouds indicated signs of rainfall was due to occur but never did. #stressofresearch #hydrologyathome2021

[Anthony Thomas @Anthony_T05]

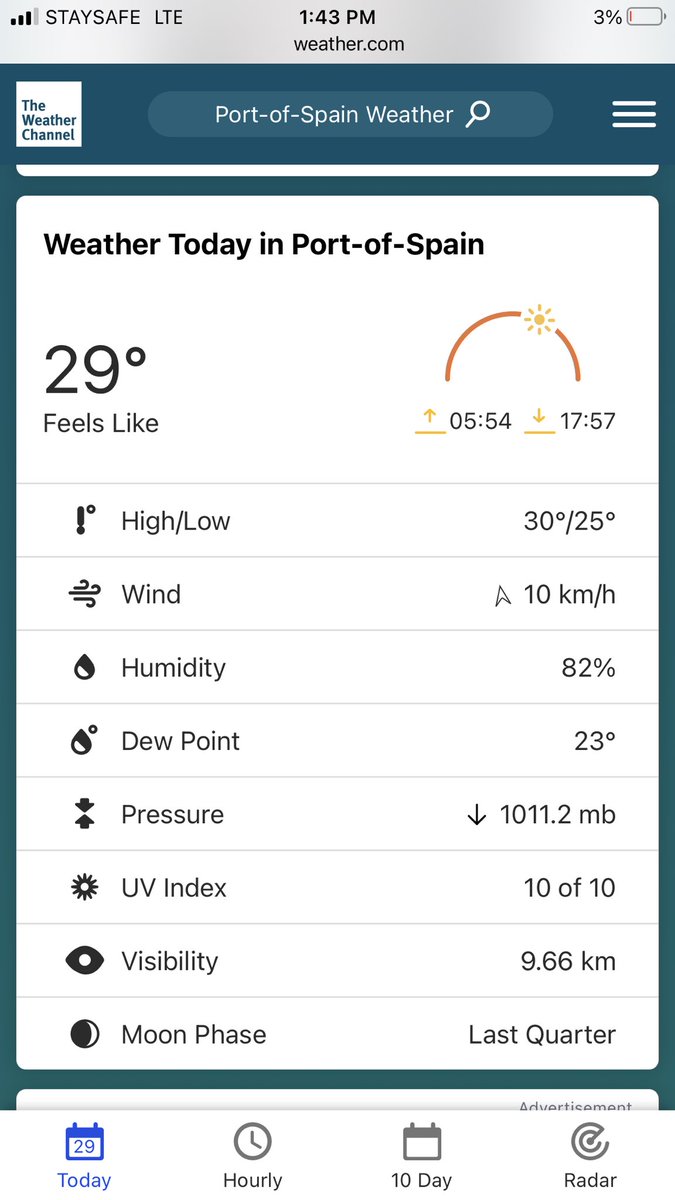

Day 5, the last day of exercise 2. Extremely hot and humid.
The readings are as follows:
Gross Rainfall Gauge: 5ml
Interception Gauge 1: 0ml
Interception Gauge 2: 2.5ml
These readings are showing once again how a multitude of things can affect the through-fall readings.
🔆⛈🌦⬇️

[Anthony Thomas @Anthony_T05]

This morning the sun was out high and bright in the sky with little to no breeze, having the area feeling like 100 degrees- exaggerating but these temperatures and the hail falling in Arouca yesterday are sure signs of climate change🤷‍♂️ #ClimateEmergency

[Anthony Thomas @Anthony_T05]

Today is day 4 of exercise 2 and the readings are as follows:
Gross Rainfall Gauge: 150ml
Interception Gauge 1: 110ml
Interception Gauge 2: 65ml

First time since I started #hydrologyathome2021 I have received such high readings��

[Anthony Thomas @Anthony_T05]

Was a hot sunny day but a large cloud of rain covered my location and rain is now falling #Weathercloud

[Anthony Thomas @Anthony_T05]

Nice day out #hydrologyathome2021 #Geography

[Anthony Thomas @Anthony_T05]

The interception gauges readings indicate to me that the canopy that the vegetation makes is either absorbing the water, the water is sticking to the plant due to adhesion forces, or the down pour of rainfall was not powerful enough to intercept the canopy of vegetation.

[Anthony Thomas @Anthony_T05]

After the isolated showers yesterday, the sun is out high and bright, and the plants green and erect. Today, day 3 of the second exercise of #hydrologyathome2021 the readings are as follows:
Gross rainfall: 10ml
Interception gauge 1: 5ml
Interception gauge 2: 3ml

[Anthony Thomas @Anthony_T05]

Thus causing sunny skies and high temperatures feeling like 40 degrees Celsius but in reality the temperature is around 34 degrees Celsius #hydrologyathome2021

[Anthony Thomas @Anthony_T05]

So today the readings were as follows Gross rainfall- 10ml, Interception Gauge 1- 0ml and Interception Gauge 2- 0ml unfortunately for the next 3 days there will be little to no rainfall readings due to a trough extending southwest of hurricane Sam slackening the pressure gradient

[Anthony Thomas @Anthony_T05]

The vegetation interception is being measure for is a merengue canopy and merengue and cherry canopy

[Anthony Thomas @Anthony_T05]

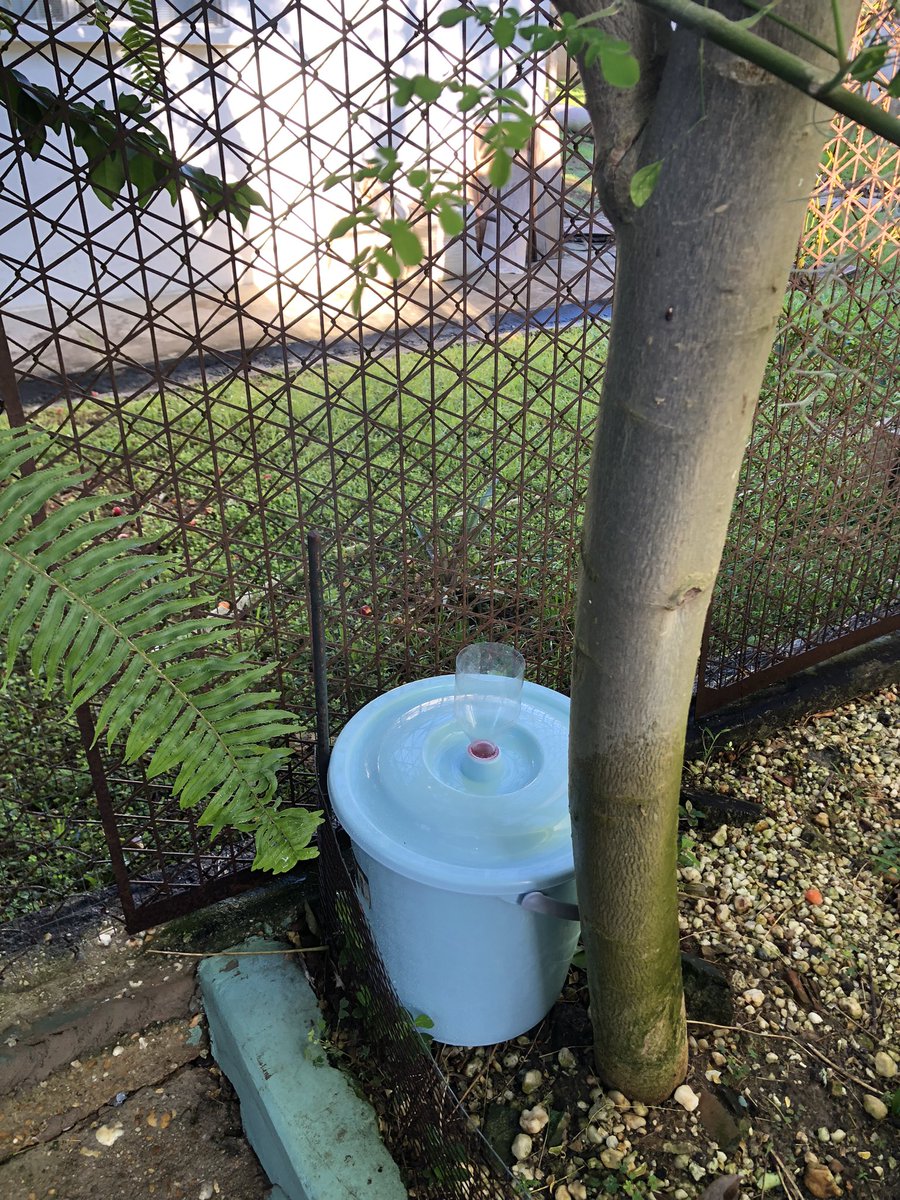

Day 2 of the second exercise the reading in the rain gauges measuring interception was “0” although it had rainfall. Possible reasons for the 0 reading is evaporation because of the short time frame of rainfall either the water evaporated or there was little to no throughfall
