TheWolfblitz7

[TheWolfblitz7 @TheWolfblitz7]

@YukonK9 Good jams

[TheWolfblitz7 @TheWolfblitz7]

@RyanO_ChosenCoy @ARK_Electr0nics No sir, this quad uses FPV type ESCs which are thermally designed for WAY higher currents (5-6 amps compared to like 50-60 amps)

The ARK FPV flight controller also has its own board heater to maintain consistent IMU temperature, so if anything, the inside is cooler than that

[TheWolfblitz7 @TheWolfblitz7]

3D Printed Endurance Quad anyone?

Trying to gauge interest...

Powered by @ARK_Electr0nics

[TheWolfblitz7 @TheWolfblitz7]

@RyanO_ChosenCoy @ARK_Electr0nics I have really good results building planes and quads or of Pure White PLA.

Any other color might struggle a bit. So far I have many hours on this frame and no issues.

[TheWolfblitz7 @TheWolfblitz7]

@Geocomms167640 This is really cool though. I've been meaning to try one of the XIAO boards

[TheWolfblitz7 @TheWolfblitz7]

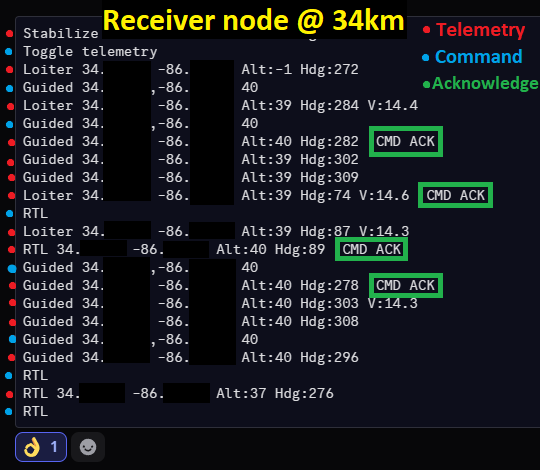

MAVLink over Meshtastic - 34km Mesh test

Meshing around terrain was proven, and telemetry and control is accessible on an encrypted Mesh channel. Multiple drones and multiple users can command simultaneously.

[TheWolfblitz7 @TheWolfblitz7]

I'll DM everyone and post a link about Quad plans once:

1. I find a good website or way to facilitate hosting the plans.
2. Finishing plans for different configurations and accounting for different User-chosen hardware changes

STLs are done

[TheWolfblitz7 @TheWolfblitz7]

@ChrisVolkernick @ARK_Electr0nics If you've never built a drone before, it's tough. The Steam Deck GCS setup is very complex, however if you were to use a regular RC radio and FPV goggles, then it's simpler.

I might make an addendum to account for that.

[TheWolfblitz7 @TheWolfblitz7]

@aero_titanwing @ARK_Electr0nics All true

This airframe is a tiny fraction of the cost in PLA compared to those materials, so for those who prioritize cost, this maxxes out that factor.

[TheWolfblitz7 @TheWolfblitz7]

@xaninmypasta I personally still use Analog because all of my projects are long range, and camera sensor arrays of different sensors are cheaper.

This IR/Thermal optic setup would be at least twice the cost and triple the complexity in digital, just for a bit more picture clarity

[TheWolfblitz7 @TheWolfblitz7]

@xaninmypasta @ARK_Electr0nics 6s1p Amprius

Same cell count but higher voltage for efficiency

[TheWolfblitz7 @TheWolfblitz7]

@xaninmypasta @ARK_Electr0nics Yes. Picture is posted with a 30m flight setup on a 2.2Ah lipo

1 hr 15m setup is a 6 cell Liion

[TheWolfblitz7 @TheWolfblitz7]

@xaninmypasta QGC (supports MAVlink joystick), RFD900X MAVlink Telem and Control, VRX that gives QGC UVC video support, and a hub to connect it all

[TheWolfblitz7 @TheWolfblitz7]

@ConResponse I think I'm getting to that point of pulling the trigger. Gotta figure out the digital side and make it presentable.

Thanks!

[TheWolfblitz7 @TheWolfblitz7]

@alexklimaj @ARK_Electr0nics Yes sir, we use the ARK SAM & RTK at work. They're great

[TheWolfblitz7 @TheWolfblitz7]

@KennedyOkpara8 @Kennyking212 @ARK_Electr0nics I think I'm gonna do it...
I'll link soon

[TheWolfblitz7 @TheWolfblitz7]

@CursedRock17 @ARK_Electr0nics 13" props!

[TheWolfblitz7 @TheWolfblitz7]

@moaazsidat Still gauging interest and a method to distribute. I imagine I'll do it pretty soon

[TheWolfblitz7 @TheWolfblitz7]

@Kennyking212 @ARK_Electr0nics Gauging interest. If I see a decent desire then I will write up plans and a BOM.

[TheWolfblitz7 @TheWolfblitz7]

Looks like its still overtuned, but promising correction
