What do you guys reckon?

[NexGen @Brandon96157486]

Workin on our engineers reports, teams responsibilities and communication. 👁 #tigerzz #pmhstem

[NexGen @Brandon96157486]

Here's a good link for anyone who needs ideas for aerodynamics:🤙🤙
https://t.co/UevzNQxUhN
#tigerzz #pmhstem

[NexGen @Brandon96157486]

Is there anything we can add to our vehicle to enhance its aerodynamics and speed without disadvantages such as weight? 🤔#tigerzz #pmhstem

[NexGen @Brandon96157486]

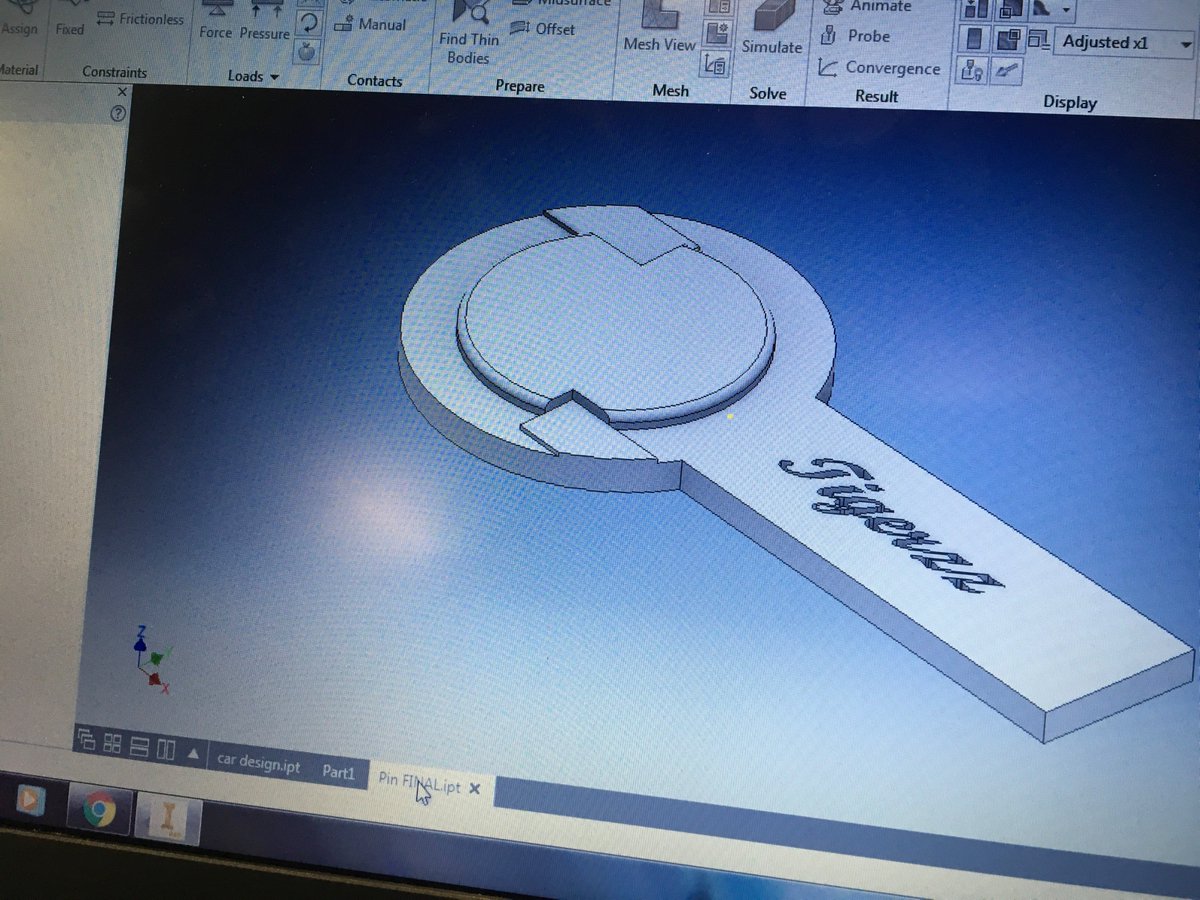

Here is an update of a CAD file of our teams pin. 🤓#tigerzz #pmhstem

[NexGen @Brandon96157486]

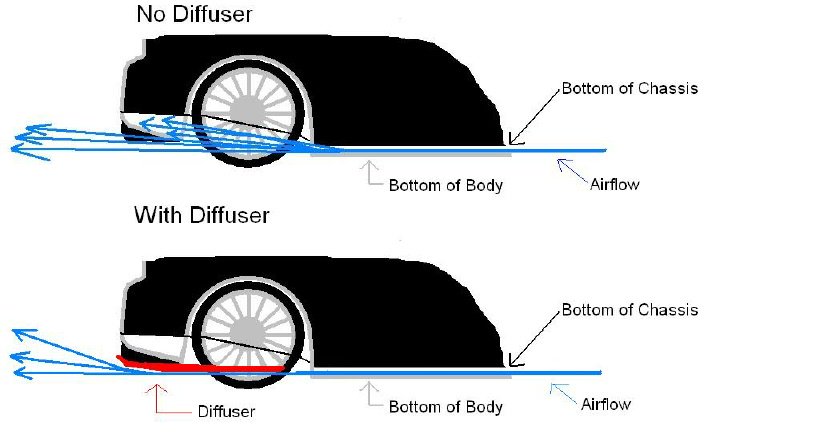

We added a diffuser, goes on the bottom of our car to enhance our F1 cars aerodynamic. 🏎 (F1 car emoji looks like a taxi) #tigerzz #pmhstem

[NexGen @Brandon96157486]

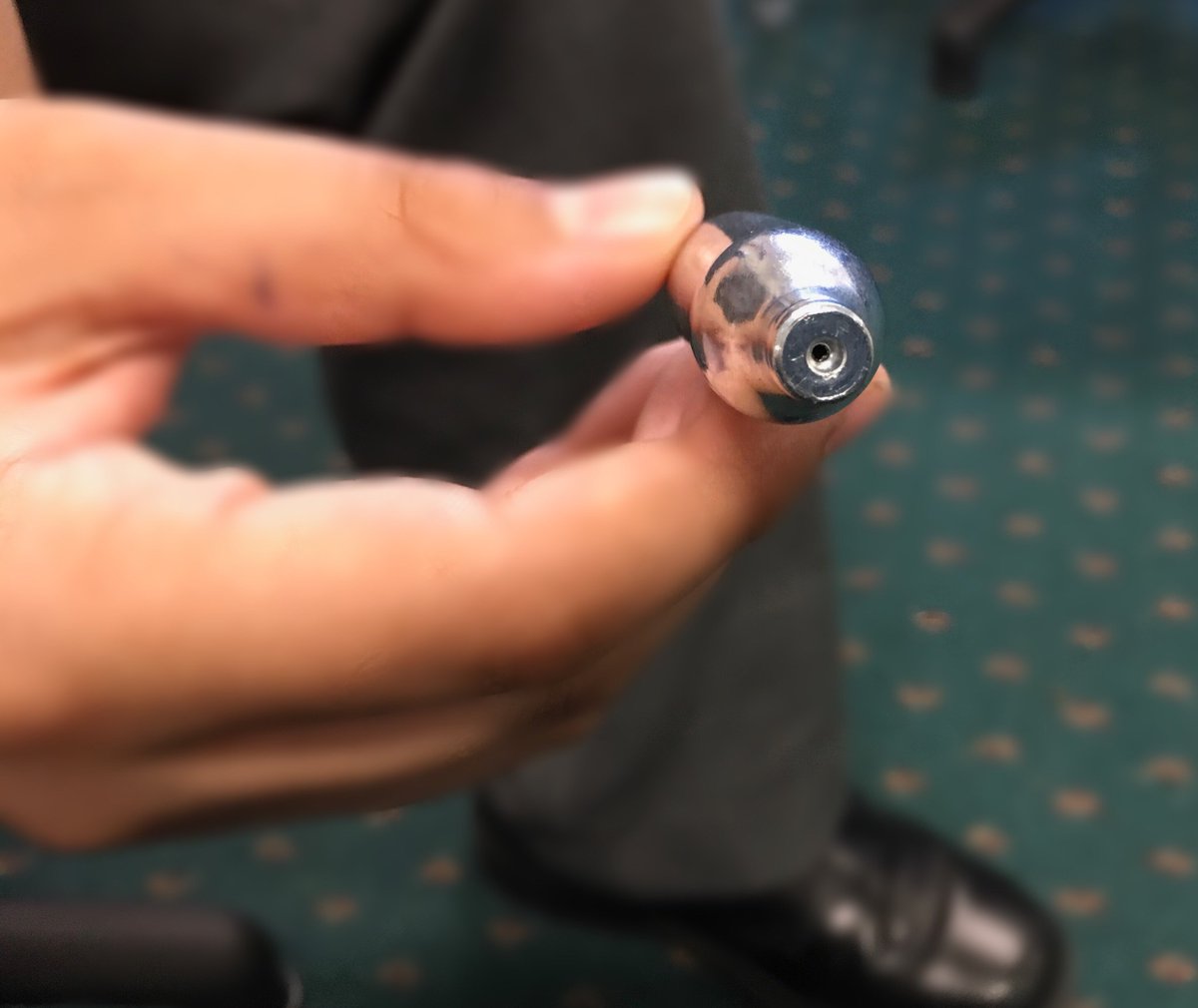

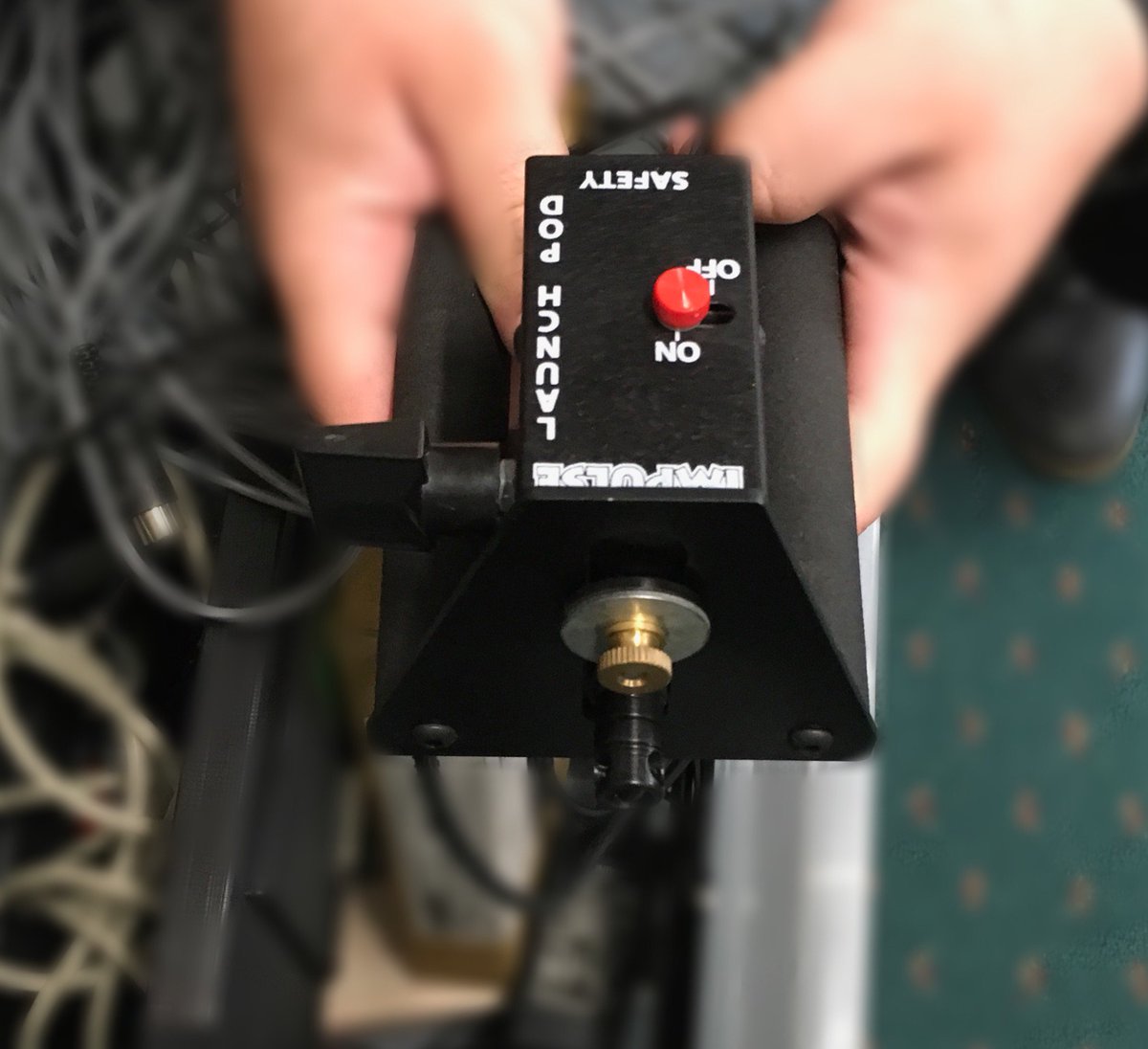

Check the launch device the Co2 uses to release the pressurised gas! Gotta make sure ur not near this thing at launch 😬😬🏎#pmhstem #tigerzz

[NexGen @Brandon96157486]

Here's a reverse cam of the launch from the Co2 can #pmhstem #tigerzz

[NexGen @Brandon96157486]

Here's a vid of our class practice run using the Co2 canisters, this thing averages 80km/hr! #pmhstem #tigerzz

[NexGen @Brandon96157486]

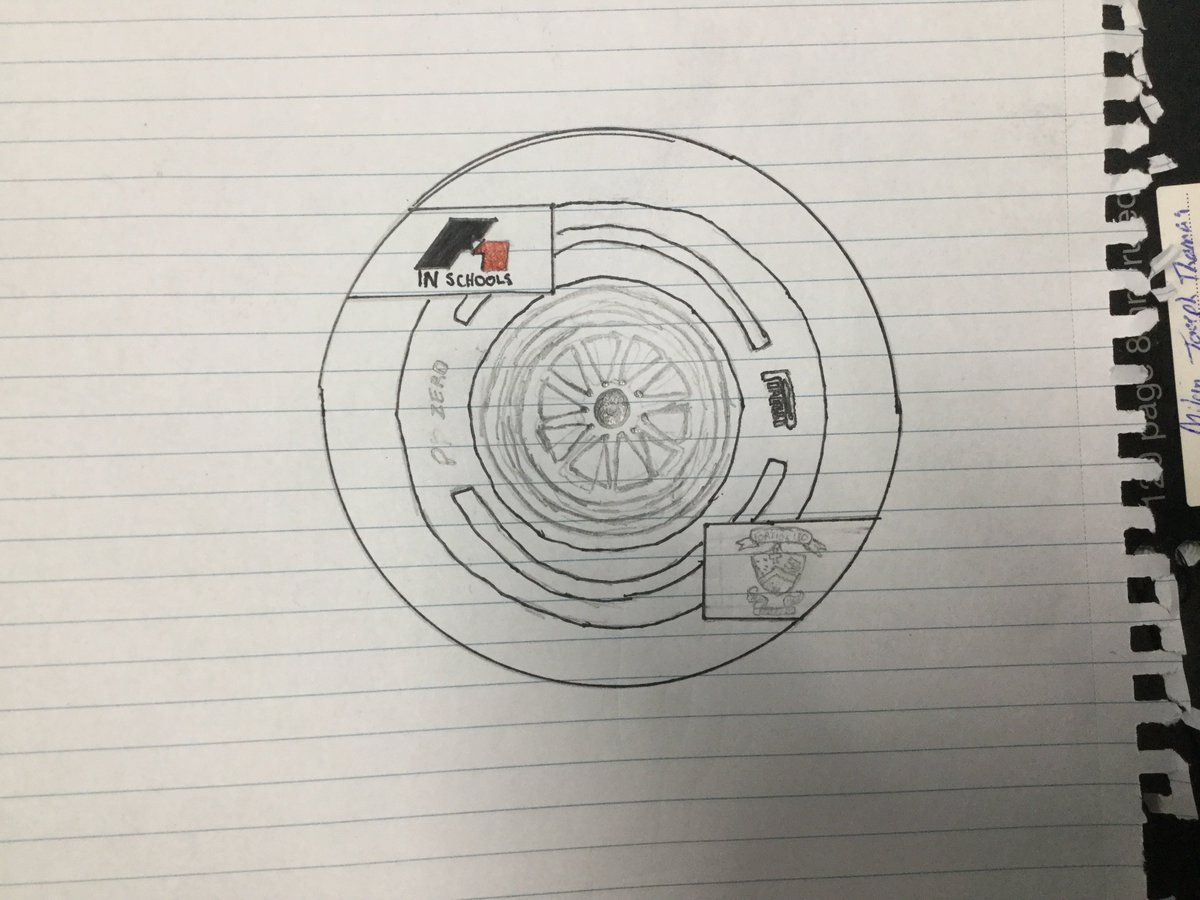

This is our final pin design sketch for our teams badges, it's looking good ain't it? 😎😎😎 #tigerzz #pmhstem

[NexGen @Brandon96157486]

Check this ap
Orange: Friction from air and tyres on the ground
Purple: Is the speed and air distortion around the vehicle
#pmhstem #tigerzz

[NexGen @Brandon96157486]

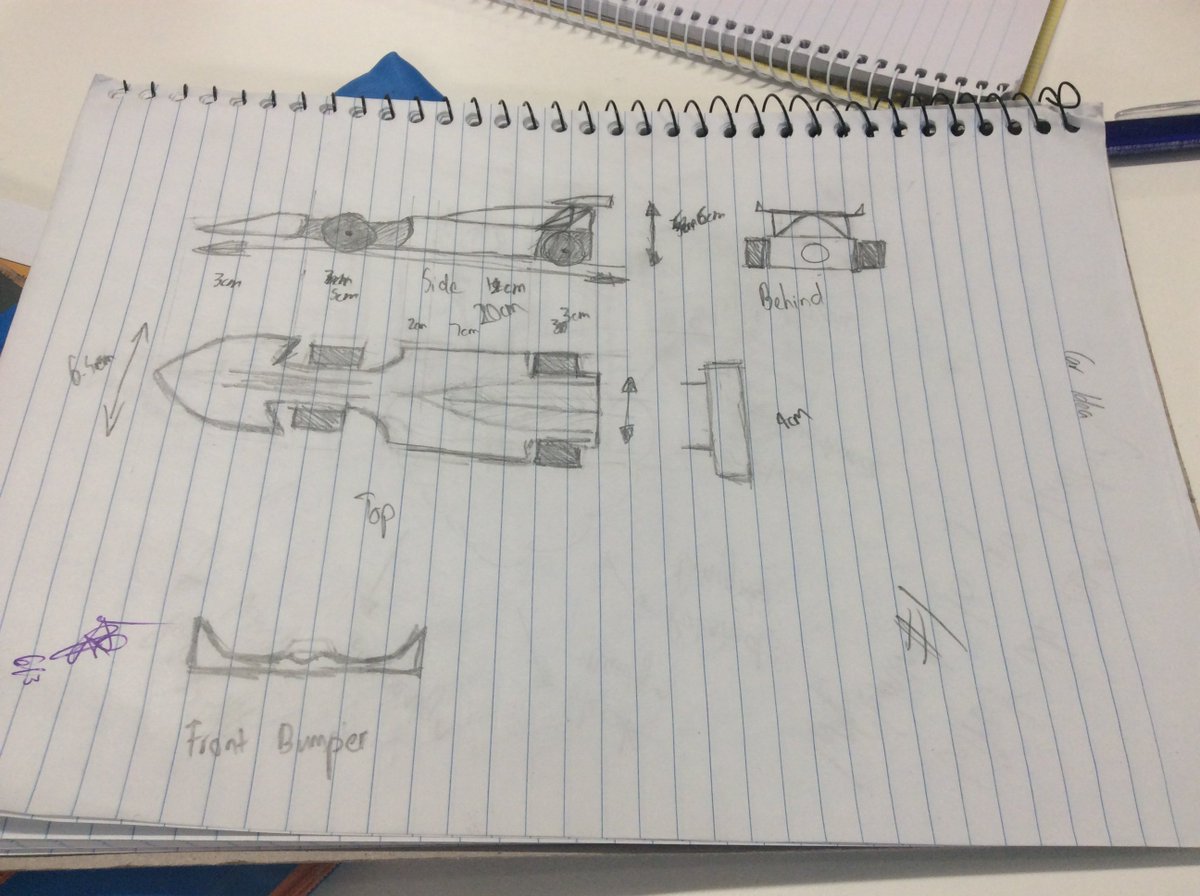

Check our groups first F1 car sketch. Gotta make some changes tho for higher car efficiency, so much work left. 😭#tigerzz #pmhstem

[NexGen @Brandon96157486]

Lol, here is part of our teams impossible worksheet on thrust, good luck if u try.1 person could do it out of 30 boys 😂 #pmhstem #tigerzz

[NexGen @Brandon96157486]

Instead of making our vehicle sleek to glide through the air resistance, are we able to redirect airflow to boost the car?#tigerzz #pmhstem

[NexGen @Brandon96157486]

Long last, finished all these onguard safety tests. Need em for when we start constructing our F1 🏎 #pmhstem #tigerzz

[NexGen @Brandon96157486]

Check out our teams logo stickers, we'll use these on our F1 cars 😎😎 #pmhstem #tigerzz
