🌡️⚡ Why Does Your EV Have a Heat Pump?
Your EV doesn't have a petrol engine producing waste heat so how does it keep the cabin warm?
This is where the heat pump comes in. 🔥❄️
Instead of simply turning electricity into heat, a heat pump moves thermal energy from one place to another, making cabin heating much more energy-efficient.
Here's why it matters:
🔋 Less battery energy used for heating
🚗 Better driving range in cold weather
🌡️ Helps manage battery temperature
⚡ Improves overall vehicle efficiency
❄️ Can also help cool the cabin
In a conventional EV, using a simple resistive heater can consume significant electrical power—especially in cold conditions.
A heat pump can do the job more efficiently by transferring available heat rather than generating all of it from scratch.
And here's the technician's angle 👇
The heat pump isn't just about passenger comfort. Thermal management is directly connected to EV range, battery performance and charging efficiency.
So when diagnosing an EV with unexpectedly poor range in cold weather, don't look only at the battery.
The thermal management system could be part of the story. 🔧🔋
💬 Question: Should EVtechAfrica explain how an EV heat pump actually moves heat around the vehicle?
#EVtechAfrica #EVTechnician #HeatPump #ElectricVehicles #EVFacts #EVEducation #BatteryThermalManagement #AfricaEV #CleanMobility

[EVtechAfrica @EVtechAfrica]

10/ 👀 Here's the technician's perspective

If one cell repeatedly hits the upper voltage limit before the others, don't simply say:

"The BMS is bad."

The BMS may actually be detecting a genuine battery problem.

Possible causes include:

🔸 Cell imbalance
🔸 Reduced cell capacity
🔸 Increased internal resistance
🔸 Cell degradation
🔸 Poor connections
🔸 Temperature differences
🔸 Sensing/wiring problems

The diagnostic process starts with finding out why that cell is behaving differently.

11/ 🔋 Here's a simple example

Imagine four cells:

Cell 1 → 4.12V
Cell 2 → 4.11V
Cell 3 → 4.12V
Cell 4 → 4.20V

If Cell 4 repeatedly reaches the upper limit first, the BMS is effectively saying:

"Something is different about Cell 4."

That's a clue for the technician.

Don't just reset the fault.

Investigate the cause.

12/ ⚠️ One final misconception

The BMS doesn't magically make an unsafe cell safe.

It monitors, controls and protects the battery within the limits of the system.

If a cell is physically damaged or severely degraded, the BMS cannot repair it.

It can only detect the problem and take protective action.

13/ 🔧 The key takeaway

The BMS protects individual cells by:

📡 Measuring individual cell voltages

🧠 Comparing them against safe limits

⚡ Managing charging and balancing

🚨 Detecting abnormal conditions

🔌 Disconnecting the HV battery when necessary

That's why individual cell monitoring is so important in an EV battery pack.

The pack may be one big battery to the driver...

But to the BMS, it's a collection of individual cells that must each stay within their safe operating window.

🔋⚡ That's the real job of the BMS.

#EV #EVTech #BMS #Battery #ElectricVehicles #EVTechnician #BatteryManagement #EVBattery

[EVtechAfrica @EVtechAfrica]

🔋⚡ EV TECH EXPLAINED: What Happens When One Battery Cell Hits the Voltage Limit?

Your EV battery pack may contain hundreds or even thousands of cells.

But the BMS doesn't just monitor the total pack voltage.

It watches individual cell voltages.

Why?

Because one cell can reach its limit before the others.

Let’s break it down 👇🧵

1/ 🔋 Imagine a battery pack

Suppose we have 4 cells connected in series:

Cell 1 = 4.10V
Cell 2 = 4.11V
Cell 3 = 4.09V
Cell 4 = 4.20V

Total pack voltage = 16.50V

Everything might look fine if you only monitor the total voltage.

But Cell 4 has already reached its upper voltage limit.

That's where the BMS becomes critical.

2/ 🧠 How does the BMS know?

The battery monitoring system has voltage-sensing circuits connected to the individual cells or cell groups.

These circuits continuously measure the voltage of each monitored section.

The BMS can then compare:

👉 Cell 1 vs Cell 2
👉 Cell 2 vs Cell 3
👉 Cell 3 vs Cell 4

It isn't just asking:

"What's the battery pack voltage?"

It's asking:

"What's happening to every cell?"

3/ ⚠️ What if one cell reaches the limit first?

Let's say the maximum permitted cell voltage is around 4.20V.

Cell 4 reaches:

�� 4.20V

while the other cells are:

🟢 4.10V
🟢 4.11V
🟢 4.09V

The BMS recognizes that Cell 4 has reached the charging limit.

Continuing to charge at the same rate could push that cell into an unsafe overvoltage condition.

4/ 🔥 The BMS can respond in stages

Depending on the battery design and BMS strategy, it may:

➡️ Start or increase cell balancing
➡️ Reduce the allowable charging current
➡️ Request the charger to stop charging
➡️ Open the battery contactors if the voltage becomes unsafe

The exact strategy depends on the vehicle and battery-management system.

5/ 🔧 But here's something important

The BMS doesn't necessarily "stop charging the whole battery" the instant one cell reaches 4.20V.

Why?

Because the system may have balancing and charging controls designed to deal with normal cell-to-cell variation.

The goal is to keep the cell within its safe operating window while allowing the battery to charge as much as possible.

6/ ⚡ What happens during balancing?

If the BMS uses passive balancing, it can activate a resistor across the higher-voltage cell.

For example:

Cell 4 = 4.20V 🔴

The balancing circuit draws a small current from Cell 4.

That energy is converted into heat.

Meanwhile, the other cells can continue moving toward the desired state of charge.

This is one reason balancing is particularly useful near the top of the charge.

7/ 🚨 What if the voltage keeps rising?

Now the BMS has a serious problem.

Imagine Cell 4 continues climbing despite balancing:

4.20V → 4.22V → 4.25V

The BMS must prevent the cell from going beyond its permitted limit.

Depending on the system's protection thresholds, it can command charging to stop and/or open the high-voltage contactors.

The objective is simple:

Don't allow an individual cell to enter an unsafe voltage condition.

8/ 🔌 Why are contactors important?

Think of the contactors as heavy-duty electrically controlled switches.

They connect or disconnect the high-voltage battery from the vehicle's HV system.

If a serious battery fault occurs, the BMS can command them open.

🔋 Battery

⬇️

⚡ CONTACTORS

⬇️

🚗 Vehicle

Open the contactors → isolate the battery from the vehicle.

9/ 🧪 But the BMS isn't working alone

A modern EV battery has multiple layers of protection.

You can have:

🔹 Cell voltage monitoring
🔹 Temperature monitoring
🔹 Current sensing
🔹 Cell balancing
🔹 Overvoltage/undervoltage thresholds
🔹 Charging-current limits
🔹 HV contactors
🔹 Fuses and other protection devices

So battery safety isn't dependent on one component.

It's a system of protections working together.

[EVtechAfrica @EVtechAfrica]

@it_Rutie "Read the caption"

[EVtechAfrica @EVtechAfrica]

That’s a huge market opportunity, but more importantly, it shows that battery safety is becoming as important as battery performance. Thermal runaway can’t always be prevented, so slowing its propagation with materials like mica, aerogels, ceramic barriers and intumescent coatings is critical. 🔋🔥
The interesting part is how this technology can make EVs safer without simply adding more weight to the battery pack.
#Batterysafety

[Electric Vehicles Research @EV_Research]

Fire Protection Materials for EV Batteries to Exceed US$10B by 2037 https://t.co/vGO0occvK1

[EVtechAfrica @EVtechAfrica]

12/ ⚠️ But here's where technicians need to pay attention.

If one cell constantly becomes the highest-voltage cell during charging…

and constantly becomes the lowest-voltage cell during discharge…

you may not simply have a “balancing problem.”

You may have a weak cell.

The BMS could be doing its job perfectly while exposing a battery problem.

13/ 🔧 So when diagnosing an EV battery pack, don't just ask:

“Are the cell voltages equal?”

Ask:

👉 How much do they differ at rest?

👉 How much do they differ under load?

👉 How do they behave during charging?

👉 Does the same cell repeatedly deviate?

👉 What are the temperatures?

👉 Is the problem caused by imbalance or cell degradation?

That's where proper battery diagnostics begins.

14/ 🔋⚡ The key takeaway:

Cell balancing is not magic.

It's the BMS managing differences between cells so that one cell doesn't become the limiting factor for the entire battery pack.

Passive balancing = remove excess energy as heat.

Active balancing = transfer energy between cells.

And neither method can repair a physically degraded cell.

That's how cell balancing actually works.

Follow for more practical EV battery and BMS breakdowns. 🔋⚡
#EV #EVTech #Battery #BMS #ElectricVehicles #CellBalancing #EVTechnician

[EVtechAfrica @EVtechAfrica]

🔋⚡ EV TECH EXPLAINED: How Does Cell Balancing Actually Work?

You’ve probably heard that an EV battery BMS “balances the cells.”

But what does that actually mean?

Let’s break it down 👇🧵

1/ 🔋 First, understand the problem.

Imagine 100 cells connected in series.

Ideally, they should all have almost the same state of charge (SOC).

But in the real world, they don't.

Some cells charge slightly faster.
Some have slightly less capacity.
Some age faster.

Over time, their voltages begin to spread apart.

2/ ⚠️ And this creates a problem.

Suppose most cells are sitting around:

4.10V

But one cell reaches:

4.20V

That one cell may be at its maximum safe charging voltage while the others still have room.

The BMS can't simply keep charging because that one cell could be overcharged.

So what can it do?

👉 Balance the cells.

3/ 🔧 There are two major approaches:

Passive balancing
and
Active balancing

Most EV and battery-management systems commonly use passive balancing because it's relatively simple and inexpensive.

4/ 🔥 PASSIVE BALANCING

Here's the basic idea:

The BMS identifies a cell that has a higher voltage than the others.

It then switches on a small resistor across that cell.

The resistor intentionally draws a small current from the cell.

That electrical energy is converted into:

👉 Heat.

Yes… the BMS is basically saying:

“Boss, you have too much energy. Let's burn some of it off.” 😂

5/ Example:

Imagine:

Cell 1 = 4.18V
Cell 2 = 4.17V
Cell 3 = 4.20V
Cell 4 = 4.18V

Cell 3 is higher.

The BMS activates the balancing resistor connected to Cell 3.

A small current flows through the resistor, gradually bringing Cell 3's voltage down relative to the others.

6/ ⏳ But passive balancing is SLOW.

Why?

Because the balancing current is usually small compared with the current used to charge or discharge an EV battery.

For example, if the balancing circuit only bleeds a few hundred milliamps while the pack is charging at tens of amps, it will take time to correct a significant imbalance.

This is why balancing often happens near the top of charge.

7/ ⚡ ACTIVE BALANCING

Active balancing takes a different approach.

Instead of simply wasting energy as heat, the BMS transfers energy from a higher-energy cell to a lower-energy cell.

Think of it as:

High cell 🔋 ➡️⚡➡️ Low cell

Energy is moved instead of burned.

This can potentially make balancing faster and more energy-efficient.

8/ 🧠 Here's something many people misunderstand:

Cell balancing doesn't make weak cells healthy again.

If one cell has lost significant capacity because of aging or damage, balancing cannot restore that lost capacity.

It can only help manage differences between cells.

That's a VERY important distinction.

9/ 🔍 And voltage isn't exactly the same thing as SOC.

Two cells can show similar voltages but have different capacities.

For example:

Cell A: 50 Ah
Cell B: 35 Ah

They may have similar voltage at a particular moment.

But under load, Cell B may drop faster because it has higher internal resistance or less usable capacity.

10/ 🚗 This is why a battery pack can appear “balanced” at rest but behave very differently under load.

A good BMS therefore doesn't just look at one number.

It monitors things such as:

🔹 Cell voltage
🔹 Pack current
🔹 Temperature
🔹 Charging/discharging conditions
🔹 Voltage differences between cells

And depending on the system, it may estimate SOC and SOH as well.

11/ 🔋 Here's the bigger picture:

During charging:

Cells approach full charge.

⬇️

One cell reaches the upper voltage limit first.

⬇️

BMS identifies the imbalance.

⬇️

Balancing circuit acts on the higher cell.

⬇️

Charging continues while the BMS prevents that cell from exceeding its safe limit.

⬇️

The voltage difference between cells is reduced.

#EV #EVTech #Battery #BMS #ElectricVehicles #CellBalancing #EVTechnician

[adebowalemadew @AdebowaleMAdew1]

As a network infrastructure engineer, I experienced this exact backend anomaly. My 800GB @MTNNG yearly plan was wiped out in just 53 days. I monitored the granular IPDR logs there was zero local hardware output or traffic to justify a depletion of that scale.
​I currently have an unresolved petition with the @ConsumersNCC regarding this exact timeline. @MTNNG relies on blaming "background apps," but they refuse to provide forensic, server side transparency. I am ready to share my technical logs and correspondence to support this collective push for accountability.

[EVtechAfrica @EVtechAfrica]

🔋⚡ EV TECH EXPLAINED: How Does the BMS Protect Individual Battery Cells From Overvoltage?

An EV battery pack isn't just one giant battery.

It can contain hundreds or even thousands of individual cells, connected together to provide the voltage and energy needed to power the vehicle.

But here's the challenge:

👉 What happens if one cell reaches its maximum safe voltage before the others?

This is where the Battery Management System (BMS) becomes critical. 🧠🔋

The BMS continuously monitors individual cell voltages.

For example:

🔋 Cell 1 → 4.10V
🔋 Cell 2 → 4.12V
🔋 Cell 3 → 4.18V
🔋 Cell 4 → 4.25V ⚠️

Even though the average pack voltage might look normal, Cell 4 could already be approaching an unsafe condition.

The BMS can respond by:

🛑 Reducing charging power
⚡ Stopping the charging process
🔄 Balancing cells by reducing the voltage difference between them
🚨 Triggering a fault if a cell exceeds its safety threshold

🔧 Why is this important?

Lithium-ion cells have a limited safe voltage window.

Pushing a cell beyond its specified maximum can increase the risk of:

🌡️ Excessive heat
⚠️ Cell degradation
💥 Internal damage
🔥 In extreme cases, thermal runaway

That's why EV charging isn't simply about watching the total battery-pack voltage.

The BMS is watching the individual cells.

👨🏾‍🔧 Technician's lesson:

A battery pack can have a normal-looking overall voltage while one cell is behaving abnormally.

During battery diagnostics, technicians may need to examine:

• Individual cell voltages
• Cell voltage differences
• SOC
• Battery temperature
• Charging current
• BMS fault codes
• Cell balancing activity

The BMS is essentially the traffic controller inside the battery pack—making sure no individual cell is pushed beyond its safe operating limits.

⚡🔋 The battery pack is only as healthy as its weakest cells.

💬 Would you like EVtechAfrica to explain how cell balancing actually works next?

#EVtechAfrica #BMS #BatteryManagement #EVBattery #ElectricVehicles #EVTechnician #BatterySafety #CellBalancing #EVEducation #AfricaEV #EVTechnology

[EVtechAfrica @EVtechAfrica]

@asemota Reminds me of CSI Miami

[EVtechAfrica @EVtechAfrica]

🛑⚡ EV TECH EXPLAINED: Why Do EV Brakes Feel Different?

Ever driven an EV and noticed the brake pedal feels different from a petrol car?

There’s a good reason.

Many EVs use blended braking—a combination of regenerative braking and conventional friction brakes.

Here’s what happens when you press the brake pedal:

🔋 Light braking → The electric motor can act as a generator, recovering kinetic energy and sending it back to the battery.

🛑 More braking force needed → The friction brakes progressively join in.

🚨 Emergency braking → The hydraulic/friction braking system provides the strong stopping force required.

The clever part is that the vehicle's control system has to decide how much braking should come from regeneration and how much should come from the friction brakes.

It considers things like:

⚡ Vehicle speed
🔋 Battery SOC
🌡️ Battery temperature
🛞 Wheel speed
🦶 Brake pedal demand
🚗 Road conditions
🔧 ABS/ESC requirements

And here's something many people don't realize:

A battery that is very full or very cold may not be able to accept as much regenerative energy.

That means the vehicle may rely more heavily on its friction brakes.

👨🏾‍🔧 Technician's lesson:

EV braking isn't simply "regenerative braking = no brake maintenance."

Technicians still need to inspect:

• Brake pads
• Discs/rotors
• Brake fluid
• Calipers
• ABS sensors
• Brake-by-wire systems
• Regenerative braking performance

EVs may reduce friction-brake wear, but the braking system remains one of the most important safety systems on the vehicle.

The interesting part of EV braking isn't just stopping the car.

It's recovering as much energy as possible while keeping the vehicle safe and predictable. ⚡🛞
#EVtechAfrica #EVTechnician #ElectricVehicles #EVBraking #RegenerativeBraking #BrakeByWire #EVEducation #EVMaintenance #AfricaEV #EVTechnology

[EVtechAfrica @EVtechAfrica]

@GOLDBABYO This is just basic public bus conductor change mathematics in Nigeria 😂 lol.

[EVtechAfrica @EVtechAfrica]

@DonaldTrus90115 @Deesquare31 @agihomar1 No mind them, na this mindset Dem dey carry go other countries wey Dem take see us finish

[EVtechAfrica @EVtechAfrica]

@GodfreyWis44495 If them arrest you now for posting fake news

[EVtechAfrica @EVtechAfrica]

@king_ella8 @GodfreyWis44495 You didn't watch the video

[EVtechAfrica @EVtechAfrica]

🔋⚡ EV TECH EXPLAINED: Why Can Your EV Battery Percentage Change After You Park?

Ever parked your EV at 40% battery, came back later and saw 43%?

Did the battery charge itself? 🤔

Not necessarily.

Your EV doesn't measure battery percentage the same way your phone does. The Battery Management System (BMS) estimates the battery's State of Charge (SOC) using several measurements and calculations.

It looks at things like:

🔋 Battery voltage
⚡ Current flowing in and out
🌡️ Battery temperature
⏱️ Charging and driving history
🧠 Battery behaviour and SOC estimation models

When the battery rests, its voltage can stabilize. Temperature can also change.

The BMS may then recalculate the estimated SOC, causing the percentage on your dashboard to move slightly even though you haven't plugged the vehicle in.

Here's another interesting one:

🚗 Hard acceleration can temporarily make the displayed range fall quickly.

🛑 After regenerative braking, the estimate can rise.

🌡️ Cold temperatures can reduce available battery performance and affect the estimated range.

That's why battery percentage and estimated driving range are not exactly the same thing.

👨🏾‍🔧 Technician's lesson:

When diagnosing an EV battery, don't judge battery health from the dashboard percentage alone.

A proper diagnosis may require looking at:

• Cell voltages
• SOC vs. State of Health (SOH)
• Battery temperature
• Voltage under load
• Current measurements
• BMS fault codes
• Cell voltage differences

The number on the dashboard is an estimate—not a direct measurement of every electron inside the battery. ⚡🔋

💬 EV owners: Have you ever noticed your battery percentage change while the car was parked?

#EVtechAfrica #EVTechnician #ElectricVehicles #BMS #BatteryManagement #EVBattery #EVFacts #EVEducation #AfricaEV #EVTechnology

[Electric Vehicles Research @EV_Research]

Battery Storage for Data Centers and Safer with Solid State Batteries https://t.co/M7bAiqKbJc

[EVtechAfrica @EVtechAfrica]

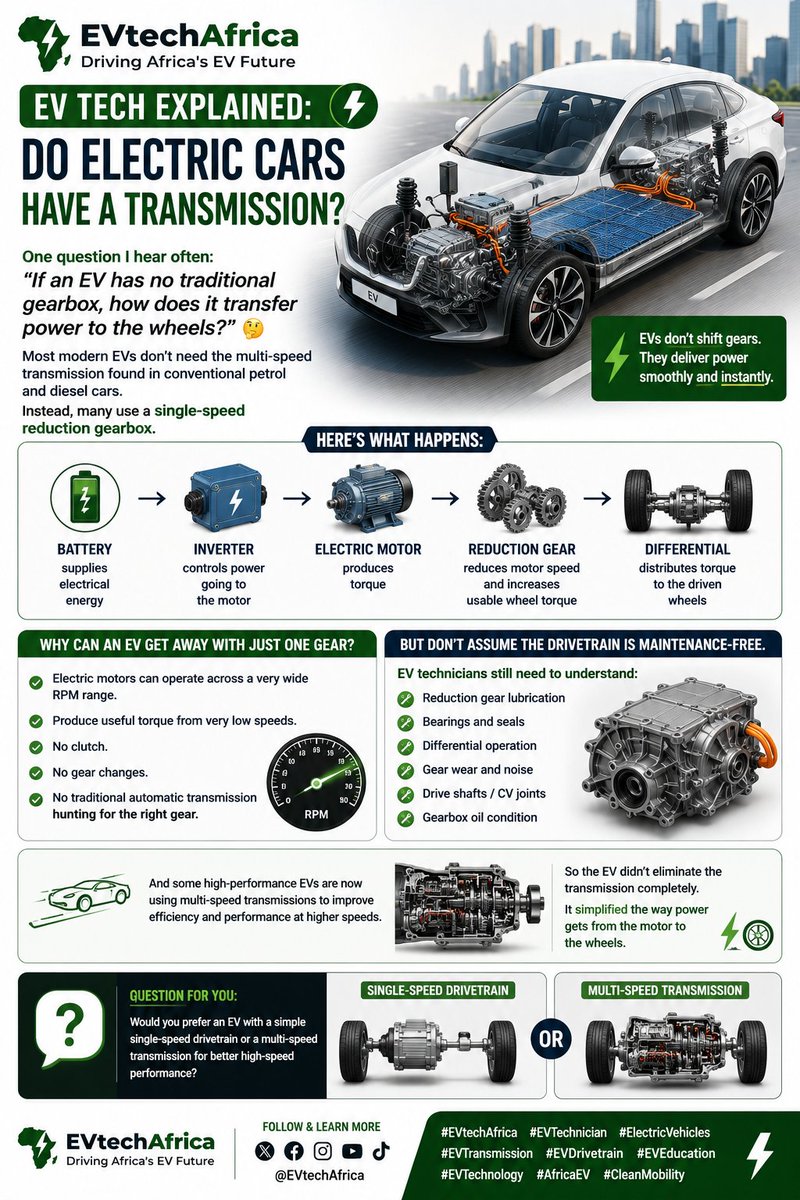

⚙️⚡ EV TECH EXPLAINED: Do Electric Cars Have a Transmission?

One question I hear often:

“If an EV has no traditional gearbox, how does it transfer power to the wheels?” 🤔

The answer is interesting.

Most modern EVs don't need the multi-speed transmission found in conventional petrol and diesel cars.

Instead, many use a single-speed reduction gearbox.

Here's what happens:

🔋 Battery → supplies electrical energy
⚡ Inverter → controls power going to the motor
🌀 Electric motor → produces torque
⚙️ Reduction gear → reduces motor speed and increases usable wheel torque
🛞 Differential → distributes torque to the driven wheels

Why can an EV get away with just one gear?

Because electric motors can operate across a very wide RPM range and produce useful torque from very low speeds.

No clutch.
No gear changes.
No traditional automatic transmission hunting for the right gear.

But don't assume the drivetrain is maintenance-free.

🔧 EV technicians still need to understand:

• Reduction gear lubrication
• Bearings and seals
• Differential operation
• Gear wear and noise
• Drive shafts/CV joints
• Gearbox oil condition

And some high-performance EVs are now using multi-speed transmissions to improve efficiency and performance at higher speeds.

So the EV didn't eliminate the transmission completely.

It simplified the way power gets from the motor to the wheels. ⚡🛞

#EVtechAfrica #EVTechnician #ElectricVehicles #EVTransmission #EVDrivetrain #EVEducation #EVTechnology #AfricaEV #CleanMobility

[EVtechAfrica @EVtechAfrica]

@Grandsoncr7 Bless you too 🙏
