Broadband & Signal

Supplier and manufacturer

[Broadband & Signal @FanLaura3]

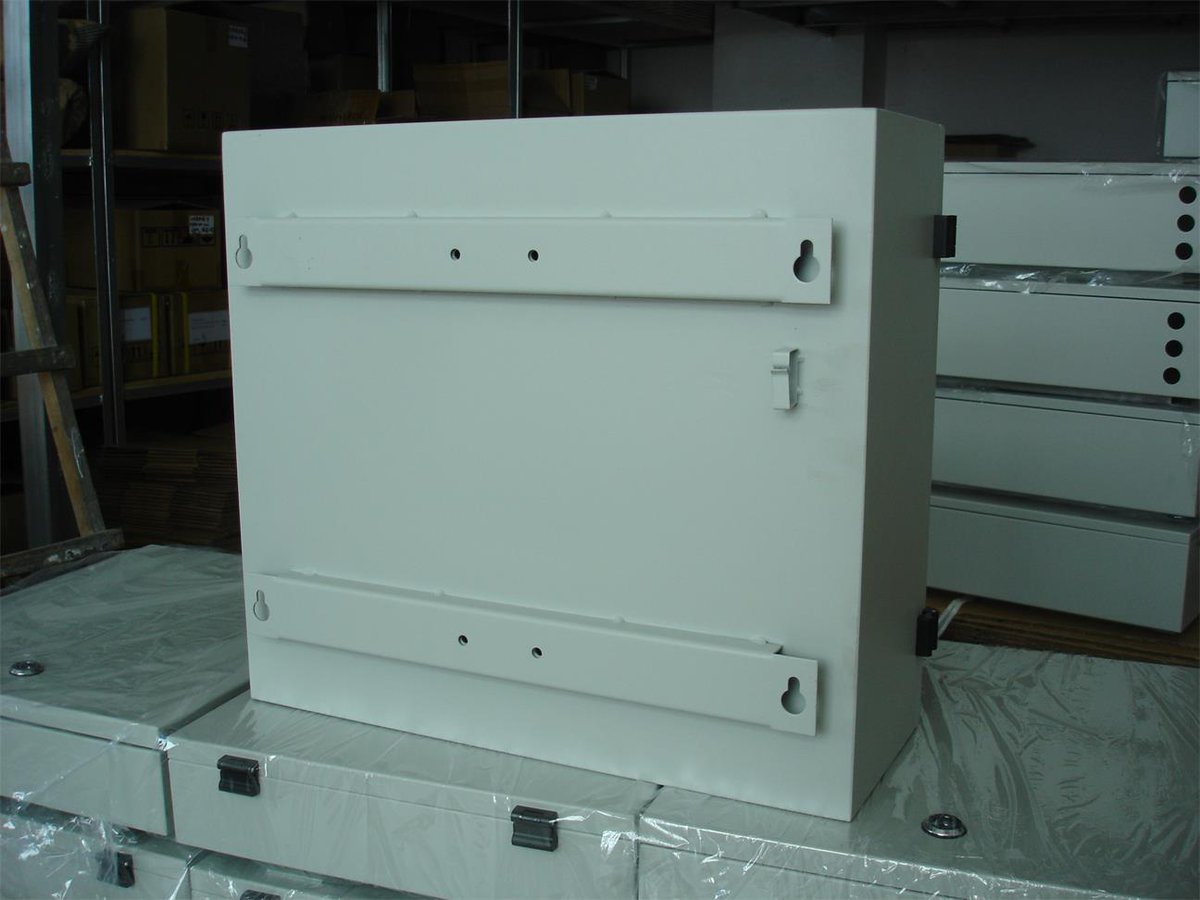

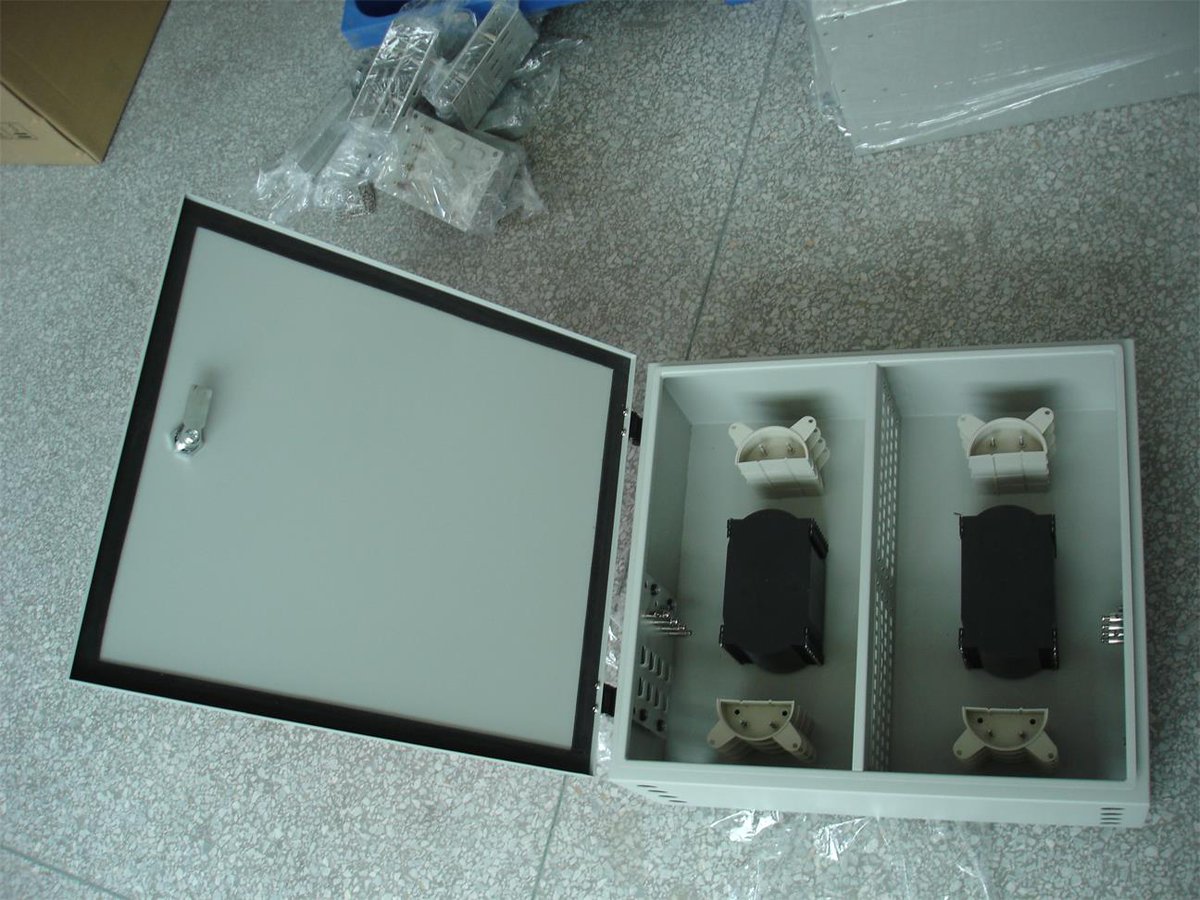

ODF-OW96A
Outdoor Wall-mount Fiber Optic Distribution Frame is mainly used for connecting the outdoor optical cables, optical patch cords and optical pigtails. It can be wall mounted or pole mounted, and facilitates the test and refit of the lines.

[Broadband & Signal @FanLaura3]

Rotary Type Fiber Optic Patch Panel

Specification:
Model: ODF-RW24-A
Material: Cold-roll steel
ABS material splice tray: OST-010G
1pc splice tray; each splice tray 24 cores
Dimension: 482x341x44mm
Capacity: 24 cores

#ftth #fiberoptic #ODF #patchpanel

[Broadband & Signal @FanLaura3]

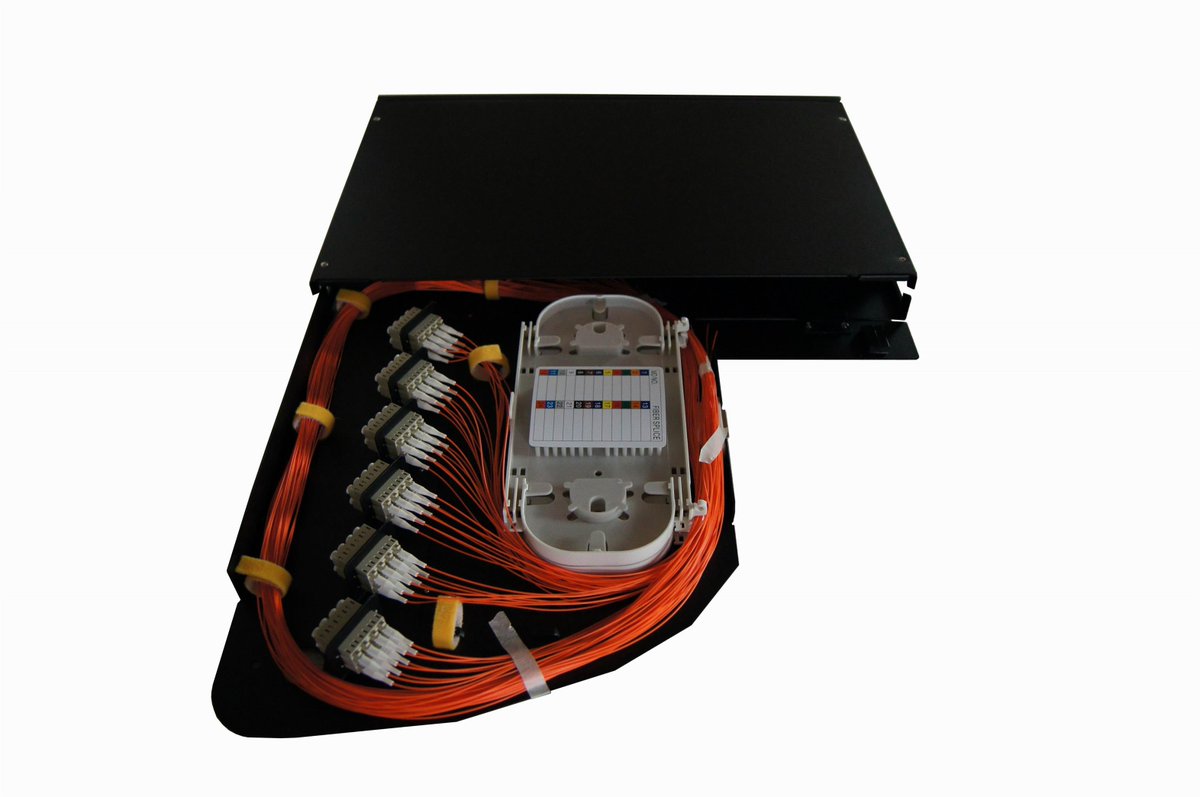

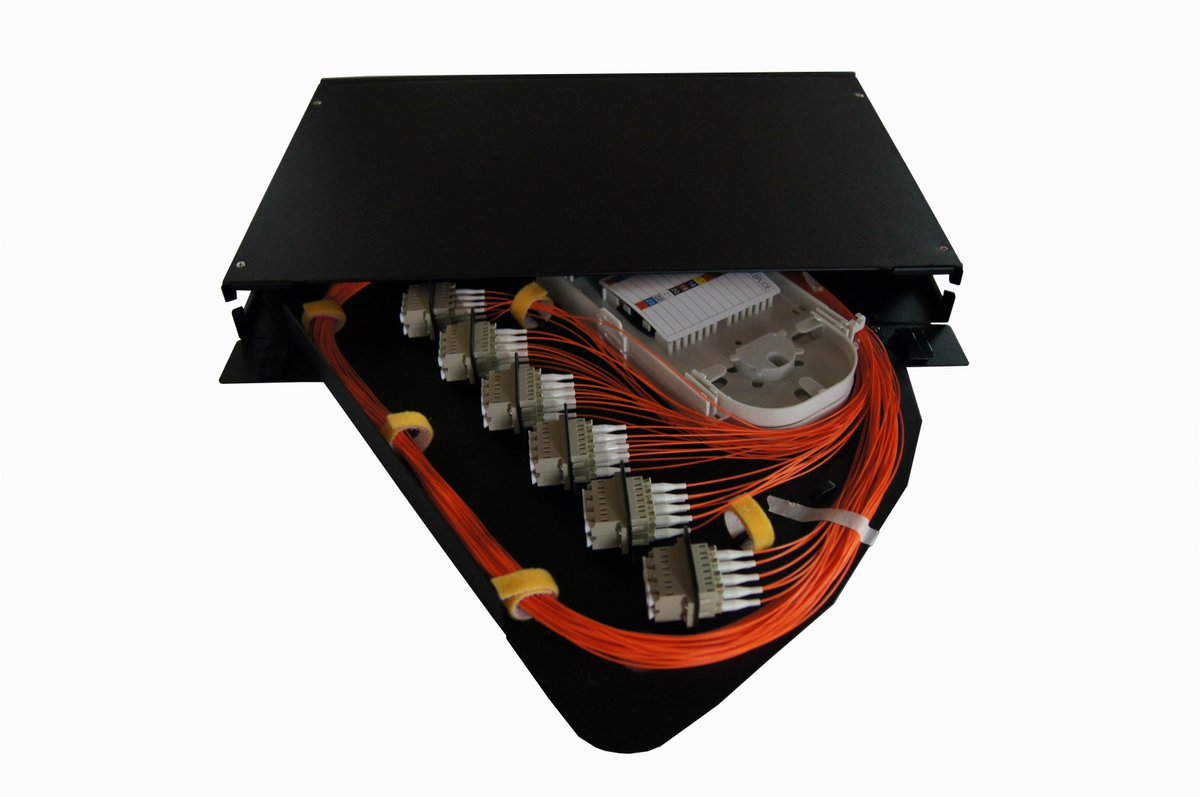

Rotary Type Fiber Optic Patch Panel

ODF-RW1U48-B
Material: Cold roll steel
ABS material splice tray: OST-010G

12C, 24C, 36C, 48C, 72C, 96C, 144C optional, with or without fiber optic pigtails and adapters

#fiberoptic #ftth #opticalfiber #ODF #patchpanel

[Broadband & Signal @FanLaura3]

Dome Fiber Optic Splice Closure
Feature
1pc splice tray, max. 24 fibers
Cable port: 2pcs round port φ15mm, 2pcs round port φ13mm, 8pcs 2*3mm drop cable ports.
The 2 cable ports are heat shrink sealing.
Cable entry without cutting.
Outdoor aerial hanger and pole holding.

[Broadband & Signal @FanLaura3]

IP68 24 cores fiber optic terminal box OTB-P037
High quality and samples available
Waterproof and dust-off high level
#fiberoptic #ftth #napbox #fiberopticterminalbox #OTB #ODB #fiberbox

[Broadband & Signal @FanLaura3]

Fiber optic inline splice closure CH027
PP material, 6 cable ports, 12~96fibers capacity
#FTTH #CH027 #fiberoptic #spliceclosure #fiberopticspliceclosure

[Broadband & Signal @FanLaura3]

Fiber Optic Terminal Box
Material: ABS plastic
2 splice module, each 6 slots, max. 12 fibers
Max. 12pcs SC simplex adapter ports
Support cable entry without cutting
2pcs port for max. 12mm cable + 8pcs port for max. 8mm cable entry

[Broadband & Signal @FanLaura3]

A plastic fiber optic terminal box that suitable for optical fiber splicing, distribution, and protection. It can load 18pcs SC simplex adapters and 1pc PLC 1:16 steel tube type splitter. It supports 16 drop cable output and cable entry without cutting.
#cajabox #ftthbox

[Broadband & Signal @FanLaura3]

Insulation optic fiber tension clamp
Suitable for round optical cables with a diameter of 8-12mm; ultimate breaking force of 8000N
#Fiberoptic #FTTH #tensionclamp #opticfibertensionclamp

[Broadband & Signal @FanLaura3]

The UPB (Universal pole bracket) is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.

[Broadband & Signal @FanLaura3]

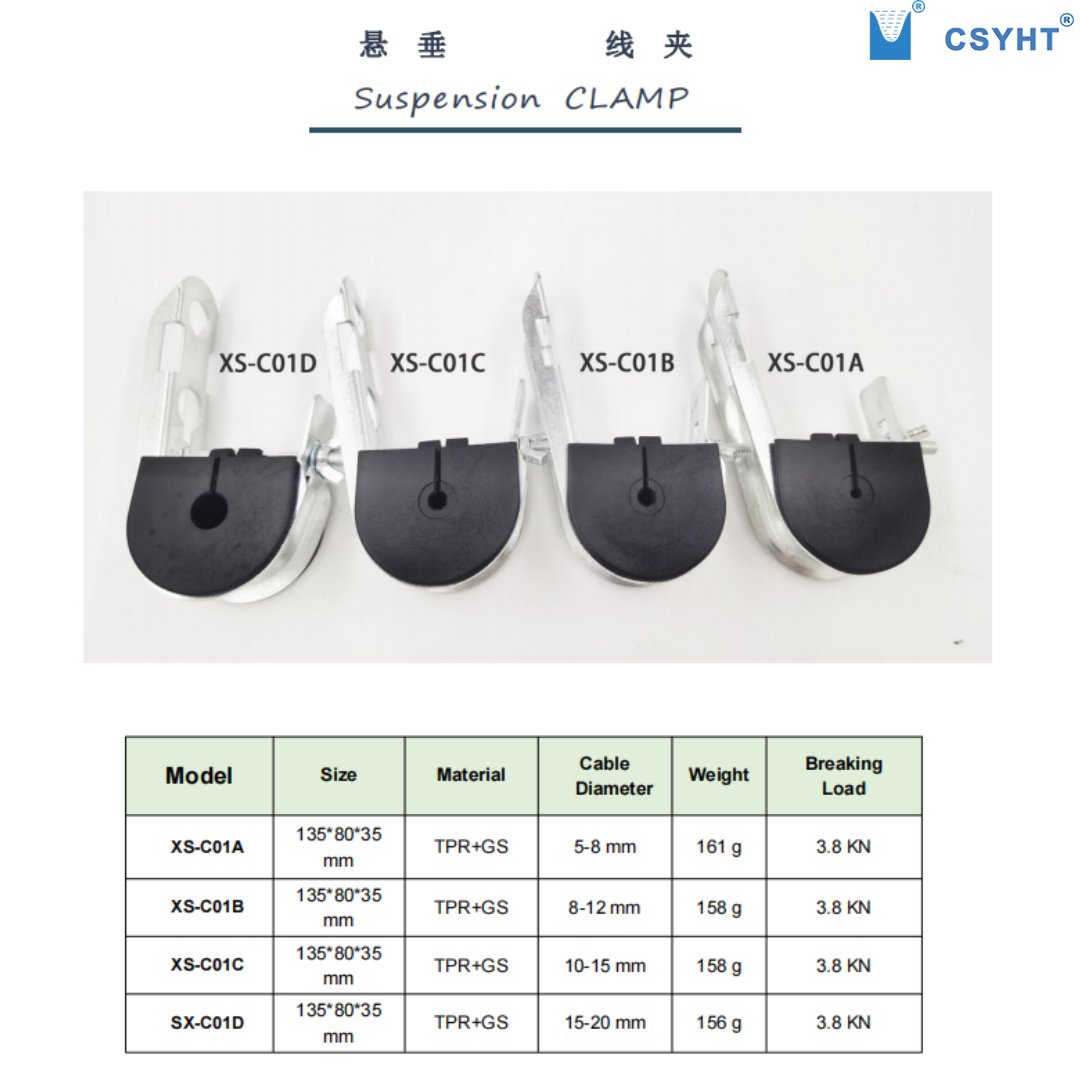

ADSS Cable J Hook Suspension Clamp
The metal hook of suspension clamp allows installation on the pole by using stainless steel band and pigtail hook or brackets. The hook of ADSS clamp can be produced form stainless steel materials according to you request.

[Broadband & Signal @FanLaura3]

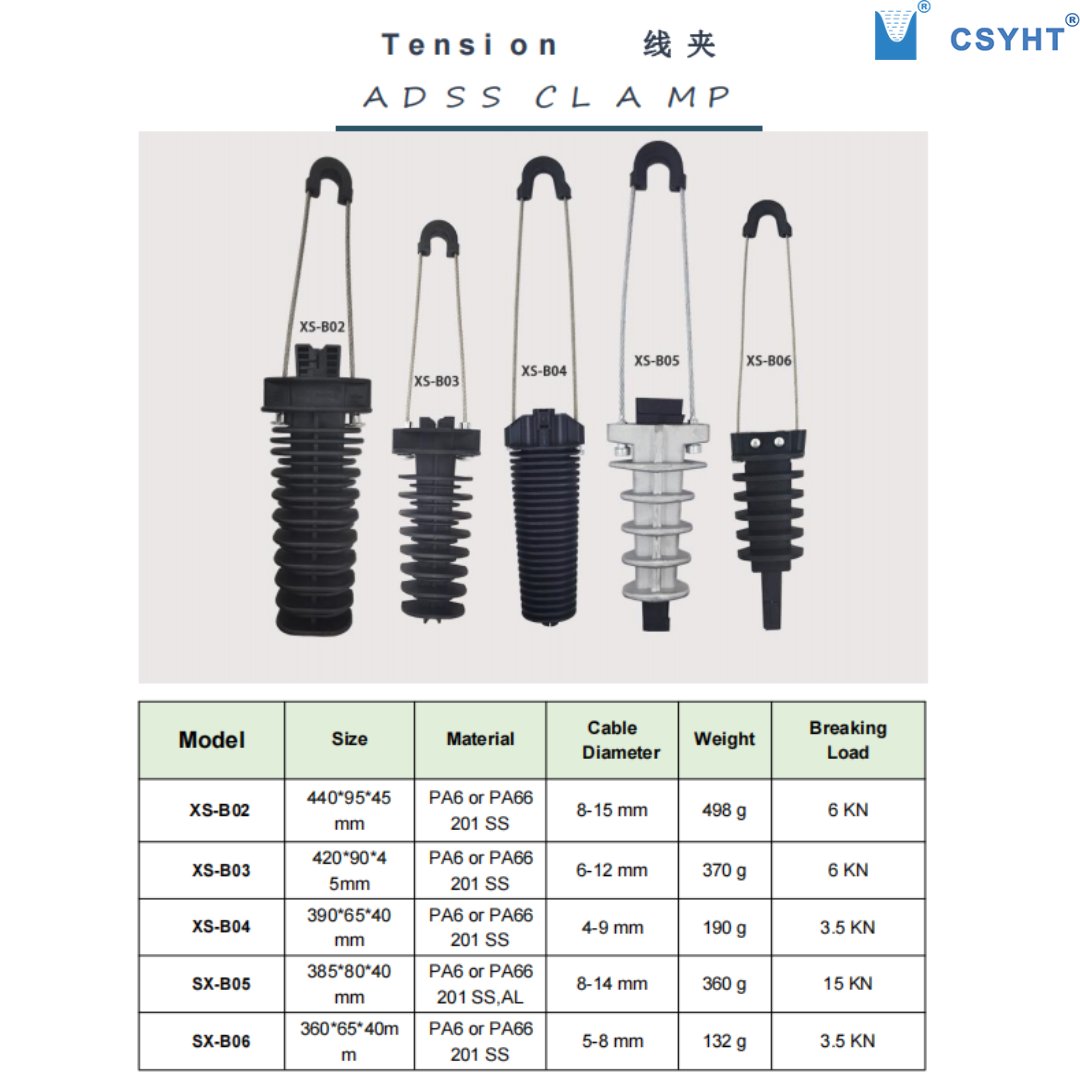

Anchor Clamp for ADSS Cable

Anchor Clamps for ADSS Cable are designed for dead-ending aerial ADSS cables on access networks when span do not exceed 100m. And different capacities are available to adapt to the cable.

[Broadband & Signal @FanLaura3]

The GDGJ-001 can meet all the requirements for tensioning and cutting stainless steel banding, and which can be further described as:
Dimension: 220x60x300mm
Material: High carbon steel, blade quenched
Application: for all steel band with width 3/16”~3/4”

[Broadband & Signal @FanLaura3]

ADSS CLAMP
For spanning 150M adss cable, suitable for 11.5MM cable diameter.

#ADSSCLAMP #Fiberoptic #FTTH #fiber #telecommunications #cable #fiberopticcable #wire #telecom

[Broadband & Signal @FanLaura3]

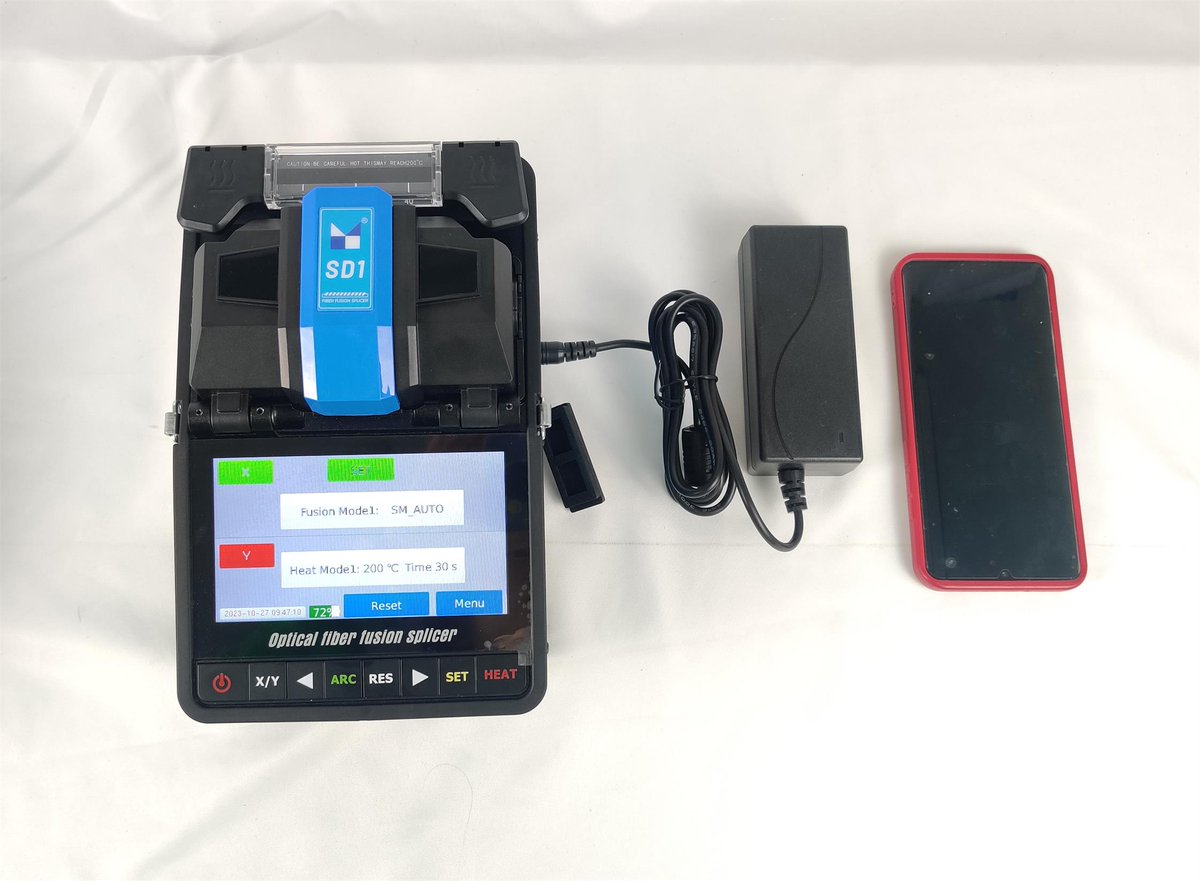

Fusion splicer SD1 8s splicing and 20s heating
Six motors for the better operate
#FTTH #Fiberoptic #Fusionsplicer

[Broadband & Signal @FanLaura3]

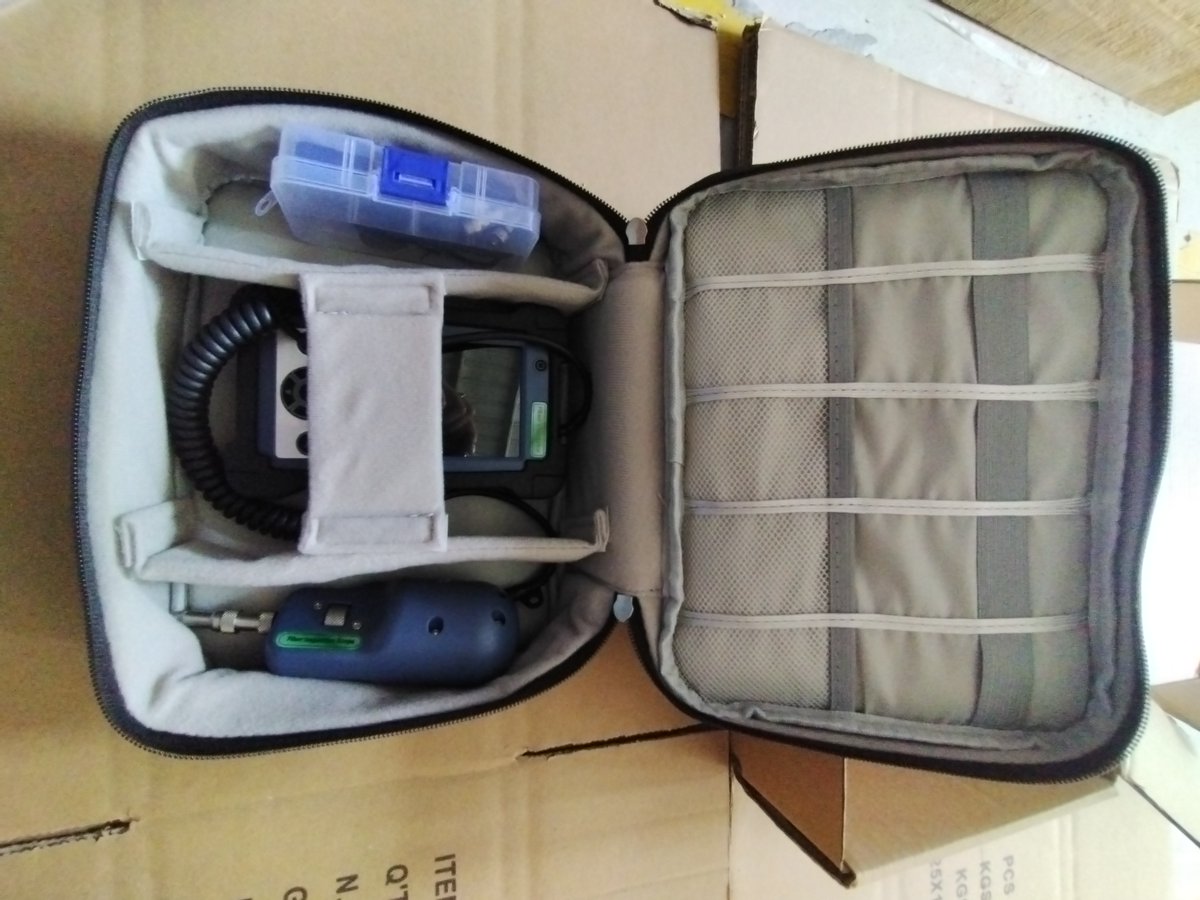

KIP-600V Fiber Optic Video Inspection Probe and Display, Fiber Optic Inspector

The standard package includes UPC connectors. If you use the UPC connectors to test the APC fiber, you will find that it can't be focused with UPC connectors and the picture it shows is blurry.

[Broadband & Signal @FanLaura3]

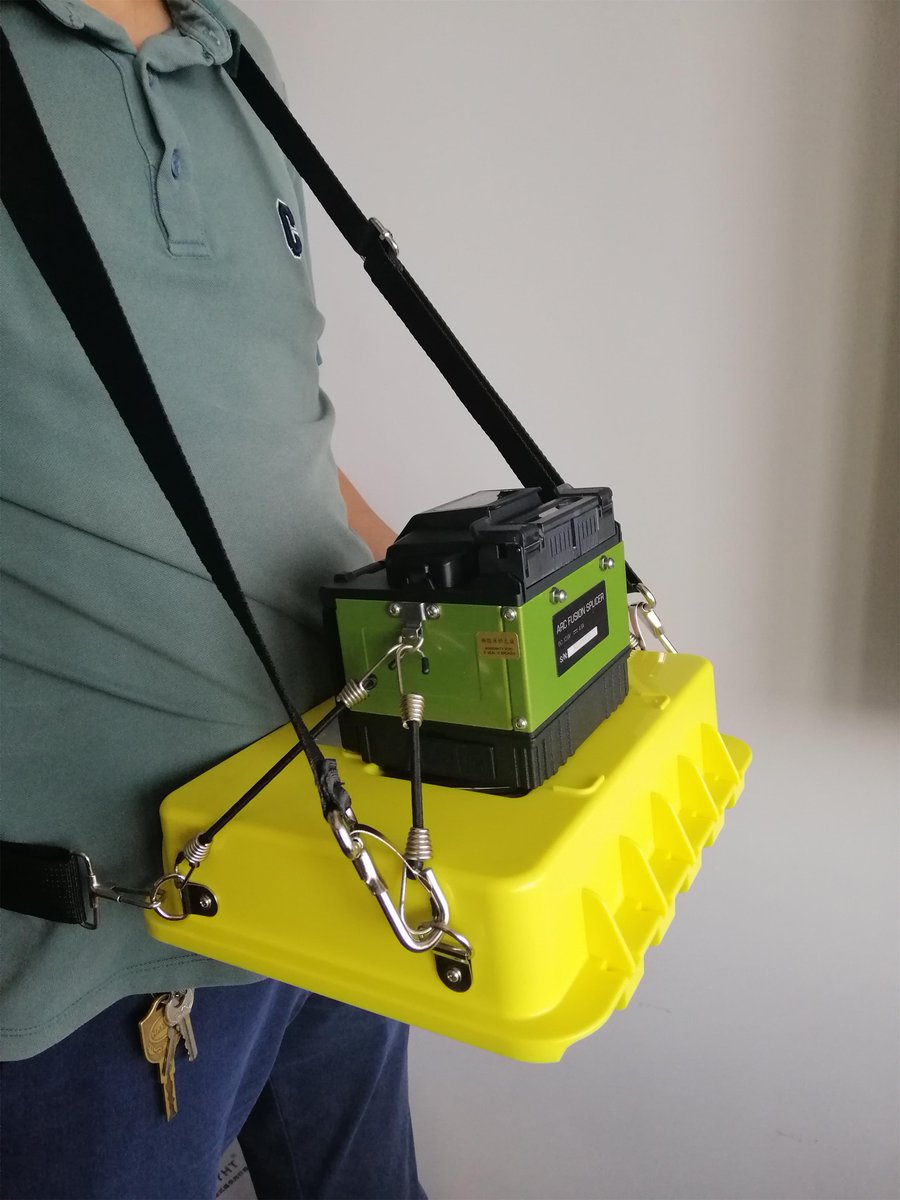

Light and premium quality fusion splicer SC1
Contact for the price details
#FTTH #Fusionsplicer #Fiberoptic

[Broadband & Signal @FanLaura3]

FTTH Toolbag
VFL + Drop cable Stripper + Power meter + Cleaver + Miller Stripper + Alcohol bottle
Model: F-BAG-002

#FTTH #Fiberoptic #Ftthtoolbag #FTTA #powermeter #VFL

[Broadband & Signal @FanLaura3]

DIN-00 is a DIN rail mounted fiber optic terminal box that used for fiber connection and distribution. It is made of aluminum, inside with plastic splice tray, light weight, good to use.

#DIN #fiberoptic #terminalbox #fiberopticbox #FTTH

[Broadband & Signal @FanLaura3]

Rotary Type Fiber Optic Patch Panel C type

Features:
🔧24C, 36C, 48C, 72C, 96C，120C optional, with or without fiber optic pigtails and adapters
👍Can be used in 19'', 23'' standard distribution frame
✅Suitable for ribbon and single fiber

#FIBEROPTIC #distributionframe #ODF
