HG Genuine optics

HG Genuine was founded by Huagong Tech Co., Ltd a holding company, in 2001,with a capital investment of 441 million RMB.

[HG Genuine optics @HGGenuineOptics]

#100G #HotSwapModule

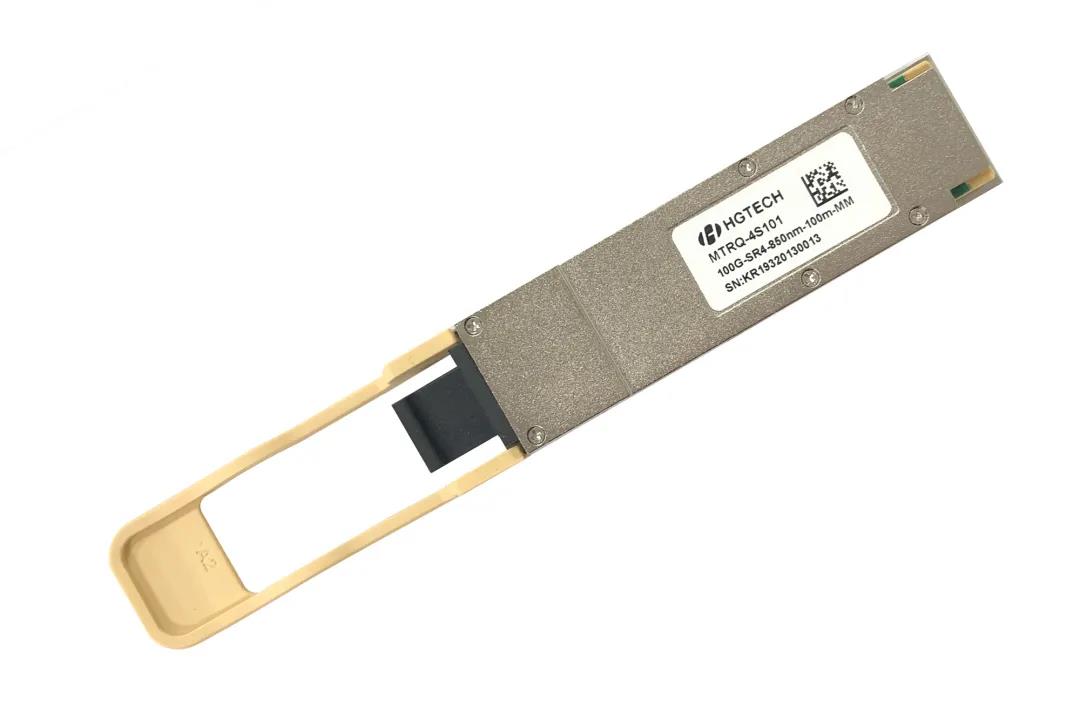

100G SR4
The product is packaged with QSFP28;
Full temperature power consumption within 2W, 0~70 ° temperature range, built-in CDR;
MPD real-time monitoring VCSEL function, OM4 fiber transmission distance of 100m;
The BER is less than 1E-12.

[HG Genuine optics @HGGenuineOptics]

#optical On January 21st, the 2020 Infostone Awards was held. According to the comprehensive evaluation of product performance, cost advantage and other dimensions by the expert panel, the 100G SR4 used by HG Genuine Data Center ranked first on the list of optical communication.

[HG Genuine optics @HGGenuineOptics]

HG Gaoli will jointly accelerate the construction of a strong province with intellectual property rights, and strive to build Hubei into a strategic fulcrum for the construction of a strong intellectual property country.

[HG Genuine optics @HGGenuineOptics]

#innovation Based on the protection of its own innovation achievements, HG Gaoli will enhance the awareness of intellectual property rights protection, improve the construction of intellectual property demonstration enterprises under the guidance of the judicial department.

[HG Genuine optics @HGGenuineOptics]

#innovation Based on the protection of its own innovation achievements, HG Gaoli will enhance the awareness of intellectual property rights protection, improve the construction of intellectual property demonstration enterprises under the guidance of the judicial department.

[The New York Times @nytimes]

President Biden declared at his inauguration that “without unity, there is no peace.” And while an array of Republican and Democrat leaders clapped at the sentiment, it is far from clear that the country is truly ready to move on, writes @SangerNYT. https://t.co/JGrioAcGqd

[HG Genuine optics @HGGenuineOptics]

Operating temperature range:0~70℃
Apllications
25Gigabit Ethernet
Data Center Networking
High Performance Computing Interconnects

[HG Genuine optics @HGGenuineOptics]

#25G 25G SFP28 AOC
Features
Length available up tp 100 meters
850nm VCSEL and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnostic monitoring
Power consumption:<1w
Data rate up to 25.78Gbps
Single +3.3V power supply

[HG Genuine optics @HGGenuineOptics]

#25G 25G SFP28 AOC
Features
Length available up tp 100 meters
850nm VCSEL and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnostic monitoring
Power consumption:<1w
Data rate up to 25.78Gbps
Single +3.3V power supply

[HG Genuine optics @HGGenuineOptics]

Opearting temperature range: 0~70℃
Applications
25G BASE-Ethernet

[HG Genuine optics @HGGenuineOptics]

#25G 25G SFP28 SR
Features
Fiber link up to 100m link over OM4 MMF
850nm VCSEL and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnostic monitoring
Duplex LC connector
Power consumption:<1w
Data rate up to 25.78Gbps
Single +3.3V power supply

[HG Genuine optics @HGGenuineOptics]

#25G 25G SFP28 SR
Features
Fiber link up to 100m link over OM4 MMF
850nm VCSEL and PIN receiver
SFI electrical interface
2-wire interface for integrated Digital Diagnostic monitoring
Duplex LC connector
Power consumption:<1w
Data rate up to 25.78Gbps
Single +3.3V power supply

[HG Genuine optics @HGGenuineOptics]

40G QSFP+AOC
Features
Length available up to 100m
Operating temperature range:0~70℃
Power consumption:<1W
Independently parallel 4x10.3125Gbps link
DDM function implemented
Hot pluggable
Single+3.3V power supply
Applications
40G BASE-SR4 Ethernet
Infiniband QDR interconnects

[HG Genuine optics @HGGenuineOptics]

#40G 40G QSFP+SR4/eSR4
Features
Links up to 300m using OM3 fiber
Operating temperature range: 0~70℃
Power consumption: <1w
Independent parallel 4x10.3125Gbps link
DDM function implemented
Hot pluggable
MPO connector
Single +3.3V power supply
Applications
40G BASE-SR4 Ethernet

[HG Genuine optics @HGGenuineOptics]

#100G 100G QSFP28 AOC
Features
Length available up to 100m
Operating temperature range:0~70℃
Power consumption:<2.5w each end
Independently paralle 4*25.78Gbps
DDM function implemented
Hot pluggable
Single +3.3V power supply
Applications
100G BASE-SR4 Ethernet
Infiniband EDR

[HG Genuine optics @HGGenuineOptics]

#100G #EDR 100G QSFP28 SR4
Features
Links up to 100m using OM4 fiber
Operating temperature range:0~70℃
Power consumption:<2.5w
Independently parallel 4*25.78Gbps
DDM function implmented
Hot pluggable
MPO connector
Single +3.3v power supply
Applications
100G BASE-SR4 Ethernet

[HG Genuine optics @HGGenuineOptics]

#100G #SMF #FEC 100G QSFP28 CWDM4
Features:
Links up to 2km on SMF with FEC
Operating case temperature: 0~70℃
Power consumption: <3.5w
Integrated CWDM DFB TOSA (121,1291,1311,1332nm) and PIN ROSA
Applications
100G Ethernet
Proprietary High Speed Interconnections

[HG Genuine optics @HGGenuineOptics]

Application: 100G Ethernet

[HG Genuine optics @HGGenuineOptics]

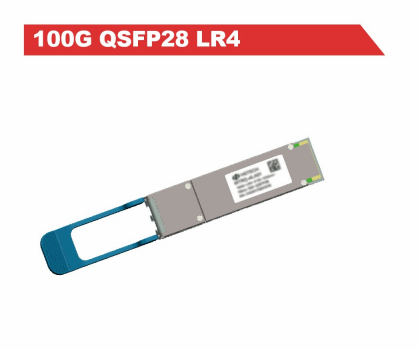

100G QSFP28 LR4
Features
Integrated cooled LAN-WDM DML TOSA and PIN ROSA
Transmission data rate up to 25.78Gbit/s per channel
Power consumption:<4W
Operating case temperature: 0~70℃
Up to 10km reach for G.652 SMF
2-wire interface for integrated Digital Diagnostic monitoring

[HG Genuine optics @HGGenuineOptics]

100G QSFP28 LR4
Features
Integrated cooled LAN-WDM DML TOSA and PIN ROSA
Transmission data rate up to 25.78Gbit/s per channel
Power consumption:<4W
Operating case temperature: 0~70℃
Up to 10km reach for G.652 SMF
2-wire interface for integrated Digital Diagnostic monitoring

[HG Genuine optics @HGGenuineOptics]

#100G #electrical #transmission #signal 100G QSFP28 DR1+
Features
4x25Gbps NRZ electrical interface
106.25Gbps(PAM4) optical signal
Power consumption:<4w
Operating case temperature: 0~70℃
Up to 2km transmission on SMF with FEC
Applications
100G Ethernet
Data Center Networking

[HG Genuine optics @HGGenuineOptics]

#100G #Data #electical #signal 100G QSFP28 DR1
Features:
4x25Gbps NRZ electrical interface
106.25Gbps(PAM4) optical signal
Power consumption: <4W
Operating case temperature: 0~70℃
Up to 500m transmission on SMF with FEC
Applicaitons
100G Ethernet
Data Center Networking

[HGTECH @Huagongtech]

HGTECH will continue to strengthen its exploration in the field of digital intelligence, serve the transformation and upgrading of downstream industries with advanced technologies, products and solutions, and help to improve the modernization level of the industrial chain.

[HG Genuine optics @HGGenuineOptics]

#100G 100G QSFP28 FR1
Features:
4x25Gbps NRZ electrical interface
106.25Gbps (PAM4) optical signal
Power consumption:<4W
Operating case temperature: 0~70℃
Up to 2km transmission on SMF with FEC

Applications
100G Ethernet
Data Center Networking
