Headpcb

Headpcb's official Twitter account. One of the leading Chinese PCB manufacturer. Prototype,medium and mass PCB production.

[Headpcb @HeadpcbOfficial]

Although we are equiped with cutting-edge machines,but we make the PCB by heart,not by machine!

[Headpcb @HeadpcbOfficial]

@minut_e @headpcb Yes, we are in China, DHL ship to EU about 1 week.

[Headpcb @HeadpcbOfficial]

@minut_e I recommend @Headpcb.

[Headpcb @HeadpcbOfficial]

3/3/3/3/3/3/OZ heavy copper network power PCB.

[Headpcb @HeadpcbOfficial]

2.4mm thickness, 3/3/3/3/3/3OZ heavy copper, Tg170.
https://t.co/oruGIJ4BYv

[Headpcb @HeadpcbOfficial]

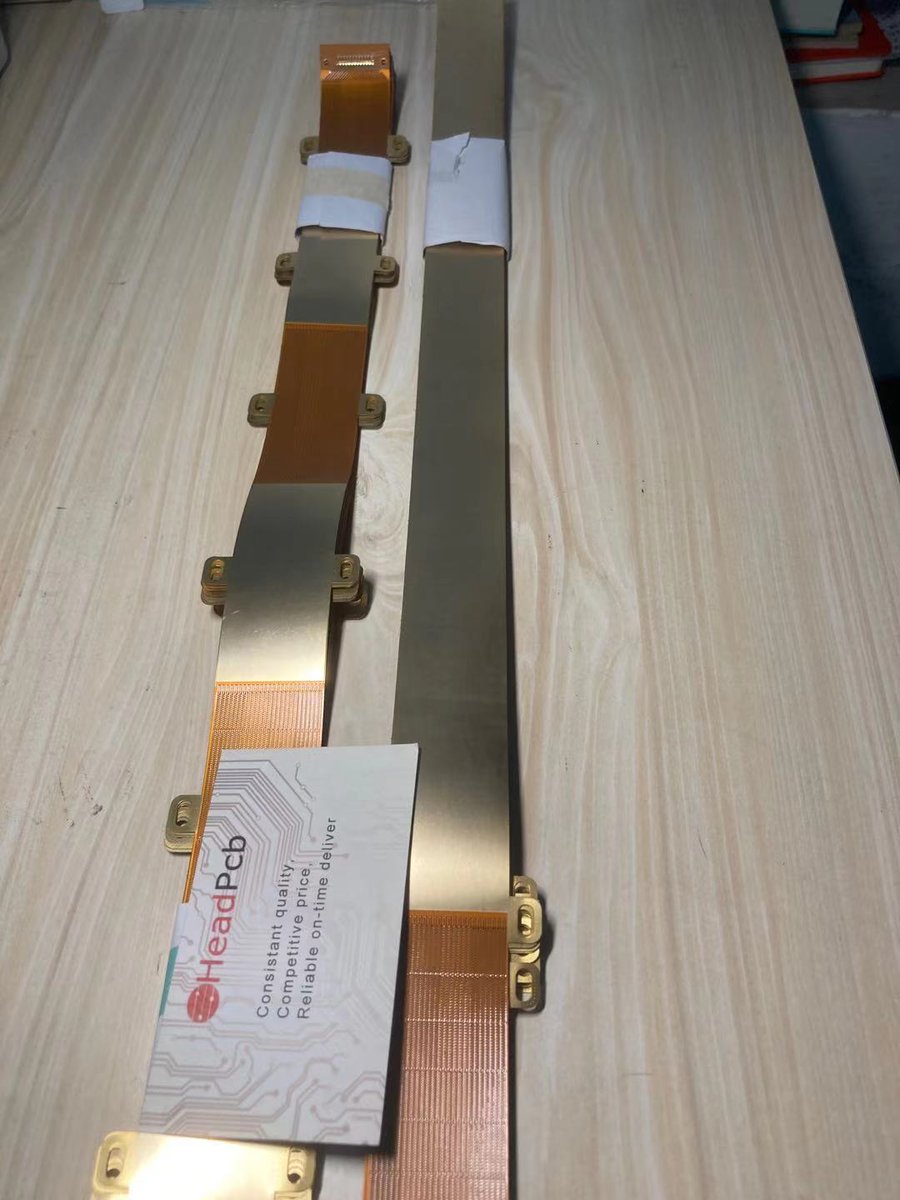

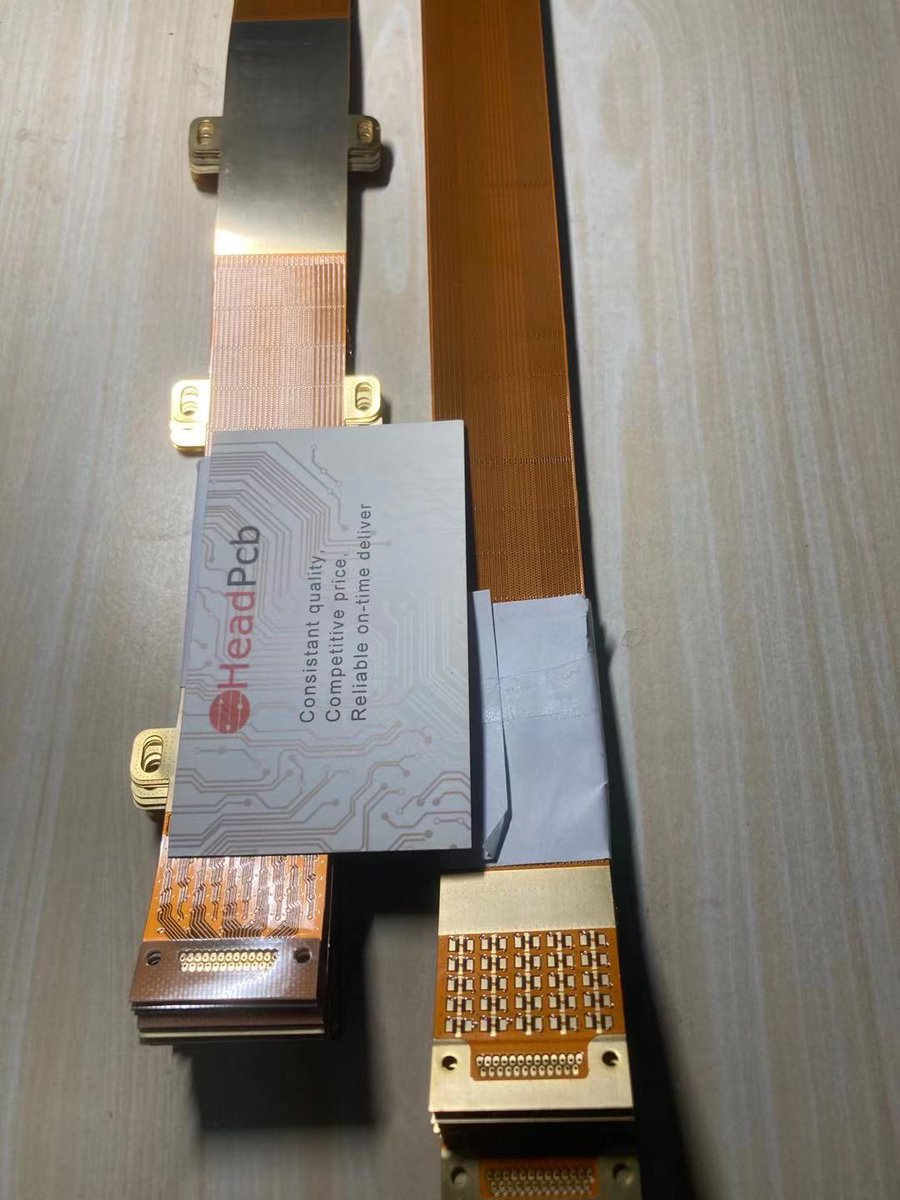

30x1200mm long FPC, EPIG finish, 1.2mm FR4 stiffener. Made by Headpcb for a Swedish customer.

[Headpcb @HeadpcbOfficial]

Anti-CAF material,Immersion tin treatment,Taiyo PSR solder mask, resin plug and metal capped. #Headpcb #Anti-caf #CAF #immersiontin #TaiyoPSR #metalcapped #resinplug #pcbmanufacturing #pcb

[Headpcb @HeadpcbOfficial]

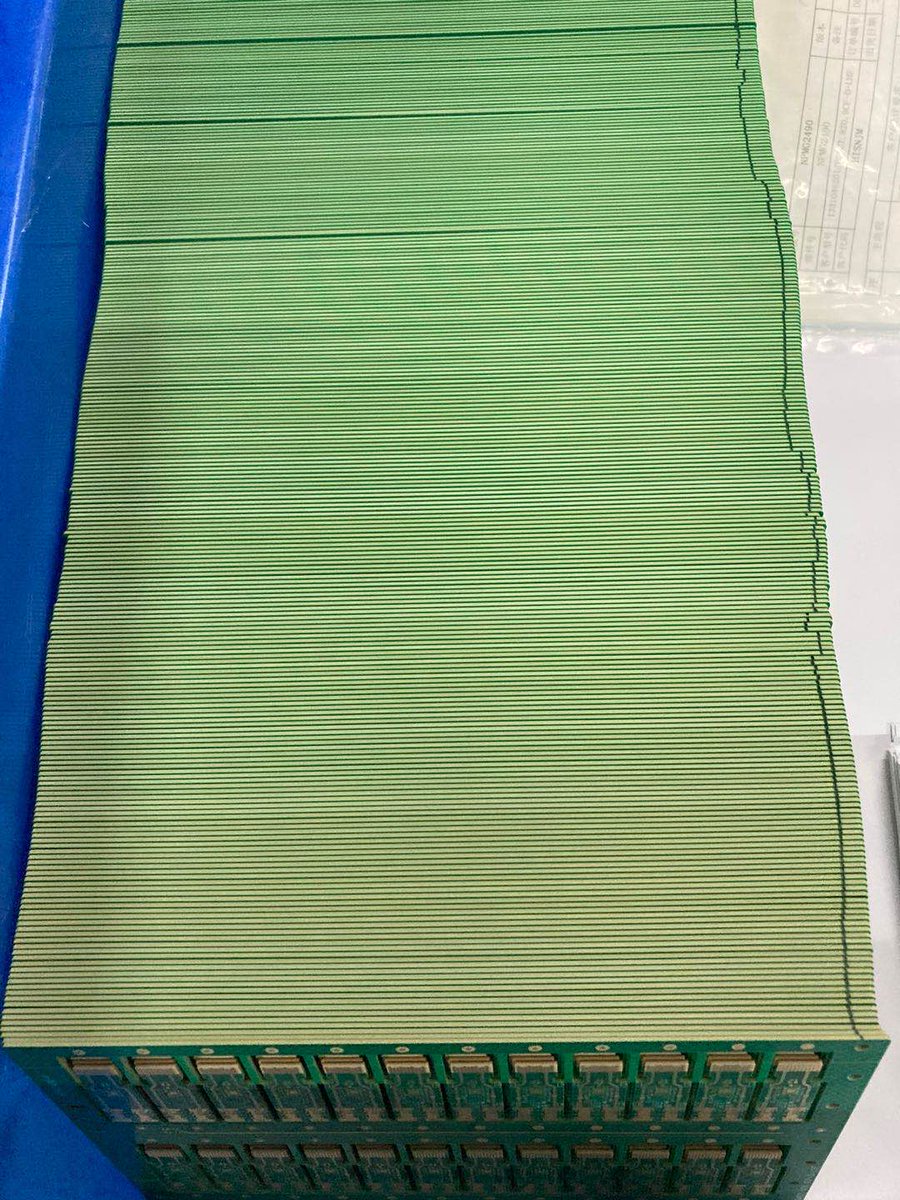

In Headpcb, we use AVI(Auotmatic Visual Inspection) machine to check the PCB appearance,the speed and accuracy is better than human visual inspect. #AVI #visualinspection #AOI #FQC #FQA #pcbmanufacturing #Headpcb

[Headpcb @HeadpcbOfficial]

For Flexible PCB(FPC),we normally use coverlay,if there need to keep the dam between the IC, we need to use solder mask instead, the below picturers show you a FPC that we build recently with one side coverlay(yellow), another side solder mask(green). #headpcb #coverlay #FPC

[Headpcb @HeadpcbOfficial]

Take some picturers of our automatic gold finger bevelling machine, we can do 10-45 degree bevelling angle, 0.3+/-0.1mm depth, 20U'' hard gold plating.
# headpcb #goldfinger #chamfer #bevelling #hardgold

[Headpcb @HeadpcbOfficial]

Solder mask is not just the appreance of the PCB, you can see the quality control and management of the factory from it. Randomly taking some picturer of our solder mask process,white and black Taiyo solder mask printing. #Headpcb #PSR #Taiyo #Solder mask #Black S/M

[Headpcb @HeadpcbOfficial]

MCL-E-700G material used, Halogen free+High Tg, resin plug+plating over. Ready to ship to Turkey. #Headpcb #pcbmanufacturing #pcbprototype #pcbfabrication #pcbmanufacturer #pcbassembly #pcbsmt #halogenfree #halogen #resinplug #capped #resin #MCL-E-700G

[Headpcb @HeadpcbOfficial]

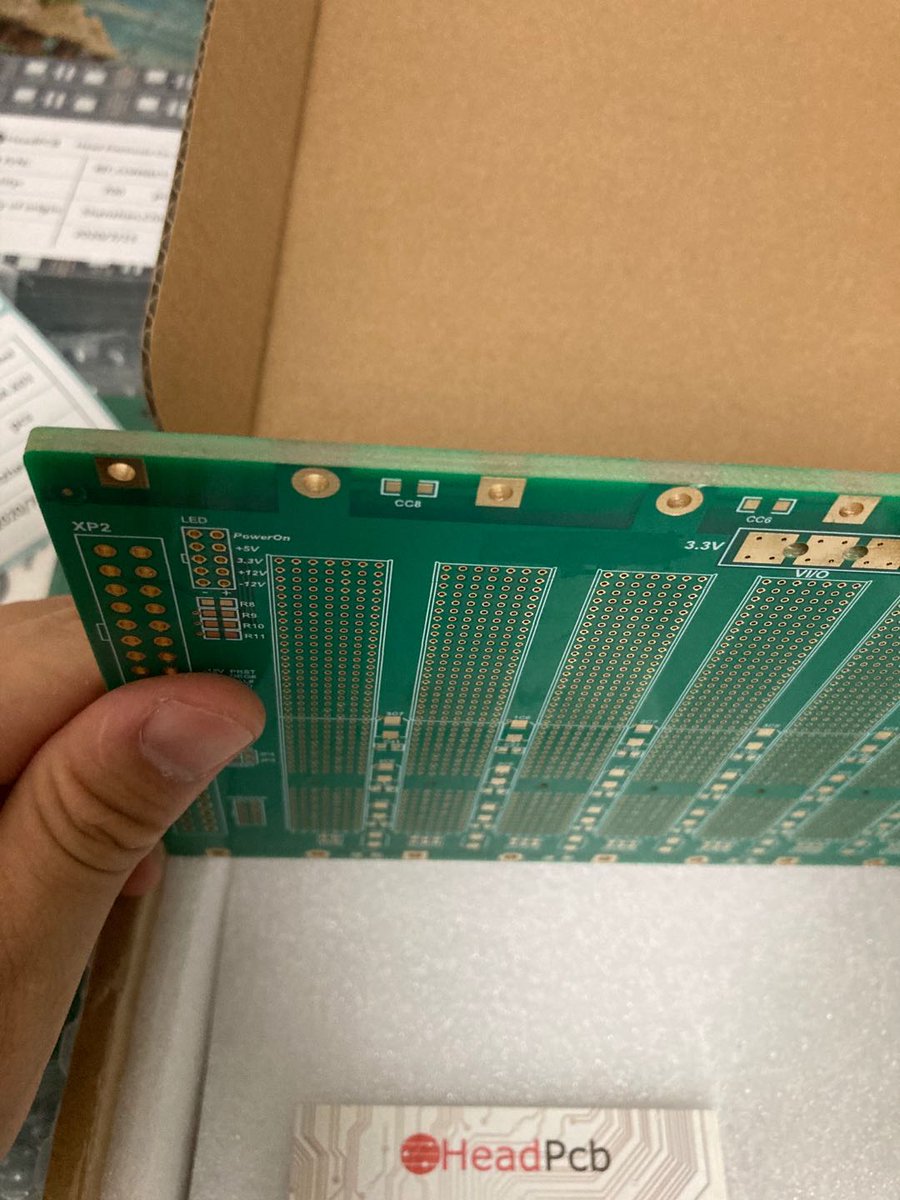

5.2mm board thickness,4 OZ copper for 6 layers,72 hours qucik turn ptototype, ready to ship to USA. #Headpcb #PCB #FPC #PCBmanufacturing #PCBprototype

[Headpcb @HeadpcbOfficial]

Edge plating PCB,bottom layer ENIG area 95%, 2U" gold thickness, 50K pcs mass production . #edgeplating #enig #sideplating #Borderplated #plated contour #side metal #Edge plating #pcbmanufacturing

[Headpcb @HeadpcbOfficial]

6 Layer Red solder mask ENIG(2U") samples finished within 5 days normal lead time,0.2mm microvia,50 ohm coplanar impedance control, 3/3 mil track and width.will ship to UK by DHL today. #pcb #pcbmanufacturing #coplanar #impedance #microvia #redmask #prototype #prototyping #enig

[Headpcb @HeadpcbOfficial]

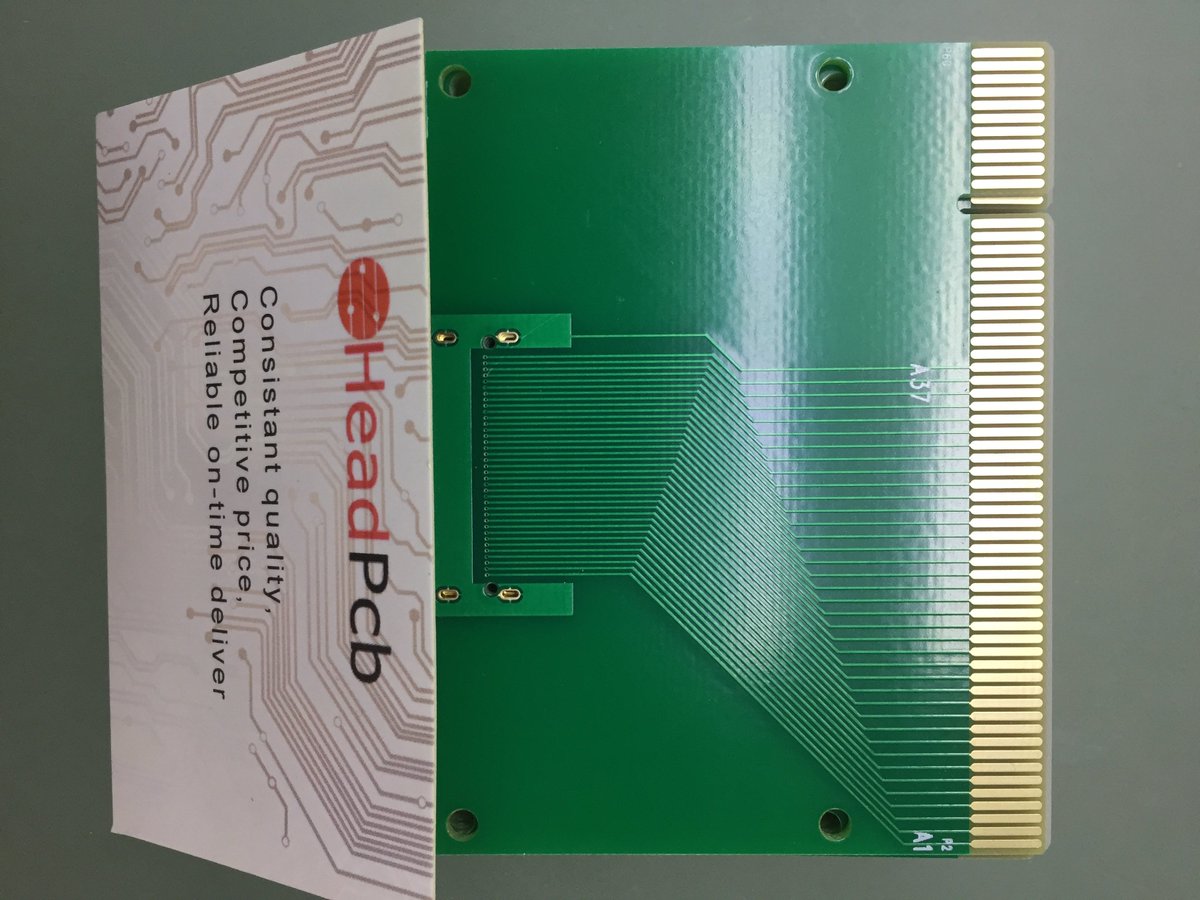

ENIG+20U" hard gold for Amphenol card board, electroless gold gives excellent solderability,while electroplated gold is thicker and harder making it ideal for edge-connector contacts for which will be repeatedly plugged in and removed.#electrolessgold #edge-connector #hard gold

[Headpcb @HeadpcbOfficial]

Nothing affects the PCB’s total cost and reliability as much as the initial design. This is why Headpcb hire so many dedicated specialists who work with you to understand your requirements and those of the product. Contact our specialists right now for your project.

[Headpcb @HeadpcbOfficial]

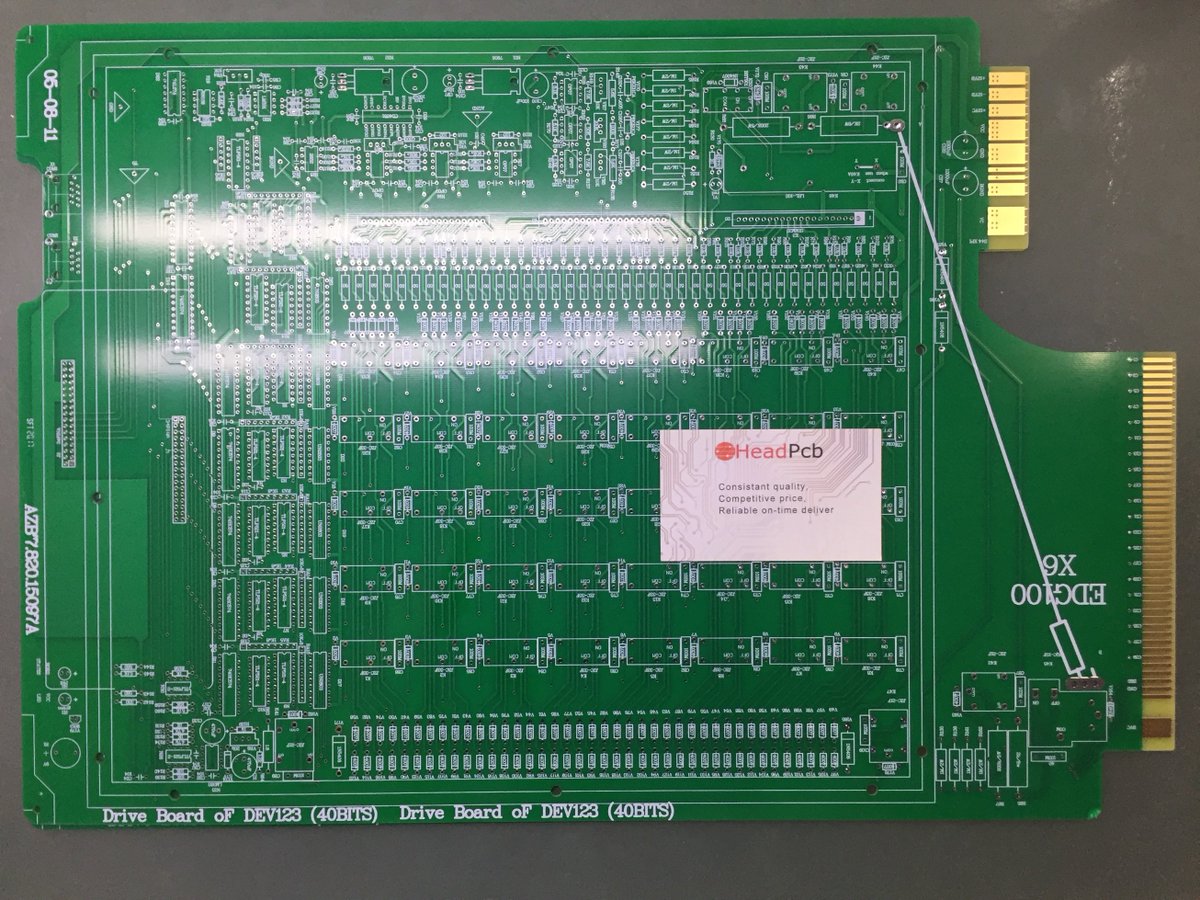

HASL+30U" gold palting, 8 layer gold finger driver PCB board finished.

#pcb #pcbmanufacturing #circuitboard #pcbassembly #pcba #goldfinger #goldplating #flashgold #enig #hasl #printedcircuitboard #hardgold #headpcb

[Headpcb @HeadpcbOfficial]

Busy day begins,the sales helping packaging PCB for a mass production customer,need to catch tonight's ship to USA. We are serious in producing PCB, quality,price,delivery all can meet you requirement.
