This project is an electronic board game I've been developing. It's a prototype with LEDs and magnetic Hall sensors. It can detect a piece over it with a little magnet, and will change the colour of the cell depending of the programmed game mechanics. https://t.co/Q2666F18Eo

[HexenTronics @HexenTronics]

The prototype of the ZeroDeck is already built and in operation. It will now be easier to develop electronic control of table games.
https://t.co/qC1vIryVb3
https://t.co/gMn13FdgLH

[HexenTronics @HexenTronics]

New post in the blog about the current status of the project and the design of the ZeroDeck:
https://t.co/yoPwr8JWYu

[HexenTronics @HexenTronics]

I've been designing a PCB as a player interface for the electronic boardgame. It uses a RPIZero to manage the game by USB. It has a 1.3" OLED, navigation buttons and RGB LEDs to show player status and the game phase. Design files at https://t.co/Gy6qZ9GHkU
@PCBWayOfficial

[HexenTronics @HexenTronics]

@from_scratch_yt Fantastic construction, seems like a commercial product!

[HexenTronics @HexenTronics]

An electronic dice from the Reddit user ztbauman
https://t.co/v9hD0Ydh45

[From Scratch @from_scratch_yt]

Finally finished my next video, I've made an electronic chess board that removes the concept of turns! Link in the replies

[HexenTronics @HexenTronics]

I’m working again in the project of the electronic boardgame after a long pause, but with renewed strength. I’ve mounted the boardgame circuit in a trainer that I made some time ago to develop the application that will control it by USB https://t.co/vzbJGecnk5

[HexenTronics @HexenTronics]

This is my development setup of the electronic boardgame. It's managed by an application in the Raspberry Pi by USB. It shows the update speed using hidapi (https://t.co/uEMCO0JYnj) to send the data, in single cell mode and full board filling.
#boardgame

[HexenTronics @HexenTronics]

Electronic boardgame usb speed demo https://t.co/USBaWdzxAc

[Festival internacional de juegos - Jugamos Tod@s @FJuegosCordoba]

VIDEOJUEGOS DE MESA?

Dándose la mano los juegos de mesa tradicionales con juegos de mesa de todos los tipos, clásicos y nobeles que tratan de llevar al máximo las ventajas del Mundo digital. PD: Roberto Fraga hizo un prototipo físico de este juegos que veis 🤯 @FRAGAMES

[HexenTronics @HexenTronics]

Back to work and making progress. The boardgame already connects via usb with the RPI!
Still developing the player interface board with an oled screen and navigation buttons.

[Nerdforge @TheNerdforge]

is 20 days a reasonable time to spend building a fire portal? ... yes 🥹 check out our most recent project to see how we built it! ✨️

[HexenTronics @HexenTronics]

New post of the mounting process of the electronic board game Helvetios!
https://t.co/Ega2IAIe0A

[HexenTronics @HexenTronics]

Hardware done, and working very smooth!
Now to make the USB interface in the firmware and test it with a raspberry.
#boardgames
#brettspiele

[HexenTronics @HexenTronics]

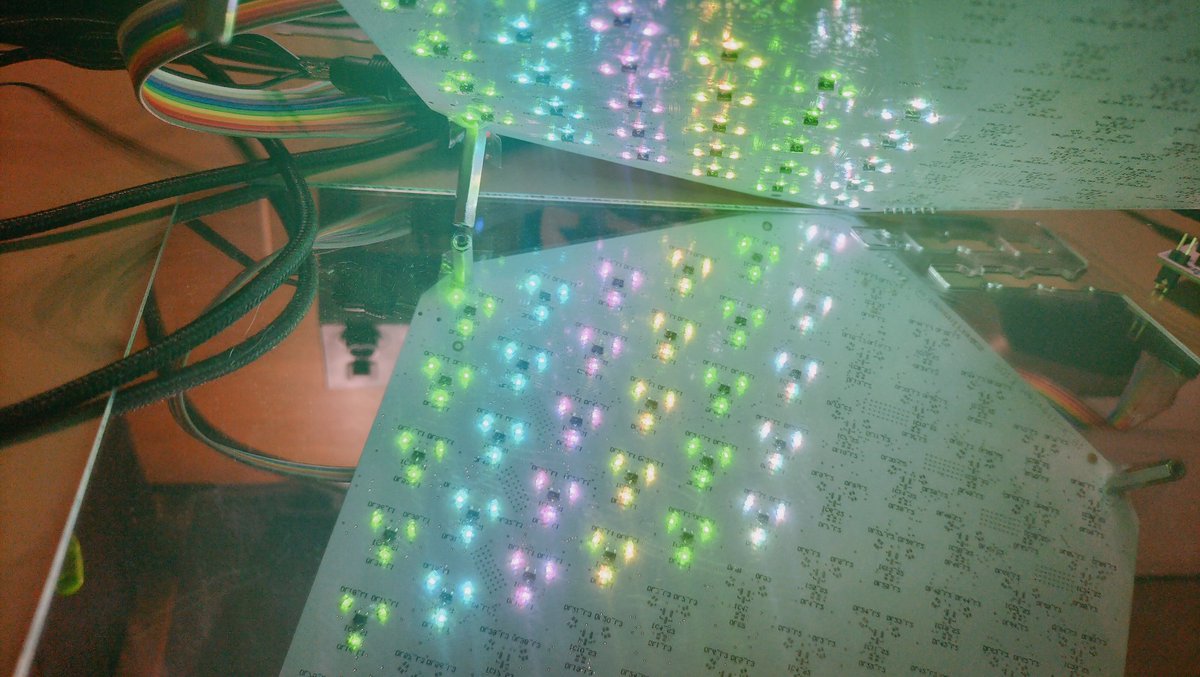

We have the first lights in the electronic boardgame!

[HexenTronics @HexenTronics]

Today at the #daubarcelona fair, testing some games and taking ideas.
#boardgames
#brettspiele
https://t.co/LxCBZWybyv

[HexenTronics @HexenTronics]

It took some months to gather the components in this supply shortage, some with a very high price, but finally I have them all. The bottom layer is already soldered,the microcontroller is running and now I could start making the firmware in this prototype
https://t.co/z751Ka9R6j

[HexenTronics @HexenTronics]

https://t.co/uOAOufw72B

[HexenTronics @HexenTronics]

Some digital dice in cool retro cases:
https://t.co/wXk07ap122

[HexenTronics @HexenTronics]

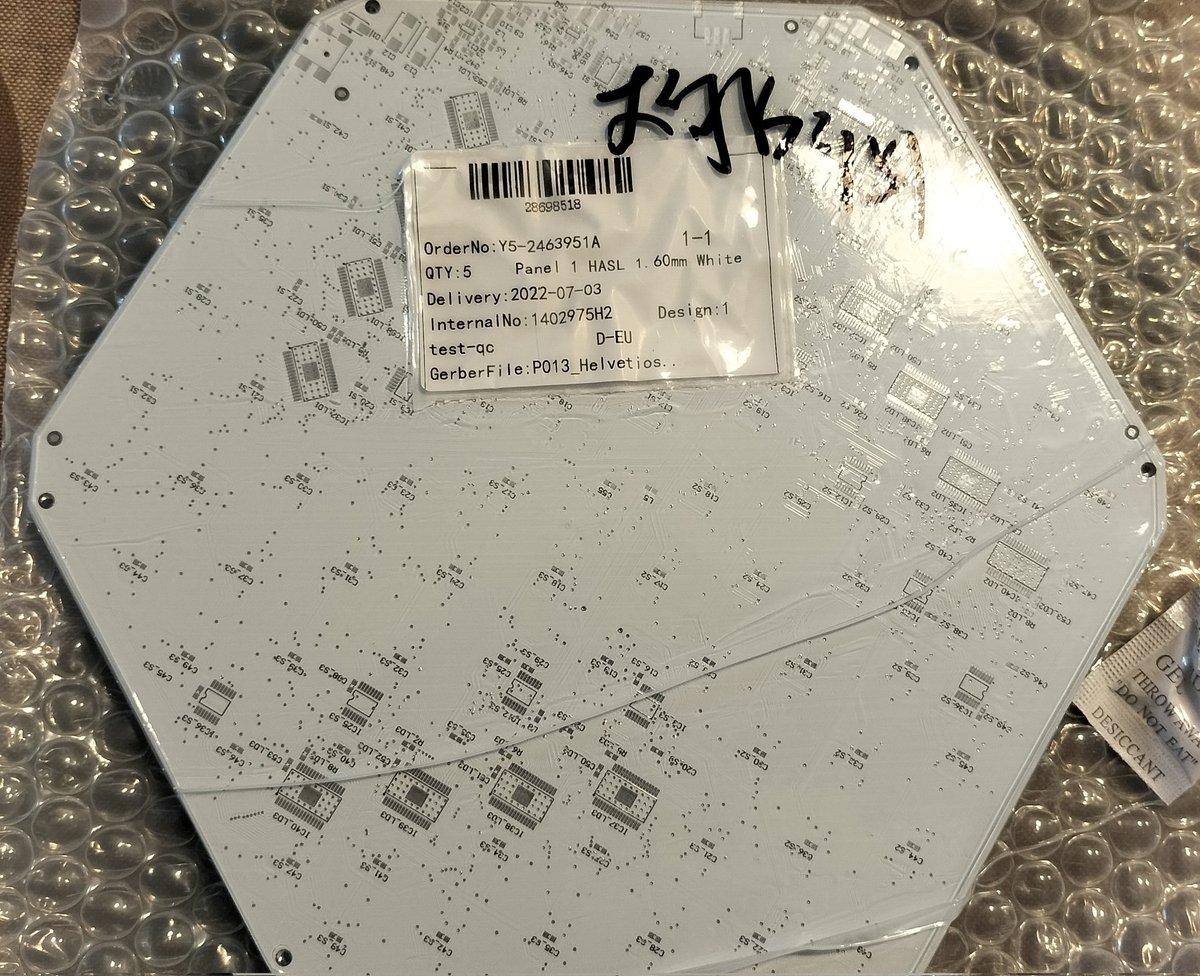

Finally, after some months gathering components, I've ordered the PCBs from @JLCPCB. They look so tiny. Even the led driver is very small and is the biggest component. Now I hope to mount at least one this summer, a lot of work ahead.
