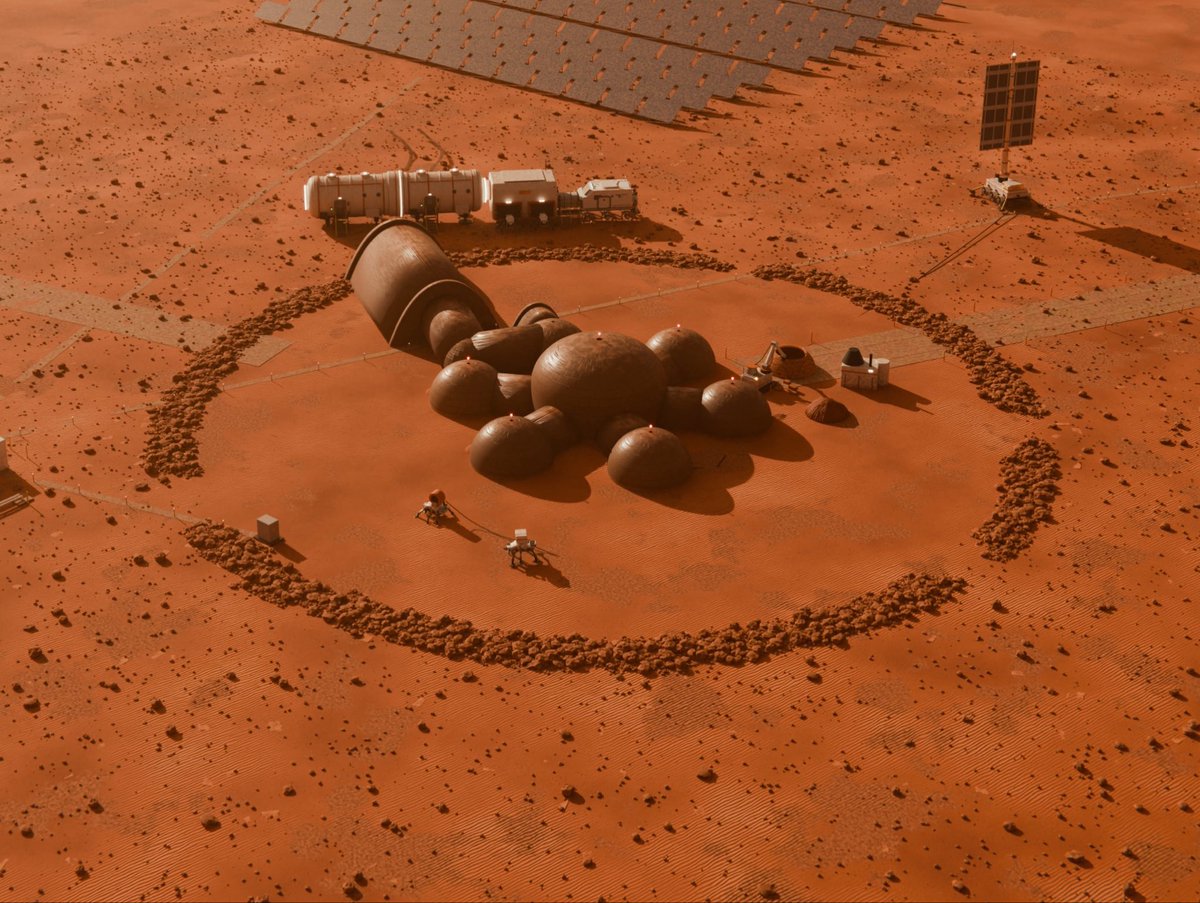

Good evening 🌒 this weekend saw some completed targets of said design concept: Ridgeline Six, Arcadia Plantitia.

Runs on 4 small fission reactors, 160kWe, 1k from crew. The render also shows the design of the hab radiators. They shed roughly ~75kW of waste heat, after first using it to melt ice for fuel. The site also includes 2,400 m² of Solar.

The site used in the renders is from a HiRISE image, chosen for likely shallow ground ice 👍🏻

[John - Space Architecture @MarsSurfHab]

@Lusavitch

[John - Space Architecture @MarsSurfHab]

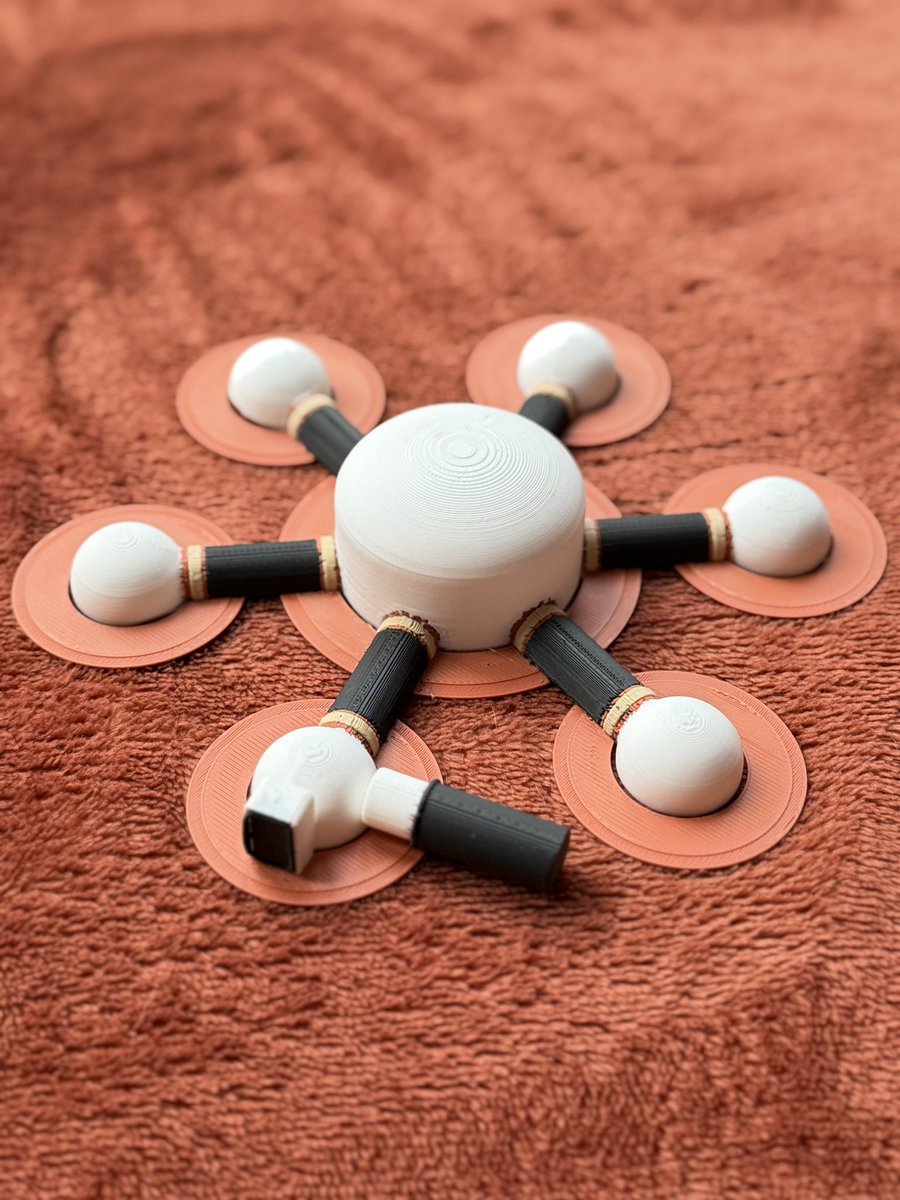

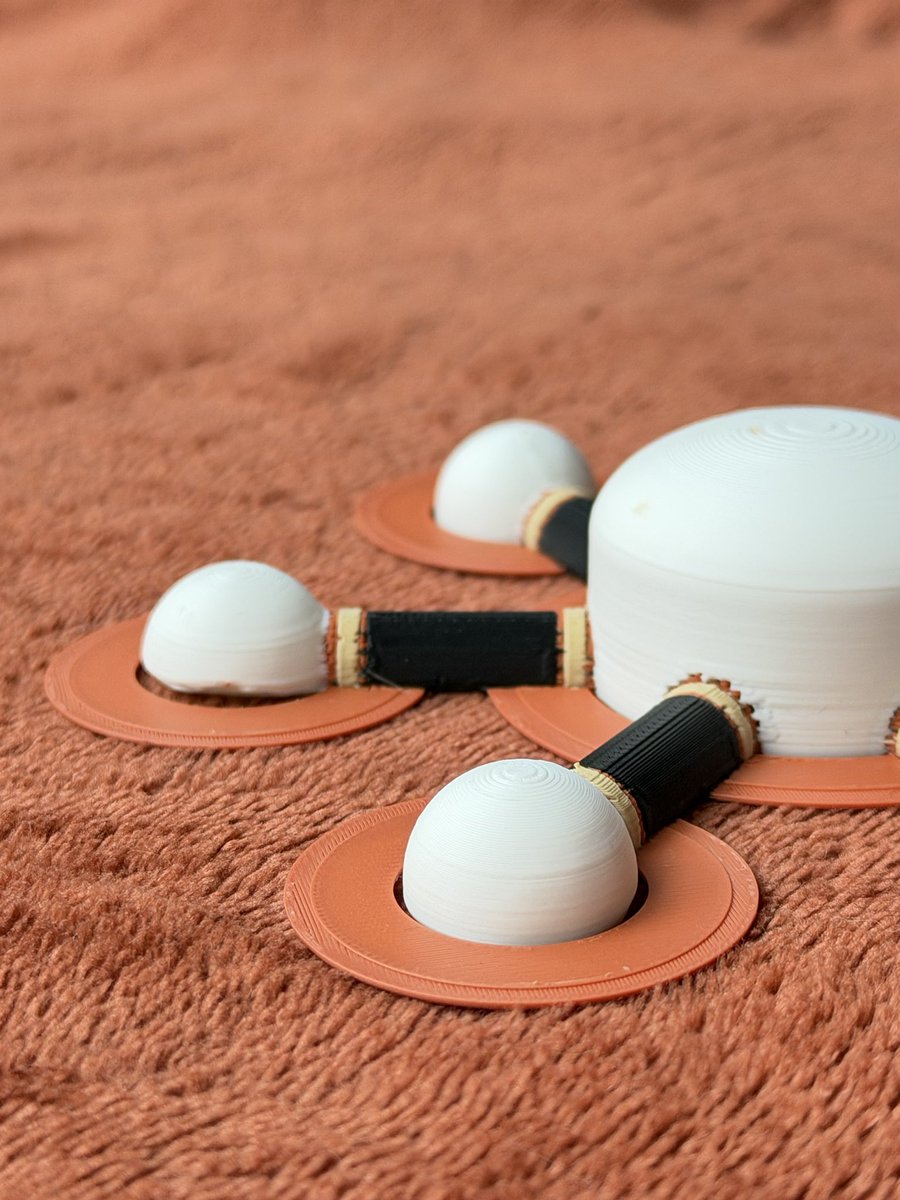

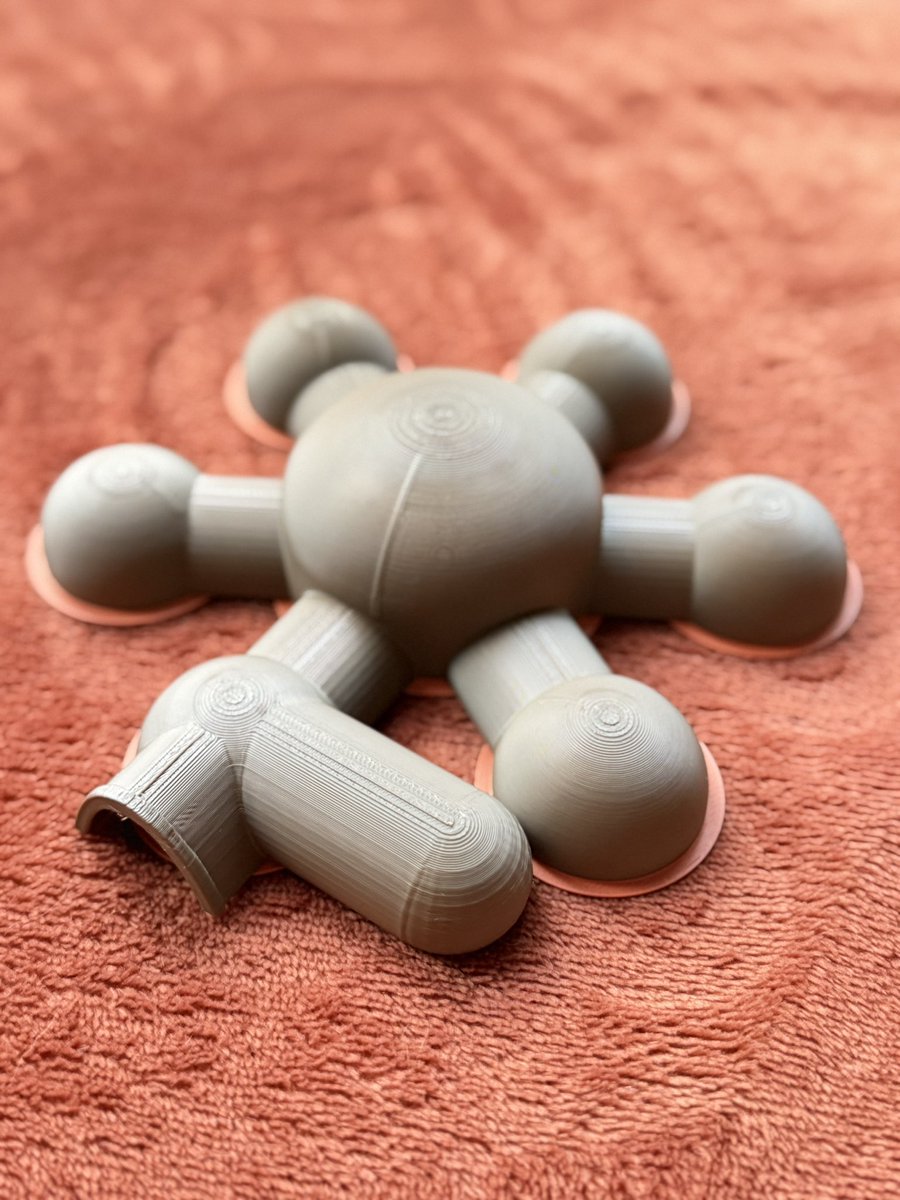

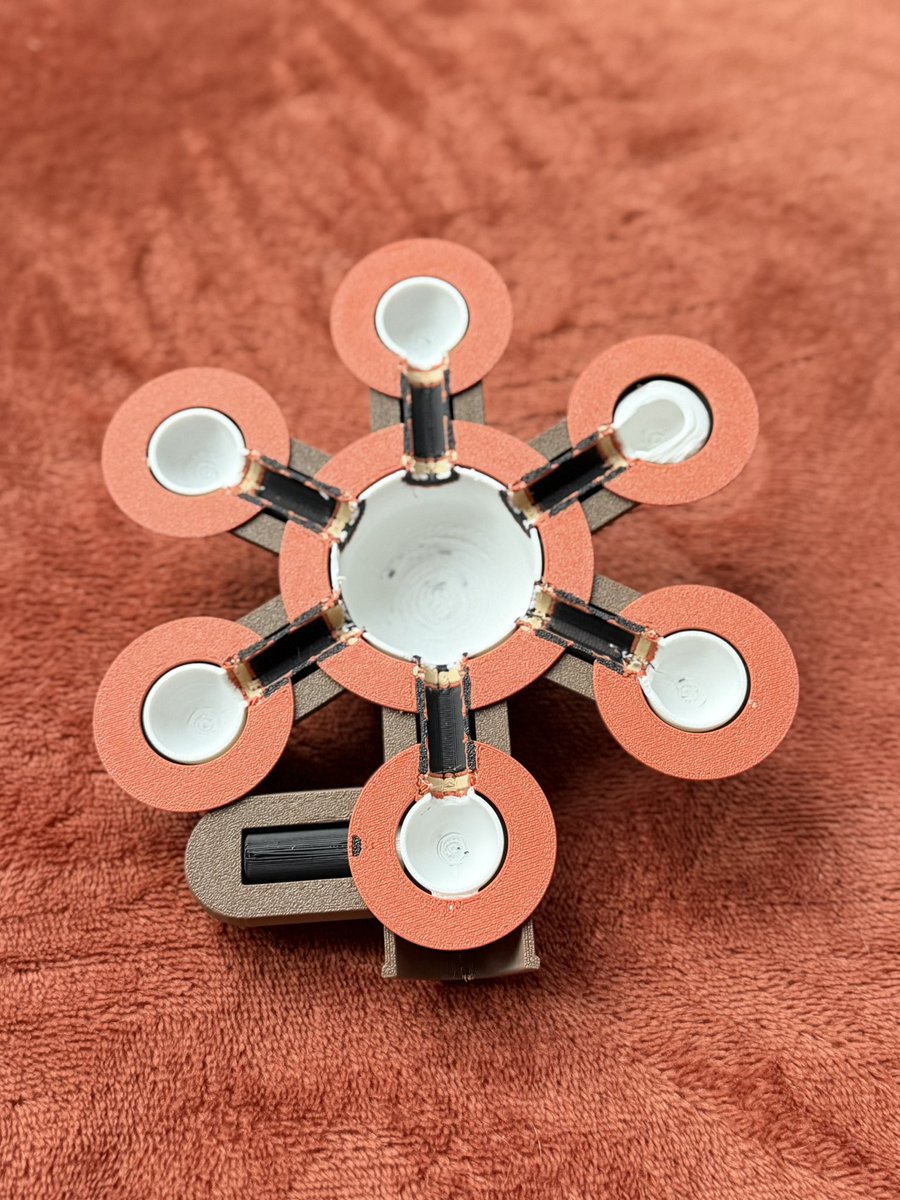

3D prints of our inflatable hab (CAIRN-7) & the regolith layer that covers it. Printed at 1:200 scale!

[John - Space Architecture @MarsSurfHab]

@Lusavitch 1.5M! & yes water bags too, well spotted 👍🏻 thank you!

[John - Space Architecture @MarsSurfHab]

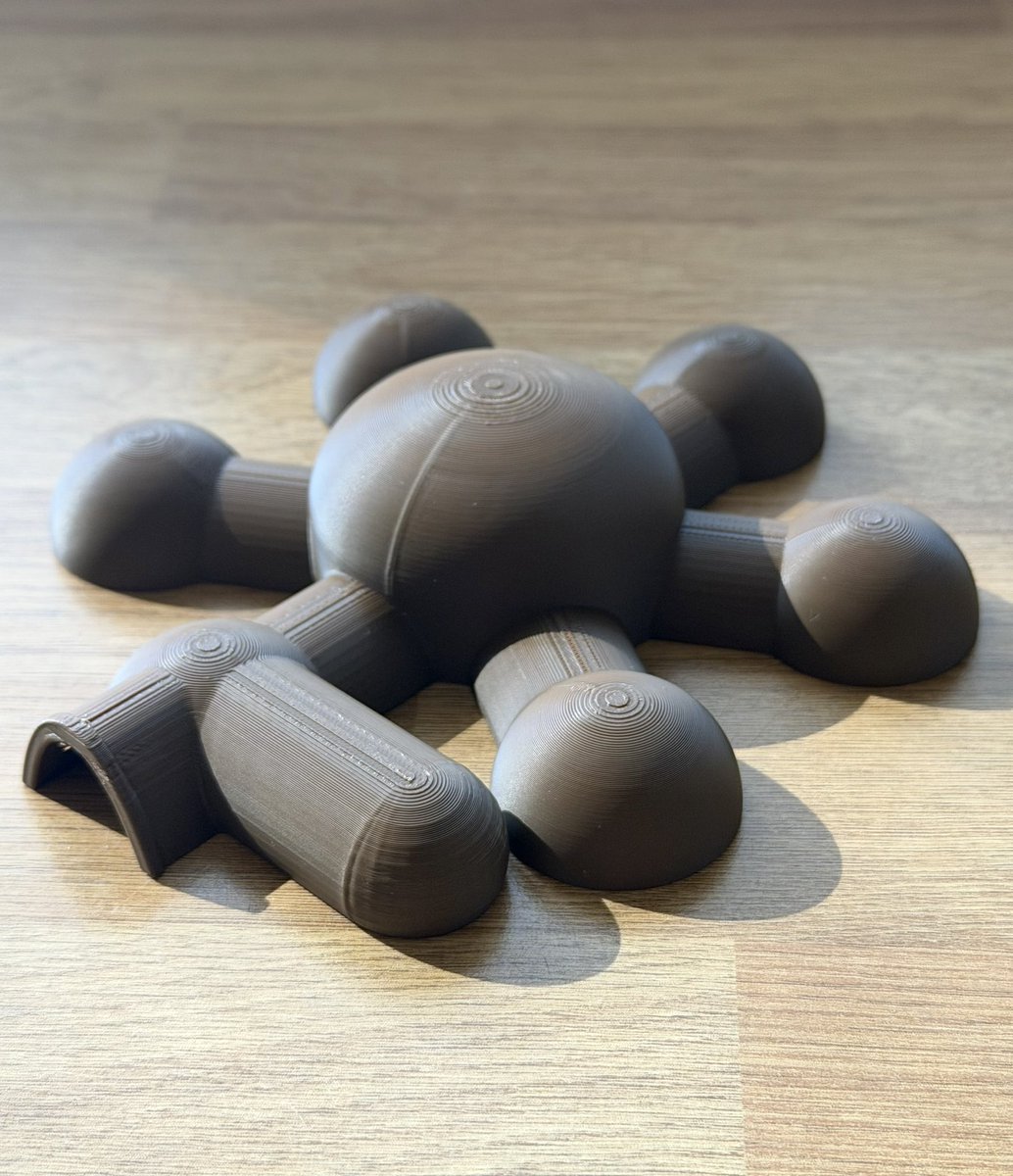

I managed to print my design concept over the weekend. The regolith layer, hollow. Fairly impressed with the end result. 😀

[John - Space Architecture @MarsSurfHab]

@fritzcav Many thanks!

[John - Space Architecture @MarsSurfHab]

Good evening 🌒 this weekend saw some completed targets of said design concept: Ridgeline Six, Arcadia Plantitia.

Runs on 4 small fission reactors, 160kWe, 1k from crew. The render also shows the design of the hab radiators. They shed roughly ~75kW of waste heat, after first using it to melt ice for fuel. The site also includes 2,400 m² of Solar.

The site used in the renders is from a HiRISE image, chosen for likely shallow ground ice 👍🏻

[John - Space Architecture @MarsSurfHab]

@Lusavitch Indeed!

[John - Space Architecture @MarsSurfHab]

@JaraySzabolcs @jabe8 Each hab sits roughly 1m into the ground. Shell, 0.3. Inflatable underneath the regolith, plus foundation.

[John - Space Architecture @MarsSurfHab]

@is_OwenLewis Olympics

[John - Space Architecture @MarsSurfHab]

@outerspacetoday @danaen803 Most certainly is the way 👍🏻

[John - Space Architecture @MarsSurfHab]

@KiwiThinker Thanks, Kiwi!

[John - Space Architecture @MarsSurfHab]

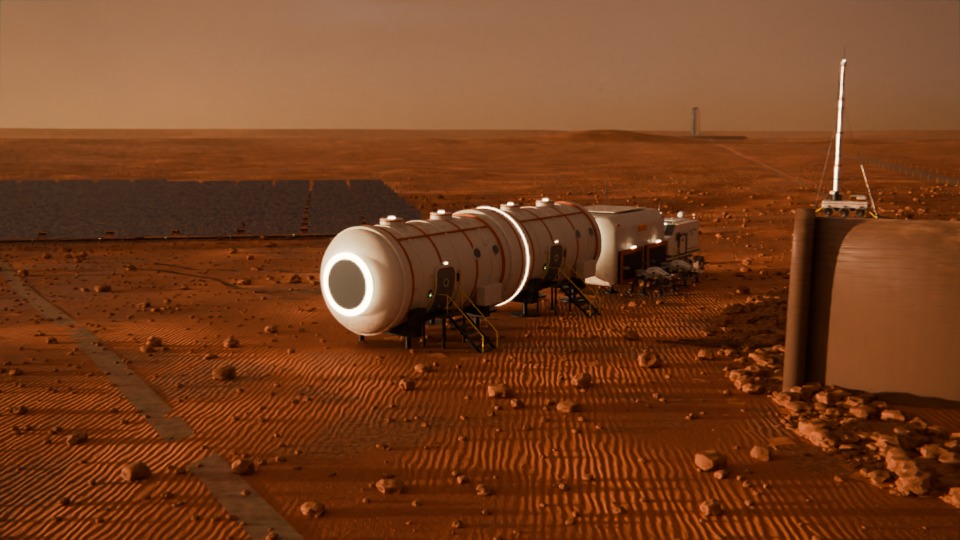

@KiwiThinker That's roughly 1k from the site.

[John - Space Architecture @MarsSurfHab]

@sabre_tv Brilliant.

[John - Space Architecture @MarsSurfHab]

@jabe8 Cheers, John! It's predominantly the rocks from excavation of said site. Surface rocks pushed to edge, can also be used later for later build. I would also suggest it adds psychological aspects, such as, a boundary with a clear sense of territory...

[John - Space Architecture @MarsSurfHab]

@space_stations Mars will be different!

[John - Space Architecture @MarsSurfHab]

Dust on solar panels cuts output about 0.2% per sol, so you’re left with ~37% after 500 sols if nothing cleans them. That’s what killed InSight.

[John - Space Architecture @MarsSurfHab]

@FilipPanoski 😅

[John - Space Architecture @MarsSurfHab]

@maryglazkova 😅

[John - Space Architecture @MarsSurfHab]

@BRLSI for Jerry Stone’s talk on “island zero” this evening.
