I made a set of aluminum jaws for the Tormach 5-inch vise. They use low-profile VersaGrips from @MiteeBite
which allow me to grip the last 1.5-2mm of stock.
I joined a local maker space to get access to a Tormach 1100 CNC mill. What a whole new world compared to the tiny CNC router I've been working on at home.
Here's the first real thing I made on the Tormach - a chamfer demo part to help my quickly visualize various chamfer widths
My latest CNC project: A mini pry bar for my keychain. Practicing new techniques (surfacing with a ball nose end mill) and trying to improve dimensional accuracy. Finished in a vibratory tumbler for a few hours.
Sometimes you just gotta SFTP stuff to get the job done 🤷🏻♂️
Modern Git-based deploys are great when all the connections and configurations are working. But when that fragile system inevitably breaks for dozens of possible reasons and something needs to go live NOW: FTP FTW.
Custom designed VESA 75 mount for lightweight USB-C monitors with only two mounting holes. This allows you to mount the monitor to a tripod/articulating arm with a standard 1/4-20 tripod screw. CNC machined from 6061-T6 aluminum.

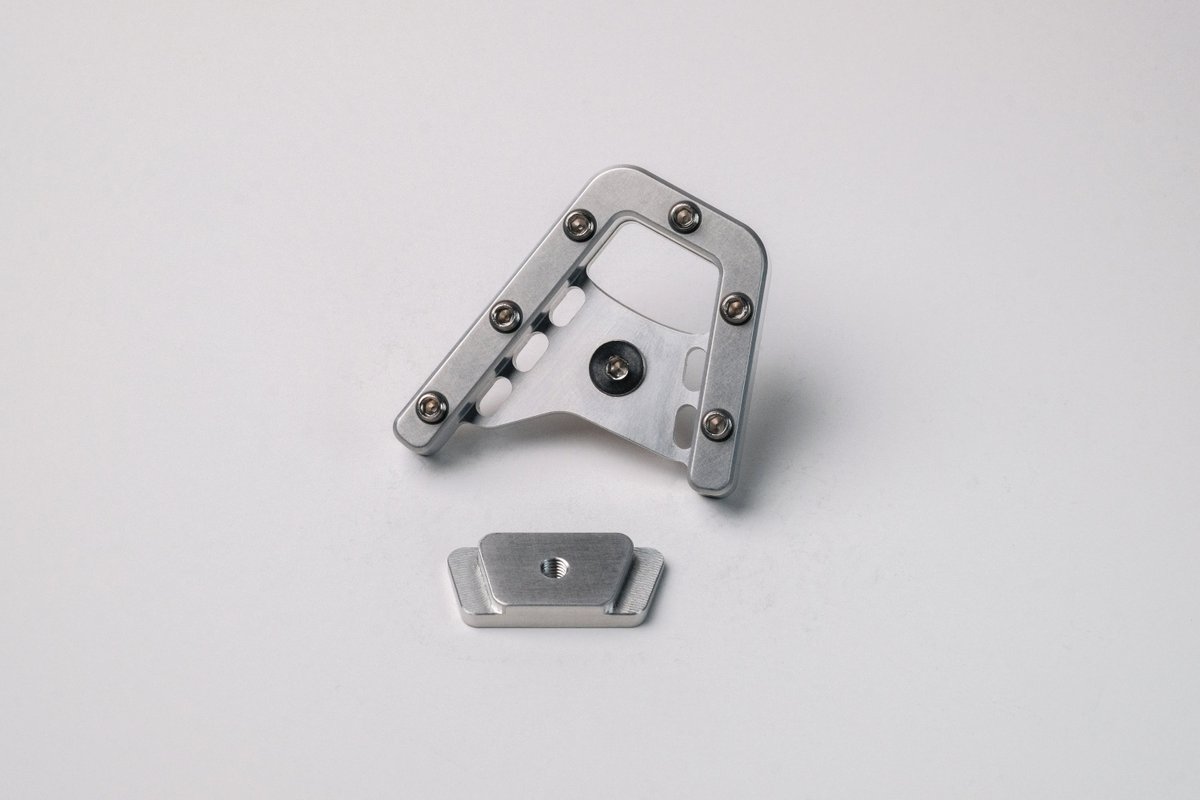

I just finished my latest CNC project:

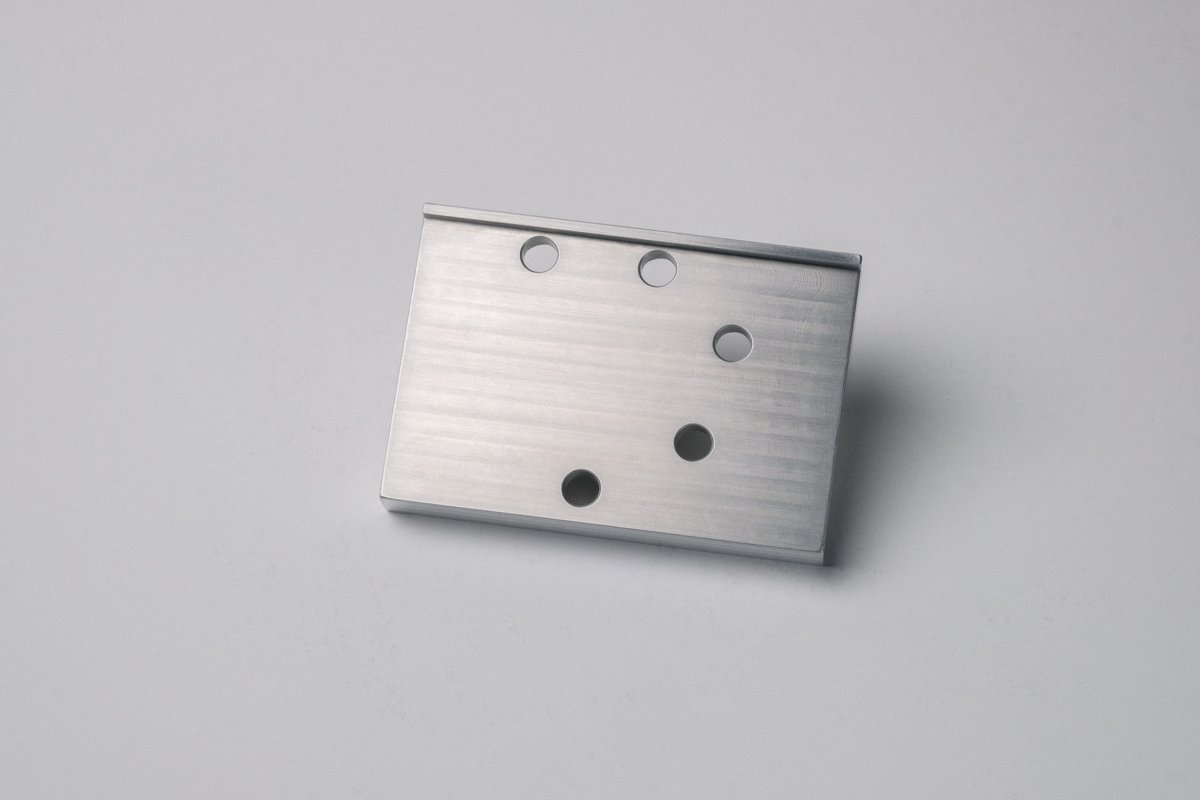

A motorcycle brake pedal enlarger with a custom bottom plate/nut. Since one of the sides is angled I couldn't just clamp it back into the vise after milling the top and side features, so I also had to make a custom fixture plate as well.

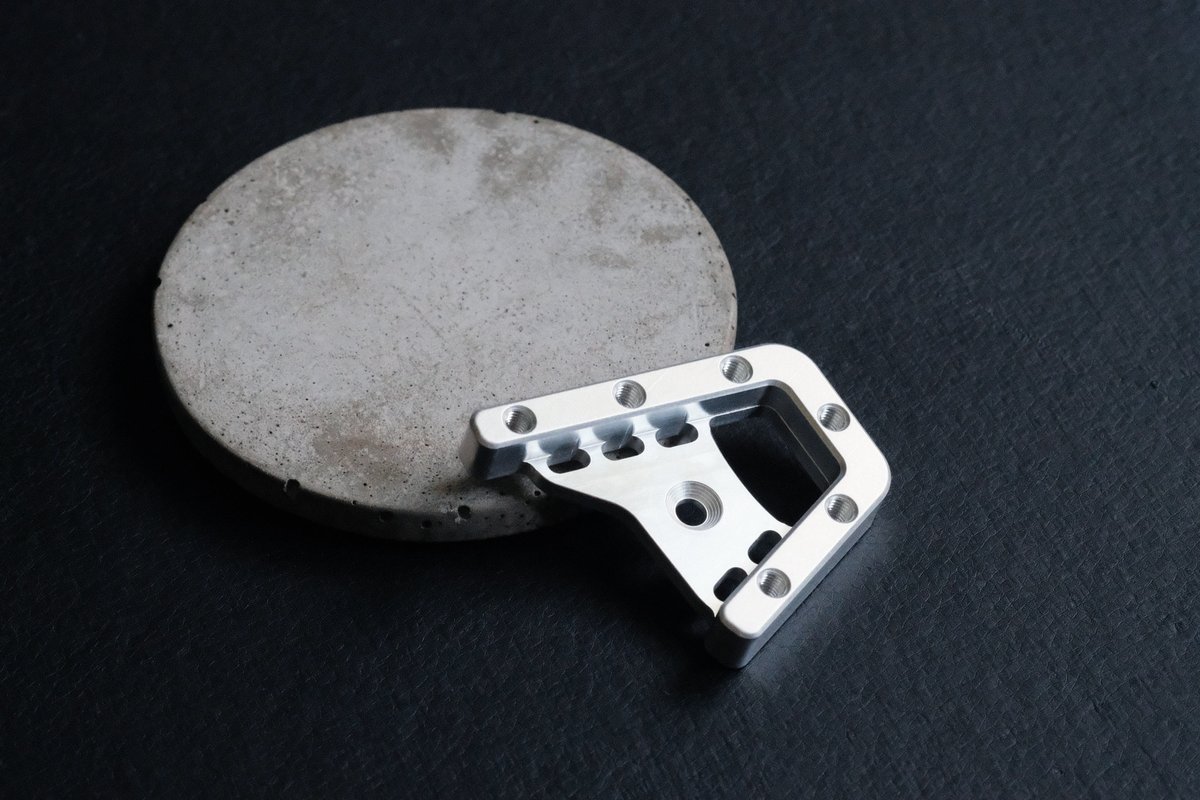

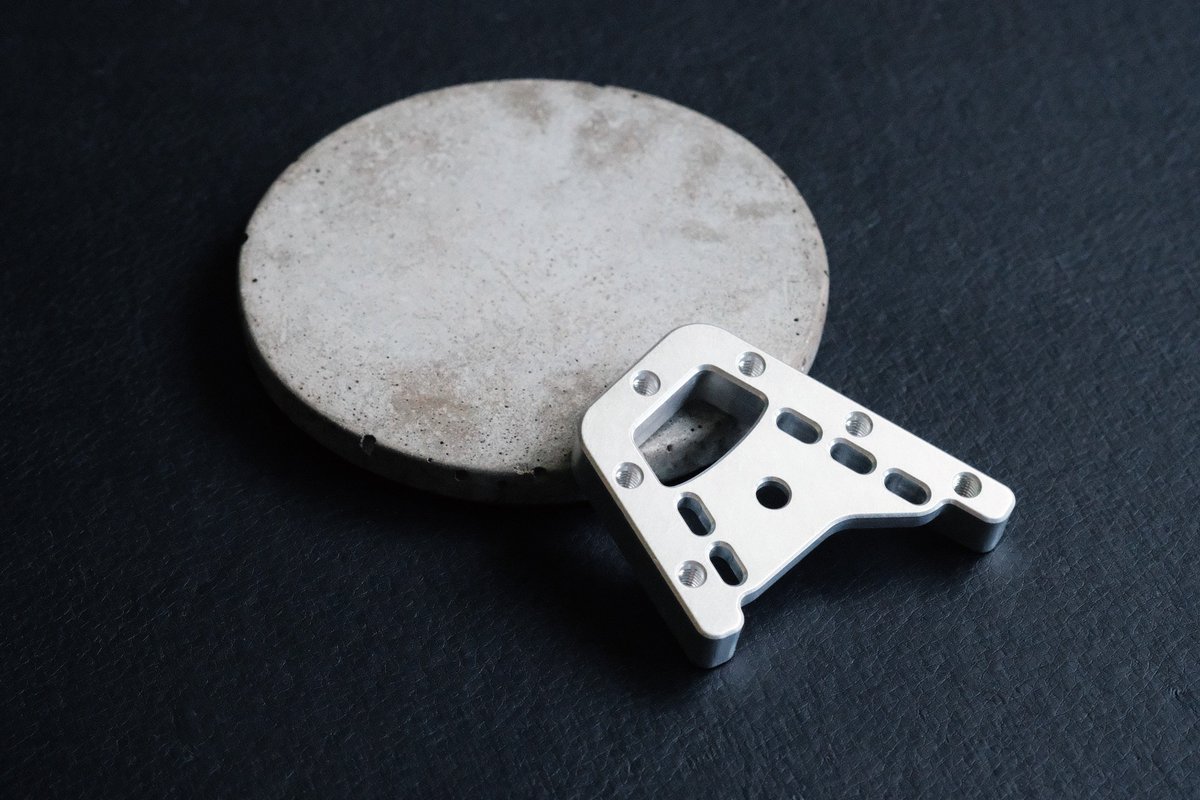

The most complex part I've made on my hobby CNC router so far. It's a motorcycle brake pedal extender/enlarger for use with bulky off-road motorcycle boots. 6061 Aluminum.
So much of learning a completely new subject is just a loop of: Study, Execute, Repeat. The more reps you get in the faster you'll learn. And avoid the trap of "I'll execute once I have all the information".
I machined an aluminum plate to replace the 3D printed one. This secures my tool length offset probe to the bed.
I tried a few new techniques and tools for this and made several mistakes, so it came out pretty rough. But it's fully functional and was a good learning experience.
I actually made it by hand with my table saw and a drill, but one of the holes was off by 2mm so I had to scrap it and start over.
At which point I asked myself, "Why am I doing something by hand when my computer can do it??" The end result is 50X better. CNC is so friggin cool.
I upgraded my CNC vise to this sweet low profile vise from Inception Machines. It is beautifully made and feels incredibly solid.
https://t.co/8CZ7vbh52q
CNC machining as a hobby is such a neat mix of sketching and designing, 3D modeling, electronics, programming, 3D printing prototypes / mounts / fixtures, setting up automations, and blending digital technology with the very tangible physical world.
The CNC router workstation is coming together. I built an enclosure, hooked up compressed air lines and valve, and designed a USB-C monitor mounting plate (with an embedded steel nut) and laptop docking station.
It's interesting comparing the limitations of designing for CNC with the benefits/limitations of designing for 3D printing. And just thinking about the pros/cons of subtractive versus additive manufacturing.
I finally caved and bought a desktop CNC mill 😅
I'm designing an aluminum motorcycle part but don't have a good way to make it, so it's the perfect excuse to dive into this world. Here's my first test program on a block of wood.
