[PiperMakes @PiperMakes]

@Leaked_Milk Ty ty~

[PiperMakes @PiperMakes]

Gonna be putting up a handful of posts of the finished 1/144 TR6 Woundwort.

I'm so pleased with how this kit came out, despite a few nitpicks that will either be ironed out, or aren't that visible xD I'll have to take a few next to the 1/100 when I get a chance~
#AOZ

[PiperMakes @PiperMakes]

And some in a more neutral pose~

I hope @omechaunit_go gets to see this one. It's been an enormous effort to get the design to this point, and I hope I did it justice~
#AOZ

[PiperMakes @PiperMakes]

I finally got there with my 1/144 Woundwort~ Absolutely speedran the build, and I think with a few tweaks to the final kit, I'll be able to confidently make a few kits of this build.

Just gotta put this one together tomorrow when I get up xD

[PiperMakes @PiperMakes]

Finished the revisions for the 1/144 scaling of the Woundwort. Everything's out for supporting, and then I'll be able to do any prototype revisions as needed (hopefully none are needed xD)

Got it down to 150 pieces from the 1/100's 193 x'D
#AOZ #TR6

[PiperMakes @PiperMakes]

@kuni_3025 Absolutely incredible~

[PiperMakes @PiperMakes]

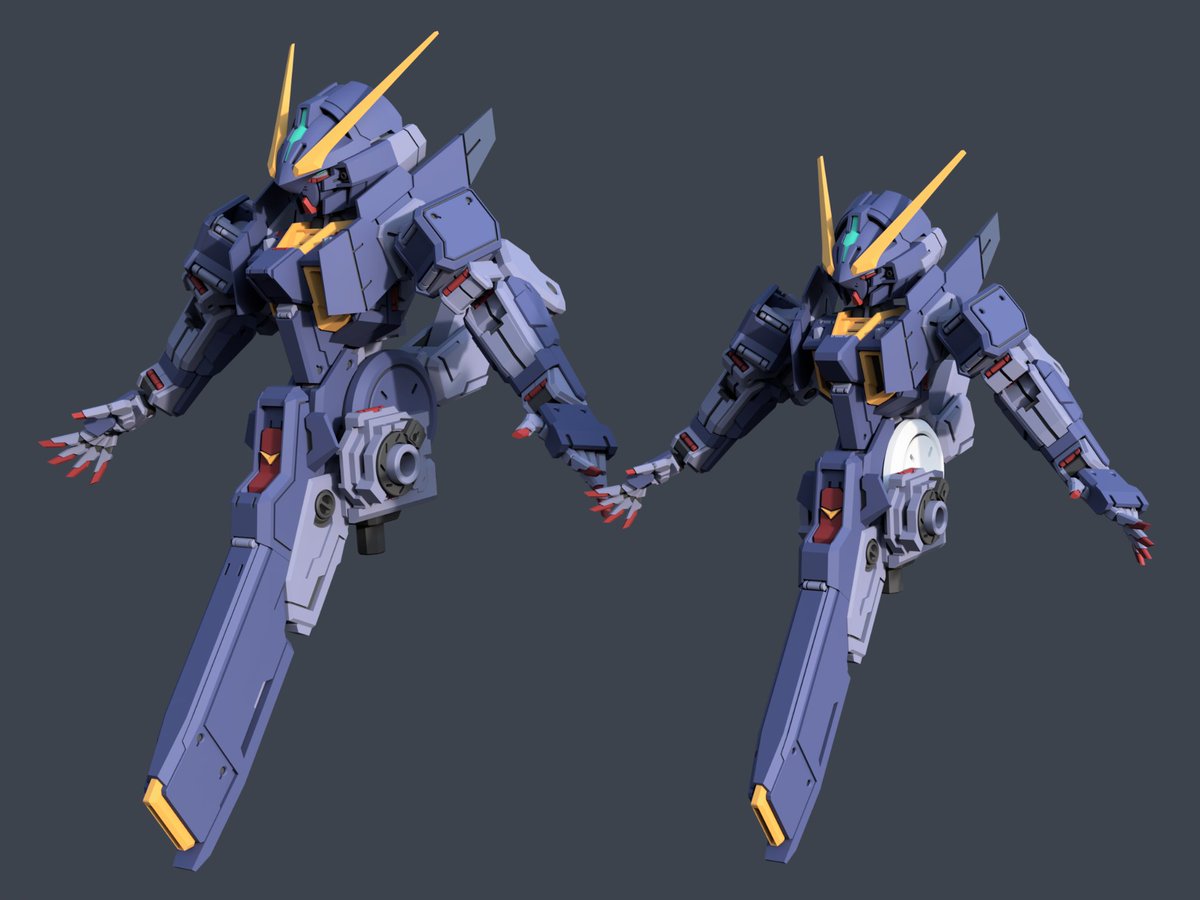

When you stream for 8 hours and most of what you've done isn't really noticeable or visible xD
1/100 v 1/144 scaling, I've adjusted most all of the tolerances, and joined a handful of parts down for a slightly simpler assembly. Added a few details too xD

[PiperMakes @PiperMakes]

Finished running the 1/100 downscaled Woundwort prints. I know what I want to do for the remodeling now. I can get away with a lot more then I initially thought for some of the tinier parts and details, so this was pretty useful to go through.
#AOZ #TR6

[PiperMakes @PiperMakes]

This has been fairly useful overall x'D I do think I'll probably scale the actual 1/144 down a little bit. But not much the scaling is mostly 1:1 with the 1/144 with a few proportional changes.

[PiperMakes @PiperMakes]

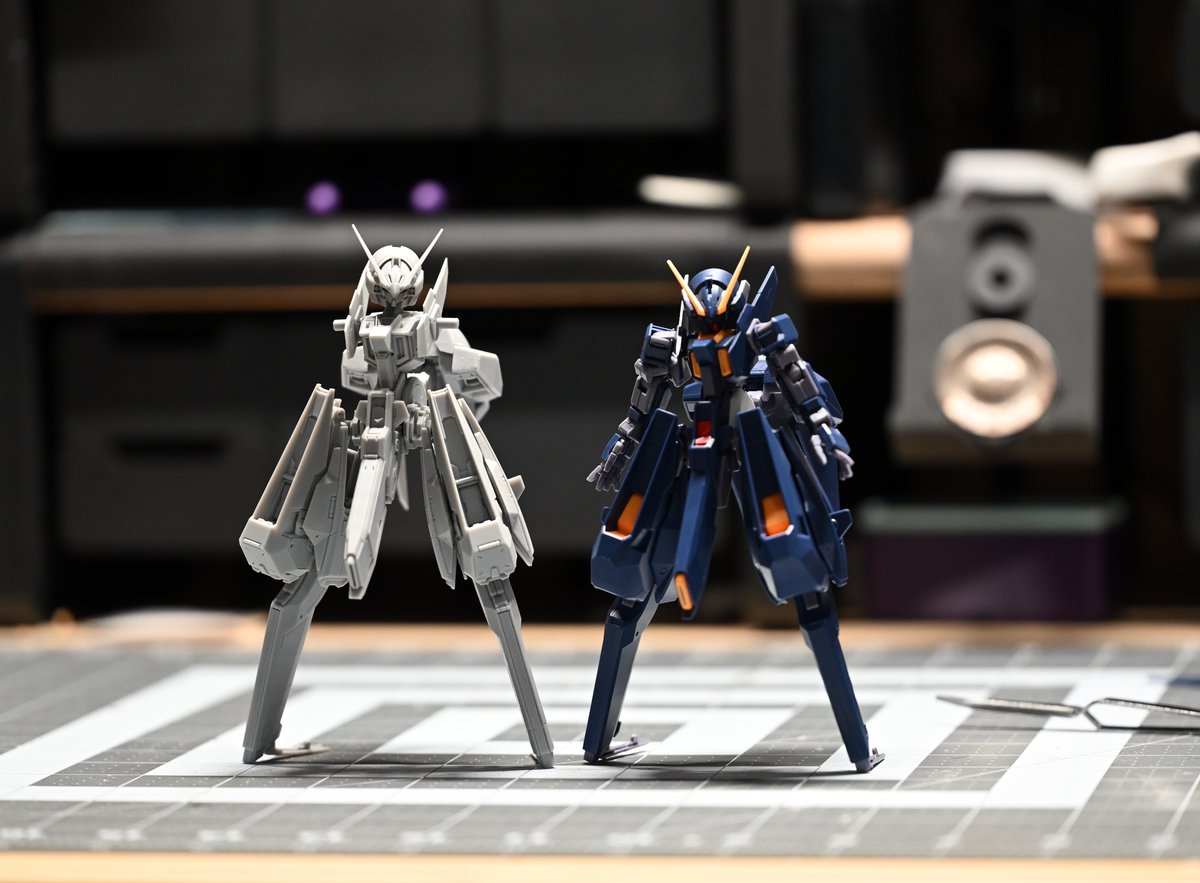

Seems I'm just printing the whole 1/100 scaled down x'D

So far, it looks like I'm just, gonna leave a handful of the joint tolerances in the legs alone as they print as is just fine, would just need a detail pass to define things for the scale a bit better.
#AOZ

[PiperMakes @PiperMakes]

Probably be the last bit of just scaled 1/100 parts I print to get the scaling.
I think the things are pretty bang on, but it could be smaller. It's a little bit bigger then the 1/144 and that's already too large xD
Also just, a *cool* comparison to have it next to the 1/144~

[PiperMakes @PiperMakes]

I'll be simplifying a lot of the parts, the joints are too tight now (surprised it assembled at all), and I have the chance to make it smaller then the HG to make the scaling *right*. Not sure yet if I'll make it smaller than it is currently though *shrugs*

[PiperMakes @PiperMakes]

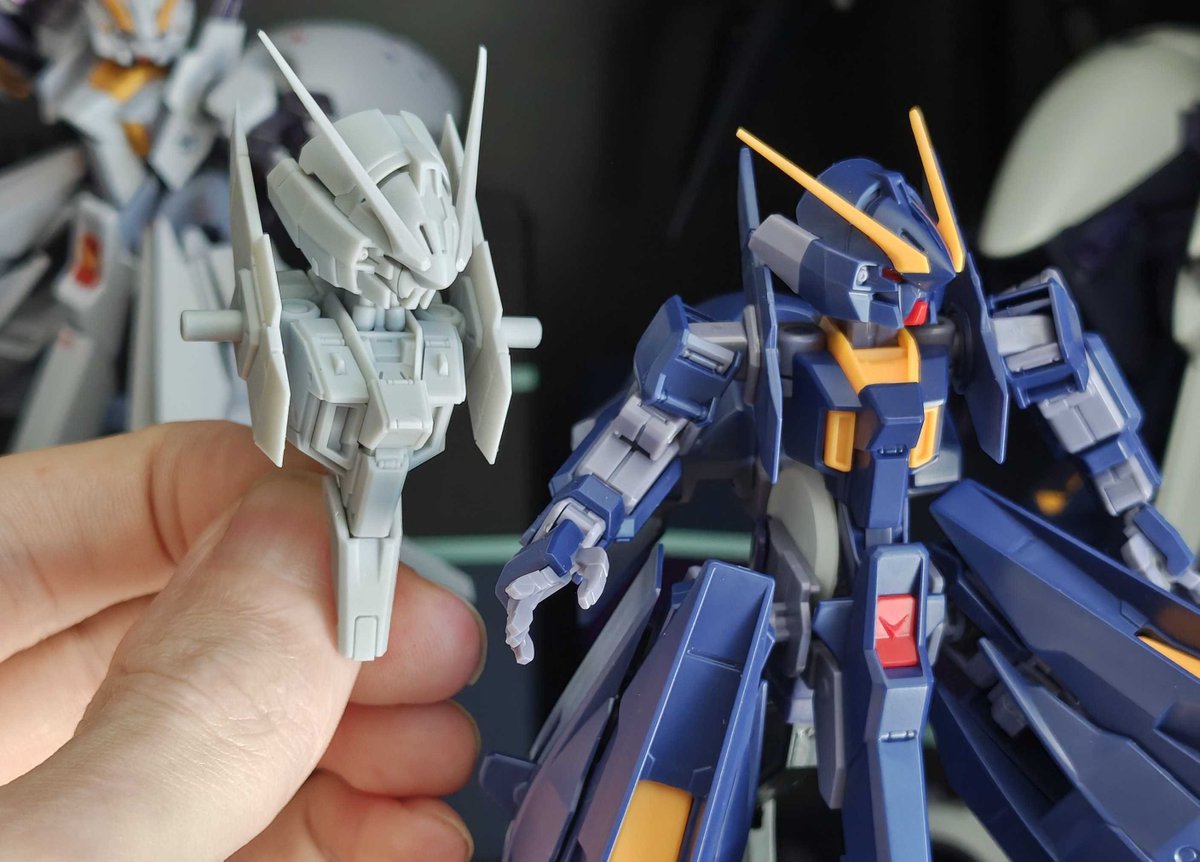

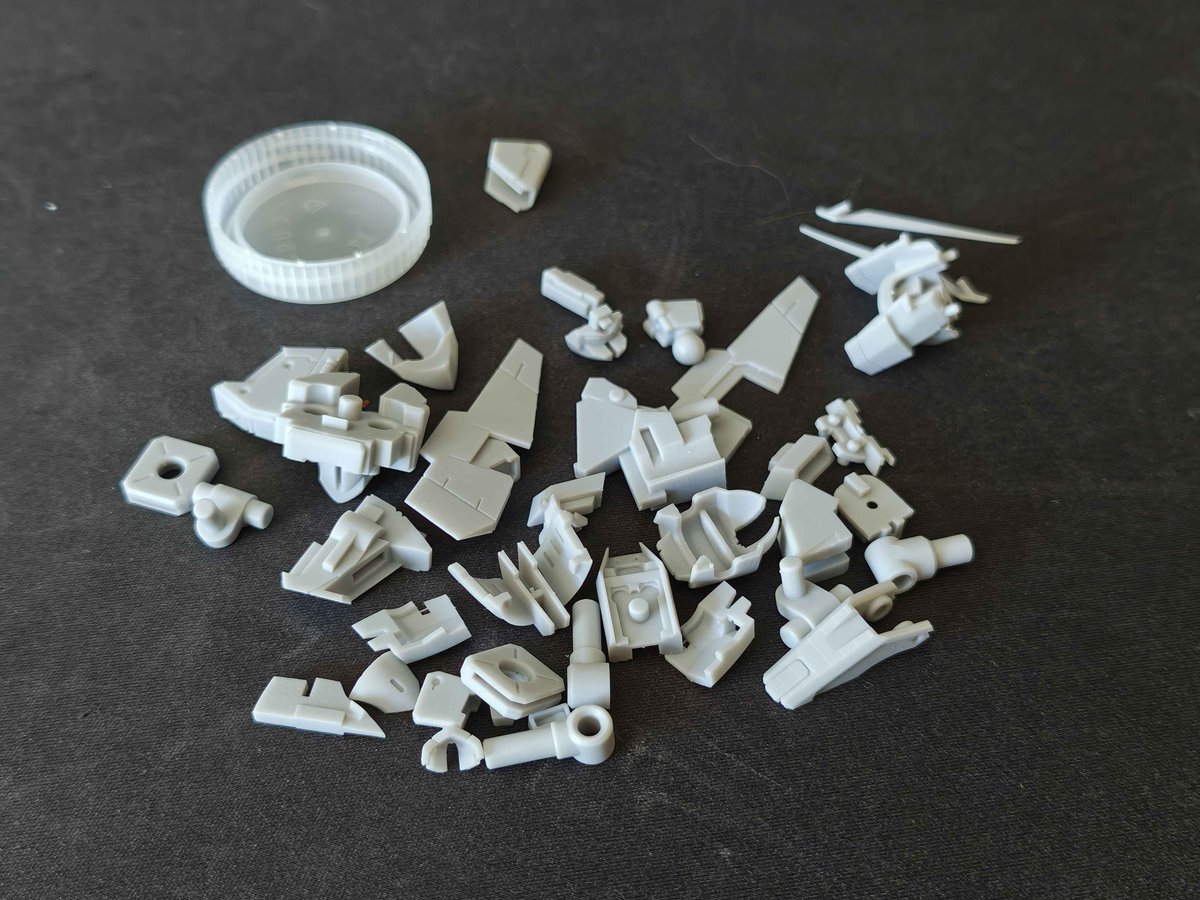

I plan to scale the 1/100 down to 1/144, so to get an idea of where that sits, I just scaled the 1/100 down. I didn't expect *any of this* to print, and yet.
#AOZ #TR6

[PiperMakes @PiperMakes]

Last one. This project was a joy to model, and I hope it does the original TR6 design justice~
#AOZ #TR6

[PiperMakes @PiperMakes]

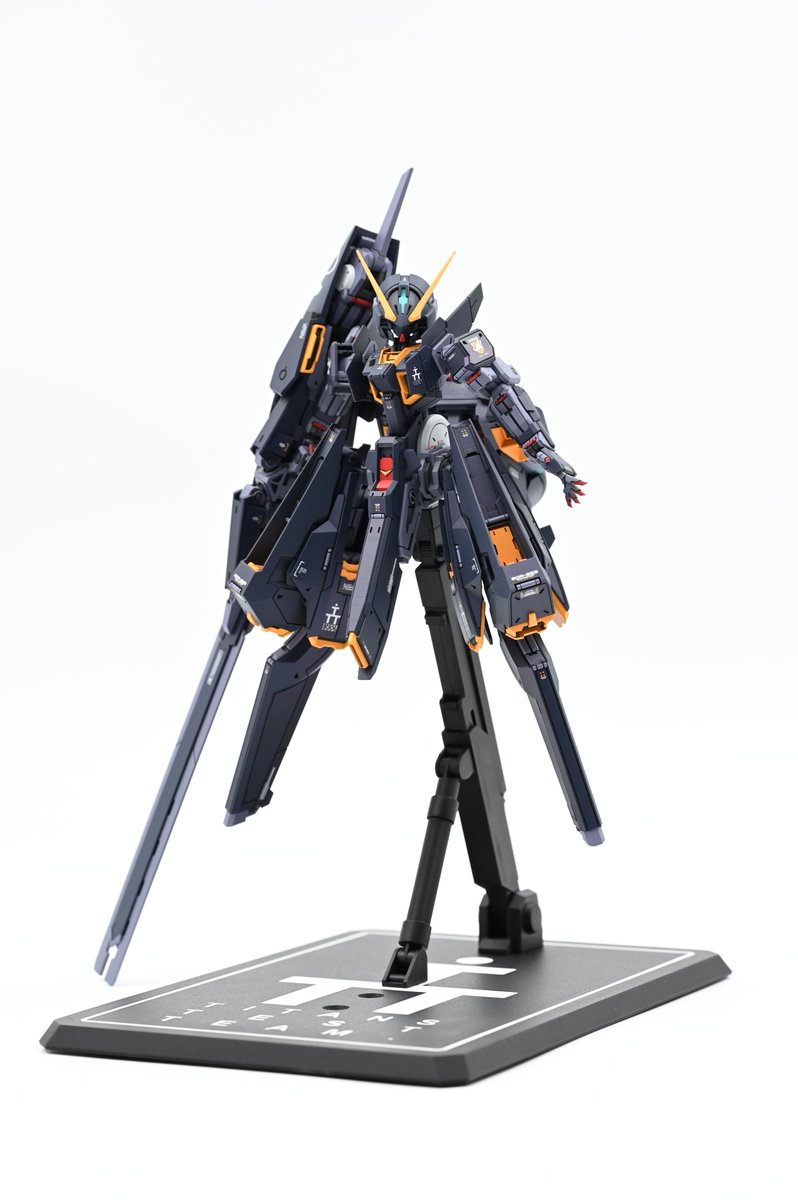

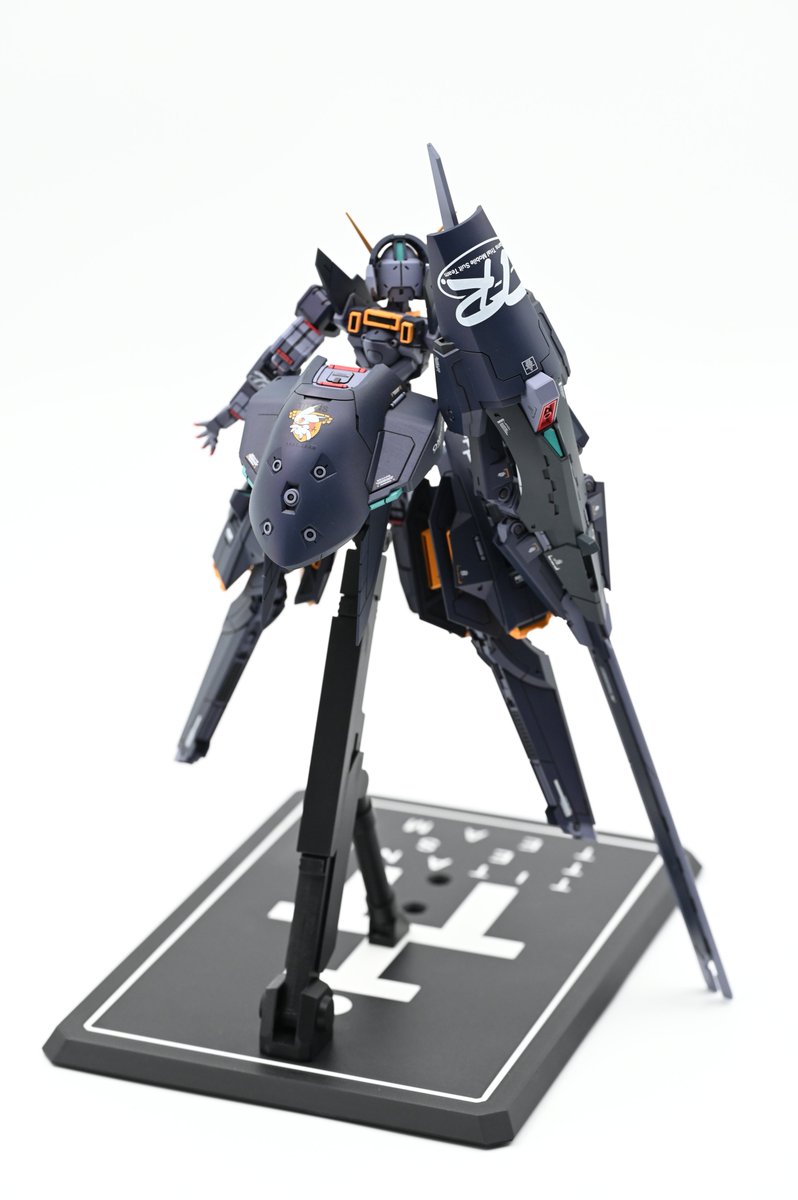

I've been working on this #AOZ TR6 1/100 scale Woundwort for the better part of the past 3 months.

And I just wanted to take a second to thank Fujioka for these designs. They've been massively inspirational to me, and I'm just glad I could finally show this one off.

[PiperMakes @PiperMakes]

Everything was modeled in Fusion360. The entire thing is poseable, even if it doesn't like supporting the Composite Shield Booster.

I'll be working on the Hazel II next.

#AOZ I just, love the TR6 so much~
