Load board issues aren’t random — they’re predictable.
And predictable means preventable.
• SI/PI discipline
• Mechanical stability
• Real-world validation
Bring your constraints, we’ll sanity-check the approach.
🌐https://t.co/Q1DkX5FUGU 📱[phone]
#LoadBoard #SASTech

[SAS Tech @SAS_Microchip]

DFM isn’t a checkbox. It’s profit protection.
Most manufacturing problems start in design.
Lock DFM early → fewer re-spins + better yield.
Want our DFM pre-flight checklist?
🌐 https://t.co/Q1DkX5Gsws | 📱 [phone]
#DFM #Manufacturing #NPI #Electronics #SASTech

[SAS Tech @SAS_Microchip]

Israel × India × Korea × Taiwan = execution advantage.
Global partnerships cut cycle time.
🇮🇱 Control | 🇮🇳 Design | 🇰🇷 Precision | 🇹🇼 Speed
Fast-lane your program.
https://t.co/Q1DkX5Gsws | 📱 [phone]
#Semiconductor #Turnkey #NPI #Manufacturing #SASTech

[SAS Tech @SAS_Microchip]

Turnkey = fewer handoffs, more outcomes.
Too many vendors turn supply chains into risk farms.
• One owner for build + test
• Faster loops
• End-to-end accountability
Explore: https://t.co/Q1DkX5Gsws | 📱 [phone]
#Semiconductor#Turnkey#Manufacturing #SASTech

[SAS Tech @SAS_Microchip]

Smart panelization = better yield.
Before/after fixes:
• Tabs & rails
• Break-offs
• Warpage control
Right panelization reduces warpage, speeds depaneling, and protects components.
🌐 https://t.co/IDk4VHeheu | 📱 [phone]
#PCB #Panelization #PCBA #DFM #SASTech

[SAS Tech @SAS_Microchip]

Boundary-scan > ICT when PCB density skyrockets.
TDI → TDO chain = high coverage, low probe count.
Great for BGAs, HDI, tight layouts.
Ask for our Boundary-Scan Primer.
🌐 https://t.co/IDk4VHeheu | 📱 [phone]
#JTAG #BoundaryScan #ICT #Testing #PCBA #SASTech

[SAS Tech @SAS_Microchip]

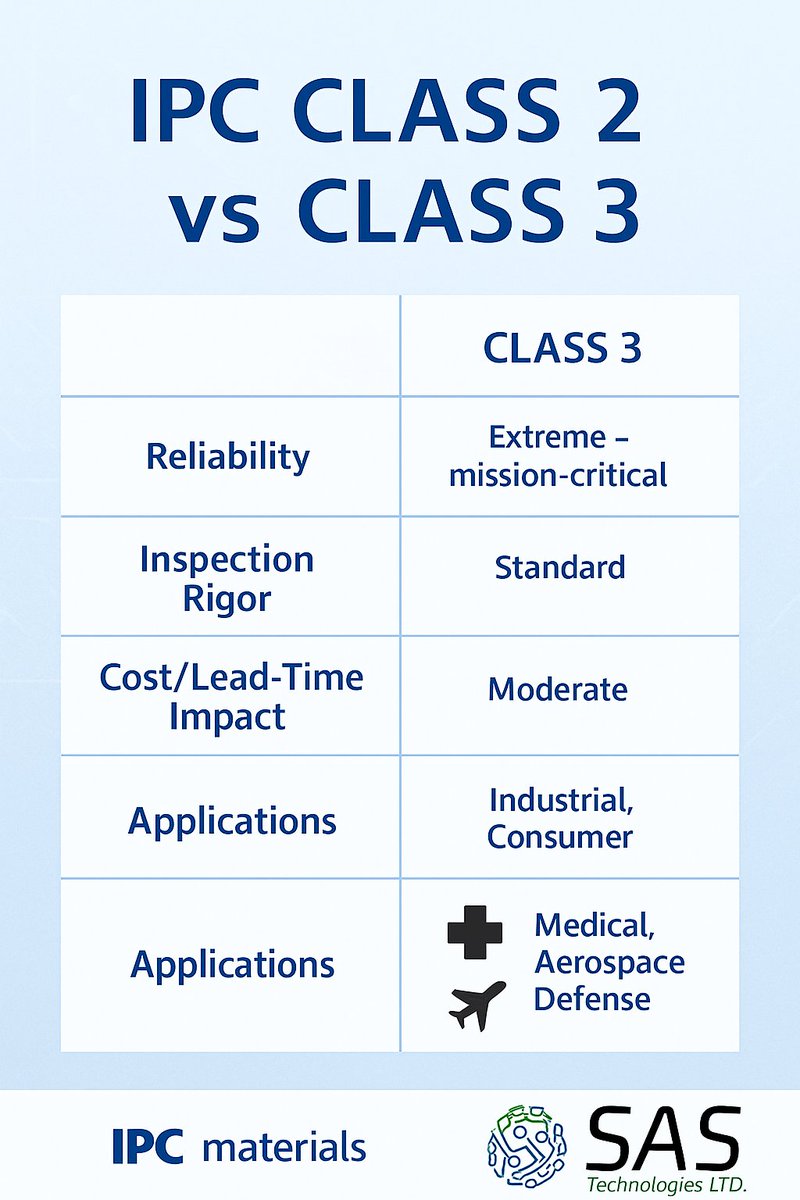

IPC Class 2 vs Class 3
Class 2 = Reliable & Cost-Effective
Class 3 = Extreme Reliability, High Cost
Choose based on your product’s risk profile
Ask for “Spec Decode” to optimize cost
https://t.co/IDk4VHeheu | [phone]
#IPC #Quality #Compliance #Manufacturing #PCBA #SASTech

[SAS Tech @SAS_Microchip]

What you can’t see can fail you later.
SAS uses X-ray analysis to detect:
🔹 Voids
🔹 Head-in-pillow defects
Then we fine-tune reflow profiles to fix them—boosting yield & reliability.
🌐 https://t.co/IDk4VHeheu | 📱 [phone]
#XrayInspection #PCBA #ReflowProfile #SASTech

[SAS Tech @SAS_Microchip]

For Probe Cards & Test Sockets ⚙️
Mipox Materials = Precision • Reliability • Yield
Used for:
🔹 Socket cleaning
🔹 Probe maintenance
🔹 Contact resistance control
📞 [phone] | 🌐 https://t.co/IDk4VHeheu
#Mipox #ProbeCards #TestSockets #SemiconductorTesting #SASTech

[SAS Tech @SAS_Microchip]

Keep contact resistance stable. Boost FPY.
SAS Socket Cleaning Pads for IC sockets & pogo fixtures: tack (ESD-safe), micro-abrasive 3–6 um, wet. Faster maintenance, fewer false fails.
https://t.co/IDk4VHeheu | [phone]
#ATE #SASTech

[SAS Tech @SAS_Microchip]

DFM Tip: Fiducials & Tooling Holes
✅ Add global fiducials early
✅ Speed up placement
✅ Reduce vision errors
✅ Avoid rework
💡 Save this for your layout checklist!

📞 [phone] | 🌐 https://t.co/IDk4VHeheu

#DFM #PCBDesign #SMT #PCBA #SASTech

[SAS Tech @SAS_Microchip]

📋 Before your next RFQ, include:
✅ Gerbers
✅ BOM + alternates
✅ Stack-up
✅ Netlist
✅ Test plan
✅ IPC class
✅ Volumes
✅ Acceptance criteria
Faster quotes. Cleaner builds.
🌐 https://t.co/IDk4VHeheu
#RFQ #PCBA #ElectronicsManufacturing #HardwareDesign #SASTech

[SAS Tech @SAS_Microchip]

Custom mixed-signal fixture built for dense BGAs ⚙️
Fast ⚡ Safe 🔒 Repeatable 🔁
Bed-of-nails, pogo pins, clamp action — seconds shaved per test cycle.
Say “FIXTURE” for your custom build.
🌐 https://t.co/IDk4VHdJoW
#TestFixtures #Manufacturing #HardwareDesign #SASTech

[SAS Tech @SAS_Microchip]

Sockets are only as good as the fixture they sit in ⚙️
LEENO sockets + SAS fixtures = better contact reliability + faster changeover ⚡
Ask for our Integration Guide
🌐 https://t.co/IDk4VHeheu
#Leeno #TestSockets #SASTech #SemiconductorTesting

[SAS Tech @SAS_Microchip]

AOI vs ICT ⚙️
“AOI found it. ICT proved it.”

🔍 AOI = Visual Defects
⚡ ICT = Electrical Performance

Together → Better Yield, Less Rework.
DM us for a Test Strategy Audit.

#PCBA #AOI #ICT #DFT #ElectronicsManufacturing #SASTech

[SAS Tech @SAS_Microchip]

Powering Semiconductor Innovation⚙️

SAS Advanced Technologies —your global partner for:
🔹 IC Test & Burn-In Fixtures
🔹 ISO-Certified PCBA Manufacturing
🔹 Design, Fabrication & Assembly

Partners: LEENO | CALIBER | HON Precision
🌍https://t.co/IDk4VHeheu
#Semiconductor#SASTech

[SAS Tech @SAS_Microchip]

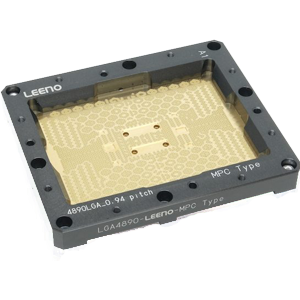

SAS represents Leeno IC Test Sockets ⚡

Solutions for:
🔹 Logic & Memory Testing
🔹 RF / High-Frequency
🔹 Burn-In & Reliability

Trusted by the semiconductor industry worldwide 🌍
#Leeno #Semiconductor #ICTest #SASTech

[SAS Tech @SAS_Microchip]

ISO Certified PCBA Production Line ⚡

From PRD → Prototypes → Scaled Production 🚀
SAS ensures quality with:
✅ ISO 9001:2008
✅ IPC-A-610 (Class 3 Military)
✅ ISO 13485 (Medical)

Trusted partner for precision & scale.
#PCBA #ISO #Electronics #Semiconductor

[SAS Tech @SAS_Microchip]

🔹 Semiconductor Testing Made Smarter
✔ Test Boards
✔ Probe Heads
✔ MLO/MLC
✔ IC Test Sockets
Driving precision & performance for the future of electronics!
#Semiconductor #TestingSolutions #Innovation #Electronics

[SAS Tech @SAS_Microchip]

SAS: Turnkey post silicon engineering for ICs and PCBs—design to validation for high-performance electronics.

Contact: [phone] (WhatsApp) | https://t.co/IDk4VHdJoW

#PostSilicon #TurnKeySolution #ICDesign #PCBDesign #Semiconductor #SASTech
