@IssaZombie343 Maybe in the future, who knows.

[Akicus @akicus]

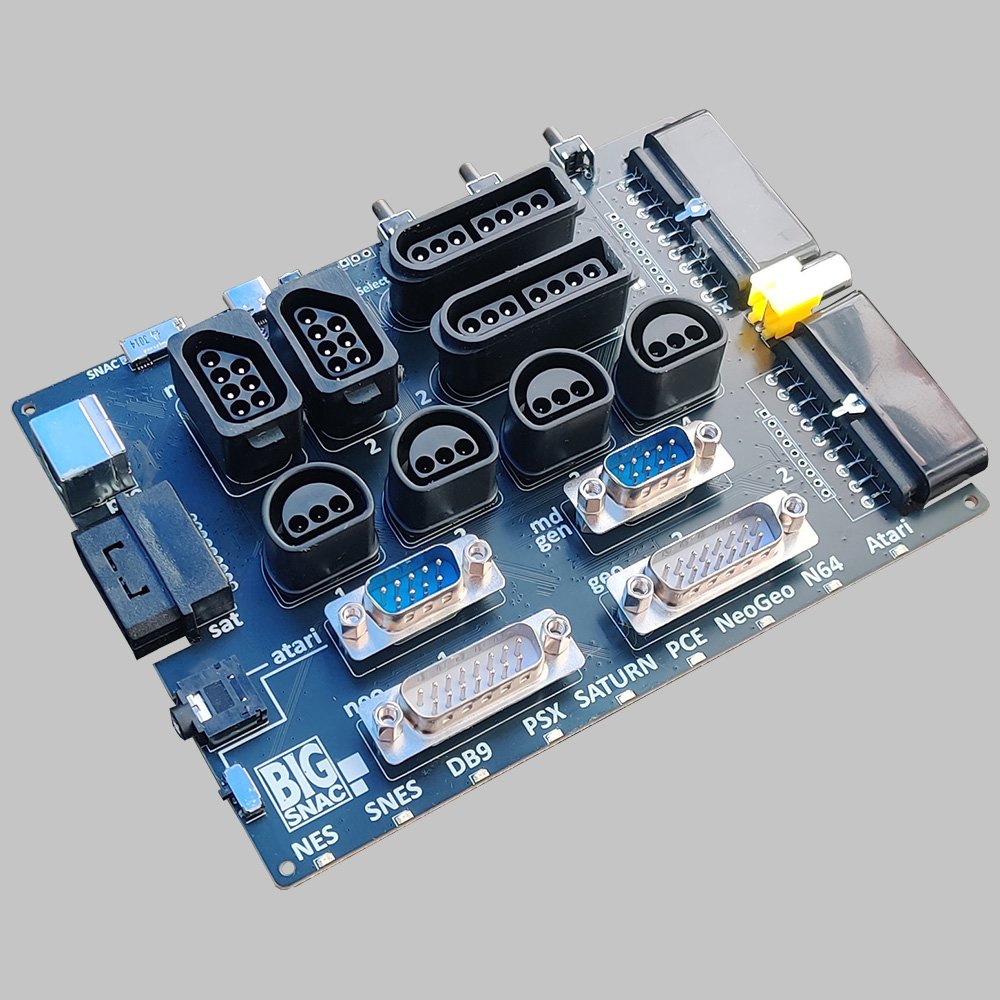

BIG SNAC : V2 Update

It has been a few weeks since the last update and we had to update the pcb a little (Version 2) since t...

https://t.co/sWYIDLk1Nw

[Akicus @akicus]

@CarcinogenSDA It has the pinout so you could add a memory card pcb to it.
I will make one but not before BIG Snac is out, it will have to come after, sorry.
I thought about adding other things as well but then I will never be able to finish the project.

[Akicus @akicus]

@obuslive @LimitFears You have to wait and see, no date or price yet.

[Akicus @akicus]

@XtremeBolt_Guy I will post about it way before it goes on sale so best way is to just follow on X.

[Akicus @akicus]

@chrismasiero I am not sure about C64, I thought the SNAC port on that core was used for other things?

[Akicus @akicus]

@supersat The Atari port has a audio jack and switch as well, you can see it on the pcb (the white lines from the Atari port).
This is for paddle support for Atari.

[Akicus @akicus]

@VictorR65120907 @PixelCNinja It should work just fine but make sure you have the Dock with your SuperStation because that has the SNAC-port which is needed for it to work.

[Akicus @akicus]

@0bieone It is possible to add a memory card pcb, the holes are behind the PSX connectors, but this is something I will work on later, I just want to get the BIG Snac up and going fully first.

[Akicus @akicus]

@Beaver73139863 All that is already done on the pcb, nothing extra required.

[Akicus @akicus]

@LimitFears This is a SNAC adapter which is used with the MiSTer system.

[Akicus @akicus]

@Pacsonic9000 One DB9 port is for MD(Megadrive)/GEN(Genesis) and the other DB9 port is for Atari with the additional switch and audio jack next to it (for paddle controllers).

[Akicus @akicus]

@jim_28 You have to wait and see, sorry.

[Akicus @akicus]

@Alareac Yes.

[Akicus @akicus]

Some people wanted a couple of images so here you go.

And yes it handles N64 et.c (3.3V), NES et.c (5V) and yes it has the level shifter protection so no need for anything extra.

A more detailed view of everything will come later in the month.

[Akicus @akicus]

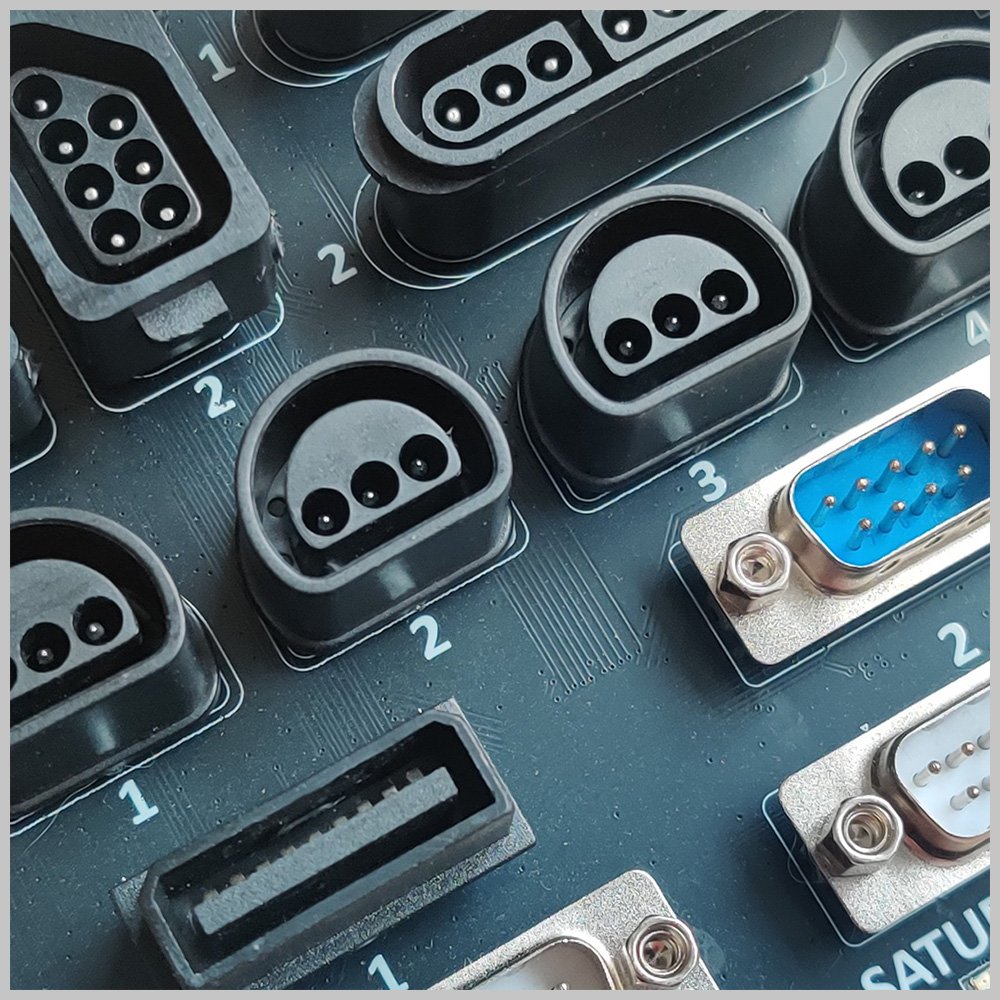

Since the last project was finished (DuoDuo SNAC), a new project was created, "Project: BIG SNAC".

The first batch of test pcbs were created a couple of months ago. Since then both akicus and a couple of others have done some testing.

https://t.co/6NDjWF8Z51

[Akicus @akicus]

@redsteakraw @PixelCNinja This pcb works through regular USB (2-Player) and SNAC (1-Player).

[Akicus @akicus]

Custom silicone wire, 24AWG.
Specify length, color and connector.
https://t.co/N5yV7gCmkW

[Akicus @akicus]

Tiny USB Hub V1.4E
https://t.co/Pj1SnhixLy

[Akicus @akicus]

Tiny USB Hub V1.3E
https://t.co/xpBbPB5KJr
