Yuan Wang, 2E0IDO & BG3MDO

A postdoctoral engineer loves FPGAs, MCUs, Linux, RF, highspeed systems, also a ham radio operator, Chinese callsign BG3MDO, UK callsign 2E0IDO.

[Morris Monye @Morris_Monye]

Underestimated how terrifying lightning can be. https://t.co/E0UPs7DfPK

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@teraytech wish to have one

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@teraytech What's that?

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

Fun from EE engineer at Silicon Valley

[디테일 / DETAIL 🕯️ @deltafish32]

램 부채!
RAM hand fan!

[Kimi Huang @kimihuang]

把我笑惨了。真好

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@fei666888 Get the genuine plutoplus is important.

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

Work at Apple Park for a while

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

Day in Cupertino

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

34401a is a very classic 6 1/2 digi DMM, finally get a good look and full functional one.

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@TheSmokinApe what is this？

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

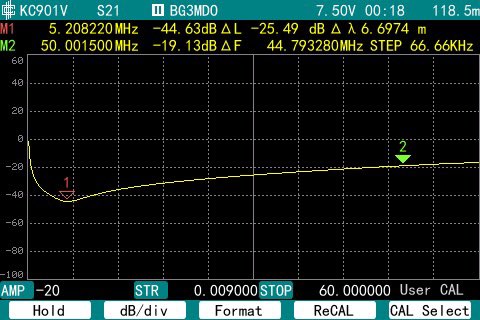

Weekend project, HF band balun for a telescope V Ant. Good spec got, 0.2dB insertion loss, <1:1.1 SWR, common mode rejection still around 20dB at 50Mhz

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@BH7OJ_CN 魔都

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

Fix 5313A frequency counter. The failure was due to a bad SRAM and RAM WR/RD 74 logics. The problem caused system hang and reset issue. Also changed all electrolytic caps, hope it will last long.

[Sam Codes @samcodes_io]

When the code "works"

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@yu_dale74618 yes

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

Tianma radio telescope in the night

[py1san @py1san]

1296 MHz

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

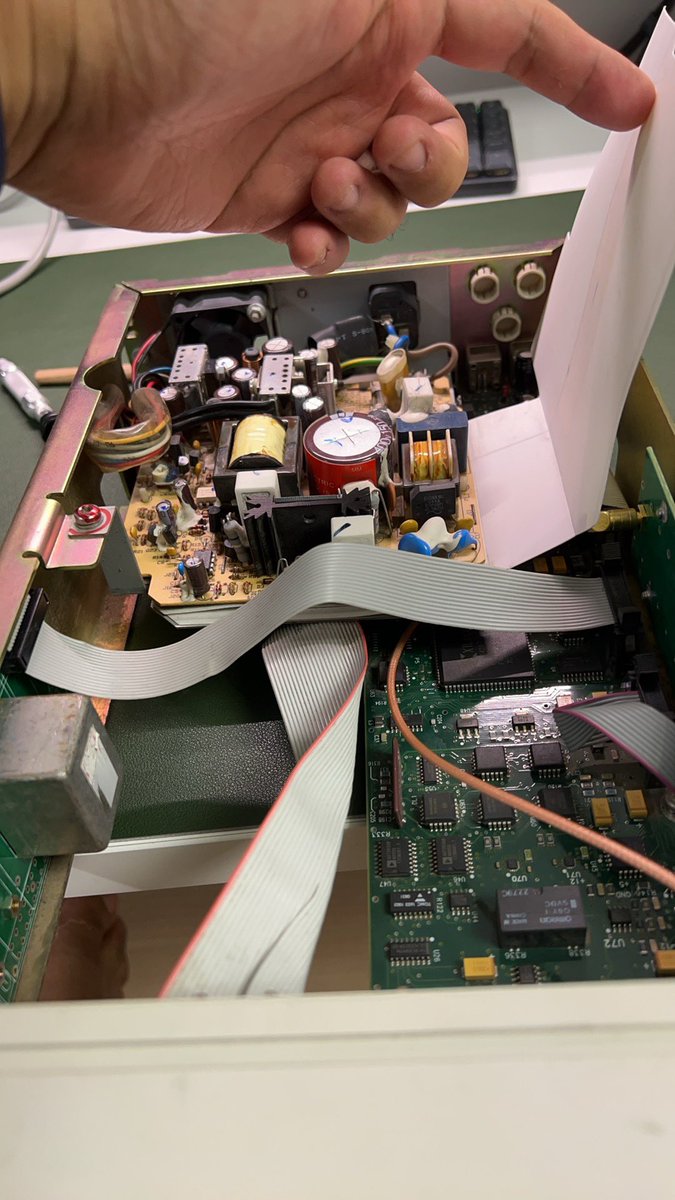

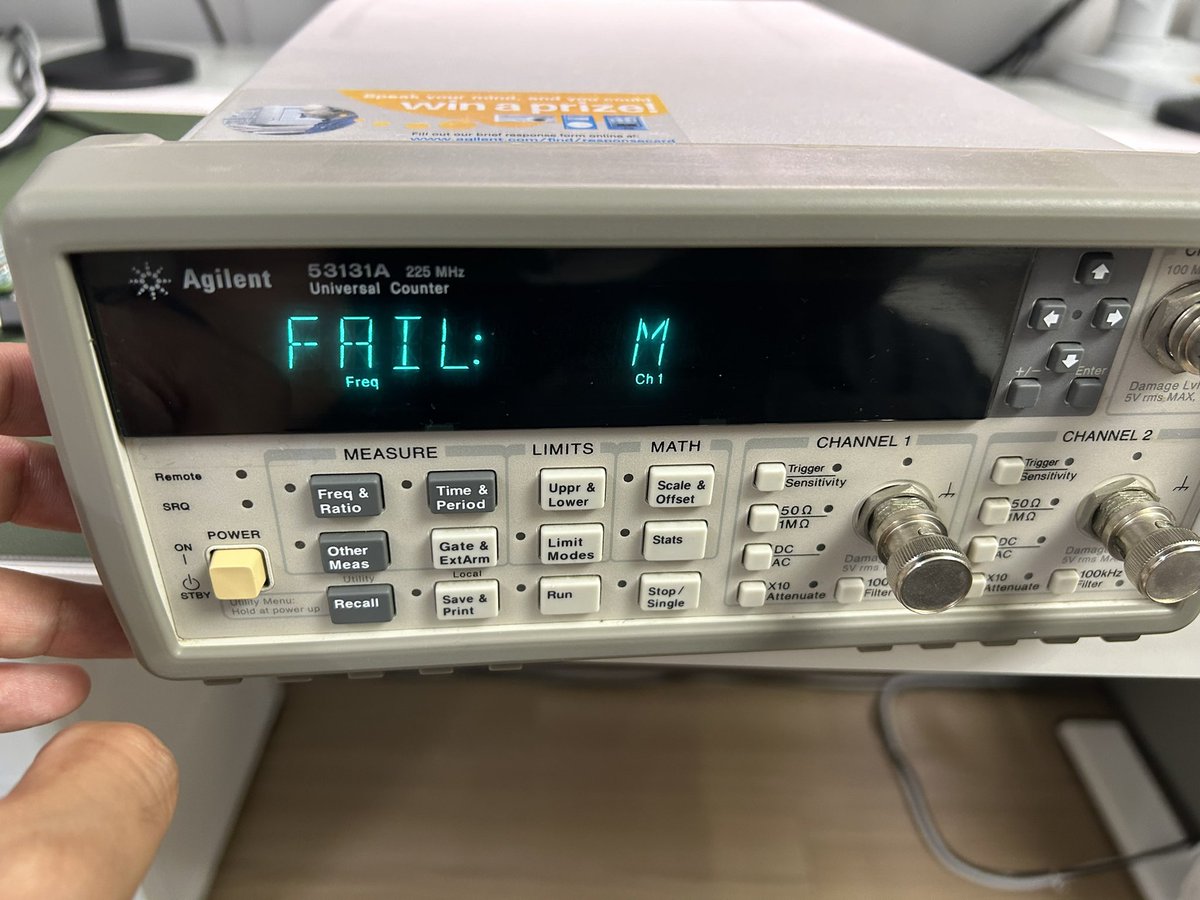

Soft faulty, cool boot may RAM fail. Remove other loads but main logic board, power cycles may be okay boot. Before do more on reset signals and power rail trans ripple check, I decide to replace all electrolytic caps on the bad Delta PSU.

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

@bg9hkp 重

[Yuan Wang, 2E0IDO & BG3MDO @bg3mdo]

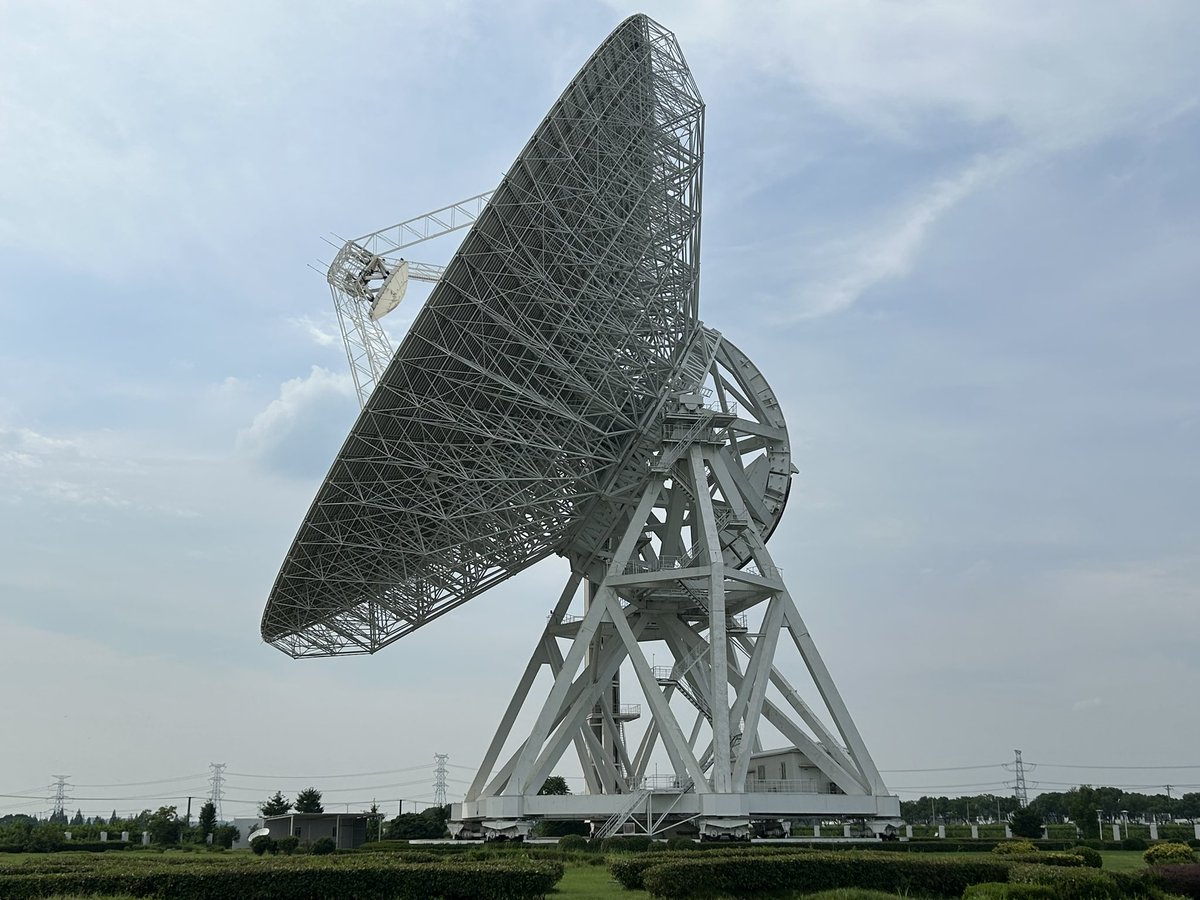

Day to visit Tianma Telescope (Shanghai 65m Radio Telescope), the main station of Chinese VLBI Network
