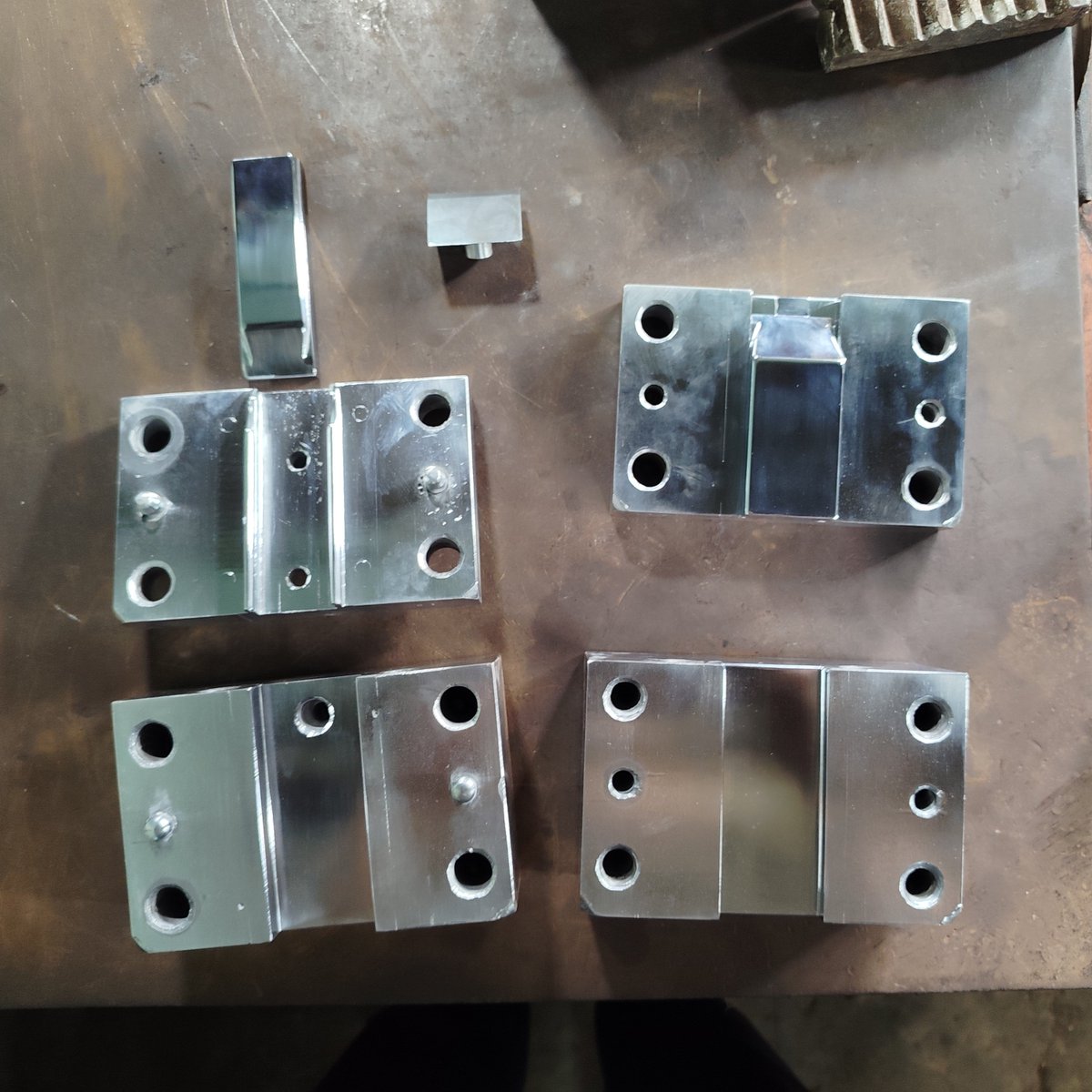

Precision die design requires high-grade materials, accurate locking mechanisms, and smooth surface finishing. In this guide, we break down the assembly, cavity alignment, and punch components of a 15×30 mm precision die manufactured using SS 316 standard stainless steel and finished with Hard Chrome Plating for superior wear resistance.

Complete Die Overview (Open Die Setup)

Specifications & Material Standard:

Die Size: 15×30 mm

Material: SS 316 High-Grade Stainless Steel

Surface Treatment: Premium Hard Chrome Plating for high corrosion resistance and smooth profile ejection

2. Die Assembly (Front & Back View)
Structural Alignment:

The front and back assemblies feature precision guide pin holes and recessed alignment slots. This maintains exact dimensional accuracy during repeated pressing cycles and prevents lateral shifting.

3. Cavity Breakdown (Cover & Bottom Cavity)

Profile Shaping:

The Cover Cavity and Bottom Cavity are precision-machined to form the exact 15×30 mm outer profile. The hard chrome plating inside the cavities reduces friction during material flow, providing a mirror-finish surface.

4. Punch System (Cover Punch & Bottom Punch Plate)

Punch Mechanism:

The punch plates are ground to strict tolerances to ensure uniform pressure distribution. The Bottom Cavity with Back Piece supports steady ejection without distorting the finished component.

5. High-Precision Locking System

Operational Safety & Stability:

A dedicated locking system secures the cavity and punch plates tightly during operation. This eliminates flash formation and maintains continuous high-speed production reliability.
