@natalie_thenerd Fancy! How many layers does it have?

[Frectronics @frectronics]

Turns out, getting something „market-ready“ takes even more time. But I keep motivated. Especially because every once in a while, someone reaches out and asks „hey, I’m still here, still waiting, still excited“. This is a great motivator!
4/

[Frectronics @frectronics]

Two years ago I got interested in #gameboy again. Especially #Pokemon and #modding…
1/

[Frectronics @frectronics]

This year, I want so bring it to market. I don’t expect high profits, basically only recouping some dev-cost. But mainly it would be a nice starter for (maybe) more projects to come.
3/

[Frectronics @frectronics]

Last year, I took the time to start a little project again. An overclock module for Gameboys. Being a niche within a niche - only a few overclock original hardware - turns out to give a great community of enthusiasts.
2/

[Frectronics @frectronics]

Working perfectly! Light extends the #ambilight of this relatively old Philips TV. It exposes RGB data over JSON API. Corresponding areas are mapped to sections of the light’s RGB ring. These are exposed by #ESPHome to #HomeAssistant as individual lights and get synchronized 👌

[Frectronics @frectronics]

367 LEDs controlled by a single #Sonoff Basic. 🥳 Integrated in #homeassistant with #ESPHome. Main light has 271 💡SK6812WWA LEDs. Ring has 96 🌈SK6812RGBW LEDs. Using #neopixel library. As you can see there is some bleeding in the main light. But it’s worse on camera. 👌

[Frectronics @frectronics]

Needed a way to mount my phone for upcoming posts where I need empty hands. Some measurements, CAD drawing and 3 hours later... 📸 already published:
https://t.co/6zBEZLvxpD

[Frectronics @frectronics]

Nextup: a 60cm ceiling light converted to #RGB. Controlled by a #Sonoff Basic. #ESP programmed with #ESPHome. Fully integrated in #homeassistant. #esplight

[Frectronics @frectronics]

#GoPlusExtender programmed and all working. Showing quiet auto-mode and vibrating manual-mode.
.
.
.
#3dprinting #electronics #diyprojects #maker #makerelectronics

[Frectronics @frectronics]

All the parts that sit inside the #GoPlusExtender. Ok, pictured the custom PCB twice and in unpopulated. 🙃
.
.
.
#electronics #diyprojects #maker #makerelectronics #schematics #layout #soldering

[Frectronics @frectronics]

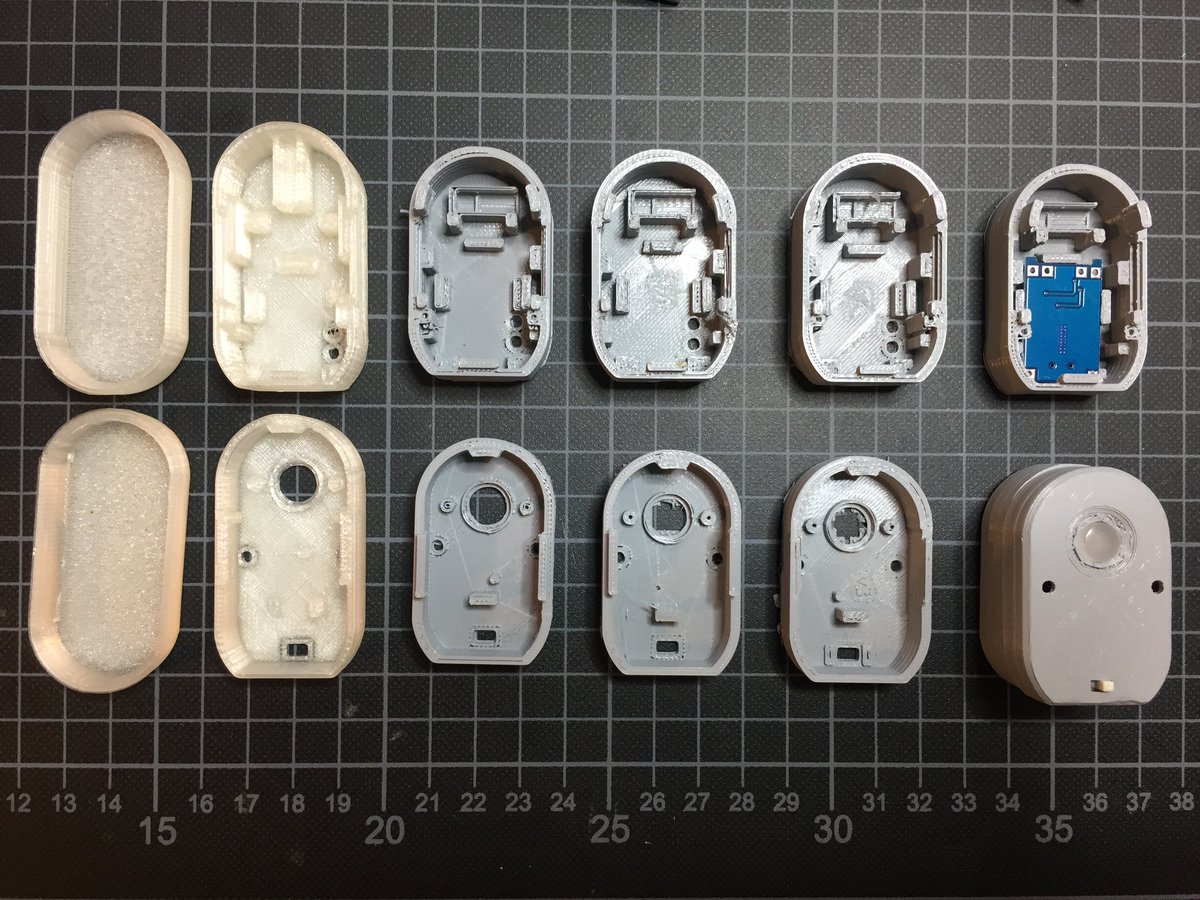

From initial shape idea to the final #GoPlusExtender case. Took some iterations but now it’s a nice snap in place case 👌
.
.
.
#3dprinting #electronics #diyprojects #maker #makerelectronics

[Frectronics @frectronics]

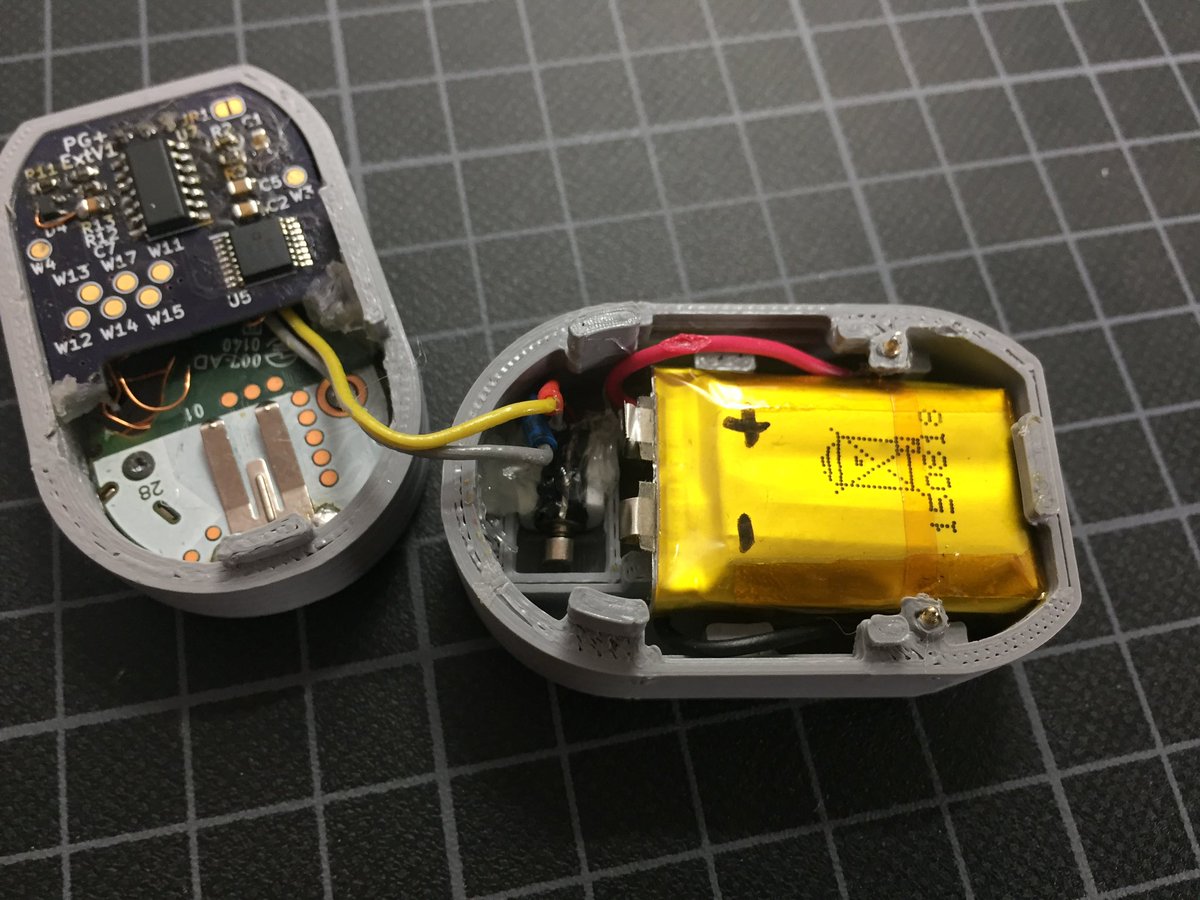

Assembled the #GoPlusExtender. I know, soldering looks messy. It’s due to a lot of flux, I swear!
.
.
.
#electronics #soldering #diyprojects #maker #makerelectronics #schematics #layout

[Frectronics @frectronics]

#pcb for the #GoPlusExtender. Had to go with 4 layers. Drawn in #kicad, manufactured by @oshpark. #maker

[Frectronics @frectronics]

#sonoffbasic got a tiny JST connector put in place. 5 pins is all it needs to get a fully fledged RGBW light controller. It can be fully integrated, yet will be accessible to be programmed. #electronics #soldering #diyprojects #maker #makerelectronics #smarthome

[Frectronics @frectronics]

Signal layers of the #GoPlusExtender. #pcb done in #kicad. Still solderable by hand.
.
#electronics #soldering #diy #diyproject #maker #schematic #layout

[Frectronics @frectronics]

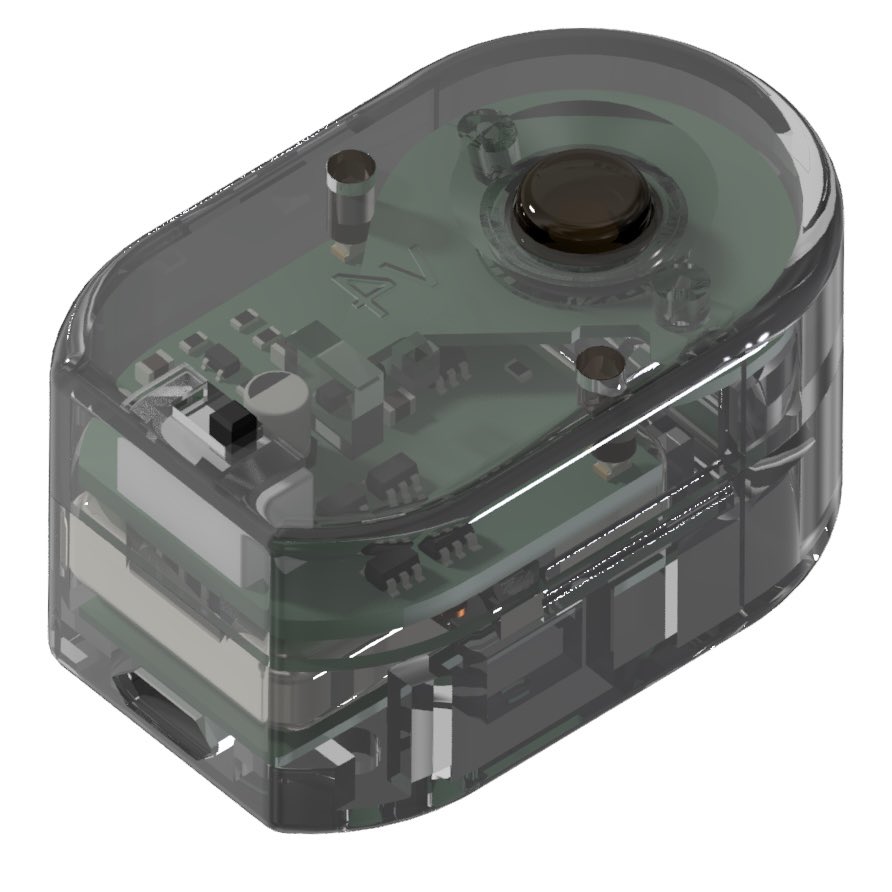

Preparing to open source #GoPlusExtender. #attiny powered extension board to automate the #PokemonGO Plus, adding custom vibration patterns, running on a LiPo battery. #3Dprinting #electronics #PCB

[Frectronics @frectronics]

Tweaked and published. https://t.co/cCSAbvmT6m

[Frectronics @frectronics]

Hotend mount for Sapphire S #3dprinter with #microswiss hotend. Uses 40x20 radial fan, integrated airduct, lower and upper parts snap in place. #3Dprinting

[Frectronics @frectronics]

working prototpye 🥳
