#SNAsharp - Twitter Hashtag

over 3 years ago

le principe est de générer un signal PWM ( à 65khz) avec un arduino Nano, il est filtré en passe bas et on récupère un joli sinus entre 20hz et 30khz à la sortie. Ensuite la mesure de transmission se fait avec un ampli-log. ça se pilote avec #snasharp (PC/Linux)

1

5

0

161

F4HTQ - David @F4Htq

over 4 years ago

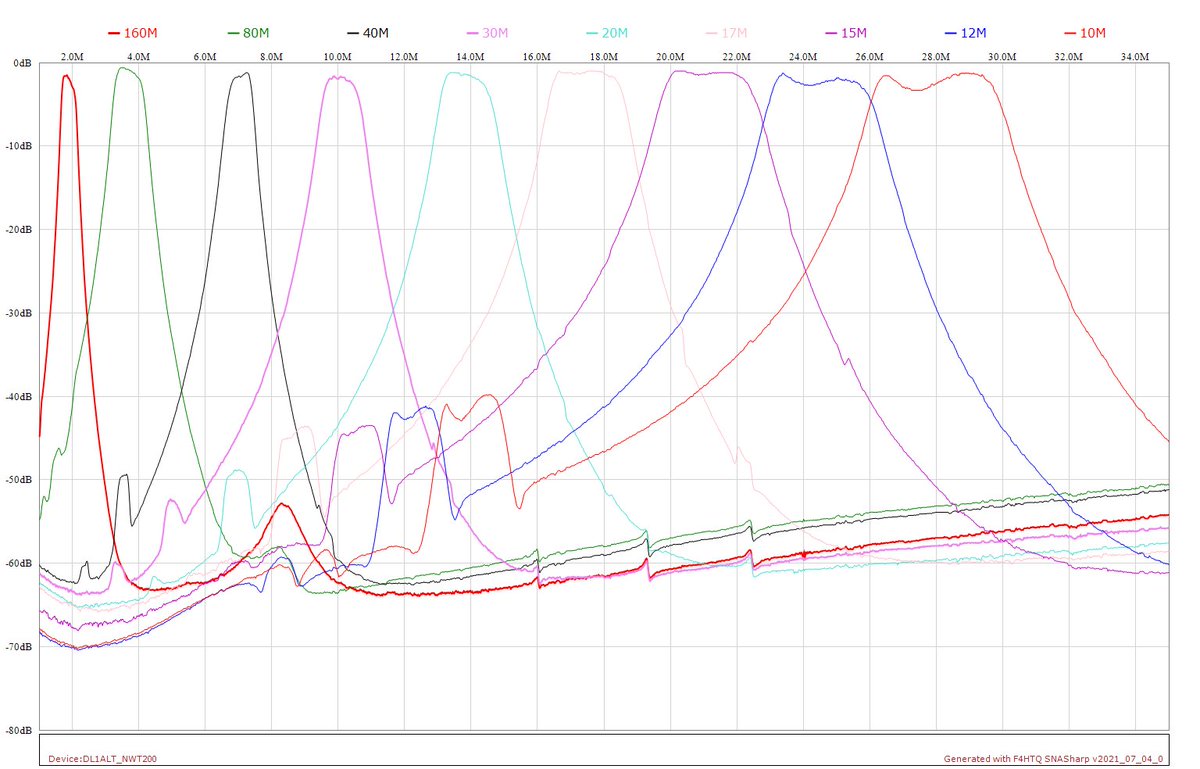

Setup de test: -> analyseur NWT200 avec #SNASharp -> adaptateur USB->UART (pour alim 5V) -> pack batterie 5V -> encodeur mécanique DCB 4 bits Résultat:

F4Htq's tweet photo. Setup de test:
-> analyseur NWT200 avec #SNASharp
-> adaptateur USB->UART (pour alim 5V)
-> pack batterie 5V
-> encodeur mécanique DCB 4 bits
Résultat: https://t.co/BLq4tXj6Zt

1

2

0

F4HTQ - David @F4Htq

about 5 years ago

@F8BXI Merci d'avoir relayé la nouvelle version de #SNASharp, c'est un petit évènement, la dernière remontait à 19 mois en arrière :)

0

2

0

F4HTQ - David @F4Htq

about 5 years ago

New version of #SNASharp +Huge improvement on layers display, now the soft work fine (and fast) with latest version of Mono. + A lot of new analyzer supported + Some minor bugfix Please RT https://t.co/vl3C2KVe10

2

10

6

0

F4EWI Thierry @F4EWI_Thierry

over 5 years ago

#LoRa_APRS Tests avec les moyens du bord d'un petit filtre passe bande 433MHz avec le logiciel de @F4HTQ #SNAsharp / tests of a small 433MHz bandpass filter with the software of @F4HTQ #SNAsharp

F4EWI_Thierry's tweet photo. #LoRa_APRS Tests avec les moyens du bord d'un petit filtre passe bande 433MHz avec le logiciel de @F4HTQ #SNAsharp / tests of a small 433MHz bandpass filter with the software of @F4HTQ #SNAsharp https://t.co/OTHRbbYaW5

1

23

8

1

0

F4HTQ - David @F4Htq

over 6 years ago

@gmagiros If you have a NWT500, NWT300 or NWT70 scalar analyzer, you can use #SNASharp to caracterize your crystal. Some details here : https://t.co/1GbrJ9AENX

F4HTQ - David @F4Htq

almost 7 years ago

@trc_wm Hi Niels, You can also use #SNASharp and a compatible scalar network analyser to fastly determine crystal motional parameters. Additionaly the program compute loading capacitors and impedances matching values for a given bandwith. This is the results for a color burst crystal.

F4Htq's tweet photo. @trc_wm Hi Niels,
You can also use #SNASharp and a compatible scalar network analyser to fastly determine crystal motional parameters.
Additionaly the program compute loading capacitors and impedances matching values for a given bandwith.
This is the results for a color burst crystal. https://t.co/dcsJBPDo1l

1

0

2

0

F4HTQ - David @F4Htq

over 6 years ago

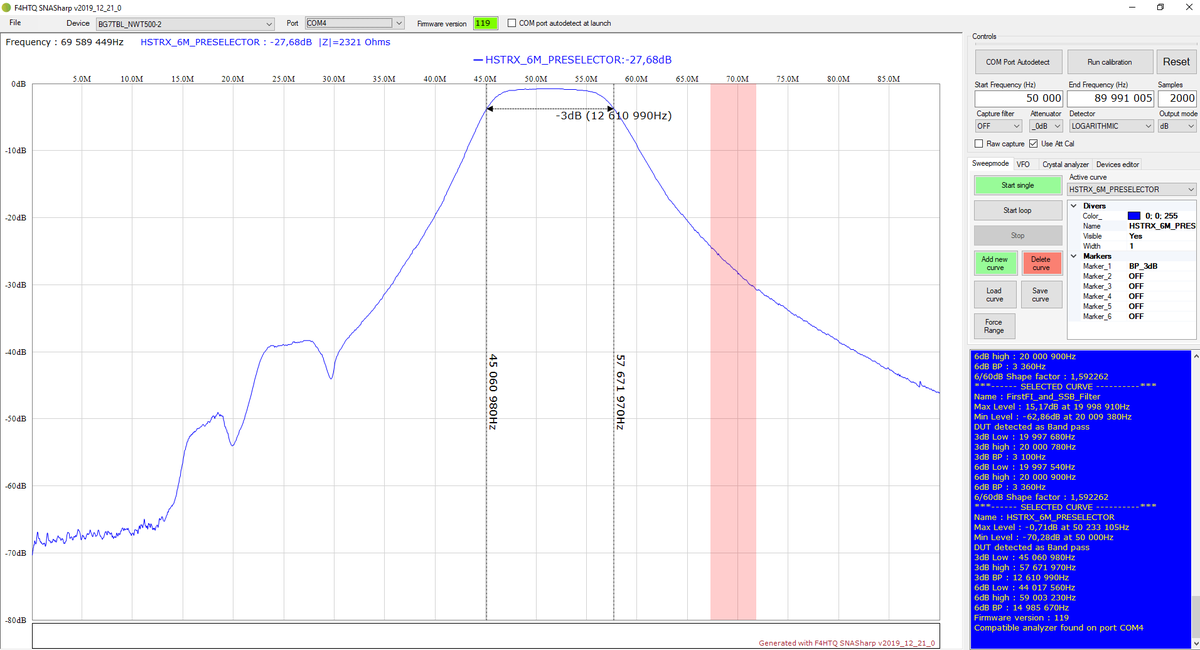

#SNASharp 2019_12_21_0 version is available. LTDZ analyzer support is now fixed, all work fine. Details here : https://t.co/QQFhURAIwW Direct Download : https://t.co/dvNnsMntn4

F4Htq's tweet photo. #SNASharp 2019_12_21_0 version is available.
LTDZ analyzer support is now fixed, all work fine.

Details here : https://t.co/QQFhURAIwW

Direct Download : https://t.co/dvNnsMntn4 https://t.co/KukPIeaP5D

1

9

4

0

F4HTQ - David @F4Htq

almost 7 years ago

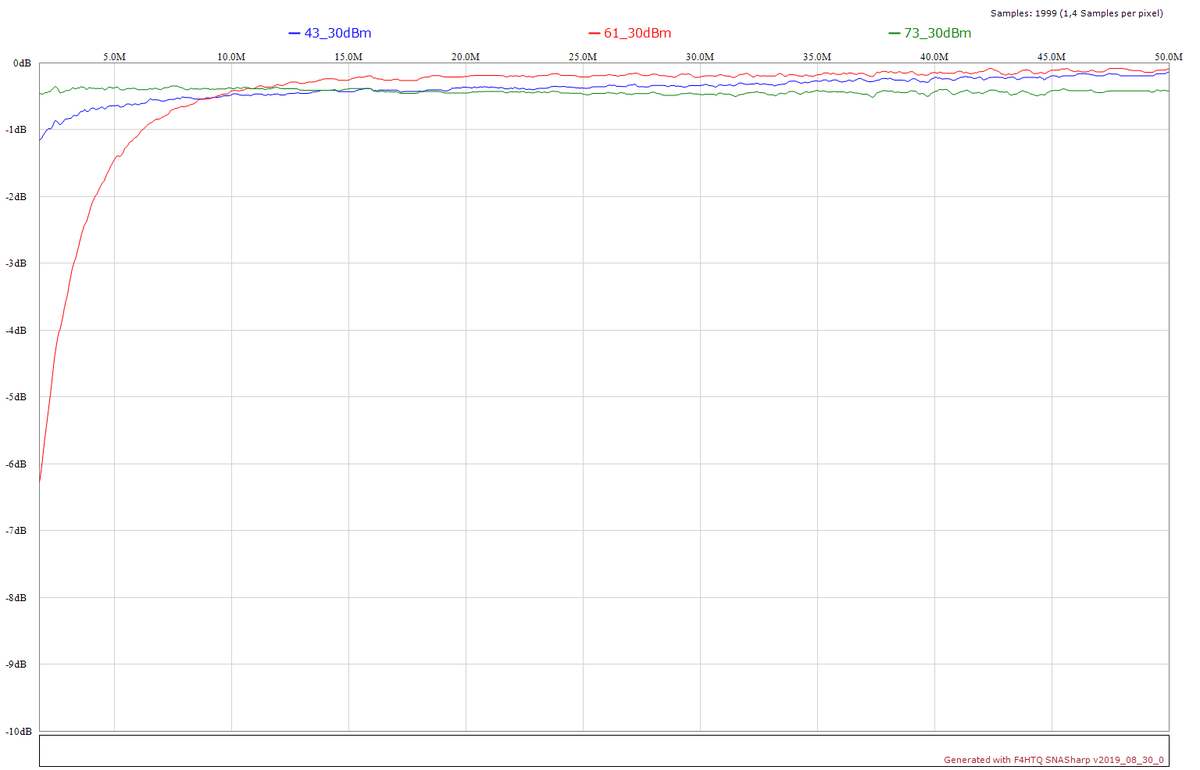

Test of various ferrite material, 1.8MHz->50MHz BN61-2402, BN73-2402, BN43-2402. 1W ( 30dBm/50 Ohms) 3 turns of bifilar 1:1 transformer. Analyzer NWT-70 + 1W "ebay" amplifier + 30dB 2W attenuators. Software #SNASharp.

F4Htq's tweet photo. Test of various ferrite material, 1.8MHz->50MHz
BN61-2402, BN73-2402, BN43-2402.
1W ( 30dBm/50 Ohms) 3 turns of bifilar 1:1 transformer.
Analyzer NWT-70 + 1W "ebay" amplifier + 30dB 2W attenuators. Software #SNASharp. https://t.co/Jwf2TbQTQp

1

0

F4HTQ - David @F4Htq

about 7 years ago

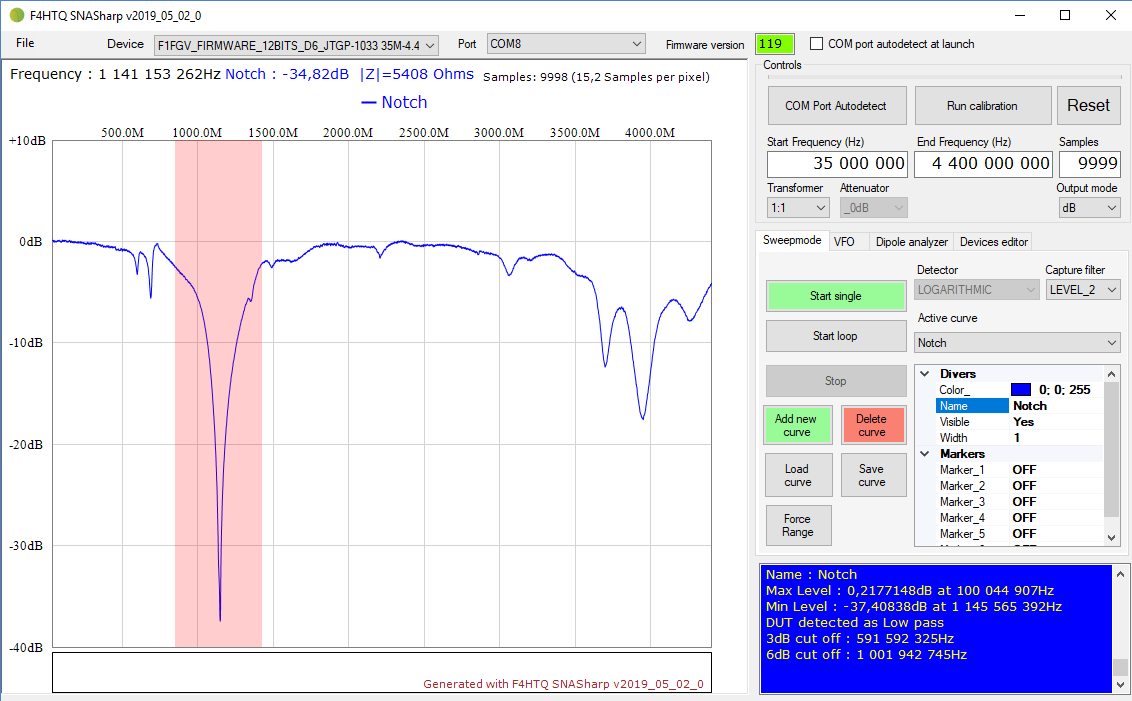

A new version of #SNASharp is available All details in this blog article : https://t.co/ssQKbM6P7K

0

3

2

0

F4HTQ - David @F4Htq

about 7 years ago

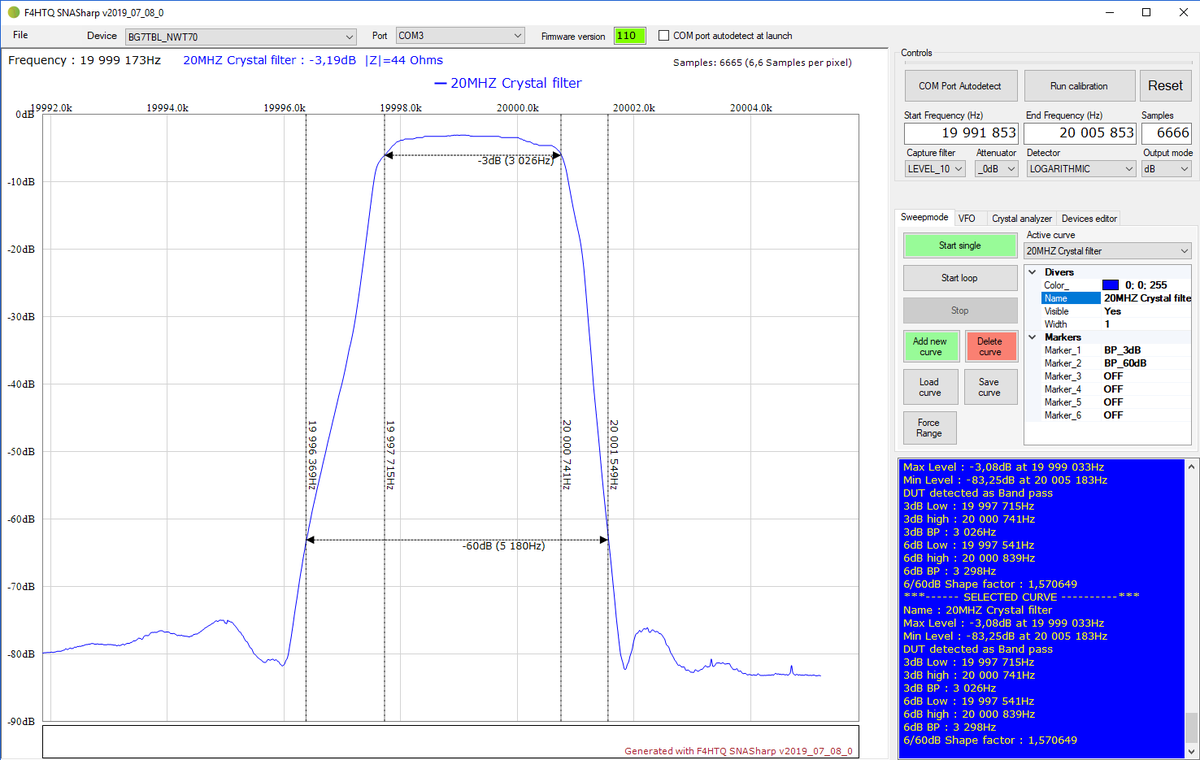

Version 2019_07_08_0 of #SNASharp is available. + Fix a regression ( with D6 analyzer only) sadly added in previous revision + Swap F1 et F2 hotkey ( now F1 decrease and F2 increase zoom range) + Save / Restore VFO frequency ==> https://t.co/vGvO1xHaKi
