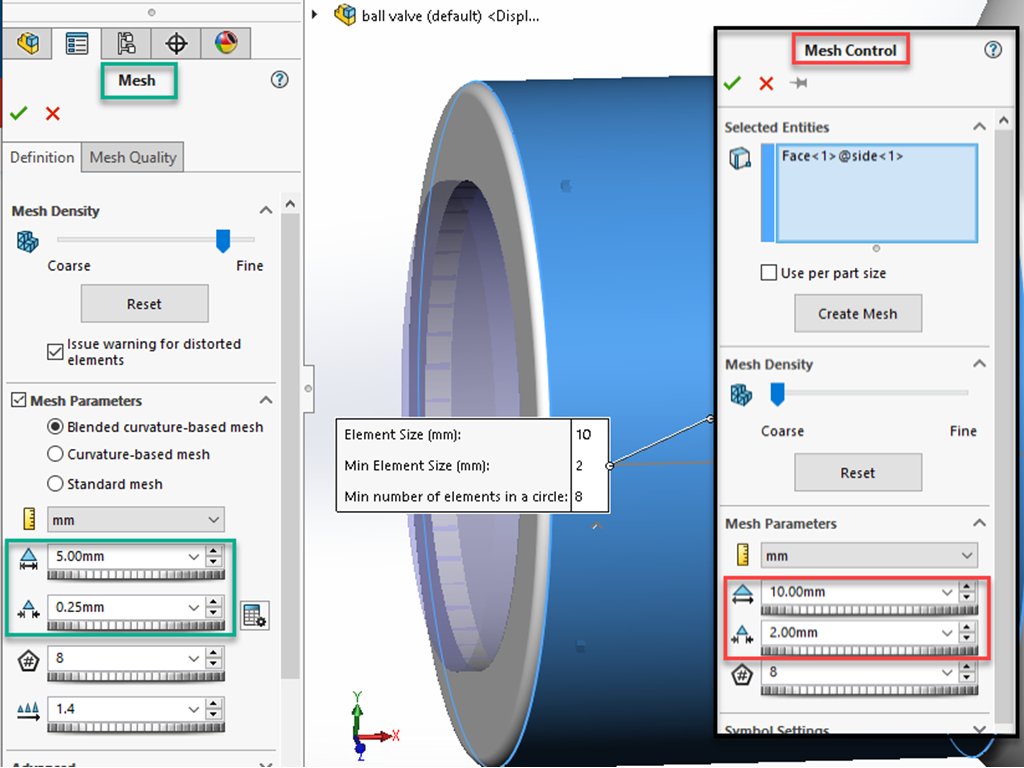

Did you know that the “BCB” (Blended curvature-based) mesher is the only SOLIDWORKS Simulation mesher that lets you define a mesh control element size that is LARGER than the global element size? ^OA #SOLIDWORKS #SWSIM
Did you know that you could publish a SOLIDWORKS Simulation Report to see (in one place) the calculated Factor of Safety (FOS) for every Pin or Bolt Connector in your study? See Help topic "List Connector Force" for details. #SOLIDWORKS #SWSIM
https://t.co/0UesYPHOOM
Still using the 'Flip Shell Elements' command? If so, the SOLIDWORKS Simulation R&D team recommends 'Flip shell top and bottom' instead. Unlike 'Flip Shell Elements', 'Flip shell top and bottom' preserves shell orientations even after you remesh.
^OA #SOLIDWORKS #SWSIM
When you mesh a model in SOLIDWORKS Simulation, the output is an approximate representation of CAD geometry. Increase the specified gap range value by a small tolerance to ensure proper enforcement of interactions. For example, set a 0.025" gap range for a 0.02" gap
^OA #SWSIM
Where can I find an example of a Motion simulation of the collision between two parts? See QA00000303078 ^OA #SOLIDWORKS #SWSim #SOLIDWORKSSimulation #SOLIDWORKSMotion
https://t.co/SGFfLZPYDj
Do you know that you can now access SOLIDWORKS Flow Simulation Technical Reference (Release 2023) using a web browser? #SWSimulation #SOLIDWORKS #SWSim #SWFlow ^OA
https://t.co/tE3e0r95u3
SOLIDWORKS Simulation Professional 2023 and SOLIDWORKS Simulation Premium 2023 users can take advantage of an enhanced Underconstrained Bodies tool that is faster, supports contact interactions and bolt connectors, and has improved visualization ^OA #SOLIDWORKS #SWSIM
Did you know that SOLIDWORKS® Flow Simulation could generate the fan curve for a given fan? See S-073465 for further details ^OA #SOLIDWORKS #SWFLOW #SWSim
When importing an STL file generated from a Smoothed Mesh Export of a Topology Study, be sure to set the import options to use the units of 'Meters'. This matches the units that SOLIDWORKS Simulation uses when creating the STL file ^OA #SOLIDWORKS #SWSimulation #SWSim
Looking any guidelines on how to mesh Two-resistors components in Flow Simulation (Electronics Cooling Module)? Check out KB solution article S-058585 ^OA #SOLIDWORKS #SWSim
When attempting to analyze a complex assembly in SOLIDWORKS Simulation, first take the time to assess the CAD geometry to determine anything that can be simplified for the analysis-version of the model while still meeting the goals of the analysis ^OA #SOLIDWORKS #SWSim
When reviewing the materials applied in a Simulation study, it is important to note whether any use temperature-dependent properties. If so, you must remember to apply appropriate temperature loads based on the expected operating temperature. ^OA #SOLIDWORKS #SWSim #SWSimulation
If some beam geometries are treated as beams and others as solids in new studies, check to see how they were modeled. Only structural members created as weldment features will automatically be treated as beams. Beams modeled with extrude, sweep, etc. features will not. ^OA #SWSim

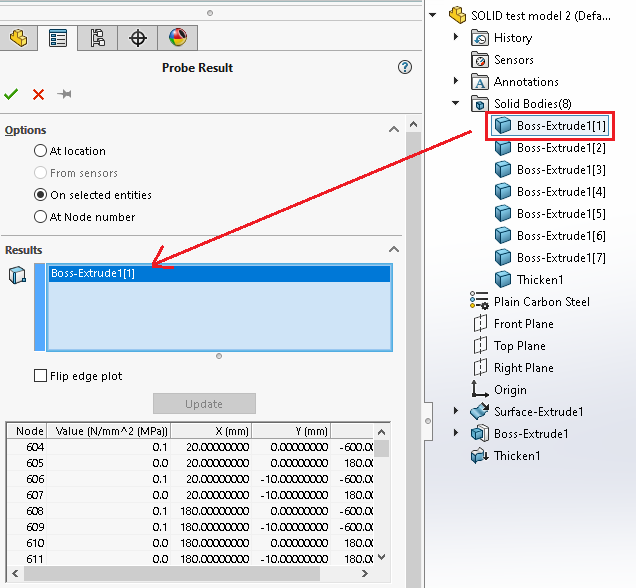

In SOLIDWORKS Simulation, did you know that the 'Probe Result' PropertyManager accessible using 'List Selected' (aka probe 'On selected entities') also allows the selection of solid bodies? ^OA #SOLIDWORKS #SIM #SWSim
Have you seen our water boat Free Surface example for SOLIDWORKS Flow Simulation? Download it from the Knowledge Base solution: S-077720 ^OA #SOLIDWORKS #SWSim #Simulation
https://t.co/sTYTK7vN4o
If you ever ran a SOLIDWORKS Simulation study, forgot to save your model, and then wondered if you can still use the .CWR results file, check out recently revised KB Solution S-022853 to learn more ^OA #SOLIDWORKS #SWSim #Simulation
https://t.co/3zGBILdIbq
Did you know that licenses of either SOLIDWORKS Simulation Professional or SOLIDWORKS Simulation Premium include access to the SOLIDWORKS Motion Add-In, including Event-based Motion View for event-based motion analysis? ^OA #SOLIDWORKS #SWSim #Simulation

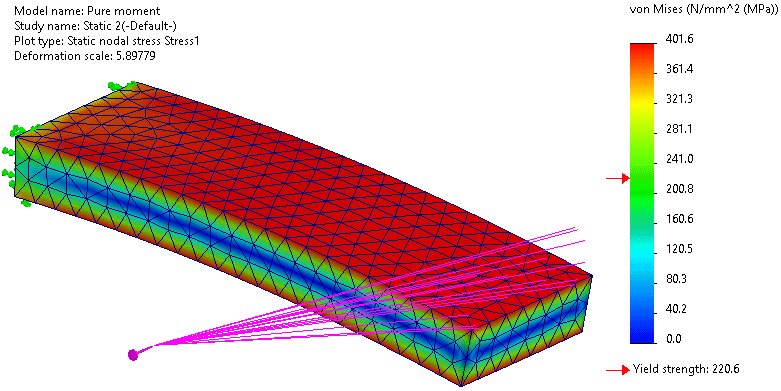

Ever wondered how to apply a pure moment to a face without having a resultant force as a side effect? See Solution ID: S-019638 in our Knowledge Base ^OA #SOLIDWORKS #SWSIM
@dvdbartle @Janoffepie @UHBWSimulation @davidgrantsim @RDE_Sim @tauntonsimteam @drlauracrosby @LausHarrisonRGN @Sim_TSDFT @antehopkins @HanaBashir10 @drdanmagnus
It'd be awesome to see you there representing #SWSim
Date for you diaries
23rd June 12-1pm
Paeds Sig virtual meet up to share ideas and challenges!
Contact @drtimmason or @BebbRachel if you're keen!
Itd be great to see you. 😀

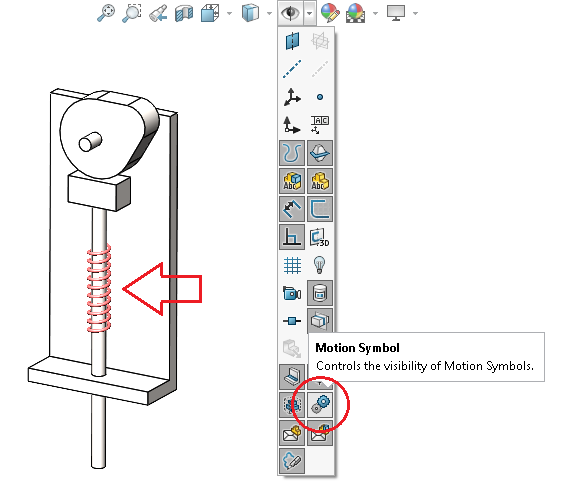

When using SOLIDWORKS Motion, make sure to activate the visibility of Motion Symbols ^OA #SOLIDWORKS #SWSIM #SWMotion
