Shirley Yang

Manufacturer and exporter of vision measuring machine, profile projector, microscope, linear scales and digital readout, cutter, grinder/polisher etc.

[Shirley Yang @jointwin9825]

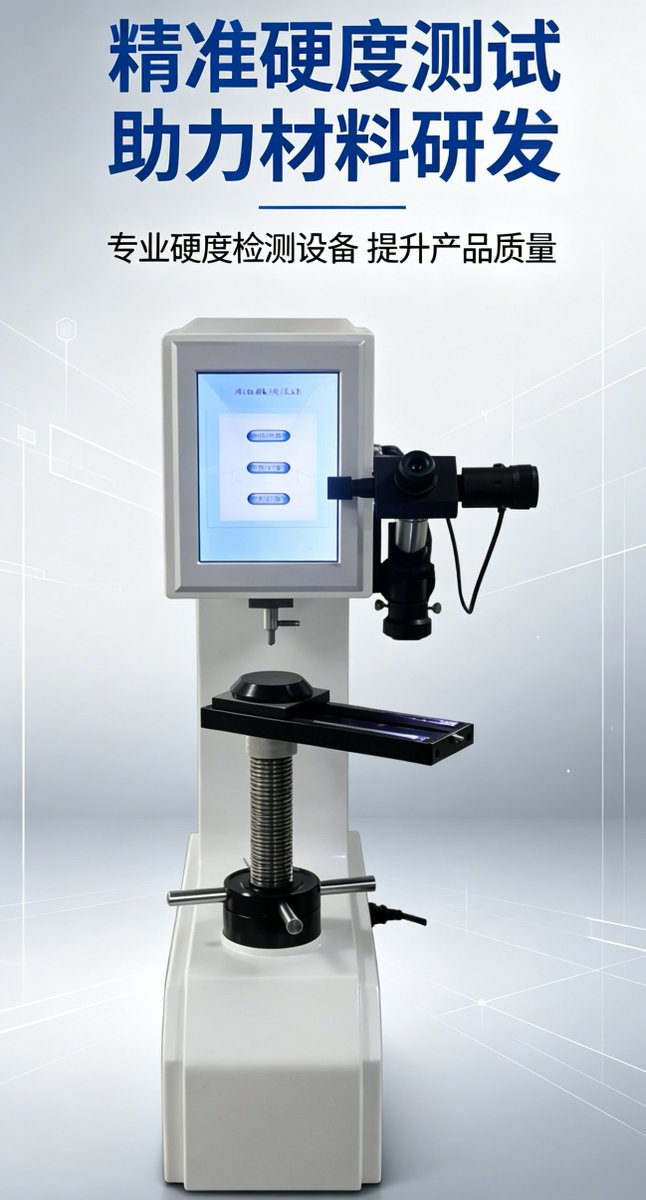

JHR-187.5DXS Senior Digital Brinell, Rockwell, Vickers Universal hardness testers ( with 8 inch Touch Screen)

[Shirley Yang @jointwin9825]

Manual Vision Measuring Machine

[Shirley Yang @jointwin9825]

Where are we, where are quality!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

[Shirley Yang @jointwin9825]

Merry Christmas and Happy New Year to all here❄️❄️❄️☃️☃️☃️

[Shirley Yang @jointwin9825]

Digital Tool Maker Micoroscope
Measuring range: 200*100*150mm
X.Y measuring accuracy: (2.0+L/100) μm
Z measuring accuracy: (2.5+L/25) μm
0.8Mpixel/4K HD industrial camera with measuring function
Digital Data Processor
27-inch HD monitor
3W LED light for up & down illumination

[Shirley Yang @jointwin9825]

HPP is with 400mm & 600mm diameter screen available

[Shirley Yang @jointwin9825]

Optical Video Measuring Machine
Measuring Range: 110X80mm
150X100mm
Measuring Accuracy: 3um
Repeatibility: 1um
Image Sensor: 20Mpixel

[Shirley Yang @jointwin9825]

Digital Brinell, Rockwell, Superficial Rockwell, Vickers Universal hardness testers ( with 7 inch Touch Screen)

[Shirley Yang @jointwin9825]

Vertical-Horizontal Instant Vision Measuring Machine QS-100D
The best solution for simultaneous measurement of longitudinal and transverse dimensions of shaft parts
The products are automatically matched, the results are displayed by NG/OK classification

[Shirley Yang @jointwin9825]

Horizontal Video Profile Projector VH-3015
X、Y、Z Travel Range：250x150x150mm
Resolution of X.Y.Z: 0.0005mm
Measuring Accuracy:≤（3+L/100）
Measuring Software: automatic edge finding, deburring, measuring paste, line, circle, angle, circle center distance, alignment, etc

[Shirley Yang @jointwin9825]

Merry Christmas for all here

[Shirley Yang @jointwin9825]

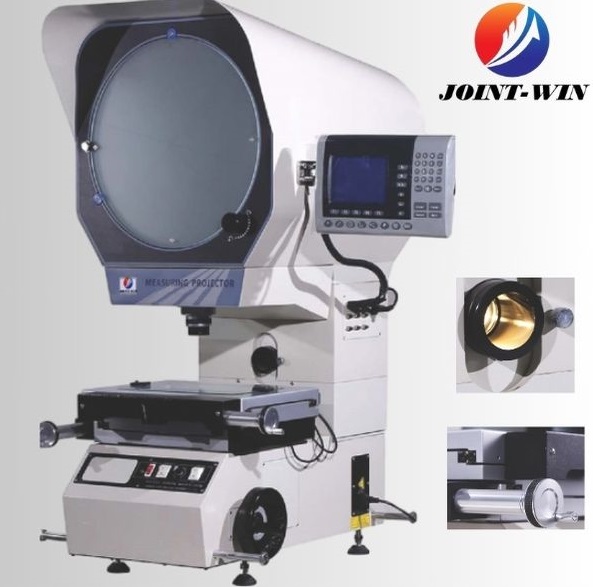

Ø 400mm Vertical Digital Profile Projector
X.Y Axis Travel Range: 200*100mm; 250*150mm
300*200mm; 400*300mm
Z Axis Focusing Range: 100mm
Measuring Accuracy: ≤3+L/200(um)
Screen Size: Ø 425mm
Data Proccessor: DP300

[Shirley Yang @jointwin9825]

Ø 400mm Vertical Digital Profile Projector
X.Y Axis Travel Range: 200*100mm; 250*150mm
300*200mm; 400*300mm
Z Axis Focusing Range: 100mm
Measuring Accuracy: ≤3+L/200(um)
Screen Size: Ø 425mm
Data Proccessor: DP300

[Shirley Yang @jointwin9825]

Horizontal Instant Video Measuring Machine IVM-100
20Mpixel industrial CCD camera
Measuring range:100mm
27Inch Monitor
Measuring accuracy: 3+L/200um
One-key tests the small-size shaft specimens and connectors
500 pcs of geometrical sizes can be tested in 1 second

[Shirley Yang @jointwin9825]

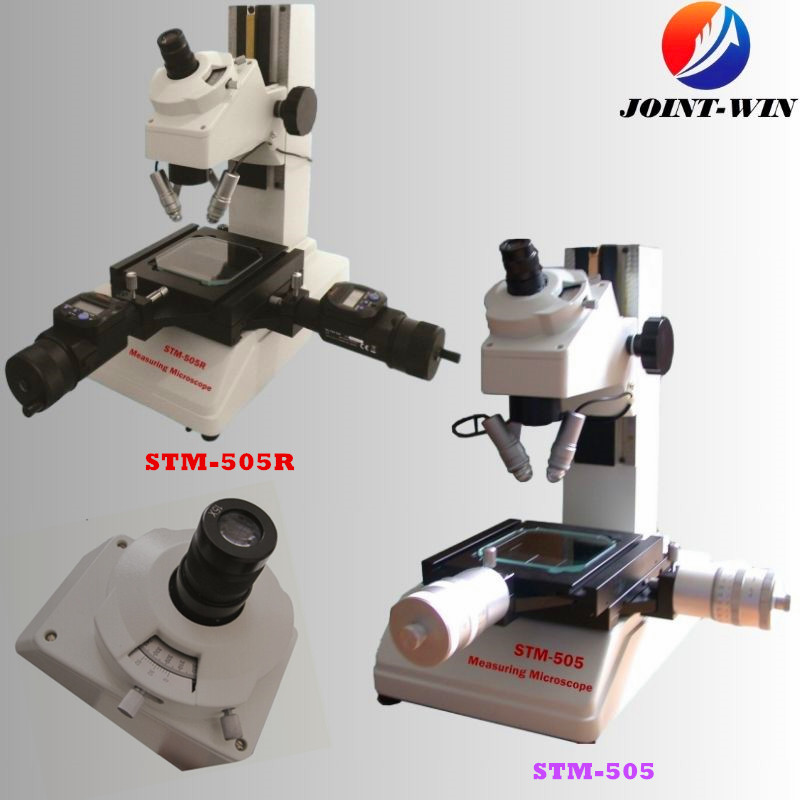

Tool Maker's Measuring Microscope
X.Y Axis Travel：50*50mm
Maxi Working Height: 115mm
Resolution of Measuring Head: 0.001mm
Measuring Head:
STM-505: Mechanical measuring head
STM-505R：Mitutoyo Digital Electronic Measuring Head
Accuracy： (3+L/50)um
Eyepiece： 15X

[Shirley Yang @jointwin9825]

Horizontal Optical Profile Projector
HP-300/400/600 series
Diameter size: 330mm/425mm/615mm
X.Y.Z travel range: 200*75*100mm
300*125*150mm
300*125*150mm
Measuring Accuracy: (3+L/200)um

[Shirley Yang @jointwin9825]

5Mpixel digital CCD camera
Measuring Range (mm): 300*300*300; 400*400*300;
500*500*300
X.Y Axis Measuring Accuracy: 1.6+L/200 (um)
Z Axis Measuring Accuracy: 3.5+L/200 (um)
Repeatibility : 0.0015(um)
Full-automatic measuring software support Windows11 OS

[Shirley Yang @jointwin9825]

Horizontal Video Measuring Machine
Measuring expert of rings, cylinders, cutters, and grinding wheels etc.
X.Y.Z measuring range: 300*150*200mm
X.Z measuring accuracy: 3+L/200um
X.Y repeatability: 3um
Linear scales: 1um resolution standard
CNC model can be customized
