plus1pxl

[Null-ART @GOROman]

皆様の要望にお応えして、テレビ画面叩きに対応しました！

[Obsolete Sony @ObsoleteSony]

In 1997, Sony Japan launched the Trinitron TV KV-21SP1, designed to match the PlayStation, with a limited production of 5,000 units.

[plus1pxl @plus1pxl]

@tomoyasumakino I had a similar issue with PC-9801N I cant remember the exact model but one of the traces coming from the HDD connector was corroded due to a leak of electrolytic capacitor.

[dydt 🧲MFT2026(I-03-06) @dydt_Nao]

部品一通り載せ終わ��た　ちゃんとUSB-A端子ついてるしどう見てもUSBメモリやな

[plus1pxl @plus1pxl]

Blustream IP200UHD-RX back in action — HDMI port replaced, video signal restored. Quick fix, clean result. 🚀🔧 Video inside.

[49bitcat @49bit_cat]

Finally, we're officially announcing the nileswan - our WS/WSC/PCv2-compatible flash cartridge, opening up new doors for the platform while also featuring very good compatibility with existing software. Sales starts November 24th!

[UNIKO's Hardware 🌏 @unikoshardware]

hwbot cpu frequency new world record
no.1 - 9,130.33 MHz
intel 14900kf + asus m15a
achieved by overclockers in china

wytiwx:
Crazy again! Thanks Corsair, ROG, Thermal Grizzly, ElmorLabs and my dear teammates MickaShuBL, Crystalright, Markjinli.
https://t.co/yRQE0BBPjB

congrats!

[plus1pxl @plus1pxl]

@Ethy1ene_L looks like the kind of challenge not a lot of people will take. I wish you luck and keep us updated

[CommodoreBlog @CommodoreBlog]

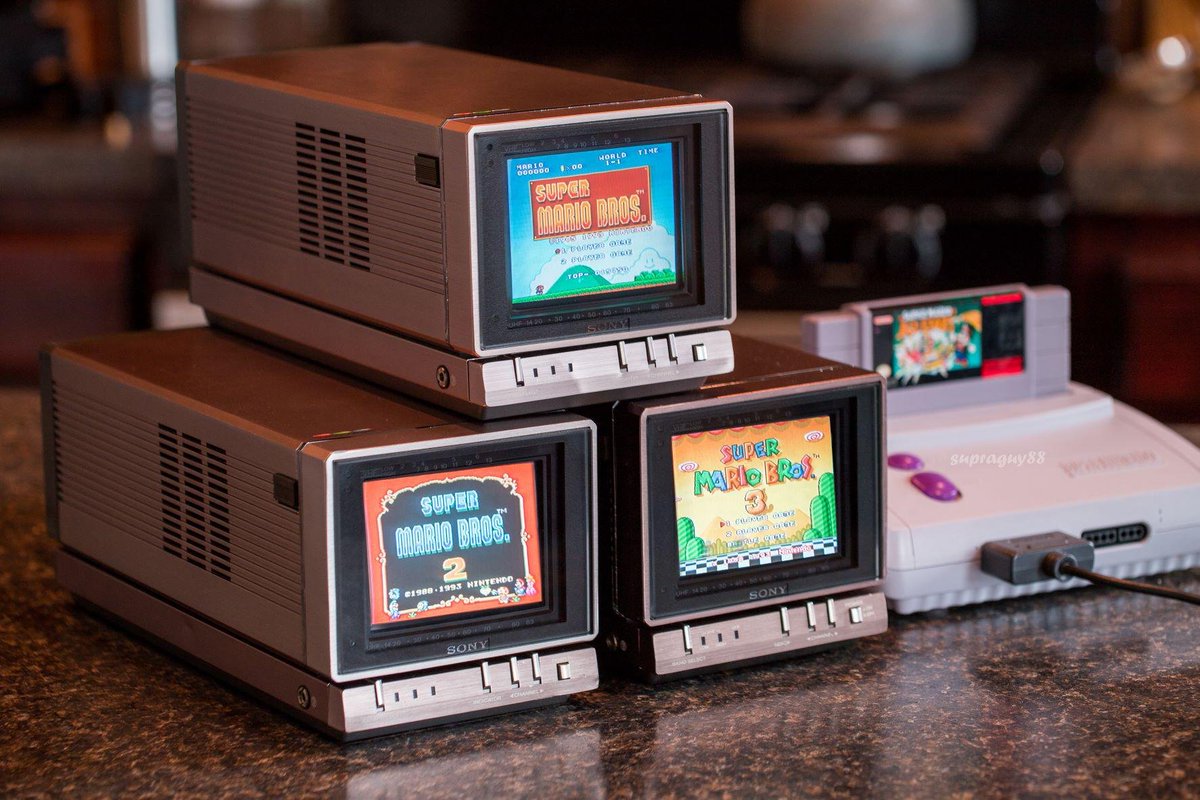

Sony KV-4000. (1980)

[PC-98 Bot @PC98_bot]

Ougon no Rashinban // Riverhill Soft // PC-98 // #pc98 #RiverhillSoft

[plus1pxl @plus1pxl]

@shiroyagi5 amazing, what is your process of looking for broken traces/vias

[plus1pxl @plus1pxl]

@shiroyagi5 How do you know if you were having issues due to HIGH ESR? I'm currently restoring PC-9801NS/A which turns on, but shows nothing on the screen and not beeping. the 82 uF capacitors I used have < 200 mΩ ESR. I was looking for a broken via or trace all night long, but cant find any

[plus1pxl @plus1pxl]

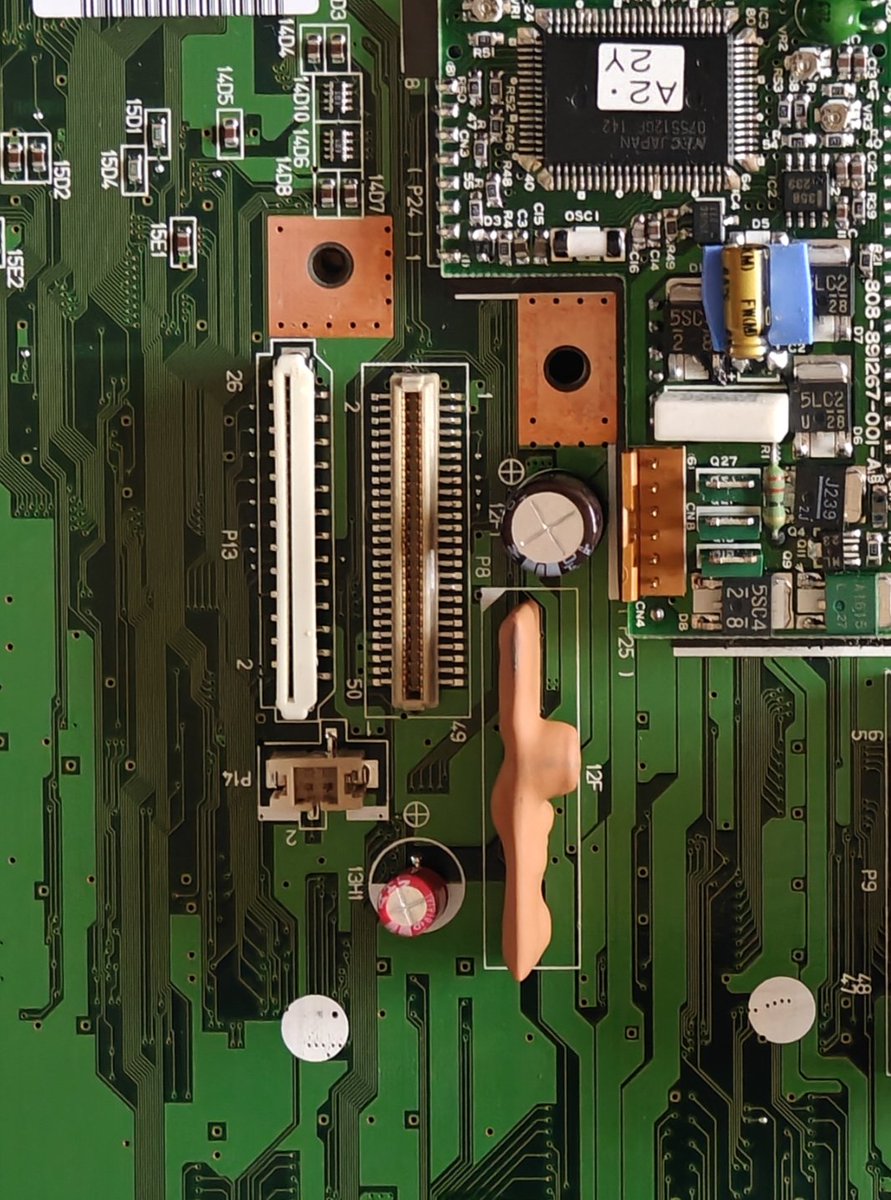

@YSKWYUY In that case it is for insulation. I think that board is related to the LCD contrast voltage. On some models this board is potted in black resin. Here is a photo of mine on PC-9801NS/T

[plus1pxl @plus1pxl]

Finally the trickiest part - the screen polarizer. I was lucky that only the front one was damaged so it wasn't a lot of work. I also hesitated a bit between orientation angles, but finally went with the GameBoy green look.
#PC98 #PC9801

[plus1pxl @plus1pxl]

Last weekend project a PC-9801NS/T with the usual issues broken hinge, vinegar screen and leaky caps.
#PC98 #PC9801 #VintageComputer

[plus1pxl @plus1pxl]

Designed a 3d printed hinge fix which allows the usage of the original heat inserts and bolts. Its 2 parts so the top part presses against the hdd enclosure plastic and prevents the mount from breaking again.
#PC98 #PC9801

[plus1pxl @plus1pxl]

@YSKWYUY I actually repaired PC-9801NS/T last week and don't remember seeing that piece of copper foil in it. I just made a post about it, so you can check the photos if you think they can help.

[plus1pxl @plus1pxl]

@YSKWYUY Is yours conductive on the inner side? if it is then is for grounding, if not - isolation. Judging by the staining yours came of a part of the board where you had either battery or capacitor leak.
