Project Hoppen

a propulsive lander project 🐸

[Project Hoppen @ProjectHoppen]

We have added more stuff and made it green 😎

[Project Hoppen @ProjectHoppen]

@RocketLab @hawkeye360 hawk tuah?

[Project Hoppen @ProjectHoppen]

Linear actuators🐸

Yeah, these are the guys who will move linearly back and forth😎
Back and forth, pushing the propellers around to balance the drone🫨

[Project Hoppen @ProjectHoppen]

🎶You spin me right 'round, baby, right 'round
Like a record, baby, right 'round, 'round, 'round🎶

[Project Hoppen @ProjectHoppen]

@HoodVik No, it is not

[Project Hoppen @ProjectHoppen]

Linear actuators 🐸
Two of these fellers will push the propellers/rocket engine around to point the thrust in the right direction🤓

#festo #rocket #space #ntnu #engineering #aerospace #rocketry #drone #render #spacex #robotics

[Project Hoppen @ProjectHoppen]

Who did this!?
😂😂😂😂??

[Project Hoppen @ProjectHoppen]

Introducing Grandalf the Box, the home of all the cool electronics controlling the drone😄

[Project Hoppen @ProjectHoppen]

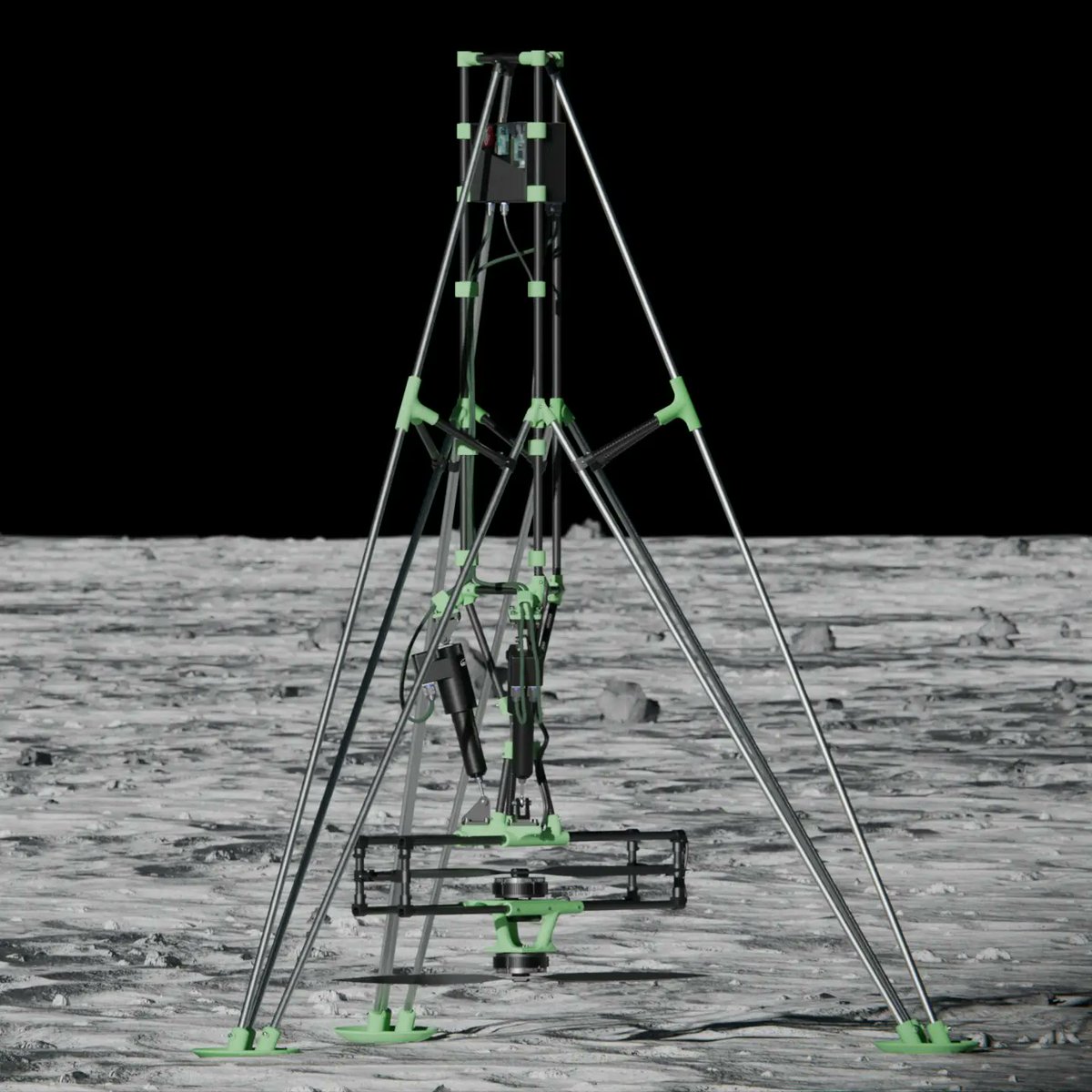

We have added more stuff and made it green 😎

[Project Hoppen @ProjectHoppen]

@femcheese @propulsentnu Thats just the way how it is

[Project Hoppen @ProjectHoppen]

💦Injector💦
Injectors are mythical creatures responsible for mixing the propellants in the rocket engine🦄
We are planning on using a coaxial swirl injector🤓
This is the same type as our friends at Project Valemon (@propulsentnu ) is using😎

[Project Hoppen @ProjectHoppen]

It’s growing?
It is easier to balance the drone when the center of gravity is high😀
Therefore we made it taller😎
It also ended up on the moon?

[Project Hoppen @ProjectHoppen]

We're all living in a simulation🤯
Well, at least our drone is (for now)
Here you can see three of the simulations of all time🐸

[Project Hoppen @ProjectHoppen]

Drone😀

[Project Hoppen @ProjectHoppen]

Hello, in terms of the G part of GNC (guidance), we have some nice progress:

[Project Hoppen @ProjectHoppen]

These 200bar balls will push the liquid fuel into the combustion chamber😀

[Project Hoppen @ProjectHoppen]

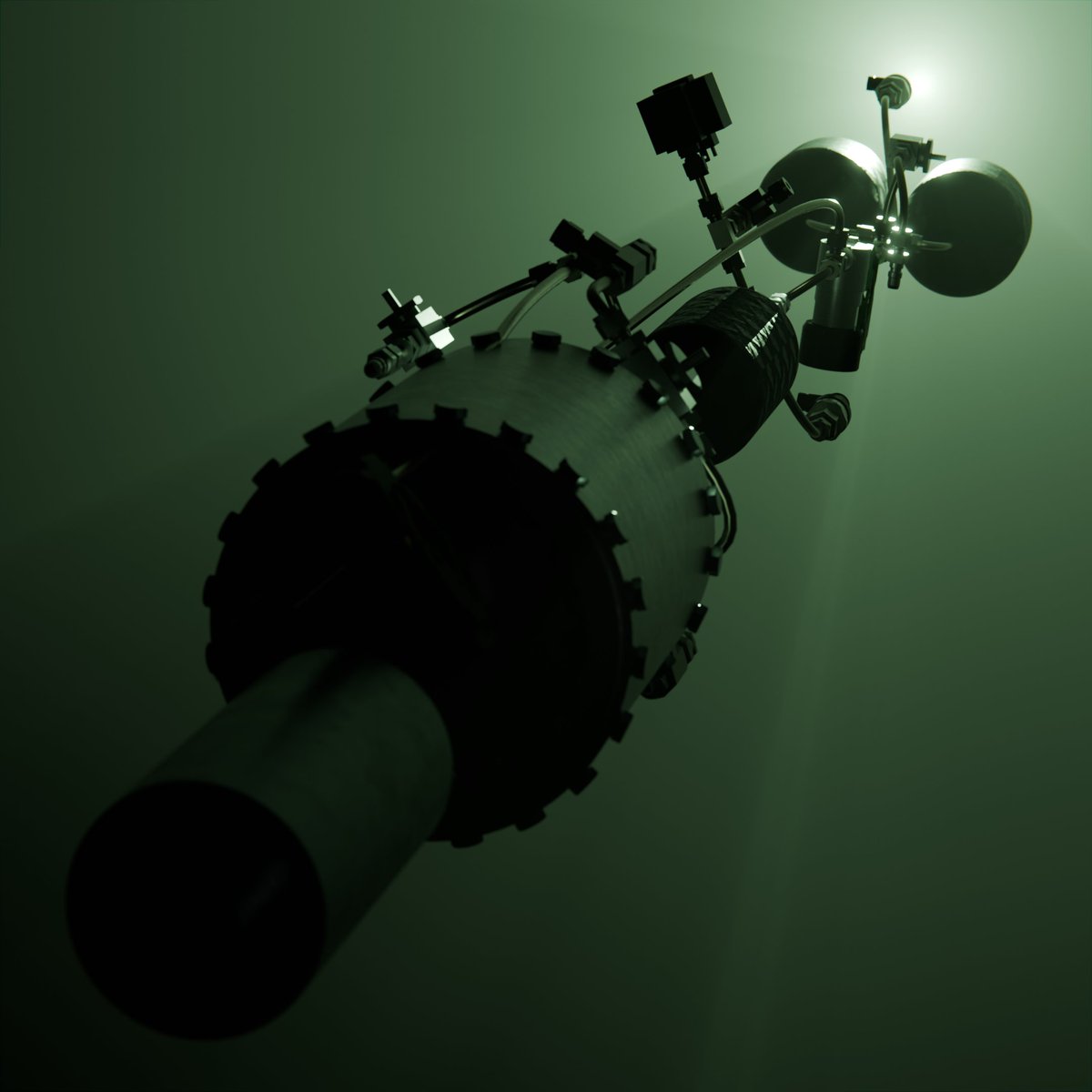

Liquid propulsion💦
We are not only landing a drone🤓
We will also land a rocket😎

[Project Hoppen @ProjectHoppen]

Here you can "see" the seires of tubes that will feed our engine🐸
It will produce around 500N of thrust🔥

[Project Hoppen @ProjectHoppen]

We have designed a hat🎩.
The hat has circuits printed on a board that will connect the Raspberry Pi flight computer to different sensors😎

[Project Hoppen @ProjectHoppen]

On PCB's surface
Traces align
In the realm of circuits
A design
