New project: custom ESP32-S3 embedded board.

Building a compact PCB with an ESP32-S3 core, MPU-6050 IMU, dual USB-C, and onboard Li-Po charging. Schematic complete — now routing in KiCad.
More soon as it moves from schematic to fabricated board.
#PCBDesign #EmbeddedSystems #elec

[Brahim Hammane | Embedded & PCB @BrahimDev_3d]

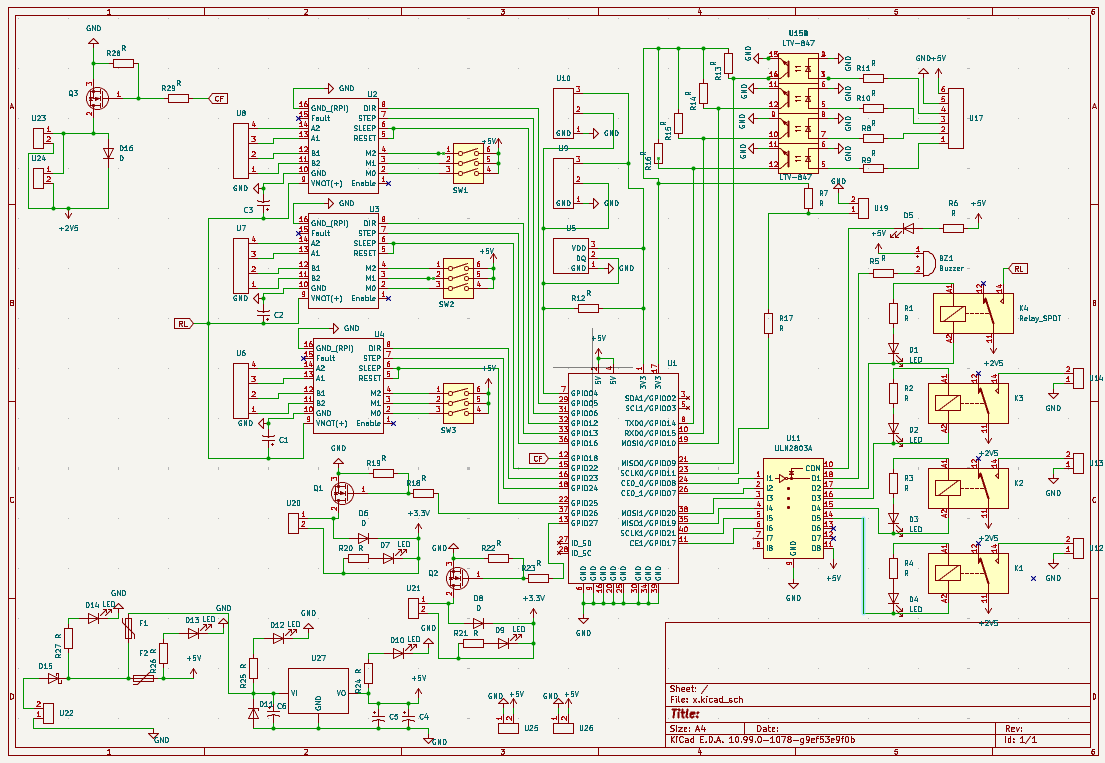

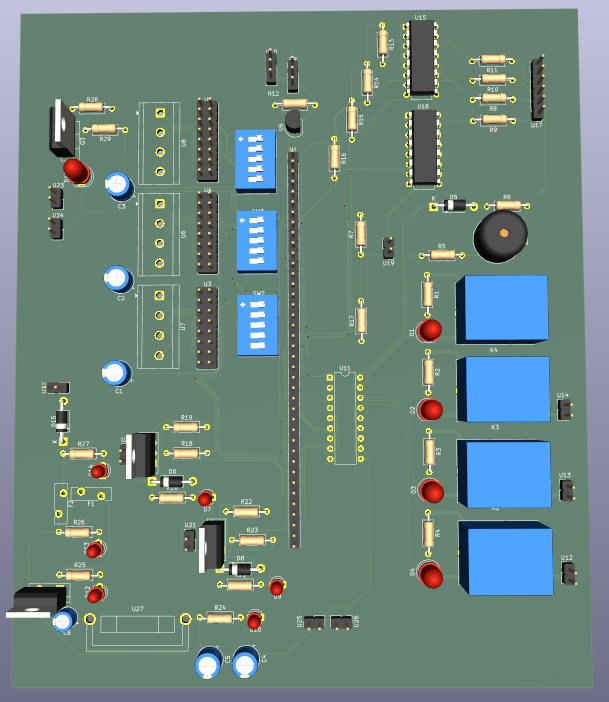

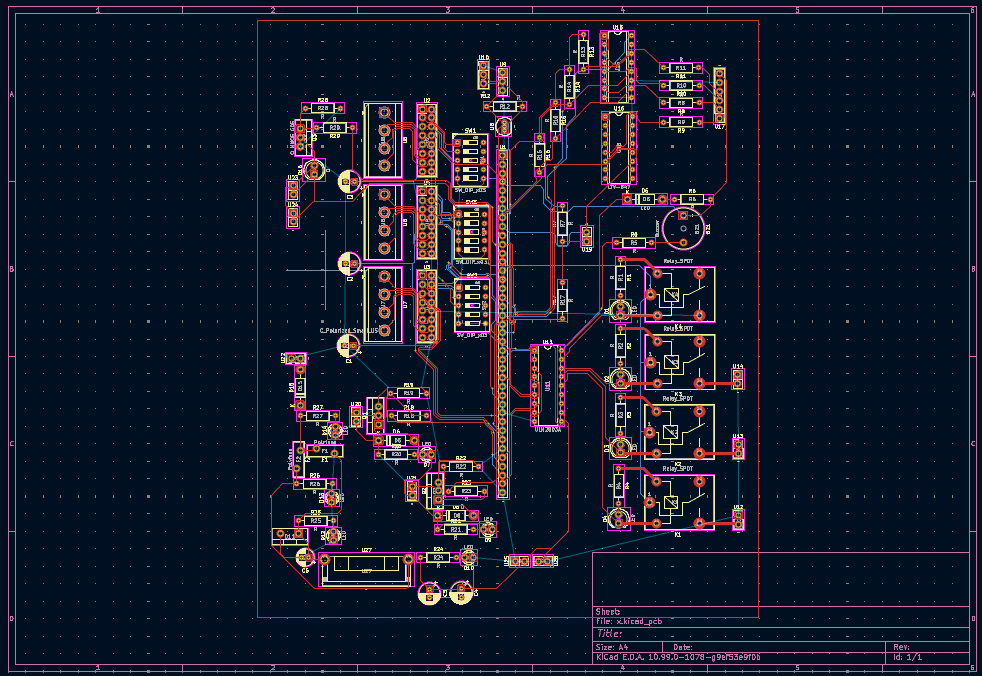

Custom PCB I designed in KiCad — 3 stepper drivers, 4 relays, optocouplers & dual power rails, all controlled via Raspberry Pi.

Schematic → layout → 3D render. One week.

#PCBDesign #KiCad #EmbeddedSystems

[Brahim Hammane | Embedded & PCB @BrahimDev_3d]

@rdotapps It actually worked but not from the first time ofc I knew the mixed signal setup could be messy, so I kept the high-power relay section physically isolated on one side of the board

[Brahim Hammane | Embedded & PCB @BrahimDev_3d]

Custom PCB I designed in KiCad — 3 stepper drivers, 4 relays, optocouplers & dual power rails, all controlled via Raspberry Pi.

Schematic → layout → 3D render. One week.

#PCBDesign #KiCad #EmbeddedSystems
