NotTheWorstDev

Software engineer, tech and aviation enthusiast. Biker and maker in the free time.

[NotTheWorstDev @NotTheWorstDev]

@markbirss @azumotech @JLCPCB Hi. The display you mentioned is a different version with backlight. I used to buy them from @digikey

[NotTheWorstDev @NotTheWorstDev]

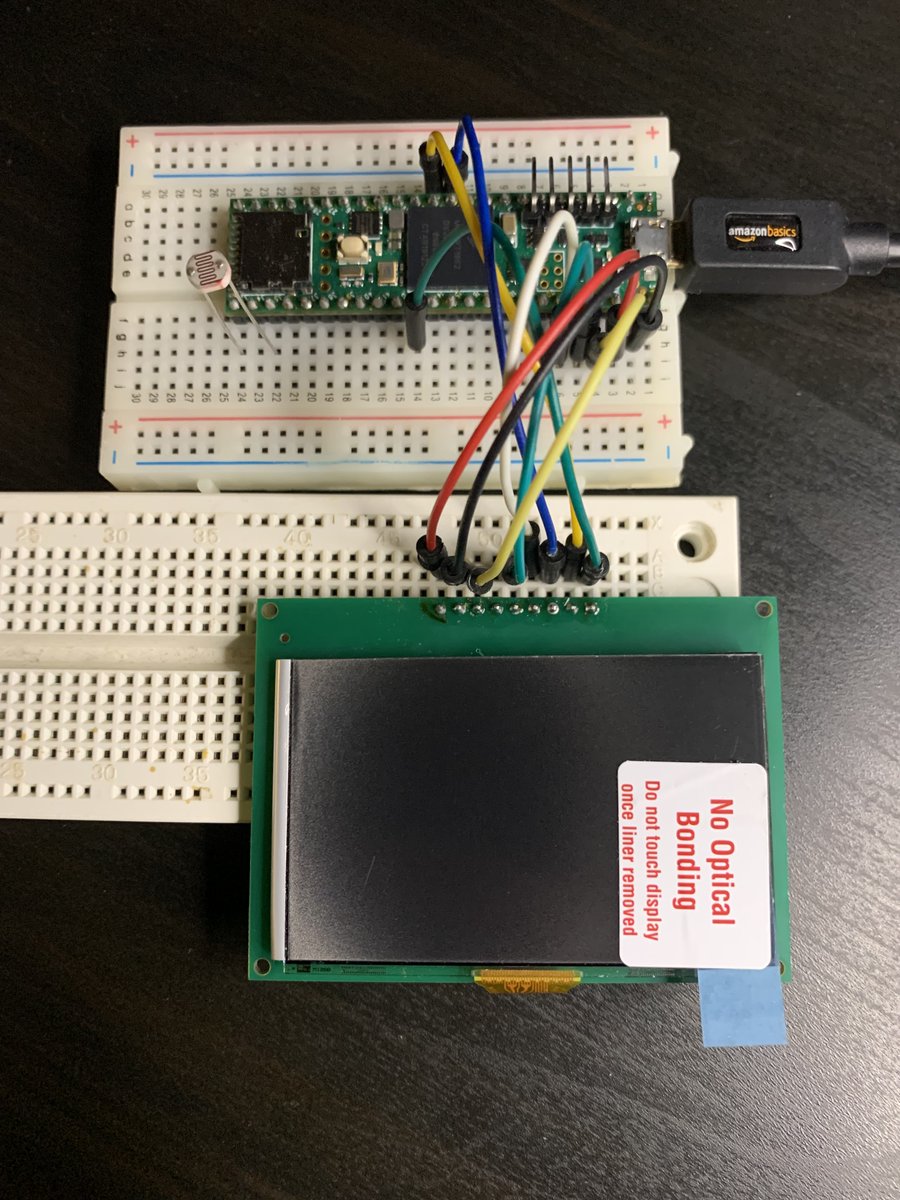

I made these breakout boards to test the @azumotech #LPM027M128B reflective display. Thanks @JLCPCB for manifacturing and soldering those super tiny FPC connectors. Now the challenge is developing the firmware to drive the display.

[Max Evans @_MaxQ_]

LIFTOFF OF STARSHIP SUPERHEAVY

[NotTheWorstDev @NotTheWorstDev]

@pi0bikecomputer @azumotech I was also keeping an eye on LPM027M128B when I noticed this new model. Seems like it’s not available yet for purchase, I can’t even find the model code in the data sheet. I want to test it with my library!

[adafruit industries @adafruit]

Japan Display Inc. library for Arduino #Arduino #Displays @NotTheWorstDev https://t.co/B3bMIt08NG

[NotTheWorstDev @NotTheWorstDev]

@RWB93174525 @adafruit My pleasure! In case you use it feel free to send PRs for improvements or bug fix.

[NotTheWorstDev @NotTheWorstDev]

@SidExiled 1:29 Chris should have replied with “I Will, Smith”

[NotTheWorstDev @NotTheWorstDev]

@pi0bikecomputer @ESP8266 @ESP32net This video is exactly what I needed. Great explanation of the dithering algorithm! @javidx9

https://t.co/BKUnFI7At8

[NotTheWorstDev @NotTheWorstDev]

@sulfuroid I have the same hot plate and I got good results with the kester R276 solder paste. Here is a short video

https://t.co/x0QIZrmdhZ

[NotTheWorstDev @NotTheWorstDev]

@pi0bikecomputer @ESP8266 @ESP32net Hey! Happy new year!
This is very interesting, I didn’t even thing about “mixing” the colors. I will have to learn more about color space, palettes and conversion.

[NotTheWorstDev @NotTheWorstDev]

@ESP8266 The #ESP32 has enough memory to enable the drawing optimization. I was expecting more FPS for a full screen update but drawing only the different lines the results are good.

@ESP32net #Arduino #display

[NotTheWorstDev @NotTheWorstDev]

The display library works on the #ESP8266 as well but it doesn't have enough memory to allocate the double display buffer to implement the different lines update optimization. Not quite usable for a real time application at this refresh rate.

@ESP8266 #Arduino #wemos

[NotTheWorstDev @NotTheWorstDev]

@sulfuroid @tindie This is a great idea!

[NotTheWorstDev @NotTheWorstDev]

@sulfuroid @tindie I am doing something similar and I was exploring some alternatives. Thanks for the answer. The problem is that the back of my display is not flat because there is the front light LED

[NotTheWorstDev @NotTheWorstDev]

@TomStantonYT Because it works at -223 celsius

[NotTheWorstDev @NotTheWorstDev]

@pi0bikecomputer This is amazing, thanks for the advice! I will try to make some improvements

[NotTheWorstDev @NotTheWorstDev]

@pi0bikecomputer I ordered 10 boards, I want to keep 2 or 3 of them for myself. I can ship the others if the shipping costs are not too high. I would be happy if you can use them to make some amazing stuff

[NotTheWorstDev @NotTheWorstDev]

@pi0bikecomputer Yes I will share the schematic but please keep in mind that the version 1.0 you see in the picture has a couple of problems: the frontlight is weak because should be powered with 5v instead of 3.3v and R3 is too big. I will write everything on my GitHub page
