#Raystack - Twitter Hashtag

about 5 years ago

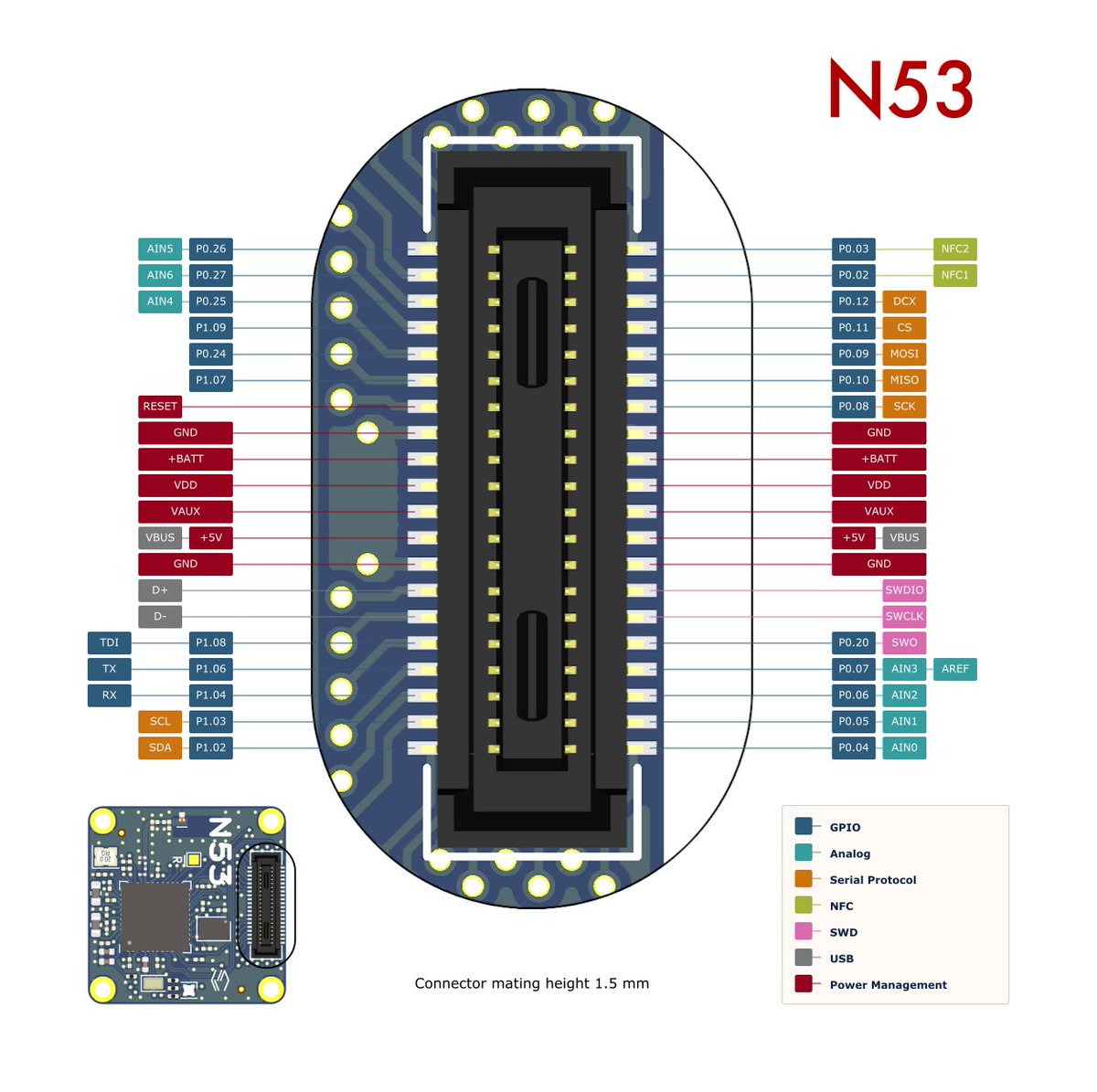

The N53 board has the same miniature, low profile, 100% compatible connector as the entire #rayStack series. The idea is to have a solder-less module which can be upgraded anytime. Of course, new features could also be added by attaching an extension board at the top or bottom.

1

7

1

0

Mike M. Volokhov @mishkathebear

over 5 years ago

The mating height of the #rayStack platform is highly customizable, hence the #FreeCAD parametrized spacer frame.

0

4

1

0

Mike M. Volokhov @mishkathebear

over 5 years ago

With all components in place. #nRF52832 #DF40 #wearable #solderless #TinyDuino #rayStack

0

7

0

1

0

Mike M. Volokhov @mishkathebear

over 5 years ago

Another thing the #rayStack has got is the Hirose #DF40 series connector. Its footprint width is as low as 3.38 mm. But the killer feature is the multiple #stack height option, ranging from 1.5 to 3.5 mm. Yep, the distance between boards can be less than the board thickness! 🤏

mishkathebear's tweet photo. Another thing the #rayStack has got is the Hirose #DF40 series connector. Its footprint width is as low as 3.38 mm. But the killer feature is the multiple #stack height option, ranging from 1.5 to 3.5 mm. Yep, the distance between boards can be less than the board thickness! 🤏 https://t.co/NHAL5UwRBA

1

9

1

0

Mike M. Volokhov @mishkathebear

almost 6 years ago

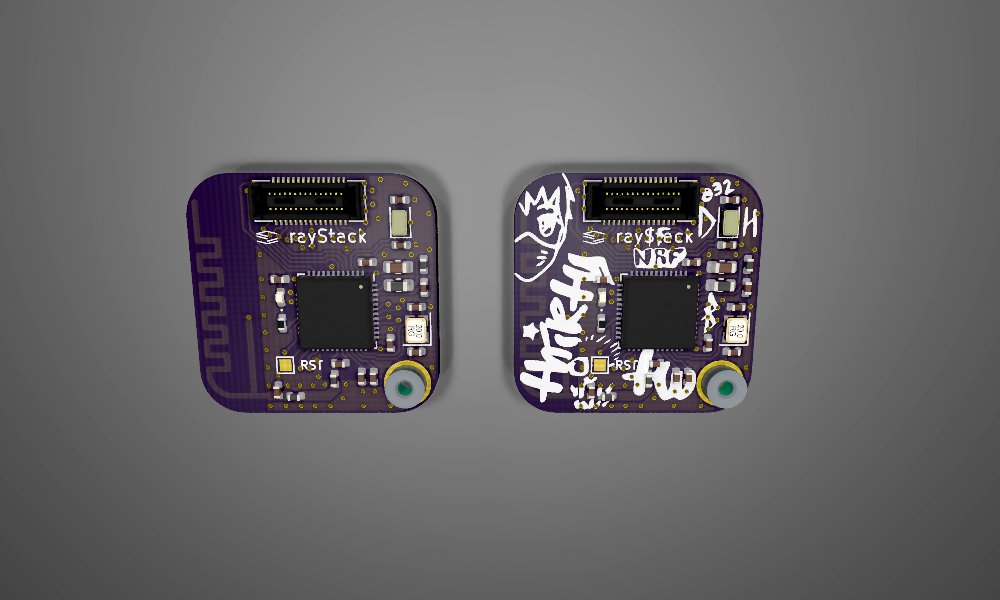

It's time to give one of the #rayStack boards a try - the thirtytwo. Four layers of tightly packed tracks for... $6.20 including delivery! Wow @oshpark! 🆒😍

mishkathebear's tweet photo. It's time to give one of the #rayStack boards a try - the thirtytwo. Four layers of tightly packed tracks for... $6.20 including delivery! Wow @oshpark! 🆒😍 https://t.co/DPZkAtmm8r

0

3

0

Mike M. Volokhov @mishkathebear

almost 6 years ago

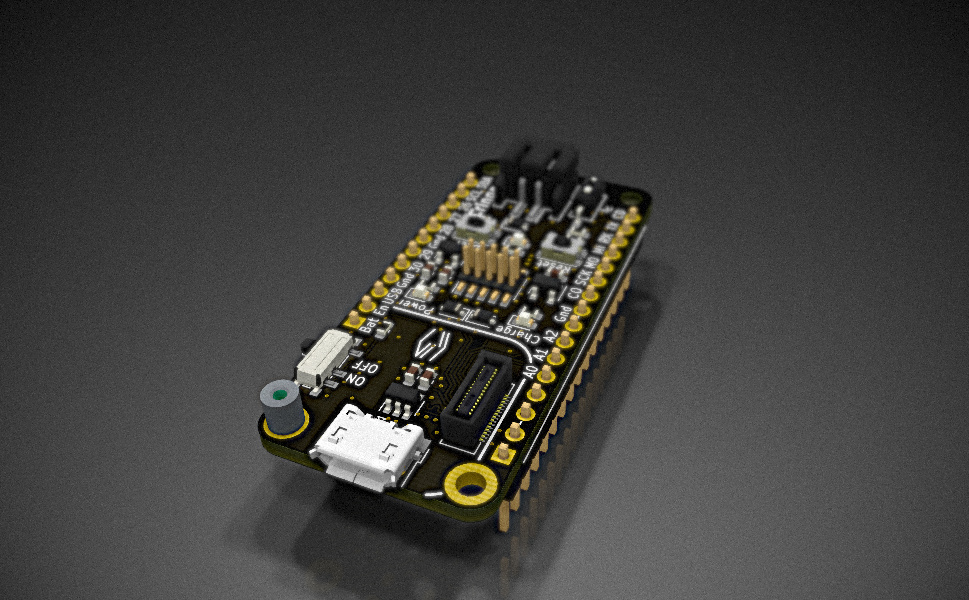

A rendered PCB turned out to be a one of the easiest objects for fake depth of field 🖌️🎨 #KiCad #GIMP #rayStack

0

1

0

Mike M. Volokhov @mishkathebear

about 6 years ago

Accessing #rayStack via #DF40 is PITA, so here is the Fringe - a "mother board" in the @adafruit #Feather form factor (well, almost - the JST PH is so big). #KiCad sources are at https://t.co/uU26VpmN8P

mishkathebear's tweet photo. Accessing #rayStack via #DF40 is PITA, so here is the Fringe - a "mother board" in the @adafruit #Feather form factor (well, almost - the JST PH is so big). #KiCad sources are at https://t.co/uU26VpmN8P https://t.co/eexPqpaDbL

0

4

0

Mike M. Volokhov @mishkathebear

about 6 years ago

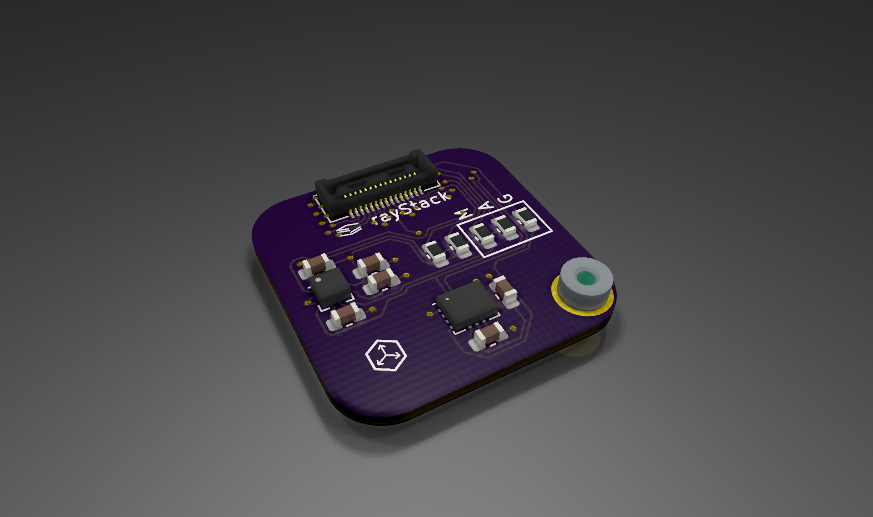

Brought the #rayBeacon's Orient 9-axis IMU board to the #rayStack. Same #LSM303AGR & #BMG250 over I2C, and 0603 passives. The M.A.G. block is just 0Ω resistors to configure optional interrupt lines from the magnetometer, accelerometer, and gyroscope.

mishkathebear's tweet photo. Brought the #rayBeacon's Orient 9-axis IMU board to the #rayStack. Same #LSM303AGR & #BMG250 over I2C, and 0603 passives. The M.A.G. block is just 0Ω resistors to configure optional interrupt lines from the magnetometer, accelerometer, and gyroscope. https://t.co/MuUxFncBiK

2

4

1

0

Mike M. Volokhov @mishkathebear

about 6 years ago

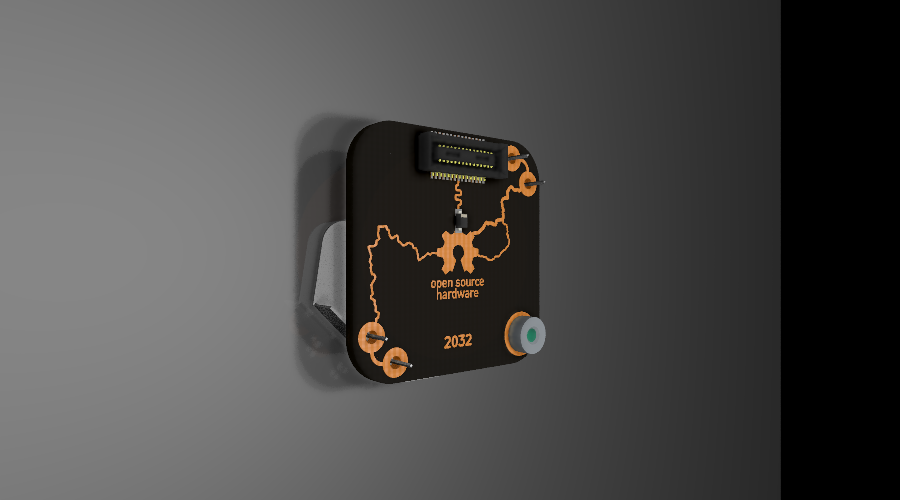

This one attaches a 2032 3V battery to the #rayStack. The component in the center is a SOD-523 protection diode. This time no silk on either side - only the copper which strikes #afterdark. Developed in #KiCad, routed with #inkscape.
