New Neo Geo AES repair article on IllusionRip!

Distorted red screen, active RESET and HALT signals, no boot…

An unusual fault that required hours of probing, analysis, and troubleshooting before the root cause could be identified.

👉 https://t.co/BV1BcPzb5J

#NeoGeo #SNK

[Xrider @Xrider_74]

🎮 Delta PCB SNES Translator – EarthBound / Mother 2

Play iconic Japanese classics in French or English (language selected at purchase) while preserving 100% of the original Nintendo hardware.

🛒 Now available on Delta Island Store.
https://t.co/jvMcByRwcz

[Nic034 🔧 @nic0344]

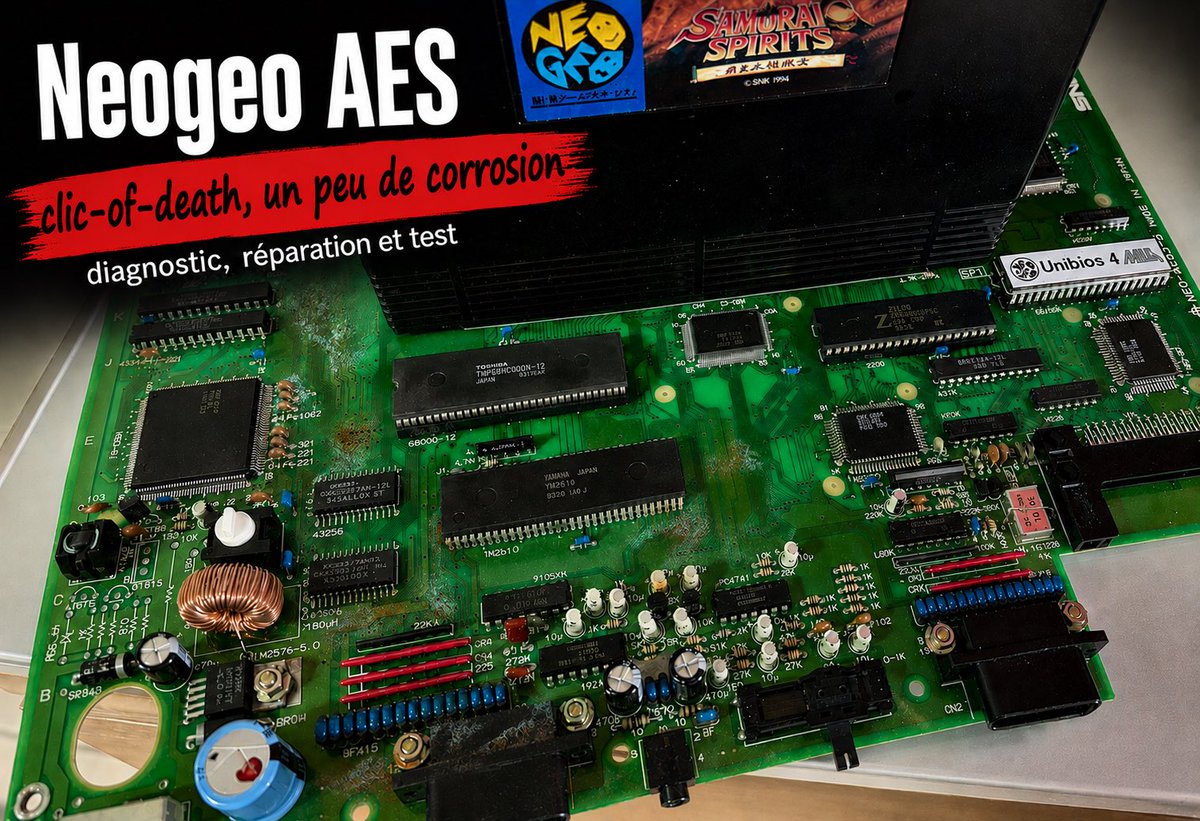

#neogeo #aes console repair: minor click-of-death + some corrosion 🧵

The console was bought through a proxy, arrived non-functional (blue/white screen). A previous tech had simply reflowed the LSPC2-A2 and called it a day.

What’s a click-of-death? The console tries to boot, detects something’s wrong (missing data/address line, stuck signal, missing key signal…) and reboots in a loop. Causes vary: dead chip, broken trace, incorrect signal state polluting a bus.

First step: power supply & power connector check ✅
Connector replaced as a precaution.

Previous rework was clean — lead-free solder, less ideal to work with, but neatly done.

Microscope inspection: clean, original board. One prior repair top-right near the upper palette RAM. A patch was there but oversized for my taste, and one via looked corroded. Cleaned and repaired the area.

Key insight on click-of-death:
It’s often tied to corroded traces. The address/data bus is critical on this platform — it touches many chips, including the 68000 CPU.

When I spot corrosion anywhere, I sweep a 5–10cm zone around it. Moisture enters through the vents — if the console sits vertically with the power button down, it can creep in through the cartridge port 🙂

On AES, this is essential to check. A large majority of faults trace back to this.

Scope check around: NEO-B1 ✅, cartridge port top/bottom ✅, 68000 zone…

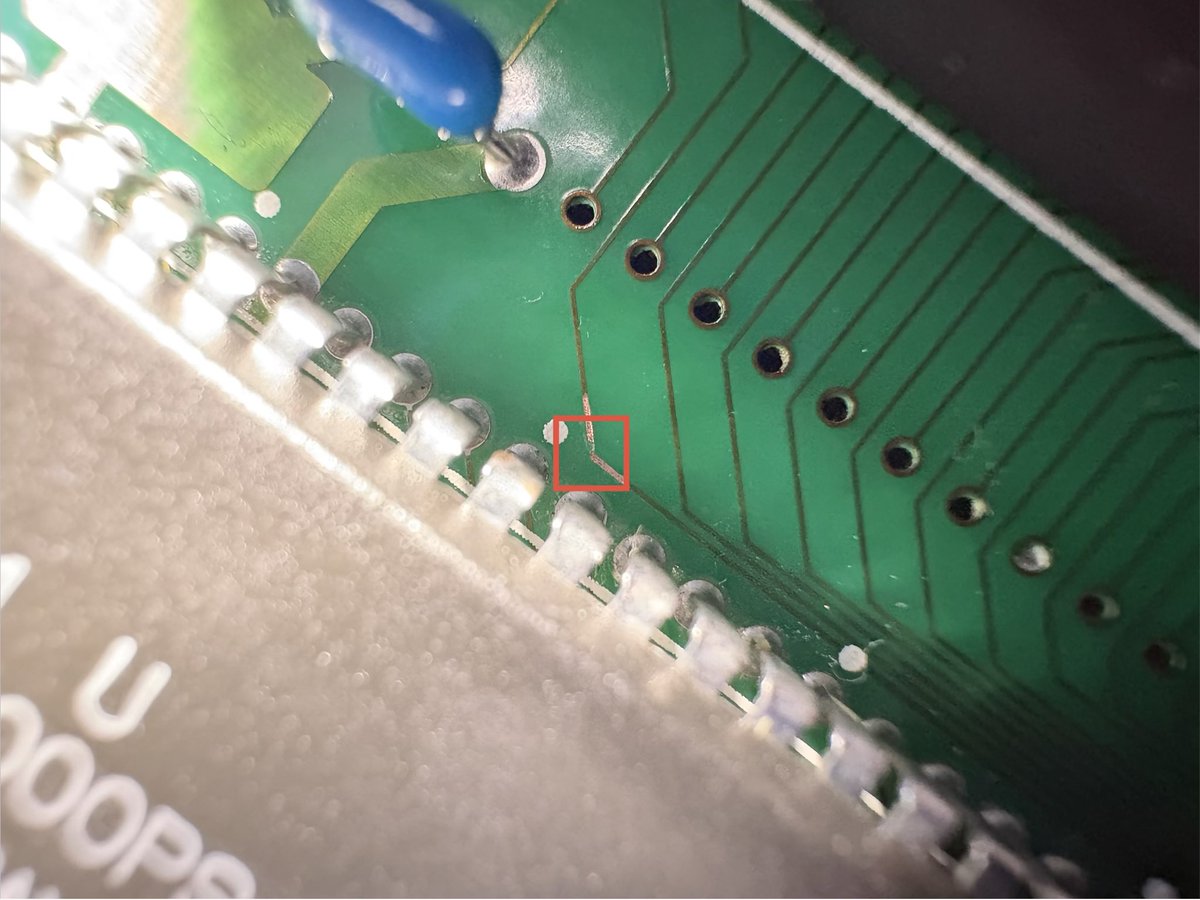

💥 Bingo. little corrosion spot hiding...

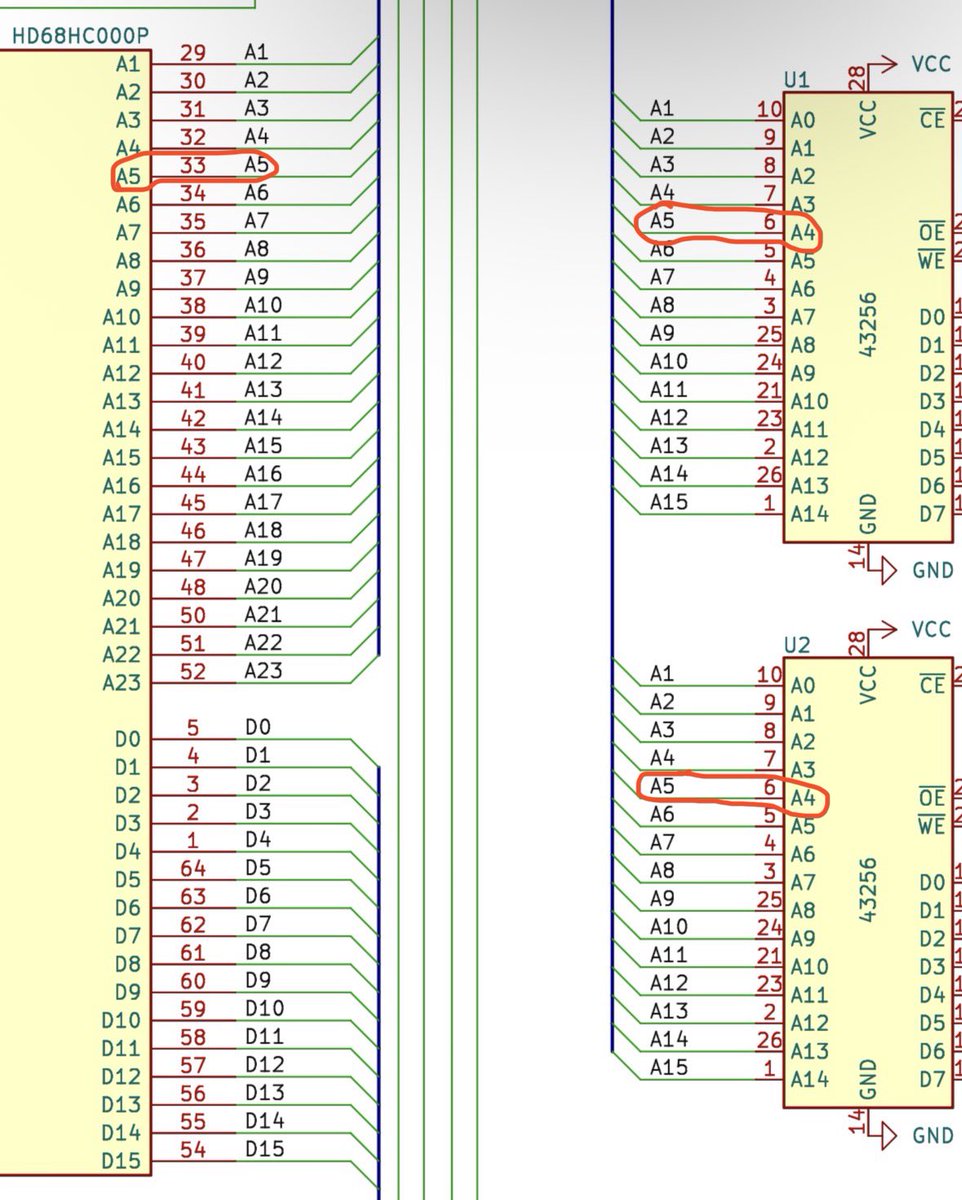

The break targets address line A5, connected to the 68000, work RAM, BIOS, NEO-E0, and both cartridge ports. A critical line for everything — console and games alike.

The bus wasn’t reaching the CPU. The watchdog (frame counter, managed by NEO-B1) handles resets when it’s in a specific state or not updated in time:
👉 https://t.co/m1m5BxcEjp

Fix: 0.04mm copper wire + UV lacquer. Done ✅

Slapped a NeoPass on it and let it run! 🎮

#retrogaming #arcade #neopass
