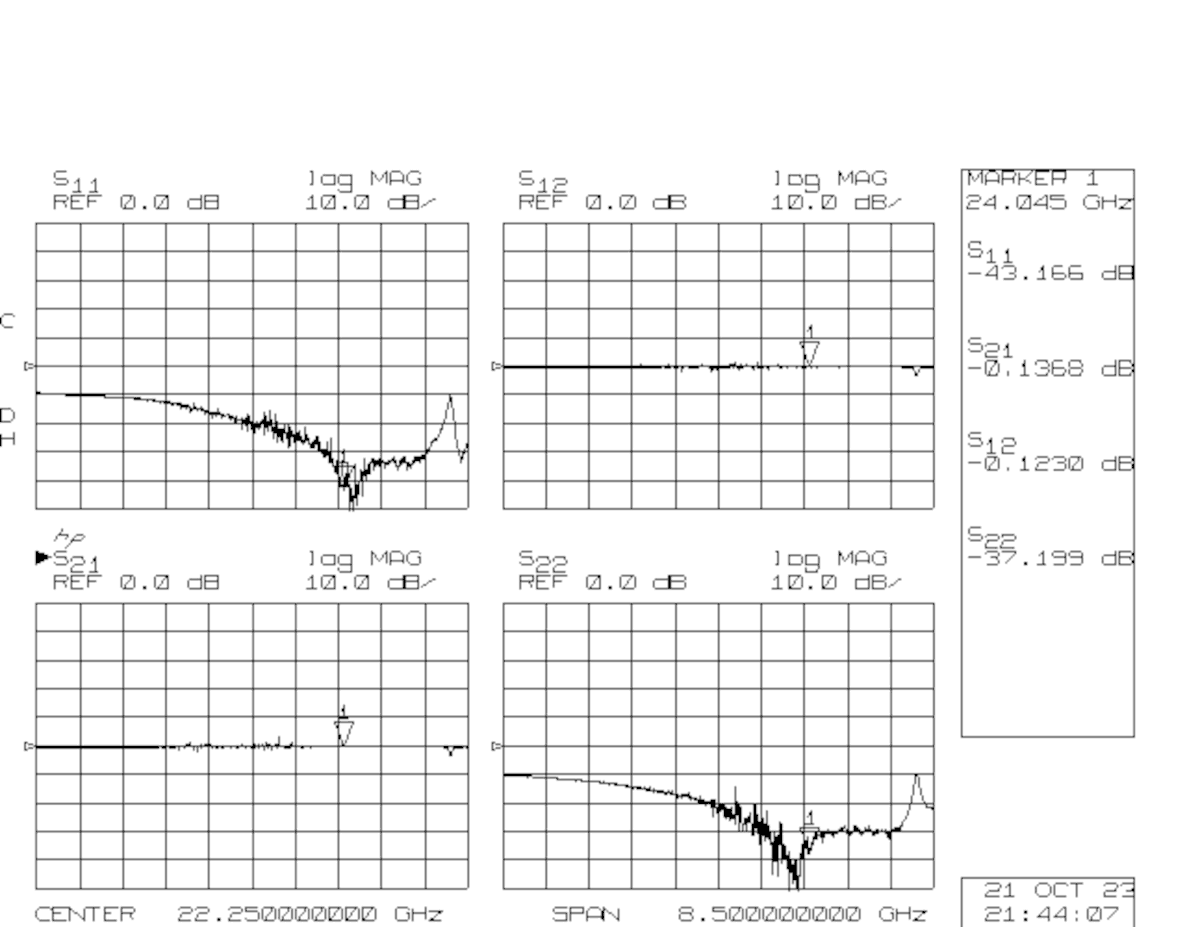

Finalized today my new project. WG42 to SMA transition, optimized for the 24 GHz amateur radio band. Milled from CuZn39Pb2 brass, 4 tuning screws M1.6x4 ISO 4766 and Sealectro 50-443-4310-3 SMA connector. A month ago I designed and ordered milling of the body, today I assembled,tuned and measured the parameters. I measured with an HP 8510C using the "Adapter Removal" calibration intended for nonisertable devices (two calibration kits, one for WR42 WG and one for 3.5 mm coaxial). Half a day to measure and tune a single adapter! Now of course it will go faster when I have the calibration ready. The parameters are decent, at 24.045 GHz the return loss on the waveguide side is -43 dB and on the SMA connector side -37 dB. Attenuation is about 0.13 dB. It's time to finish building the transverter and make some QSO in the 24 GHz band.
Another “building block” in my 76 GHz TRV project. LO source: 9486 MHz synthesizer. Conversion formula: (9486 MHz × 8) + 144 MHz (IF) = 76032 MHz. Implemented as a cascade of two Texas Instruments LMX2820 synthesizers.
tinySA Ultra+ claims it can "observe" signals up to 12 GHz!
I tested the claim with a 12 GHz signal, and it actually works!
The amplitude reading is not accurate, but it's good enough to confirm the presence of a signal!
