Software libero per l'Architettura nasce nel 2010 con l'obiettivo di diffondere l'uso di software freeware e opensource nel mondo del professionismo progettuale

[Softlibarch @softlibarch]

...and this is the result

[Softlibarch @softlibarch]

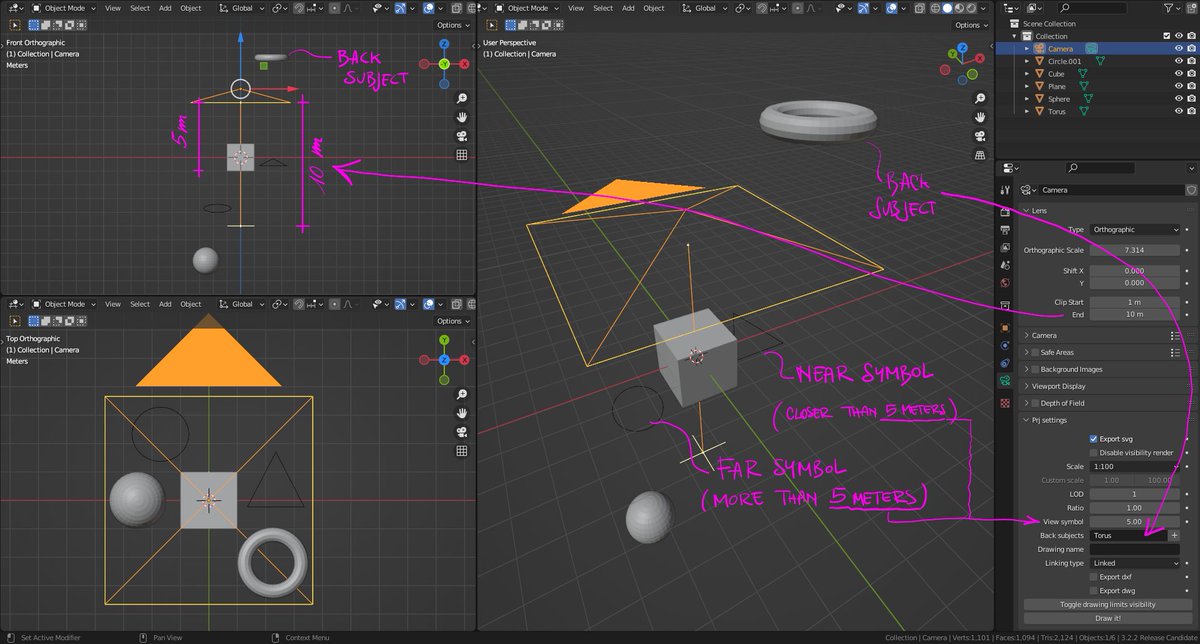

2a. ...and this is how distances affect objects drawing in #prj #b3d #blender3d #lineart #greasepencil #architecturaldrawing

[Softlibarch @softlibarch]

... and here you can find the #blender3d addon #prj https://t.co/eY55DquZ4X

[Softlibarch @softlibarch]

Some tips to start with symbols in #prj...
1. Symbols are represented only if their Z axis and the camera's Z axis are parallel (no matter if the symbol geometry is not) #b3d #blender3d #lineart #greasepencil #architecturaldrawing

[Softlibarch @softlibarch]

... Make sure that the origin of the stairs cut symbols lies on the side you want to keep and that the cut line is below what you are intending to cut #prj #b3d #blender3d #lineart #greasepencil #architecturaldrawing

[Softlibarch @softlibarch]

@BlenderBIMBoi If you generate an SVG drawing you can define the ratio of the paper by enabling the "Toggle drawing limits visibility" and changing the "Ratio" in the camera setting (no settings for drawing limits) as I do here https://t.co/XcdS6lSNDh

[Softlibarch @softlibarch]

#2. You can assign options-for-camera and define how an object is represented in every drawing.
If you want to draw just one object (or a few):
- select it along with the camera
- invert the selection
- hide all selected
- launch the drawing

[Softlibarch @softlibarch]

Some tips for using #prj...
#0. Give a meaningful name to objects: they'll keep that name in the drawing (on cad file it will be the block name).
Camera name defines drawing filename

[Softlibarch @softlibarch]

@BlenderBIMBoi ...anyway, in this case, keep it low (don't use scale like 1:1, 1:2, 1:5...) because it seriously affects the computation time...

[Softlibarch @softlibarch]

#5. Collection, properties and tags become css class you can use to style your drawings or get organized data from it

[Softlibarch @softlibarch]

#4. Would you draw a skylight window in your plan?
You can add it's name to the "Back subjects" field of the camera (if more than one separate their name with a comma)

[Softlibarch @softlibarch]

@OSArchOrg @justlotfy @ChengduLittleA @Blender @BlenderBIM @realOpenDesign ...and it's worth noting that #prj only works thanks to the amazing work of @ChengduLittleA (for #lineart), @antonioya_blend (for #greasepencil svg exporter) and, obviously, all the @Blender developer team

[Softlibarch @softlibarch]

And now...
...we got DWG! 😱
😁 Get beautiful #architectural #drawings faster and easier with #prj @ChengduLittleA #lineart #b3d @Blender @BlenderBIM @OSArchOrg https://t.co/eY55DquZ4X

[Softlibarch @softlibarch]

@OSArchOrg @justlotfy @ChengduLittleA @Blender @BlenderBIM @realOpenDesign ...I keep thinking that SVG is the best choice for a data-driven architectural design process
