Open Power Electronics

Let's open-source power electronics designs.

By: @lalitpatnaik, @su_pein, @abhijit86k, @najath_a_a

[Open Power Electronics @opelexnet]

You can now access all our past podcast episodes also on our YouTube channel:
https://t.co/Vmqvr9m4aG

[Open Power Electronics @opelexnet]

Inside a 3000W Water-Cooled Power Supply with GaN & SiC by ElectrArc240
- AC/DC: Interleaved Totem-Pole PFC
- DC/DC: ZVS Phase Shifted Full Bridge

https://t.co/q4iDaFctXN
#PowerSupply #Teardown #WBG

[Open Power Electronics @opelexnet]

"The design of magnetics components is the easiest place to jeopardise a #PowerSupply design project." ~Robert Mammano, Father of PWM Controller IC Industry

Learn to design better #magnetics. Wind your own business!

[Open Power Electronics @opelexnet]

The most important bit of the right-hand thumb rule is to NOT use your left-hand.

[busbar @busbar31180]

Busbar laser cutting process
#busbar
#powerenergy
#renewableenergy
#EVs
#powertrain

[Open Power Electronics @opelexnet]

#Solar #photovoltaic (PV) module prices have fallen almost 500-fold in the last 50 years: From 128.27 $/W in 1975 to 0.26 $/W in 2024.

Source: https://t.co/OdA2zY8SHb

[Open Power Electronics @opelexnet]

FOSSEE (Free/Libre and Open Source Software for Education) project at IIT Bombay promotes the use of #FLOSS tools in #academia and #research. They're now inviting applications for the Semester-long Internship 2026.

DEADLINE: 10 Feb 2026

https://t.co/JeVp0P4IhA

[busbar @busbar31180]

Aluminum busbar and nickel strip joined by ultrasonic welding
#aluminumbusbar
#nickelstrip
#RenewableEnergy
#EVs
#powerbattery

[Power Integrations @PwrInt]

Each of these ultra-compact power supply designs for 800V BEV systems features a planar transformer and showcases the space-saving and reliability benefits of 1700 V SiC-based InnoSwitch3-AQ switcher ICs.
https://t.co/iGXFETTLzt
https://t.co/nZtNaEDuyM
https://t.co/7CyEuCtlQZ

[Open Power Electronics @opelexnet]

Debug the specs

"Much of the essence of building a program is in fact the debugging of the specification." ~Fred Brooks, American computer scientist and software engineer

Replace the word program with #PowerConverter, and the statement would still be correct.

[Open Power Electronics @opelexnet]

#CoolingTips

Just a little whiff of air goes a long way in cooling your power device! Notice the steep drop in #ThermalResistance of a #Heatsink at low air velocity.

Image source: Austin Hughes, "Electric Motors and Drives: Fundamentals, Types and Applications"

[Max Roser @MaxCRoser]

The latest data shows that 92.5% of all investments in new electricity generation capacity worldwide went into renewables.

[This is for 2024 and comes from IRENA.]

[Sam M @samerps]

continuing with my PEEC solver in Blender for inductors. Now I have a basic Python/Numba code that can calculate skin and proximity. You can see as the frequency increases the current shifts towards to the outer surface and also gets affected by adjacent turns
#b3d #geometrynodes #electronics #Technology #science

[Open Power Electronics @opelexnet]

"Average #efficiency of crystalline Silicon wafer-based [#solar #PV] modules is 22.7% in Q4-2024."

Ref: Fraunhofer #Photovoltaics Report, 31 Oct 2025
Available: https://t.co/At5WmzyOBX

[Open Power Electronics @opelexnet]

How to calculate the voltage undershoot (ΔVo) of an SMPS during a load step (ΔIo)?

ΔVo = ΔIo/ (2π fc Co)

where
fc = Cross-over frequency of the control loop
Co = Output capacitance

#SMPS #DCDC #DynamicLoading

[Open Power Electronics @opelexnet]

Perils of split ground planes: Excellent demo by @EMC_Guru Kenneth Wyatt using a near-field probe (NFP) and a spectrum analyser. #EMC
https://t.co/UWztdYji5a

[busbar @busbar31180]

Busbars with PEM stud used in new energy industry

#busbars
#EVs
#greenenergy
#electricpower
#tinplated

[Open Power Electronics @opelexnet]

Designing An #OpenSource Power #Inverter

Dennis Feucht of Innovatia Laboratories wrote this 25-part article series, published in the @How2Power Today newsletter, starting with part 1 in May 2021 and concluding with the final part in April 2025.

https://t.co/HRb7KxXAGm

[Lalit Patnaik @lalitpatnaik]

#Odisha is inviting proposals for a 500MWh standalone #battery energy storage system (#BESS) project.

https://t.co/E28Eu32DWJ

[Open Power Electronics @opelexnet]

#PWM is beautiful.

[GaN_based_converter @BasedGan63795]

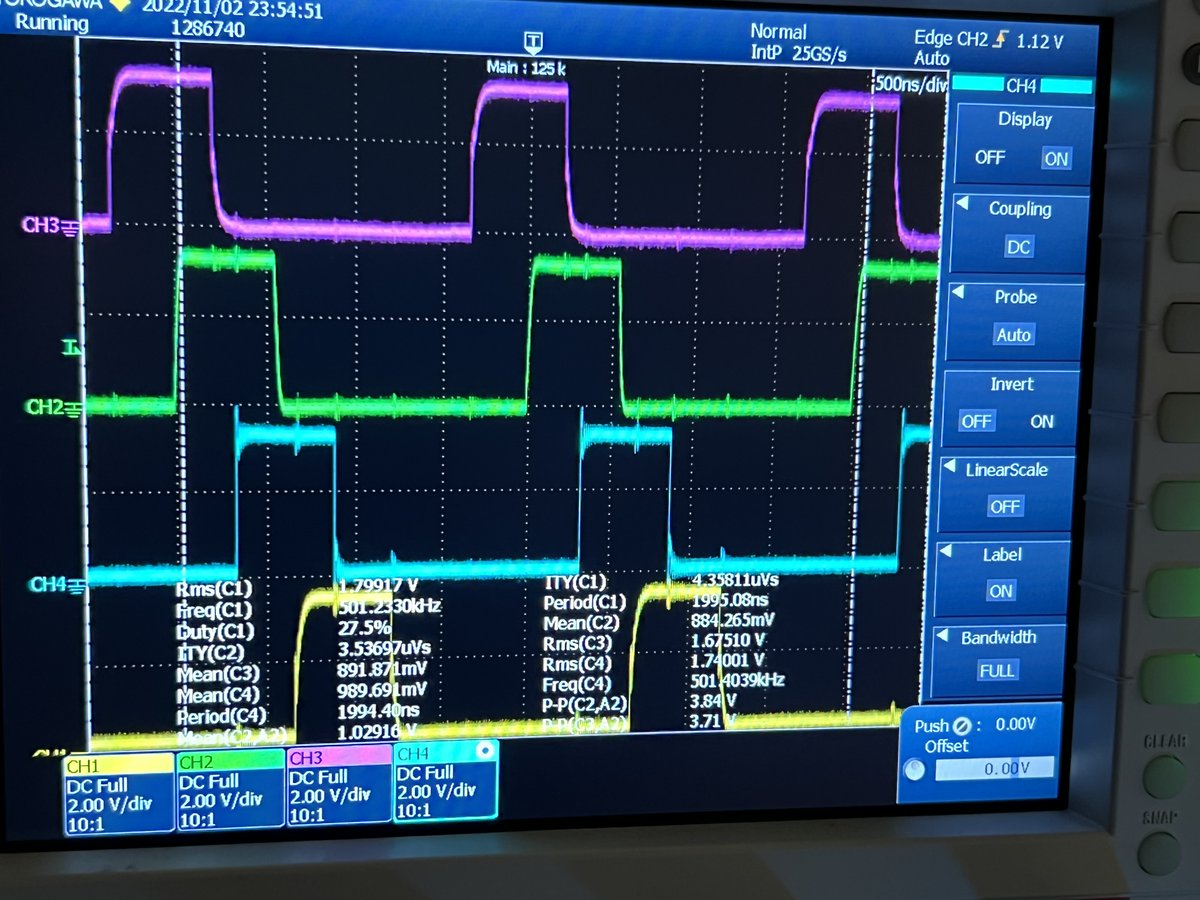

Interleaved GaN based DC-DC converter requires phase shifted signals. Modern microcontrollers allow to implement such PWM signals and introduce different control methods of current or voltage.
#GaN #DC_DCconverter #highswitchingfrequency

[World of Engineering @engineers_feed]

“One good test is worth a thousand expert opinions.” – Wernher von Braun
