unmaker64

[unmaker64 @unmaker64]

@Prof_gLX @FBXGargoyle If you're worried about 32 kHz compatibility, you can use L-Train's digital audio board. You'll be able to resample to 48, 96, or 192 kHz.

https://t.co/dTJsNMJiD7

[The Real Phoenix @TRP_RetroMods]

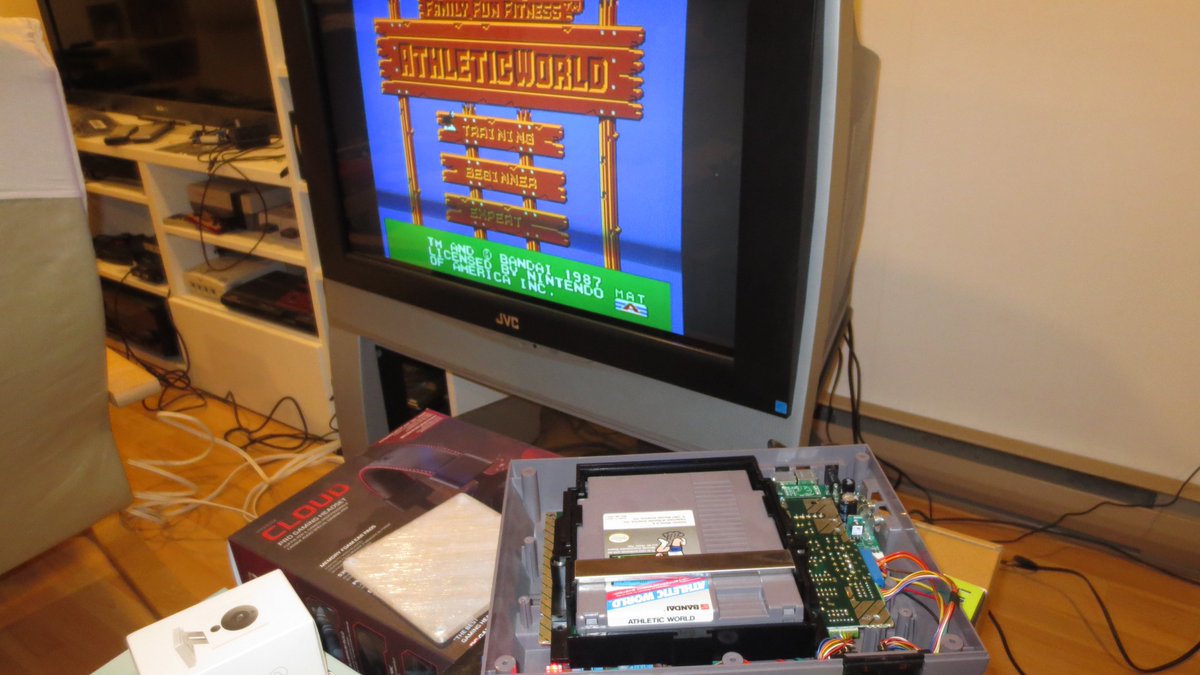

YAS B*TCH!!! #NESRGB #NESIO #NOCUT
You'll still have to cut a bit the barrel of your cable. Need to test the new audio circuit from @Tian_Feng44

[unmaker64 @unmaker64]

@Ace9921Tweets @retro_cables Nice work! I had noise issues with both the SNES and N64. The noise went away when I used 75ohm csync instead. Your approach is better though.

[Illuminado @TheIlluminado]

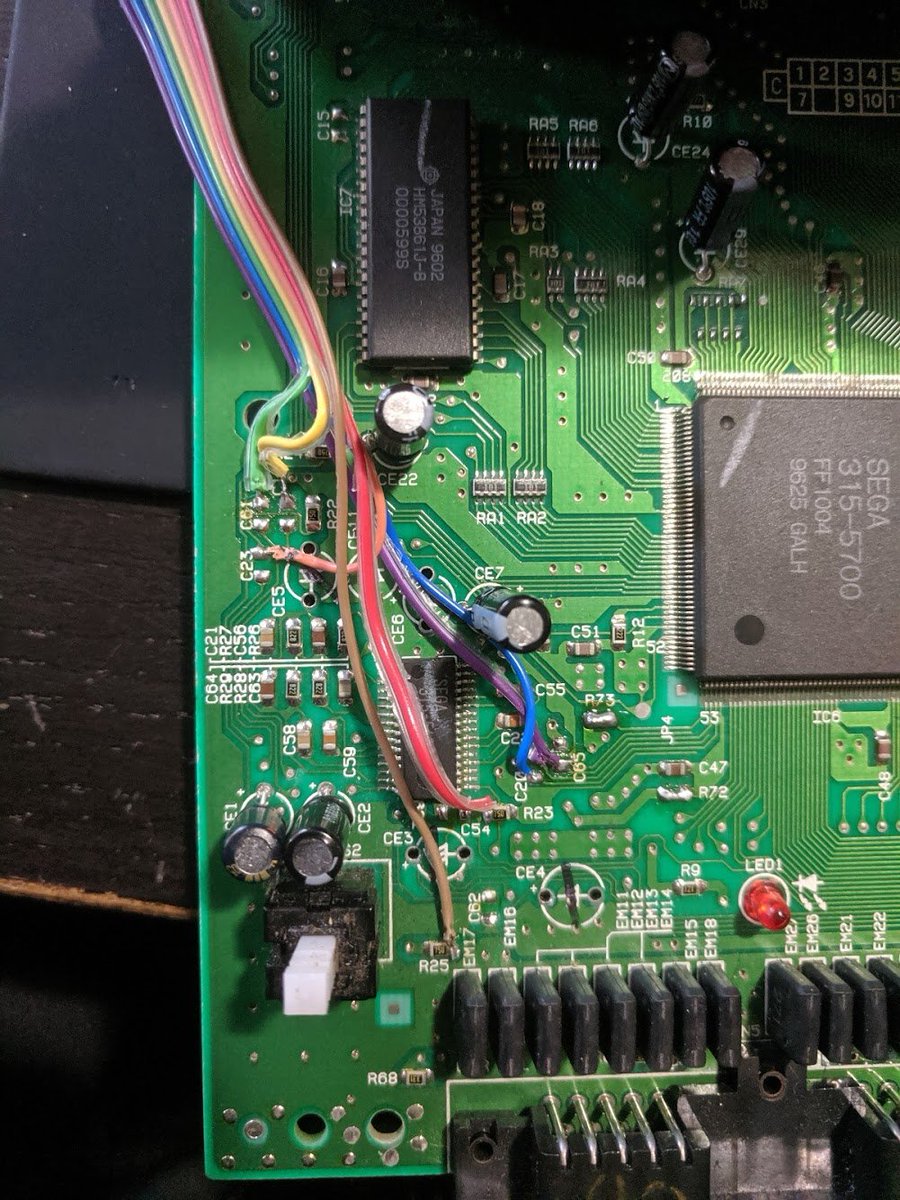

Finished up a Triple Bypass on this Genesis Model 2 VA3
Thanks for the help @unmaker64 and @Tian_Feng44

[unmaker64 @unmaker64]

Thank you @chriz2600 and @citrus3000psi for making this a reality! #PS1Digital

[unmaker64 @unmaker64]

@TheIlluminado save the ruined consoles with botched installs!

[unmaker64 @unmaker64]

@PoorStudentNick It looks like pin 32 on the second 322 is disconnected. Is there a reason for that?

[Tianfeng天峰 @Tian_Feng44]

So this was a simple test but I guess not that exciting. This was the difference of a 3db difference between console on psg as seen in this md Fourier plot. This is also the difference between 3vpv1 and v2 on this model. It looks like the va0-va1.8 consoles have 2.2k already.

[Tianfeng天峰 @Tian_Feng44]

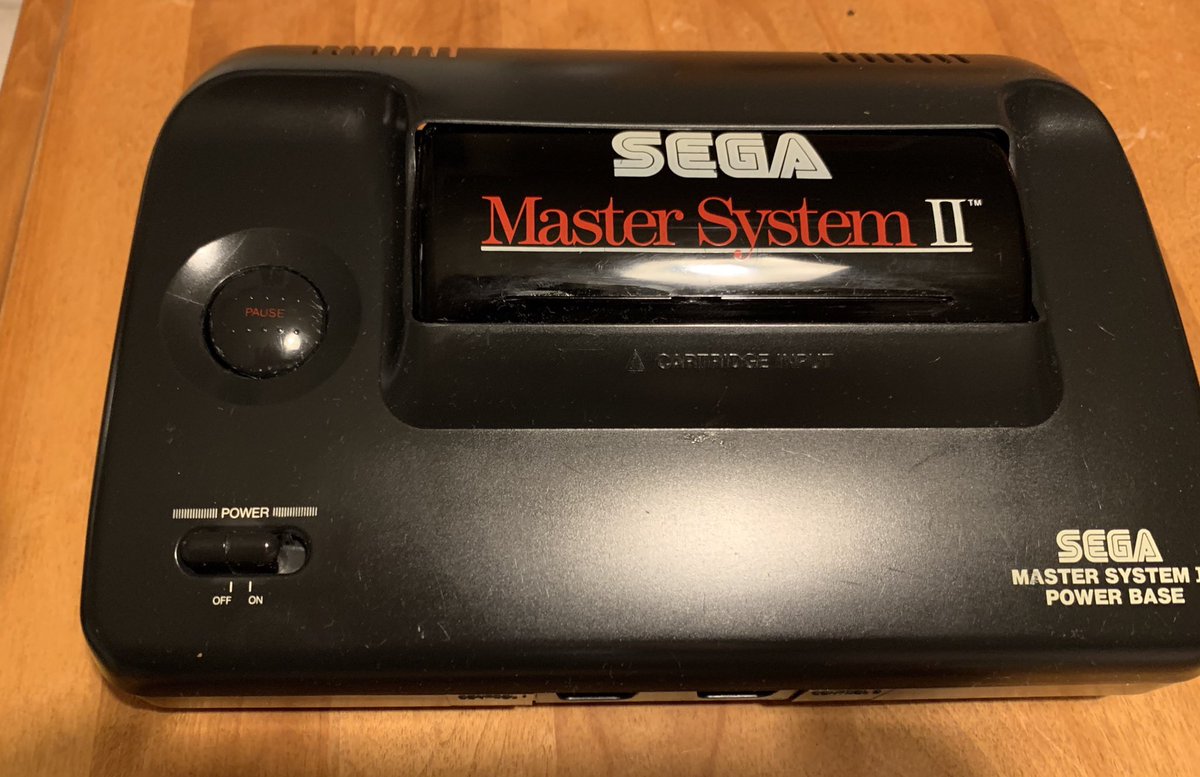

Put together a bypass for the SMS2. This did have much darker video than my other two so the values had to be changed. This measures at about .9vpp on the pins where the others are closer to 1.4vpp. You just use @HDRetrovision cables and flip that switch vs changing resistors.

[Jose A Cruz @Cruzlink2]

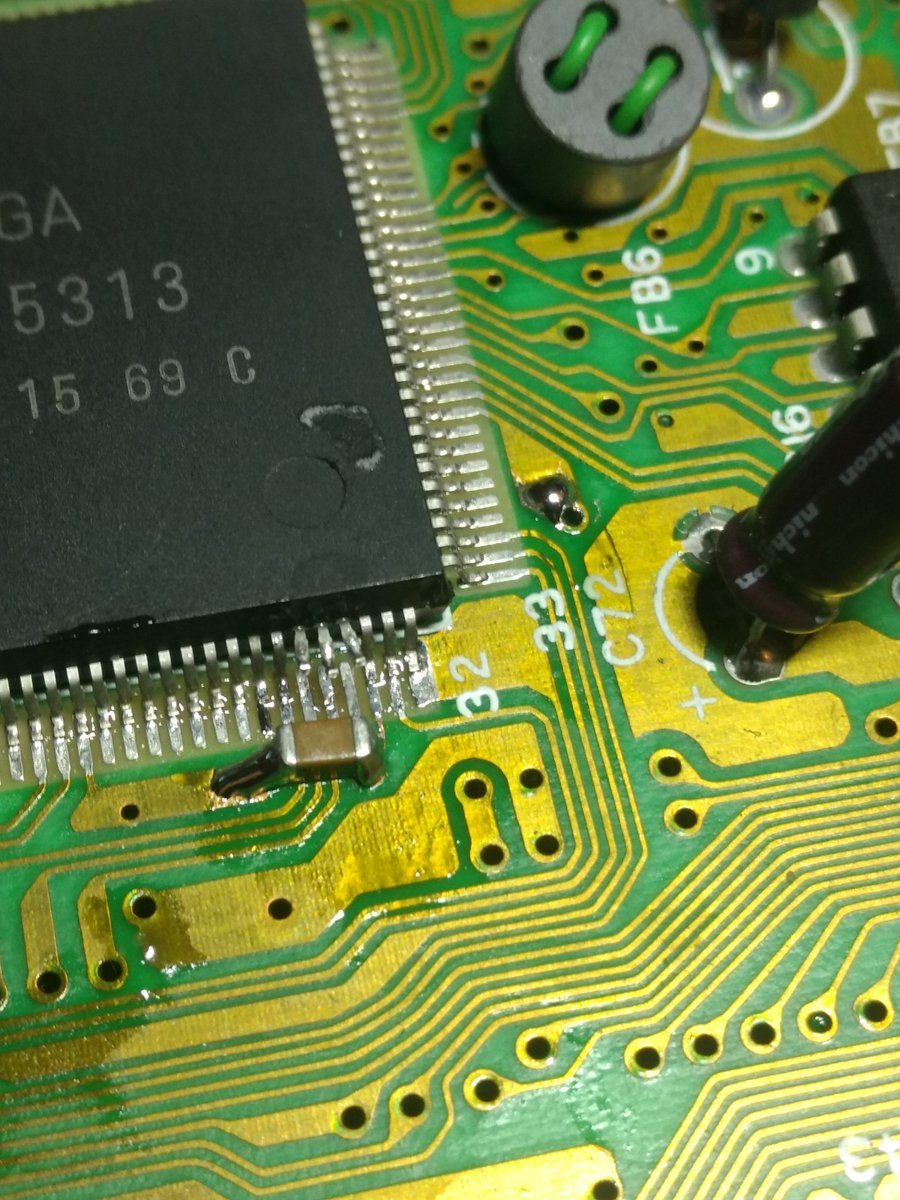

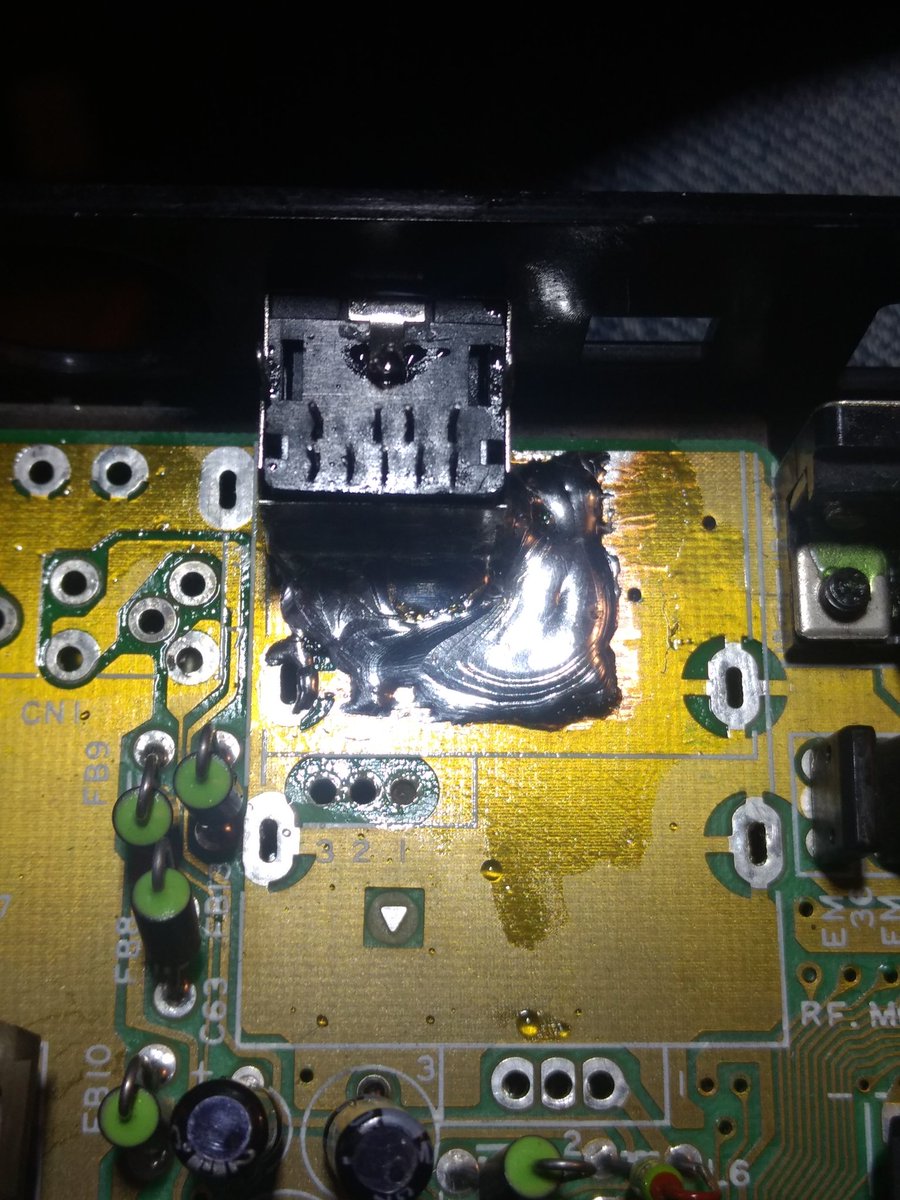

Genesis 1 VA2 triple bypass, recap, and @FBXGargoyle mega dual install for my good friend @TheVanessaira .

[Mugen_Ketsueki @Mugen_Ketsueki]

Streaming Now! Playing Random Games Today. https://t.co/jt7hxfXY5Y.

[iFixRetro @iFixRetro]

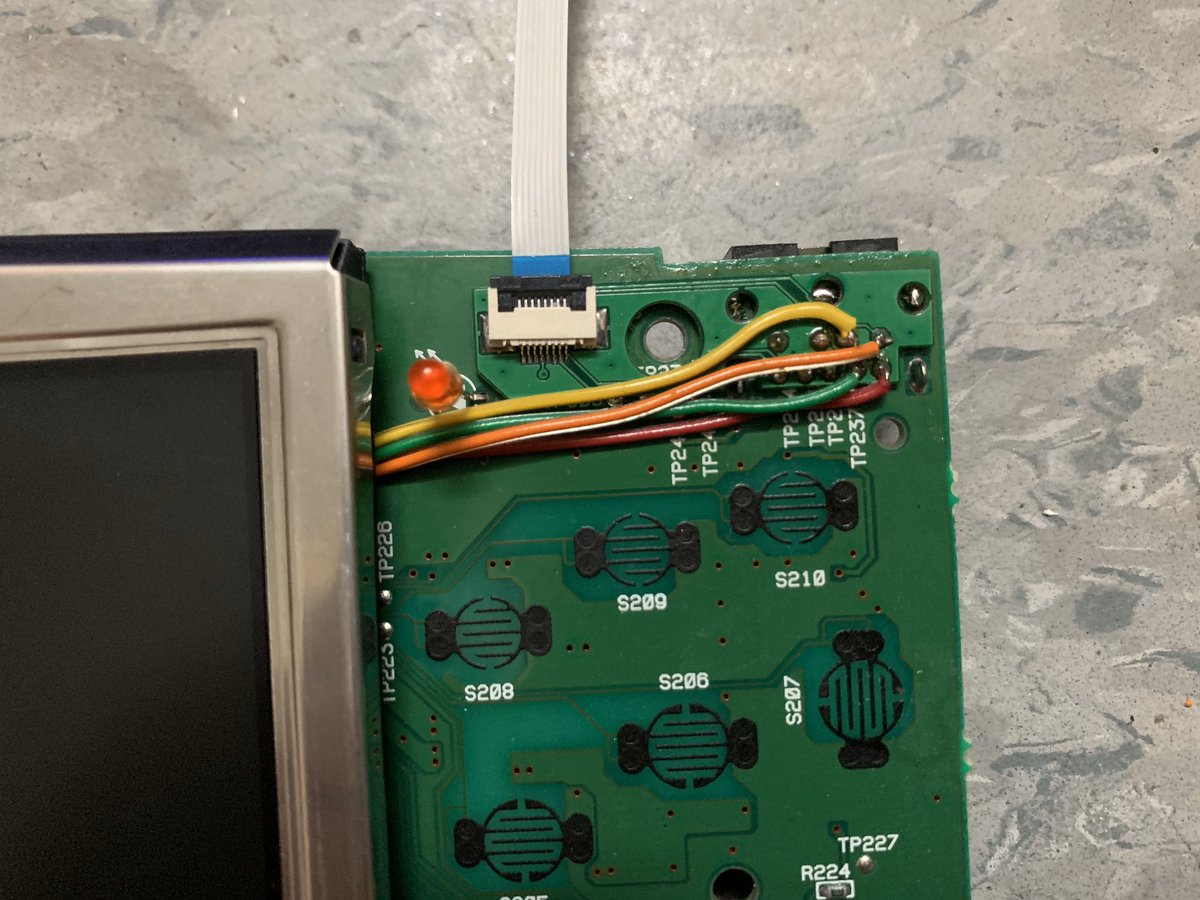

Installation pictures of @Mobiusstriptech Triple Bypass on the Sega Nomad. Kits are available at https://t.co/1fBySqlM20

[PowrUp Gaming @PowrUpGaming]

Sega Nomad Triple Bypass and recap installed for @gamespite. Console also has an LCD Screen upgrade not done by me. Major propz to @Mobiusstriptech for designing this easy to follow solution to upgrade your Nomads picture and sound. Who owned one of these back in the day?

[Jose A Cruz @Cruzlink2]

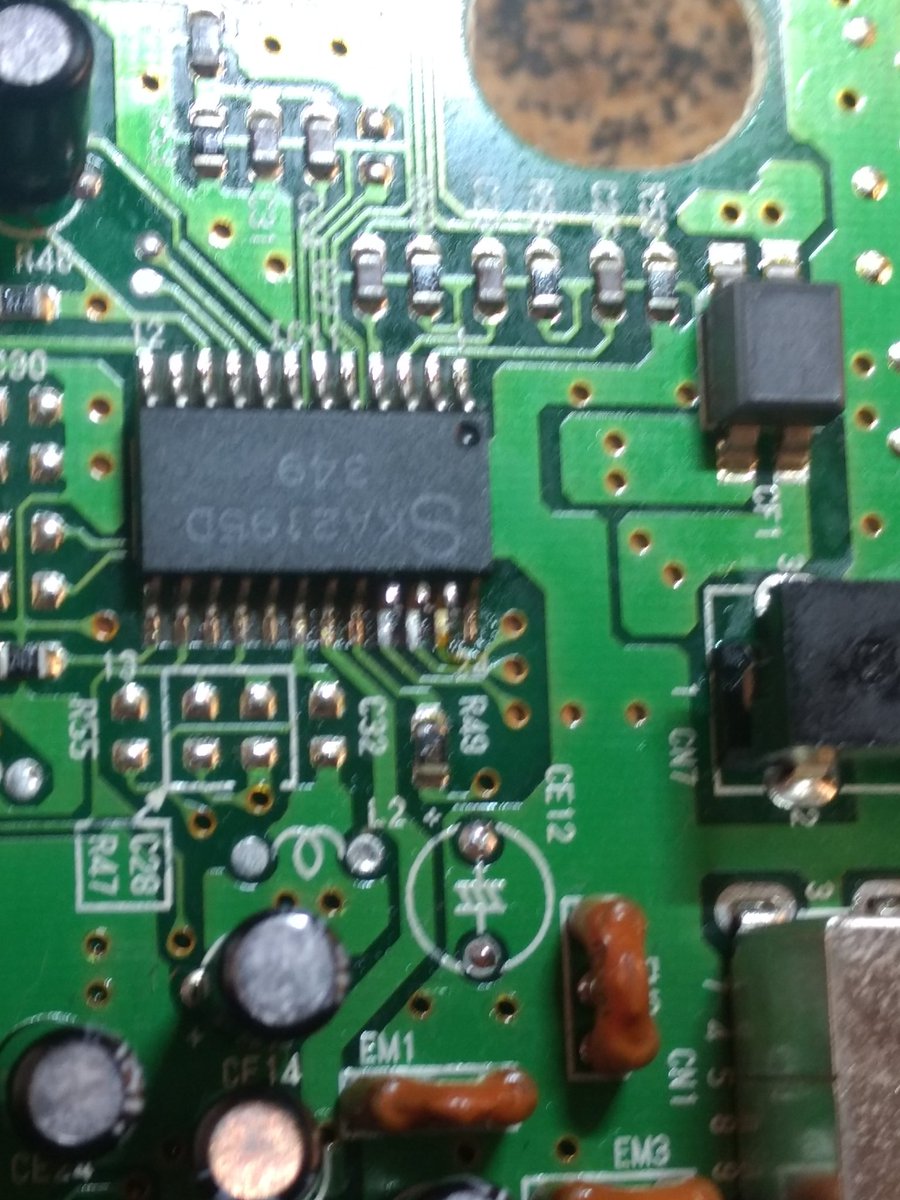

Genesis model 2 VA1.8 triple bypass v2 install for the homie @Judgmentt . Shot outs to @Tian_Feng44 for providing the VA1.8 model 2 that I had yet to come across.

[Tianfeng天峰 @Tian_Feng44]

Well I guess I might as well put the stock up. First round is up and ready to order. It will ship out next week. https://t.co/tEOqjVHnoV
@Mobiusstriptech @Cruzlink2 @RetroRGB

[unmaker64 @unmaker64]

@retrotink2 Is this compatible with 31 kHz? I'm looking to convert 31 kHz RGBHV into 31 kHz RGBs. This could possibly replace my Extron RGB 203 Rxi

[PowrUp Gaming @PowrUpGaming]

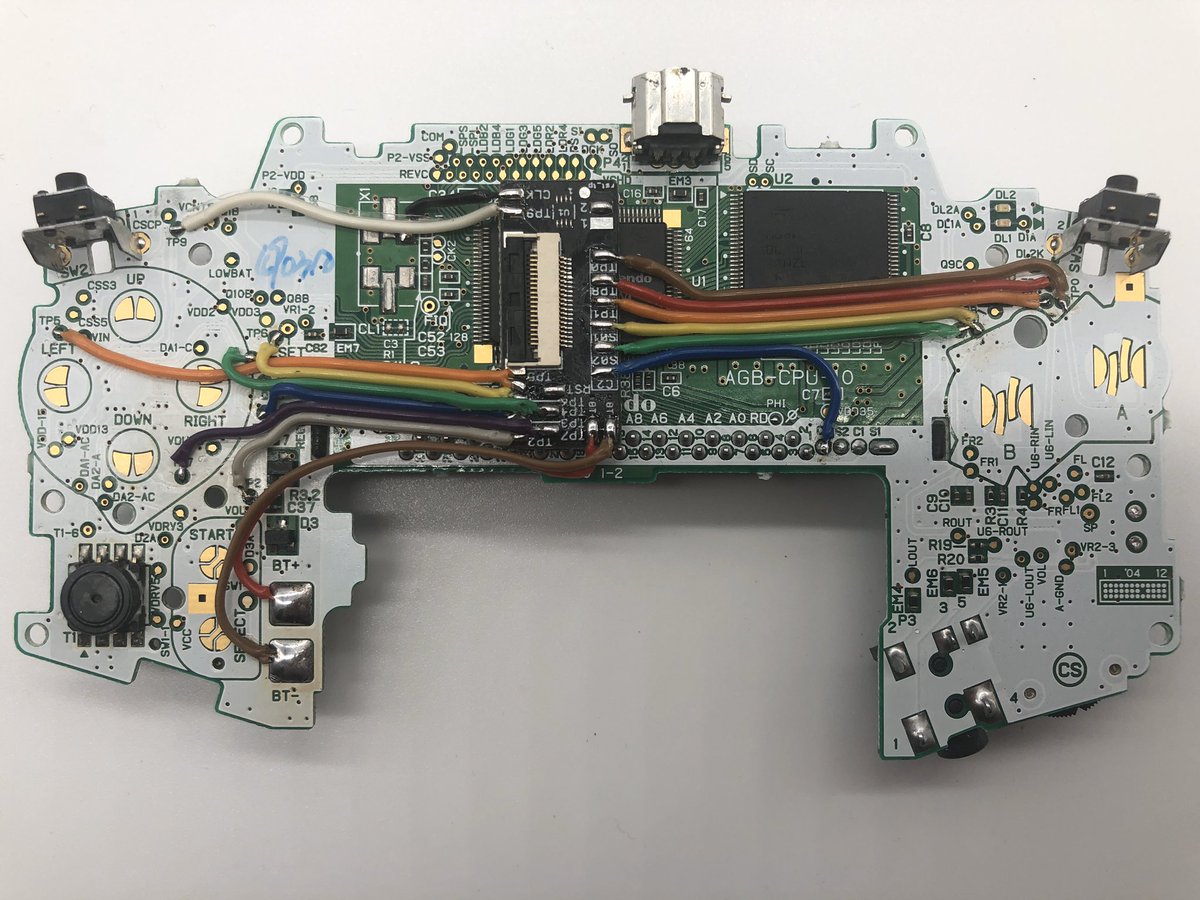

This Game Boy Advance Consolizer by @Woozle64 w/ new caps and Green Power LED is lit🔥. I drilled a hole and used the GBA light pipe thanks to @FBXGargoyle for the tip. Get your kits from @GameTechUS.
Want one? We still have PreModded consoles in stock on our site!
#GBA #GameBoy

[Brooklyn Video Games @bklynvideogames]

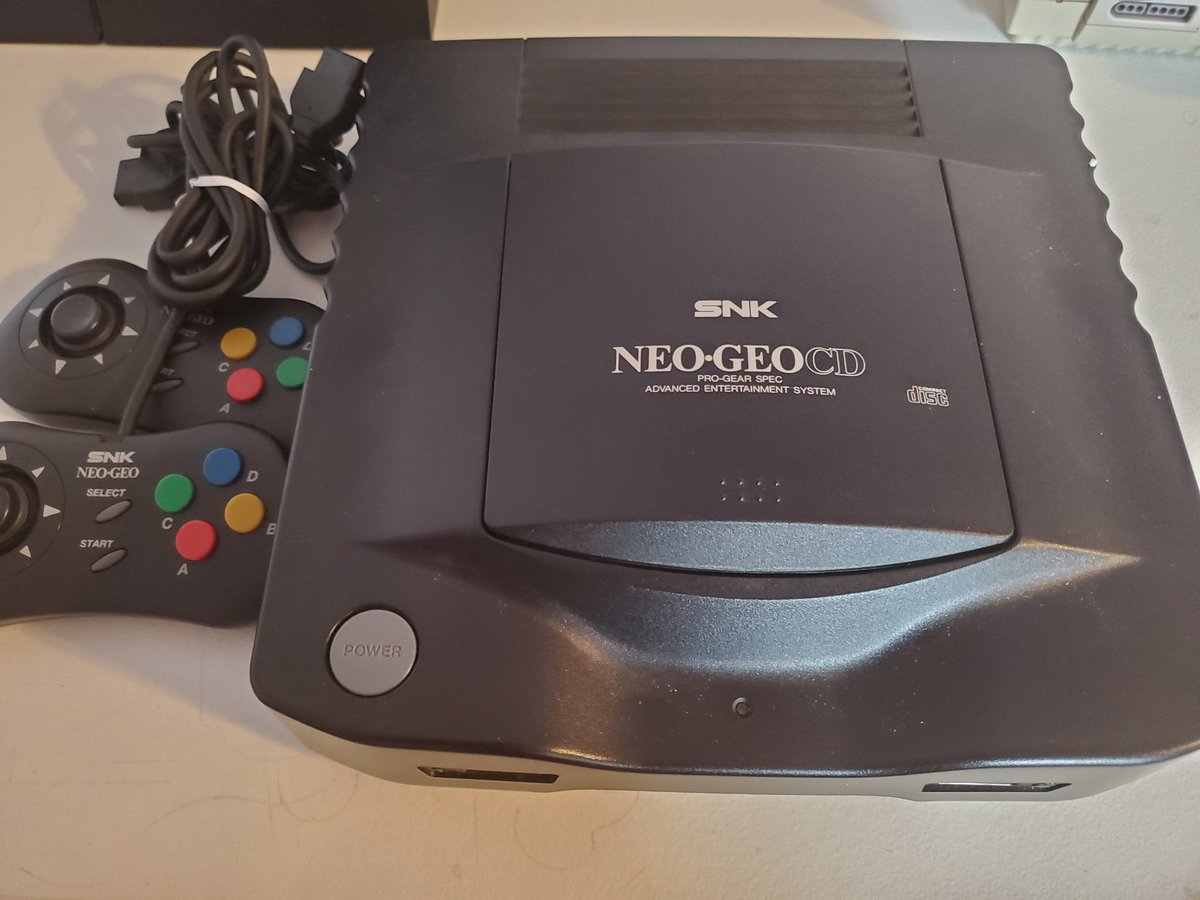

All prices are shipped. Available now. Afterward they will be available on our ebay store. https://t.co/fcHcL74FGu #neogeocd #gba #videogames #nyc #brooklynvideogames

[unmaker64 @unmaker64]

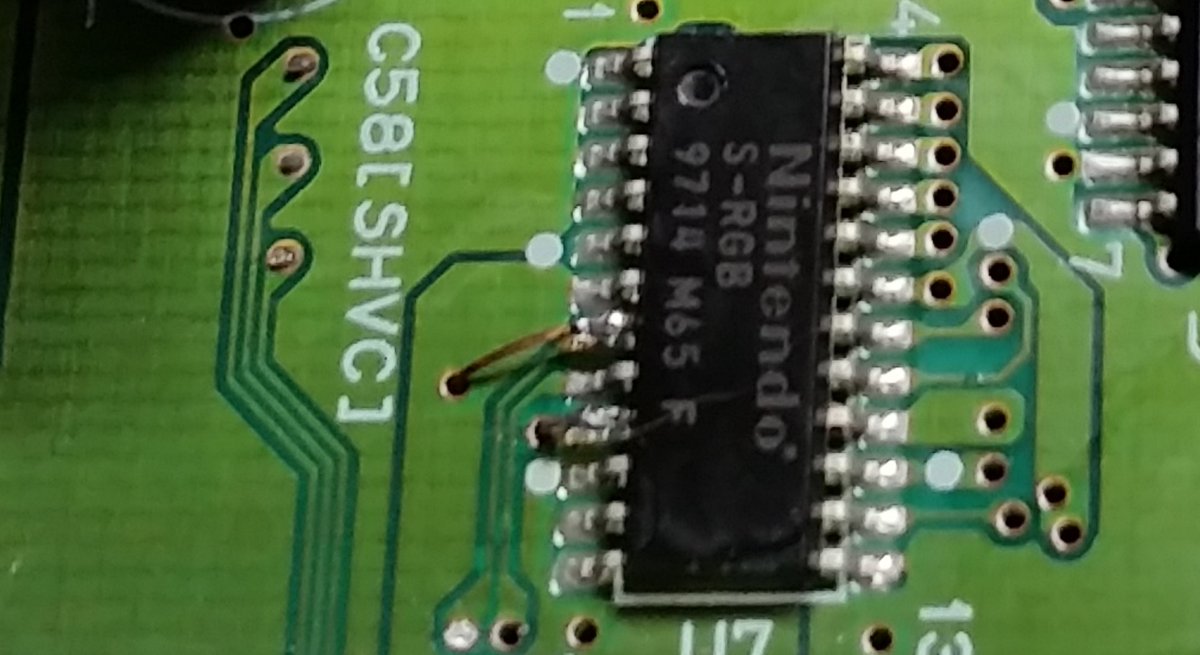

@jord4n313 @Cruzlink2 @borti4938 On the other side of those vias are what I need to connect to

[unmaker64 @unmaker64]

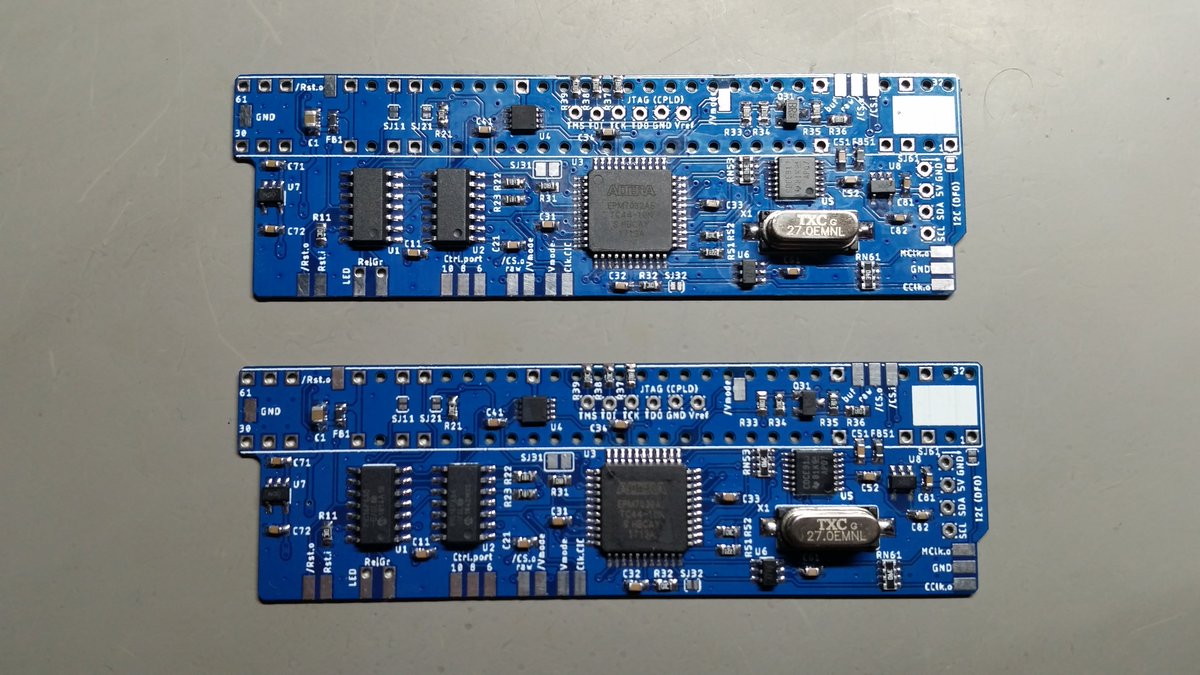

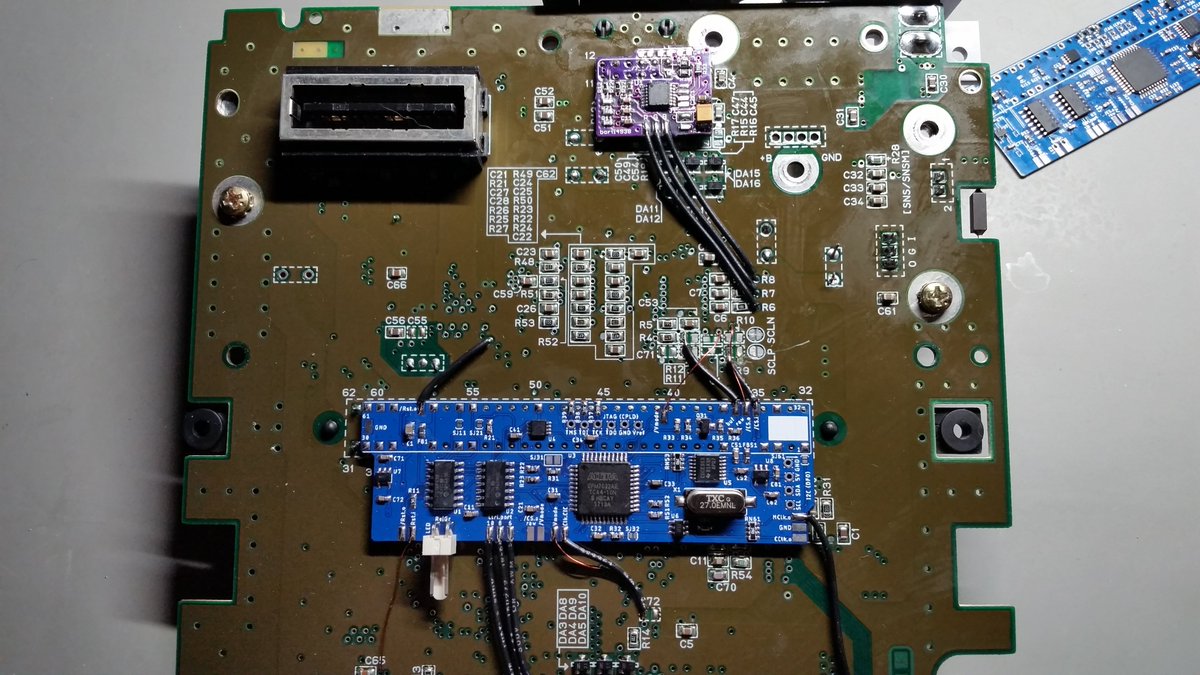

Installed @borti4938 's multi-region/dejitter and RGB bypass boards into a 1CHIP-03

[unmaker64 @unmaker64]

@jord4n313 @Cruzlink2 @borti4938 It's 30 awg magnet wire which has a thin layer of insulation. I chose this wire for those connections because it's thin enough to go through those vias, which makes the routing of the wires shorter and simpler.
