bibibibiii @liwenchi2

about 9 hours ago

@Ercanercoyeni 天才！

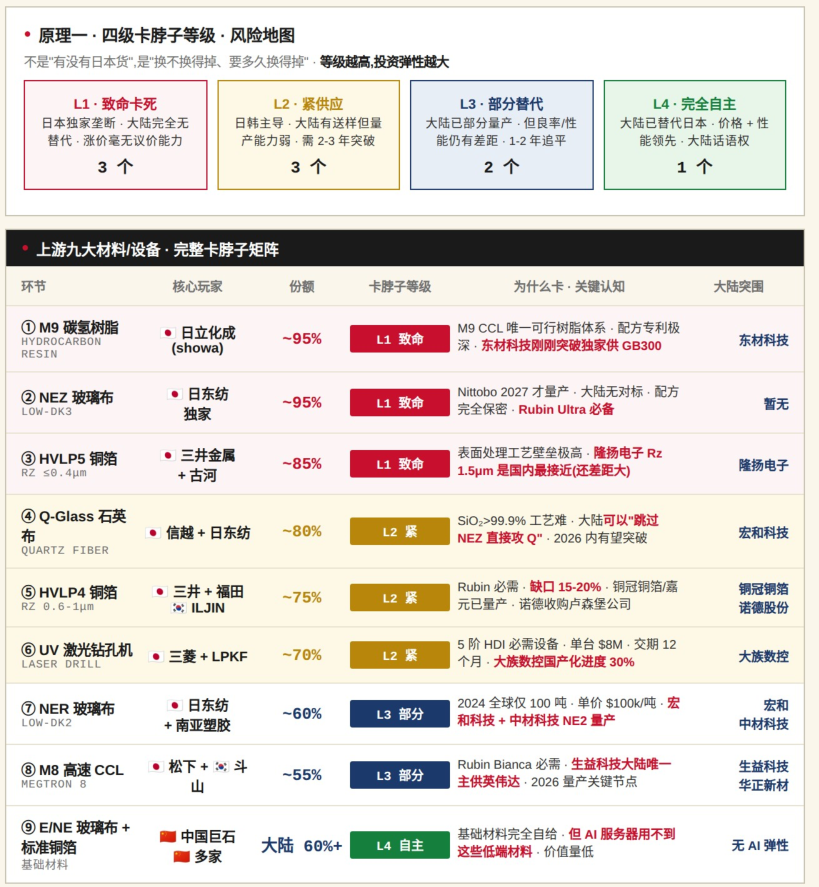

bibibibiii @liwenchi2

about 2 months ago

@WwQQ129146 铜冠铜箔，中钨高新

227

liwenchi2 retweeted

投研荟

@freearkshaw

about 2 months ago

摩根士丹利-亚太大中华区半导体：台积电前瞻与CoWoS更新——CPU、GPU、ASIC、光学、中国AI算力-TSMC preview and CoWoS update–CPU,GPU,ASIC,Optical,China AI Compute-20260706【58页】_sx68 报告核心投资结论第一主线：台��电，独家掌控 2nm/3nm+CoWoS 先进封装，涨价 + 扩产双驱动，AI 营收持续高增；第二主线：先进封装配��：CoWoS/SoIC 产能扩张带动 ASMPT、测试耗材（鸿准、MPI、WinWay）；第三主线：AI 芯片全链：英伟达产业链 + 云厂商自研 ASIC、国产 AI GPU；第四主线：存储原厂：HBM/NOR/DDR 持续紧缺，周期上行；中长期看点：Agentic 智能体 CPU、CPO 光电共封装、SiC 碳化硅功率器件。 https://t.co/6IgaMGOHCU

14K

liwenchi2 retweeted

投研荟

@freearkshaw

about 2 months ago

当下时点的液冷观点20260706 会议纪要 1.液冷产业正迎来重大产业变化。今年4月以来，液冷行业出现两个标志性事件：①英伟达Rubin平台将采用100%全液冷、45°C温水散热方案；②谷歌TPU V7和V8均已采用100%全液冷设计。这些变化标志着液冷正式��为AI算力的标配，产业进入放量元年。 2.市场对液冷存在三大误解：①认为液冷是配角——实际上液冷是核心主角，NV卡多次延后正是因为液冷散热卡脖子；②未认识到液冷是通胀环节和终局环节——未来无法回到风冷时代，且放量斜率��快，明年即达千亿级市场；③认为液冷格局分散——虽总体格局分散，但在CSP领域竞争格局良好，台资、日资、美资份额正被国内优质企业逐步替代。 3.投资节奏与核心标的：团队今年4月率先提示泵环节（CDU心脏）的投资机会，精准判断泵将在Q2提前采购，飞龙股份、大元泵业已取得不错涨幅。当前重点关注液冷五朵金花：英维克、申菱环境、飞龙股份、大元泵业、银轮股份。其中英维克处于业绩兑现前的“盛红”阶段，Q3业绩兑现的可能性较大，一旦兑现空间可观。 4.核心零部件竞争格局优：CDU中的泵和板式换热器环节技术壁垒高、竞争格局好（泵仅少数几家、板换约4家），毛利率和净利率可观，值得持续关注。 5.三季度关注度将持续提升：Rubin和TPU出货将带来大量市场讨论，同时是验证国内企业海外订单突破的关键期，若有业绩兑现，有望引发大行情。

13K

liwenchi2 retweeted

Macro_Lin

@LinQingV

about 2 months ago

I've been discussing Huawei's τ scaling (temporal scaling) with people recently, and noticed the conversation tends to stay at the surface level without reaching its substance — likely because many participants don't come from an EE background and aren't familiar with the classical meaning of τ in circuit theory. The very first time constant you learn in a circuits course is τ = RC: the resistance of a wire multiplied by its capacitance gives the order of magnitude of the time a signal needs to traverse that wire. The longer the wire, the greater the resistance and capacitance, and the slower the signal. Within this framework, the past sixty years of geometric scaling are reinterpreted as one particular implementation of temporal scaling. Transistors were shrunk to shorten switching delay; circuits were packed more tightly to shorten metal interconnects and reduce signal propagation delay. Geometric scaling was only ever the means — compressing delay was always the end. Huawei's thesis is that once geometric scaling stalls, you find other ways to keep compressing delay. As it happens, He Tingbo's τ scaling paper released its v2 a couple of days ago, expanding from 16 to 23 pages. I compared the two versions: the data and conclusions are unchanged. The additions are essentially responses to several points of criticism the industry raised about v1. Three are worth discussing. The most important addition is the test evidence now backing the previously bare claim of "41% energy efficiency improvement." In v1, that number had no baseline and no test conditions — the most obvious target for scrutiny. V2 supplies a full comparison table. The baseline is the 2025 Kirin 9030 Pro. Both chips use the same mature process node; the key difference is that the baseline uses a conventional planar design, while Kirin 2026 folds critical paths across two vertically bonded wafers. Folding shortens interconnects and reduces interconnect delay. The timing margin freed up on the critical path translates directly into a higher maximum clock frequency: 3.1 GHz at 1.1 V supply, 13% above the baseline. The "41% energy efficiency improvement" comes from a separate operating point specifically configured for an iso-performance comparison: voltage scaled down to 0.9 V, frequency scaled down to 2.5 GHz, with measured power at 25°C coming in at 0.59× the baseline. A back-of-the-envelope estimate checks out: dynamic power scales roughly with the square of supply voltage, so an 18% voltage reduction contributes about one-third of the power drop from the square term alone. Factor in the 9% frequency reduction and the interconnect capacitance eliminated by folding, and you land right around 0.59×. So the precise meaning of "41% energy efficiency improvement" is power reduction at iso-performance. In essence, the timing margin gained from folding is traded for lower power consumption; the efficiency gain comes from logic folding. As a side note, v2 also reports that power density after dual-layer stacking is actually 5.6% lower than the baseline. The second addition addresses the question peers are most likely to ask: 3D stacking has been around for years — AMD's 3D V-Cache and Intel's Foveros are both in volume production — so what's new about LogicFolding? To understand the paper's answer, you first need to know how two layers of silicon communicate. They rely on inter-layer bond pads, which function like elevators connecting the upper and lower floors. In prior production 3D stacking, bond pad pitch ranges from 9 μm to tens of micrometers, yielding roughly ten thousand connections per square millimeter — enough to attach a bus to an entire cache block. So the established design approach has been to move complete functional blocks wholesale onto the upper tier. AMD, for example, stacks an entire cache die on top of a processor die; the two tiers are designed independently and connected through an interface. But inside a chip, a single square millimeter contains hundreds of millions of transistors. If you want adjacent logic gates to sit on different tiers — one on top, one on the bottom — that connection density falls far short. Kirin 2026 brings bond pad pitch down to 1.5 μm, yielding 440,000 connections per square millimeter. That approaches the density of the top-level metal wiring inside a chip. Routing a signal across tiers costs roughly the same as routing it across metal layers within a single die. At this point, the two silicon layers merge into a single entity in the circuit sense. EDA tools can decide at the individual logic-gate level which gate goes on which tier, handing the problem to algorithms for global optimization — a completely different degree of design freedom from what came before. The paper also explains why they didn't take the more aggressive route of fabricating a second device layer directly on top of the first. That approach offers the finest inter-layer connectivity, but manufacturing the second layer requires high temperatures that damage the already-completed first layer. It isn't production-viable today. The third addition is thermal management. Vertical stacking significantly increases thermal density per unit area, and the lower die's heat dissipation path is blocked by the upper die. This is the first objection anyone raises about 3D stacking, and v1 did not address it in depth. V2 openly acknowledges that thermal management remains a key challenge for the LogicFolding architecture. The countermeasure is thermally-aware partitioning and floorplanning: during the design phase, high-power circuits are excluded from folding candidates, and the floorplan avoids placing high-power blocks in vertical adjacency to prevent hotspot superposition. Whether this strategy is a set of manually imposed engineering constraints or has already been codified into an automated flow within their internal EDA tools, the paper does not say. It only identifies a multi-physics tool chain as the single most important investment for the next decade. Combined with the measured data showing power density 5.6% below the baseline at the iso-performance operating point, the thermal concern has at least received a direct response. That said, this approach is fundamentally avoidance-based. As stacking grows to three or four tiers, the design space eligible for folding will be progressively squeezed by thermal constraints — a boundary the paper does not explore. Additionally, v2 includes a cross-sectional micrograph of the bond interface between the two wafers and explicitly states that wafer-on-wafer hybrid bonding is used. This spec is worth benchmarking against the industry: 1.5 μm pitch wafer-to-wafer hybrid bonding on a production logic chip has no precedent. TSMC's SoIC is currently in production at 6 μm pitch; Intel's Foveros Direct is at 9 μm. Impressive, to say the least. After comparing the two versions, I'm left with two questions. One is about equipment: who supplied the bonding tools capable of this spec? The paper says only that it is the result of years of process development across a multi-vendor ecosystem. The other is about EDA: designing two wafers as a single chip is beyond what any commercially available EDA tool can do today. The paper acknowledges this, stating only that methodological details will be "published within months." Yet the frequency table shows that the 2027-generation Kirin at 3.39 GHz is already tagged as having physical silicon, meaning this toolchain was up and running inside Huawei long ago — and has been validated on at least two product generations. My personal guess is that this EDA capability was built in-house by Huawei. If anyone has insight on this, I'd welcome the discussion.

LinQingV's tweet photo. I've been discussing Huawei's τ scaling (temporal scaling) with people recently, and noticed the conversation tends to stay at the surface level without reaching its substance — likely because many participants don't come from an EE background and aren't familiar with the classical meaning of τ in circuit theory. The very first time constant you learn in a circuits course is τ = RC: the resistance of a wire multiplied by its capacitance gives the order of magnitude of the time a signal needs to traverse that wire. The longer the wire, the greater the resistance and capacitance, and the slower the signal. Within this framework, the past sixty years of geometric scaling are reinterpreted as one particular implementation of temporal scaling. Transistors were shrunk to shorten switching delay; circuits were packed more tightly to shorten metal interconnects and reduce signal propagation delay. Geometric scaling was only ever the means — compressing delay was always the end. Huawei's thesis is that once geometric scaling stalls, you find other ways to keep compressing delay.

As it happens, He Tingbo's τ scaling paper released its v2 a couple of days ago, expanding from 16 to 23 pages. I compared the two versions: the data and conclusions are unchanged. The additions are essentially responses to several points of criticism the industry raised about v1. Three are worth discussing.

The most important addition is the test evidence now backing the previously bare claim of "41% energy efficiency improvement." In v1, that number had no baseline and no test conditions — the most obvious target for scrutiny. V2 supplies a full comparison table. The baseline is the 2025 Kirin 9030 Pro. Both chips use the same mature process node; the key difference is that the baseline uses a conventional planar design, while Kirin 2026 folds critical paths across two vertically bonded wafers. Folding shortens interconnects and reduces interconnect delay. The timing margin freed up on the critical path translates directly into a higher maximum clock frequency: 3.1 GHz at 1.1 V supply, 13% above the baseline. The "41% energy efficiency improvement" comes from a separate operating point specifically configured for an iso-performance comparison: voltage scaled down to 0.9 V, frequency scaled down to 2.5 GHz, with measured power at 25°C coming in at 0.59× the baseline. A back-of-the-envelope estimate checks out: dynamic power scales roughly with the square of supply voltage, so an 18% voltage reduction contributes about one-third of the power drop from the square term alone. Factor in the 9% frequency reduction and the interconnect capacitance eliminated by folding, and you land right around 0.59×. So the precise meaning of "41% energy efficiency improvement" is power reduction at iso-performance. In essence, the timing margin gained from folding is traded for lower power consumption; the efficiency gain comes from logic folding. As a side note, v2 also reports that power density after dual-layer stacking is actually 5.6% lower than the baseline.

The second addition addresses the question peers are most likely to ask: 3D stacking has been around for years — AMD's 3D V-Cache and Intel's Foveros are both in volume production — so what's new about LogicFolding? To understand the paper's answer, you first need to know how two layers of silicon communicate. They rely on inter-layer bond pads, which function like elevators connecting the upper and lower floors. In prior production 3D stacking, bond pad pitch ranges from 9 μm to tens of micrometers, yielding roughly ten thousand connections per square millimeter — enough to attach a bus to an entire cache block. So the established design approach has been to move complete functional blocks wholesale onto the upper tier. AMD, for example, stacks an entire cache die on top of a processor die; the two tiers are designed independently and connected through an interface. But inside a chip, a single square millimeter contains hundreds of millions of transistors. If you want adjacent logic gates to sit on different tiers — one on top, one on the bottom — that connection density falls far short. Kirin 2026 brings bond pad pitch down to 1.5 μm, yielding 440,000 connections per square millimeter. That approaches the density of the top-level metal wiring inside a chip. Routing a signal across tiers costs roughly the same as routing it across metal layers within a single die. At this point, the two silicon layers merge into a single entity in the circuit sense. EDA tools can decide at the individual logic-gate level which gate goes on which tier, handing the problem to algorithms for global optimization — a completely different degree of design freedom from what came before. The paper also explains why they didn't take the more aggressive route of fabricating a second device layer directly on top of the first. That approach offers the finest inter-layer connectivity, but manufacturing the second layer requires high temperatures that damage the already-completed first layer. It isn't production-viable today.

The third addition is thermal management. Vertical stacking significantly increases thermal density per unit area, and the lower die's heat dissipation path is blocked by the upper die. This is the first objection anyone raises about 3D stacking, and v1 did not address it in depth. V2 openly acknowledges that thermal management remains a key challenge for the LogicFolding architecture. The countermeasure is thermally-aware partitioning and floorplanning: during the design phase, high-power circuits are excluded from folding candidates, and the floorplan avoids placing high-power blocks in vertical adjacency to prevent hotspot superposition. Whether this strategy is a set of manually imposed engineering constraints or has already been codified into an automated flow within their internal EDA tools, the paper does not say. It only identifies a multi-physics tool chain as the single most important investment for the next decade. Combined with the measured data showing power density 5.6% below the baseline at the iso-performance operating point, the thermal concern has at least received a direct response. That said, this approach is fundamentally avoidance-based. As stacking grows to three or four tiers, the design space eligible for folding will be progressively squeezed by thermal constraints — a boundary the paper does not explore.

Additionally, v2 includes a cross-sectional micrograph of the bond interface between the two wafers and explicitly states that wafer-on-wafer hybrid bonding is used. This spec is worth benchmarking against the industry: 1.5 μm pitch wafer-to-wafer hybrid bonding on a production logic chip has no precedent. TSMC's SoIC is currently in production at 6 μm pitch; Intel's Foveros Direct is at 9 μm. Impressive, to say the least.

After comparing the two versions, I'm left with two questions. One is about equipment: who supplied the bonding tools capable of this spec? The paper says only that it is the result of years of process development across a multi-vendor ecosystem. The other is about EDA: designing two wafers as a single chip is beyond what any commercially available EDA tool can do today. The paper acknowledges this, stating only that methodological details will be "published within months." Yet the frequency table shows that the 2027-generation Kirin at 3.39 GHz is already tagged as having physical silicon, meaning this toolchain was up and running inside Huawei long ago — and has been validated on at least two product generations. My personal guess is that this EDA capability was built in-house by Huawei. If anyone has insight on this, I'd welcome the discussion.
